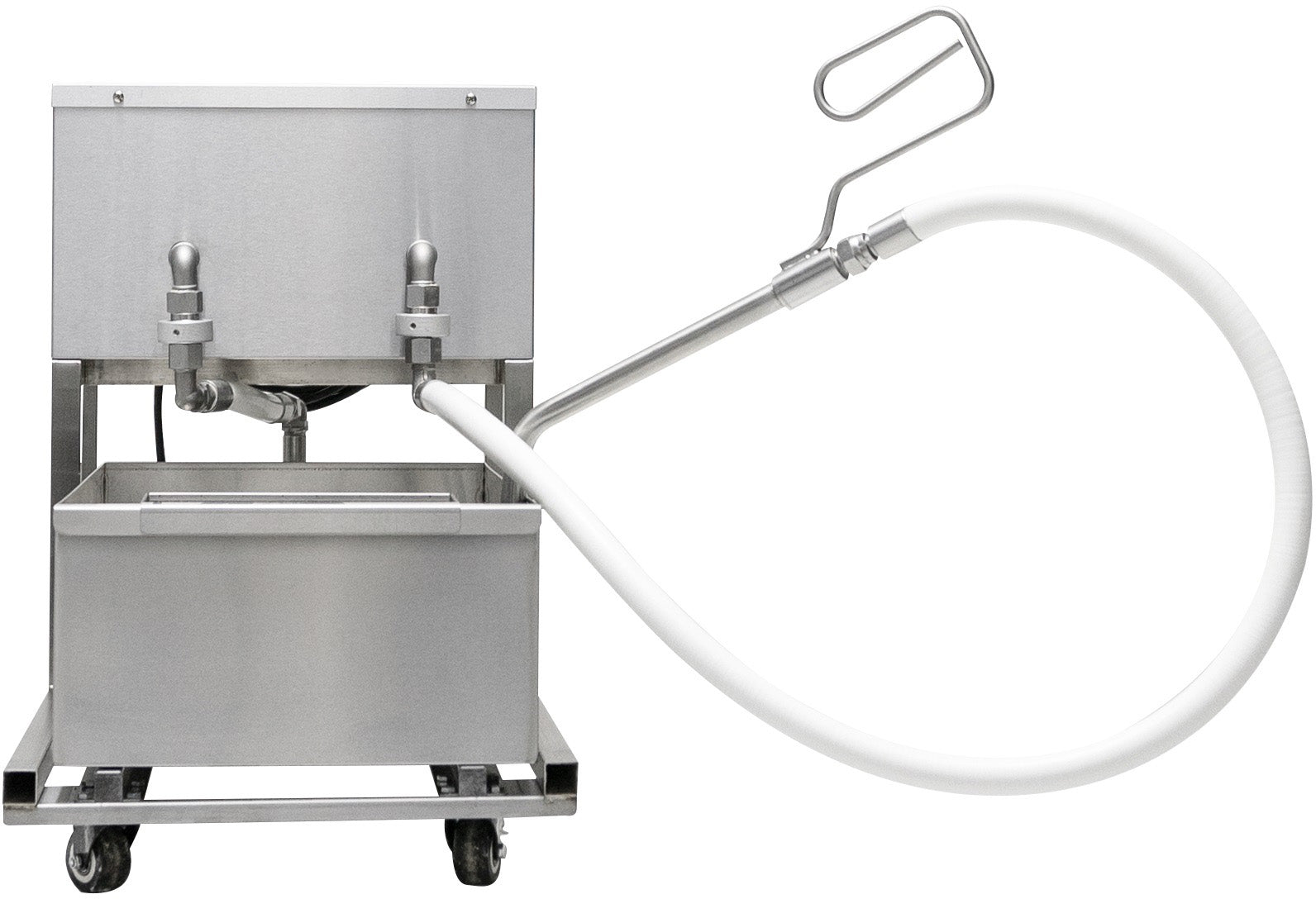

How to Set Up the Atosa Fryer Oil Filtration System

Setting up the 50 pound or 80 pound Atosa fryer oil filtration system is a crucial step in maintaining the efficiency and longevity of your fryer. This guide will walk you through the detailed process, ensuring you achieve the best results from your equipment. Proper setup not only enhances the performance of your fryer but also contributes to the quality of the food prepared. Follow these steps to ensure your system is set up correctly.

Step 1: Placing the Filter Paper Support Rack

The first step in setting up your Atosa fryer oil filtration system is to place the filter paper support rack into the unit. This rack serves as the foundation for the filtration process, ensuring the filter paper is properly aligned and supported during operation.

Begin by aligning the center hole on the filter paper support rack with the rectangular metal piece located at the bottom of the unit. This alignment is crucial for maintaining stability and ensuring that the filtration process is unobstructed. Once aligned, gently place the rack into the unit, making sure it is seated securely.

Step 2: Inserting the Filter Paper

Next, insert the filter paper on top of the filter paper support rack. The filter paper acts as the primary medium for capturing impurities and debris from the oil, so its proper placement is essential for effective filtration.

Carefully lay the filter paper onto the support rack, ensuring that it covers the entire surface area. Avoid folding or crumpling the paper, as this can create gaps that allow debris to pass through. Once the filter paper is in place, check for any misalignment and adjust as necessary.

Step 3: Installing the Filter Paper Weight

With the filter paper in place, it is time to install the filter paper weight. This weight is crucial as it holds the filter paper securely in position, preventing it from shifting during the filtration process.

Insert the filter paper weight into the unit, ensuring it sits firmly on top of the filter paper. Push it down gently but firmly to ensure it is not hitting the filter paper support rack. Proper installation of the weight is essential to maintain the integrity of the filter paper and the efficiency of the filtration process.

Step 4: Connecting the Oil Return Hose

After securing the filter paper weight, proceed to connect the oil return hose to the oil return hose chuck. This connection is vital for the proper circulation of oil within the fryer system, enabling the filtered oil to return seamlessly to the fryer.

Ensure the connection is tight and secure to prevent any leaks or disconnections during operation. A proper connection guarantees that the filtration system operates smoothly and efficiently, contributing to the overall performance of the fryer.

Step 5: Hooking the Large Debris Catch Tray

The final step in setting up the FP fryer oil filtration system is to hook the large debris catch tray in the front of the unit. This tray is designed to catch larger pieces of debris that may not be captured by the filter paper, providing an additional layer of filtration.

Position the tray in the designated slot at the front of the unit, ensuring it is securely hooked. This additional safeguard helps maintain the cleanliness of the oil, enhancing the quality of the food prepared and prolonging the life of the oil.

Conclusion

Congratulations! You have successfully set up your Atosa fryer oil filtration system. By following these steps, you ensure that your fryer operates at peak efficiency, delivering high-quality, delicious food every time. Regular maintenance and correct setup of your filtration system are key to maximizing the performance and lifespan of your fryer.

If you have any further questions or need additional assistance, feel free to consult the user manual or contact the manufacturer for support. Thank you for taking the time to learn how to set up your FP fryer oil filtration system, and happy frying!
