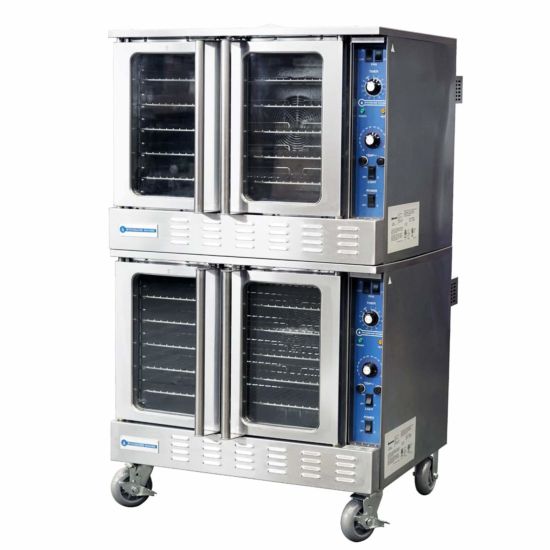

Standard Range SR-COE-DBL-208 Electric Convection Oven, Double Deck, 20 kW

The Standard Range SR-COE-DBL-208 is a double-deck full-size electric convection oven built for high-volume restaurants, bakeries, banquet lines, and ghost kitchens that want gas-free production. Two fully independent cavities stacked in one footprint: 10 sheet pans per cycle, 20 kW total heating power, two-speed 1/2 HP fans, porcelainized interior, four dual-pane thermal glass doors, and electronic timers with bell. Available in 208V 3-phase or 240V single-phase. Hard-wired.

What You Get

• Two independent oven cavities, 10 kW each, 20 kW total
• 10 chrome-plated wire racks (5 per cavity)
• Standard depth (pans load side-to-side, 18 by 26 inch full sheets)
• 4 dual-pane thermal glass hinged doors (2 per cavity)
• Two-speed 1/2 HP fan motors (1725 / 1140 RPM), one per cavity
• 60-minute electric timer with bell, per cavity
• 150F to 500F temperature range
• Cool-down function
• Interior lights, one per cavity
• Available in 208V/60Hz/3-phase or 240V/60Hz/1-phase
• Hard-wired power supply (no plug)
• Stainless steel front and sides
• Porcelainized interior, both cavities
• (4) casters for mobility
• cETLus listed, ETL-Sanitation certified

Specs at a Glance

Who the SR-COE-DBL-208 Is For

Pick the SR-COE-DBL-208 if you need 10 full sheet pans per cycle in a single footprint and your space is gas-free, all-electric, or already wired for 208V 3-phase or 240V single-phase service. Best fit:

• Restaurants in all-electric buildings doing 300 to 800 covers a night
• Bakeries running parallel bread and pastry programs (different temp on each side)
• Banquet kitchens prepping 250+ plated meals per seating
• Catering operations needing simultaneous roast-and-bake throughput
• Ghost kitchens running two brands off one piece of equipment
• Schools and institutional foodservice on electric utility programs
• Operations on utility rebate programs (ENERGY STAR electric convections qualify for $200 to $1,500 rebates in many service areas)

Need a single deck instead? See the SR-COE-SGL-208 (5 sheets, 10 kW, same width). Or browse our full convection oven collection.

Two Independent Cavities, Two Independent Programs

The defining feature of the SR-COE-DBL-208: each cavity is fully independent. Separate thermostat, separate fan, separate 60-minute timer with bell, separate cool-down function. Run sourdough at 425F on the top deck while you roast prime rib at 325F on the bottom. When the bread comes out you don't have to wait for the cavity to recover or fight the other team for oven space. Two ovens, one footprint.

Electric vs Gas Convection

Electric convection gives you tighter temperature stability than gas (no flame cycling, just resistive heating to setpoint), zero combustion byproducts, and no fuel line install. The trade-off is recovery speed: gas hits BTU peaks faster after a door-open, while electric ramps more linearly. For bake-and-hold operations and tightly controlled bread, electric is the better tool. For high-throughput roast lines that hammer the doors open and shut, gas recovers faster.

208V 3-Phase vs 240V Single-Phase: Pick the Right Service

The SR-COE-DBL-208 is available in two electrical configurations. Specify the right one at order time:

• 208V/60Hz/3-phase: Standard commercial service in most US foodservice buildings (derived from 3-phase 208Y/120 systems). Lower amperage per leg, more efficient at full-load draw.
• 240V/60Hz/1-phase: Single-phase service common in older buildings, food halls, and strip-mall locations not wired for 3-phase.

Both options are hard-wired (no plug). Have a licensed electrician verify your service before ordering.

Cool-Down Function: Recipe Flexibility

The cool-down function pulls the cavity temperature down quickly between bake cycles so you can move from a 450F bread bake to a 250F low-and-slow without waiting. Open the doors, hit cool-down, and the fan runs at high speed with the elements off until the cavity hits your next setpoint. Saves 10 to 20 minutes per temperature change on a normal cool-cycle.

Hood Requirements

The SR-COE-DBL-208 is electric, so it does not produce combustion byproducts. NFPA 96 still requires a Type 1 grease hood if you cook proteins or anything that renders fat. For non-greasy baking (bread, vegetables, low-fat items), a Type 2 heat and steam hood is sufficient in most jurisdictions. Verify with your local code official. Full hood rules in our commercial oven hood guide.

Installation Requirements

• Electrical: 208V 3-phase or 240V single-phase, hard-wired. Licensed electrician required. No cord or plug.
• Ventilation: Type 1 hood if cooking proteins or rendering fat. Type 2 hood for non-greasy baking.
• Clearance: 6 inches rear, 1 inch sides, 6 inches above for service access.
• Floor: Level, rated for the unit's full weight on 4 casters.
• Delivery: Confirm liftgate and clear path to install location.

How to Use a Convection Oven (25/25 Rule)

The fans move heat about 25 percent more efficiently than still-air radiant ovens. Convert any conventional recipe by dropping the temperature 25F and cutting the time 25 percent. A 350F / 60 minute conventional roast becomes a 325F / 45 minute convection roast. Full recipe protocols for bread, roasting, and pastry are in our commercial convection oven guide.

Maintenance

• Daily: Wipe both porcelainized interiors with a damp cloth (cold). Empty crumb trays. Vacuum visible debris near both fan intakes.
• Weekly: Pull racks, clean rack supports, deep wipe both cavities, clean all four glass doors inside and out.
• Monthly: Vacuum both fan housings and motor exhaust louvers. Inspect door gaskets on all four doors. Calibrate each thermostat against an external thermocouple.
• Quarterly: Pull fan baffles on both cavities, clean blades, inspect heating elements for buildup.
• Annually: Replace gaskets at first sign of compression set. Technician inspection of heating elements, fan motor bearings, and contactors on both cavities.

The porcelainized interior cleans faster than stainless or aluminized steel: spray, wipe, done. Don't use abrasive scrubbers; they micro-scratch the porcelain and trap grease.

Frequently Asked Questions

Is the SR-COE-DBL-208 plug-in or hard-wired?

Hard-wired. 208V 3-phase or 240V single-phase, direct connection. Licensed electrician required. No cord or plug.

Can I choose 208V or 240V?

Yes. Specify the configuration at order time. 208V version is 60Hz 3-phase. 240V version is 60Hz single-phase. Both are hard-wired. Have a licensed electrician verify your building service before ordering.

How many sheet pans does the SR-COE-DBL-208 hold?

Ten 18" x 26" full sheet pans total, 5 per cavity. Each cavity is full size and accepts standard full sheet pans.

Can I run two different temperatures on the SR-COE-DBL-208?

Yes. Each cavity is fully independent with its own thermostat, fan, timer with bell, and cool-down function. Run different programs on the top and bottom simultaneously.

Does the SR-COE-DBL-208 need a hood?

It depends on your menu. Type 1 grease hood is required if you cook proteins or anything that renders fat. Type 2 heat and steam hood is sufficient for non-greasy baking. Verify with your local code official.

What's the temperature range?

150F to 500F. The 150F low end lets the unit double as a holding or proofing oven; the 500F high end covers crusty bread, roasted vegetables, and high-heat blast bakes.

What does the cool-down function do?

Pulls cavity temperature down quickly between bake cycles. The fan runs at high speed with heating elements off until the cavity hits the next setpoint. Saves 10 to 20 minutes per temperature change vs natural cool-cycle.

What is the fan speed?

Two-speed motor per cavity at 1725 RPM (high) and 1140 RPM (low), 1/2 horsepower. Use high speed for browning, crisping, and roasting. Use low speed for delicate bakes, custards, and cakes where the fan can dry the surface.

How long does an electric convection oven last?

12 to 20 years with proper maintenance. Heating elements typically last 8 to 15 years, fan motors 7 to 12 years, door gaskets 2 to 5 years, contactors 5 to 10 years.

Is the SR-COE-DBL-208 ENERGY STAR certified?

Verify current certification status on the manufacturer spec sheet. ENERGY STAR electric convection ovens typically save around $150 per year and $1,300 lifetime in utility costs vs standard models. Many utility programs offer $200 to $1,500 rebates on qualifying units.
