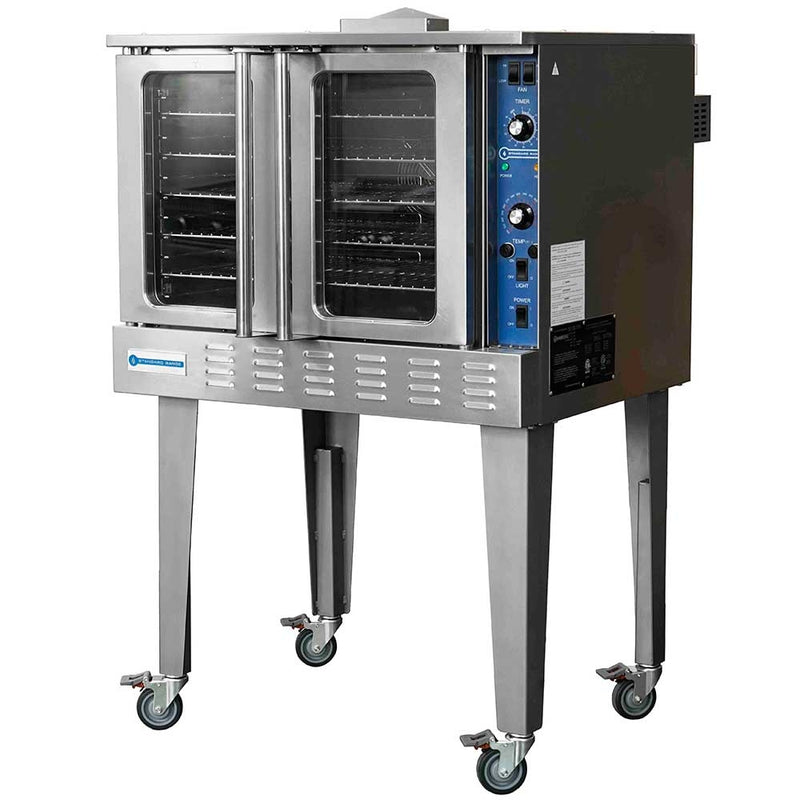

Standard Range SR-COE-SGL-208 Electric Convection Oven, Single Deck, 10 kW

The Standard Range SR-COE-SGL-208 is a single-deck full-size electric convection oven built for restaurants, bakeries, banquet lines, and ghost kitchens that want gas-free production. 10 kW heating element, two-speed 1/2 HP fan, porcelain interior, independent stainless doors with full-view windows, and electronic thermostat. Hard-wired 208V power, no gas line, no hood combustion requirement.

What You Get

• 10 kW heating element, single cavity
• 5 nickel-plated wire racks with 10 rack positions
• Standard depth (pans load side-to-side, 18 by 26 inch full sheets)
• Independent stainless steel doors with full-view tempered glass windows
• Two-speed 1/2 HP fan motor (1725 / 1140 RPM)
• Electronic thermostat with manual timer controls
• Electronic Fenwal ignition system
• 208V hard-wired power supply
• Stainless steel front, sides, and top
• Porcelain enamel oven interior
• Powder-coated steel legs

Specs at a Glance

Who the SR-COE-SGL-208 Is For

Pick the SR-COE-SGL-208 if you need a full-size convection oven and your space is gas-free, all-electric, or already wired for 208V service. Best fit:

• Restaurants in all-electric buildings (no gas service available)
• Food halls and shared spaces where individual gas connections aren't practical
• Bakeries running mixed savory and sweet production with steady cavity temps
• Banquet kitchens prepping plated meals in batches
• Ghost kitchens and supermarket hot-bar production
• Schools and institutional foodservice on electric utility programs
• Operations on 208V utility rebate programs (ENERGY STAR electric convections qualify for $200 to $1,500 rebates in many service areas)

Need gas instead, or want a double-deck for higher throughput? Browse our full convection oven collection.

Electric vs Gas Convection

Electric convection gives you tighter temperature stability than gas (no flame cycling, just resistive heating to setpoint), zero combustion byproducts, and no fuel line install. The trade-off is recovery speed: gas hits BTU peaks faster after a door-open, while electric ramps more linearly. For bake-and-hold operations and tightly controlled bread, electric is the better tool. For high-throughput roast lines that hammer the doors open and shut, gas recovers faster.

Hood Requirements

The SR-COE-SGL-208 is electric, so it does not produce combustion byproducts. However, NFPA 96 still requires a Type 1 grease hood if you cook proteins or anything that renders fat. For non-greasy baking (bread, vegetables, low-fat items), a Type 2 heat and steam hood is sufficient in most jurisdictions. Some inspectors allow ventless operation for low-volume electric ovens on lighter menus; verify with your local code official. Full hood rules in our commercial oven hood guide.

Why Independent Doors Matter

The SR-COE-SGL-208 ships with independent stainless doors with full-view tempered glass, not 50/50 dependent doors. Independent means each door opens on its own handle. When you're pulling a single sheet off the bottom rack and leaving four pans baking on the top racks, you only break the seal on one side of the cavity. Cuts heat loss roughly in half on every door-open event, which adds up to faster recovery and tighter bake consistency across the shift.

Installation Requirements

• Electrical: 208V hard-wired (no plug). Licensed electrician required for direct wiring. Verify your building electrical panel has 208V single-phase service. Some buildings are wired 240V single-phase or 480V 3-phase only.
• Ventilation: Type 1 hood if cooking proteins or rendering fat. Type 2 hood for non-greasy baking. See our hood guide.
• Clearance: 6 inches rear, 1 inch sides, 6 inches above for service access.
• Floor: Level, rated for 369 lbs unit weight.
• Stand: The SR-COE-SGL-208 is 32.25 inches tall by itself. Most operators set it on a stainless equipment stand (sold separately) to bring the cavity to ergonomic load height, or stack two units with a stacking kit.

How to Use a Convection Oven (25/25 Rule)

The fan moves heat about 25 percent more efficiently than still-air radiant ovens. Convert any conventional recipe by dropping the temperature 25F and cutting the time 25 percent. A 350F / 60 minute conventional roast becomes a 325F / 45 minute convection roast. Full recipe protocols for bread, roasting, and pastry are in our commercial convection oven guide.

Maintenance

• Daily: Wipe porcelain interior with a damp cloth (cold). Empty crumb tray. Vacuum visible debris near fan intake.
• Weekly: Pull racks, clean rack supports, deep wipe cavity walls, clean both glass doors inside and out.
• Monthly: Vacuum fan housing and motor exhaust louvers. Inspect door gaskets. Calibrate thermostat against an external thermocouple.
• Quarterly: Pull fan baffle, clean blades, inspect heating elements for buildup.
• Annually: Replace gaskets at first sign of compression set. Technician inspection of heating elements, fan motor bearings, and contactors.

The porcelain interior cleans faster than stainless or aluminized steel: spray, wipe, done. Don't use abrasive scrubbers; they micro-scratch the porcelain and trap grease.

Frequently Asked Questions

Is the SR-COE-SGL-208 plug-in or hard-wired?

Hard-wired. 208V direct connection. Licensed electrician required for installation. No cord or plug.

What's the difference between 208V and 240V on convection ovens?

208V is the standard commercial service in most US foodservice buildings (derived from 3-phase 208Y/120 systems). 240V is residential split-phase. They're not interchangeable on this unit; the SR-COE-SGL-208 is wired specifically for 208V. Verify your building service before ordering.

How many sheet pans does it hold?

Five 18" x 26" full sheet pans, one per rack. The cavity has 10 rack positions so you can adjust rack spacing for taller or shorter items.

Does the SR-COE-SGL-208 need a hood?

It depends on your menu. Type 1 grease hood is required if you cook proteins or anything that renders fat. Type 2 heat and steam hood is sufficient for non-greasy baking (bread, vegetables, low-fat items). Some jurisdictions allow ventless operation for light-duty electric convection; verify with your local code official.

Can the SR-COE-SGL-208 be stacked?

Yes, with a manufacturer stacking kit (sold separately). Verify ceiling height: stacked unit plus 6 inches service clearance above. Each cavity on a stacked pair operates independently.

What is the fan speed on the SR-COE-SGL-208?

Two-speed fan motor at 1725 RPM (high) and 1140 RPM (low), 1/2 horsepower. Use high speed for browning, crisping, and roasting. Use low speed for delicate bakes, custards, and cakes where the fan can dry the surface.

How long does an electric convection oven last?

12 to 20 years with proper maintenance. Heating elements typically last 8 to 15 years, fan motors 7 to 12 years, door gaskets 2 to 5 years, contactors 5 to 10 years.

Is the SR-COE-SGL-208 ENERGY STAR certified?

Verify current certification status on the manufacturer spec sheet. ENERGY STAR electric convection ovens typically save around $150 per year and $1,300 lifetime in utility costs vs standard models. Many utility programs offer $200 to $1,500 rebates on qualifying units.
