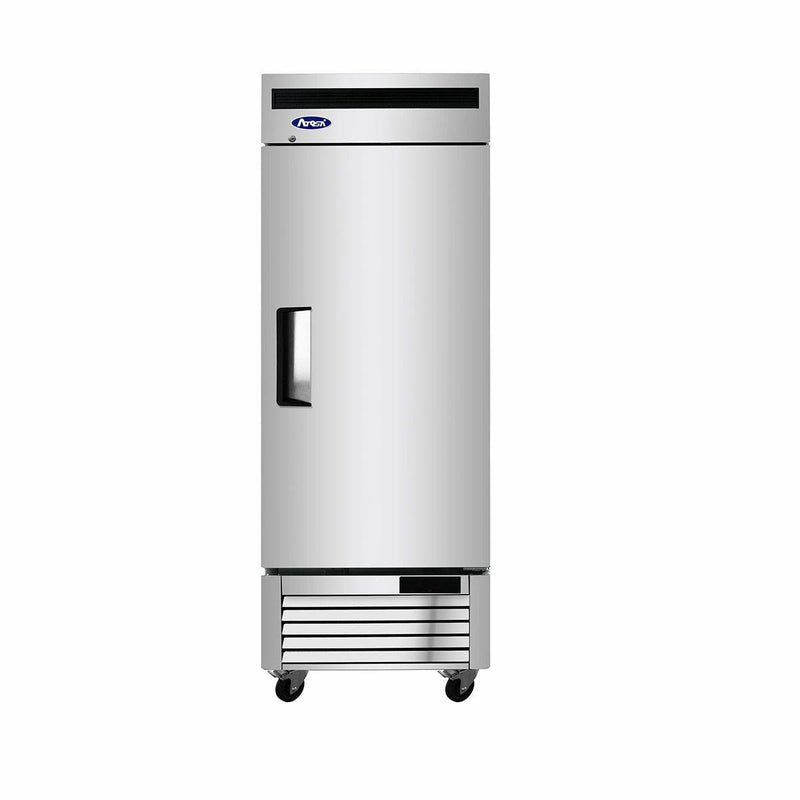

The Atosa MBF8501GR is a one door commercial reach-in freezer with a bottom mount compressor. It holds 19.1 cu. ft. at -8°F to 0°F and plugs into a standard 115V outlet.
It is 27" wide with a right-hinged door. Need the door to swing the other way? The MBF8501GRL is the same freezer with a left hinge.
Need a different size? Shop all commercial freezers or compare reach-in freezers.
Most units ship within one business day from our warehouse with free freight to the lower 48.

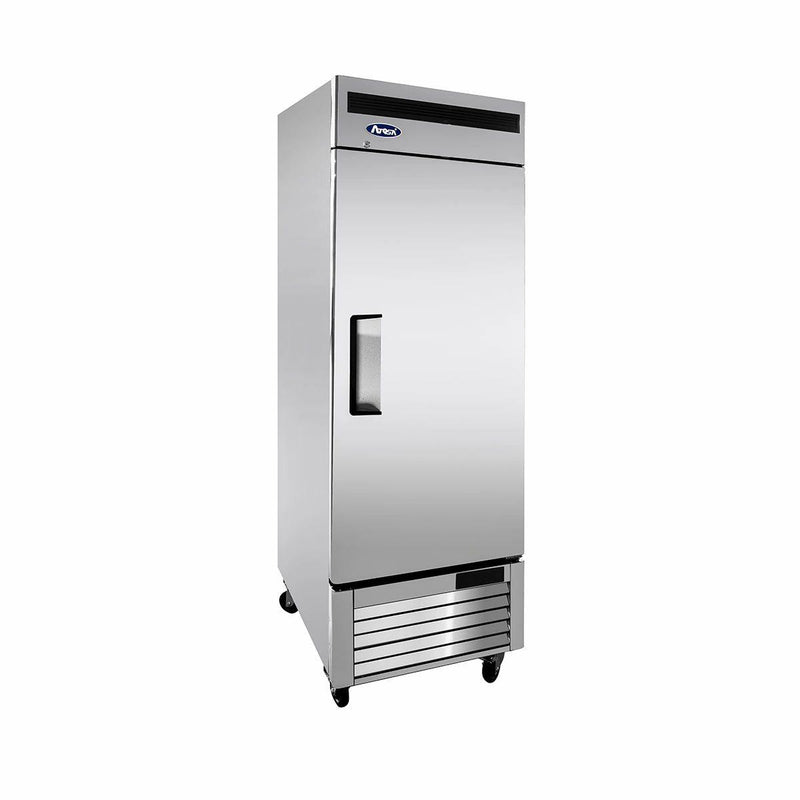

A Single Door Bottom Mount Freezer
The Atosa MBF8501GR is a single door commercial freezer with 19.1 cu. ft. of storage in a 27-inch-wide cabinet. This single door reach in freezer gives smaller kitchens easy access to frozen ingredients, while its bottom mount freezer design places the compressor below the storage compartment. For restaurants, cafés and prep stations that need a compact reach in commercial freezer, it offers everyday frozen storage without the footprint of a two-door model.
Where the MBF8501GR Fits Best
- Small restaurant kitchens: 19.1 cu. ft. of frozen storage in a 27" wide cabinet
- Cook lines: keep frozen proteins, fries and prepared foods close to the team
- Pizza and bakery shops: a dedicated freezer for dough, toppings and desserts
- Kitchens needing a different door swing: compare the MBF8501GRL left-hinged model before ordering
Before you buy: Check the 27" cabinet width, door swing and delivery path. This bottom-mount freezer uses a standard 115V outlet with a NEMA 5-15P plug.
Why Kitchens Choose the MBF8501GR
- 19.1 cu. ft. in a 27" wide cabinet
- Holds -8°F to 0°F for meat, seafood, fries, desserts and prepared foods
- Locking solid door (right-hinged)

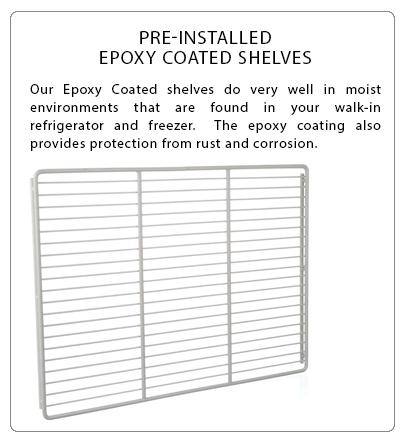

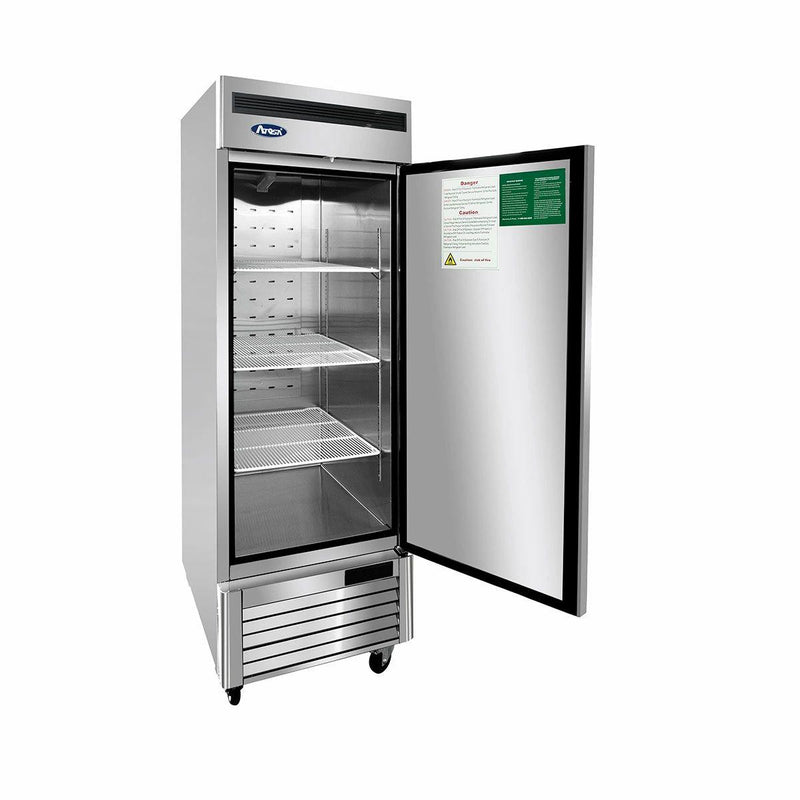

- 3 adjustable shelves and LED interior lighting
- 3-year parts and labor and 5-year compressor warranty
Cooling and Controls

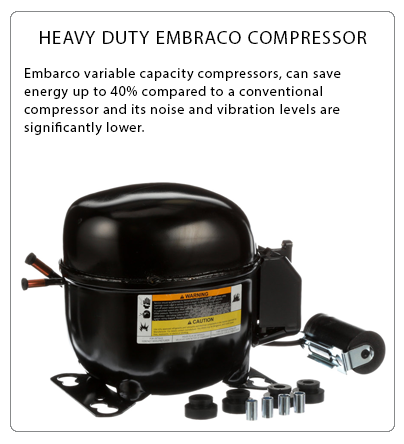

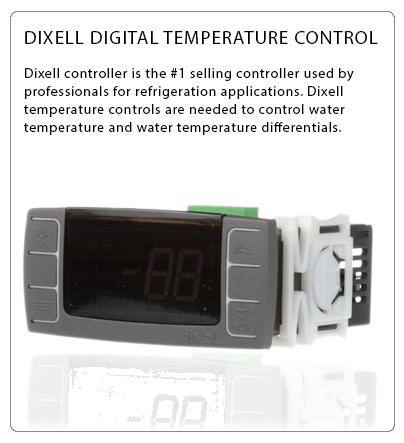

A 1/2 HP compressor runs on R290, a natural refrigerant. A digital controller holds -8°F to 0°F, and down duct airflow spreads cold air evenly from top to bottom. Automatic evaporation takes care of condensate water for you. It is a self-contained, plug-in unit, so there is nothing to plumb.
Built for Daily Commercial Use

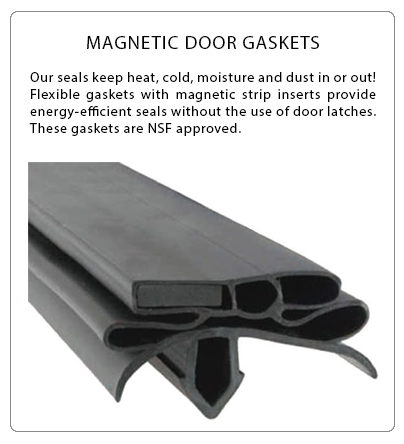

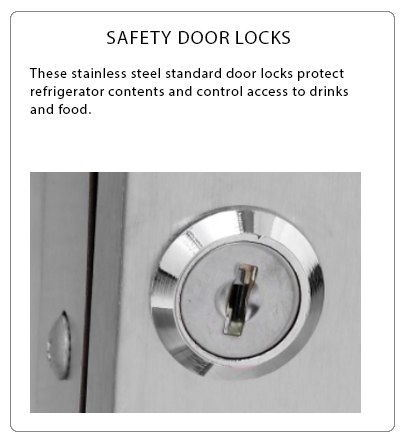

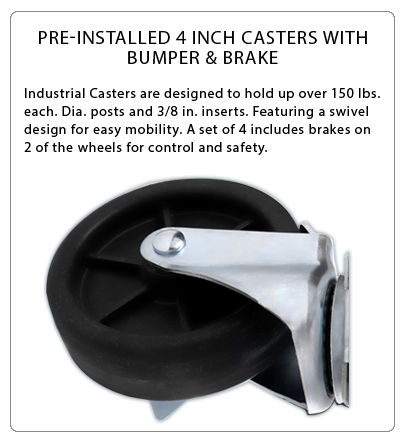

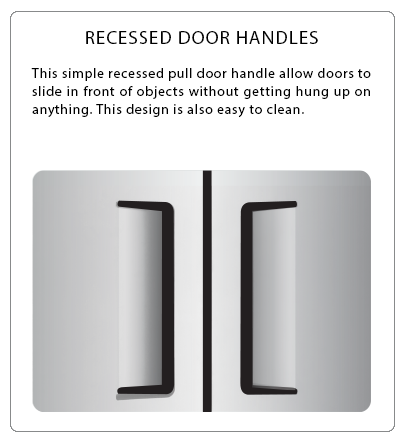

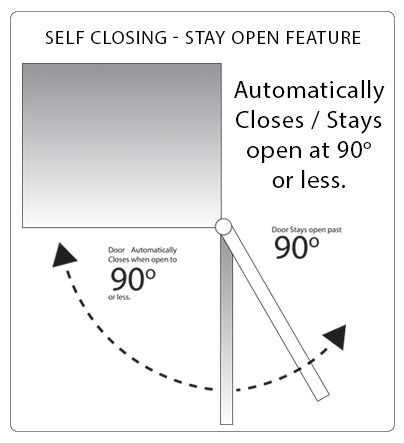

The inside and outside are stainless steel, and the back is galvanized steel. The door closes on its own and stays open when you swing it all the way, which makes loading easier. It opens to 105°. The door locks, the handle is recessed, and magnetic gaskets seal tight. It rolls on pre-installed 4" casters, so you can pull it out to clean behind it.

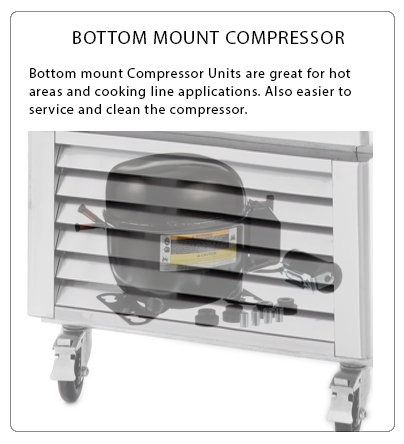

Why Bottom Mount?
On this freezer the compressor sits under the cabinet, where it is easy to reach for cleaning and service. Prefer the compressor up top, away from floor dust and grease? See our top mount freezers.
The Atosa Bottom Mount Freezer Line
Every model below is a bottom mount reach-in that holds -8°F to 0°F:
| Model | Doors | Width | Height | Capacity | Note |
|---|---|---|---|---|---|
| MBF8520GR | 1 | 24-1/4" | 63-1/4" | 8.3 cu. ft. | Low height, 2" casters |
| MBF8531GR | 1 | 25-5/8" | 76-3/8" | 12.57 cu. ft. | Low height, right hinge |
| MBF8501GR (this model) | 1 | 27" | 83-1/10" | 19.1 cu. ft. | Right hinge |
| MBF8501GRL | 1 | 27" | 83-1/10" | 19.1 cu. ft. | Left hinge |
| MBF8502GR | 2 | 39-1/2" | 83-1/10" | 28.5 cu. ft. | ENERGY STAR® |
| MBF8503GR | 2 | 54-2/5" | 83-1/10" | 43.8 cu. ft. | ENERGY STAR® |
| MBF8504GR | 3 | 81-9/10" | 83-1/10" | 68 cu. ft. | 115/208-230V, L14-20P plug |
Need the same size cabinet for refrigerated food? See the matching Atosa MBF8505GR refrigerator.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Commercial reach-in freezer, one-section, bottom mount |
| Doors | (1) locking solid door (right-hinged), self-closing with stay-open feature |
| Capacity | 19.1 cu. ft. |
| Shelves | (3) adjustable shelves |
| Exterior dimensions | 27" W x 31-7/10" D x 83-1/10" H |
| Temperature range | -8°F to 0°F |
| Temperature control | Digital |
| Refrigerant | R290 hydrocarbon |
| Compressor | 1/2 HP |
| Condensate | Automatic evaporation |
| Lighting | Interior LED |
| Construction | Stainless steel interior and exterior, galvanized steel back |
| Casters | 4", pre-installed |
| Electrical | 115V / 60Hz / 1-phase, 6.3 amps |
| Plug | NEMA 5-15P |
| Net weight | 265 lb |
| Shipping weight | 298 lb |
| Extra shelf | W0402393 (each includes 4 shelf clips) |
| Warranty | 3-year parts and labor, 5-year compressor |
| Certifications | cETLus, ETL-Sanitation |
Installation and Care
Set the freezer on a level floor near a standard 115V outlet with a NEMA 5-15 receptacle. Leave the unit some room to breathe so the compressor gets fresh air, and clean the condenser often. Extra shelves are Atosa part W0402393, and each comes with 4 shelf clips.
Atosa MBF8501GR FAQ
What size is the Atosa MBF8501GR?
The MBF8501GR is 27" wide, 31-7/10" deep and 83-1/10" tall. It weighs 265 lb (298 lb shipping weight).
How much does the MBF8501GR hold?
It holds 19.1 cu. ft. and comes with 3 pre-installed shelves.
What temperature does the MBF8501GR hold?
It holds -8°F to 0°F with a digital temperature control.
Which way does the MBF8501GR door open?
The door is hinged on the right, so it swings open to the right. The MBF8501GRL is the same freezer with a left hinge.
What power does the MBF8501GR need?
It runs on 115V / 60Hz / 1-phase and draws 6.3 amps. It has a NEMA 5-15P plug, so it plugs into a standard 115V outlet.
Can I add more shelves to the MBF8501GR?
Yes. Order Atosa shelf W0402393. Each extra shelf comes with 4 shelf clips.
How do I keep the MBF8501GR running well?
Leave the unit some room to breathe so the compressor gets fresh air, and clean the condenser often. Those are the two tips on the Atosa spec sheet.
What warranty comes with the MBF8501GR?
3 years parts and labor and 5 years on the compressor.
Spec Sheet
Download the Atosa MBF8501GR spec sheet (PDF, Rev. 07/26)
Service Parts for the MBF8501GR Freezer
Extend the service life of your MBF8501GR with factory OEM replacement parts. In-stock service components include the W0302317 temperature sensor/probe, the W0302184 temperature controller, the W0301904 fan motor, the W0302316 probe, and the W0308012 door switch. Browse related Atosa replacement parts or reference the Atosa parts department guide for warranty and ordering information.
MBF8501GR Parts & Service
For OEM replacement parts compatible with the MBF8501GR, see the MBF8501GR parts page. The full Atosa parts catalog is also available, and the operating instructions cover routine service.
