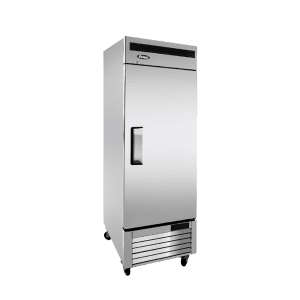

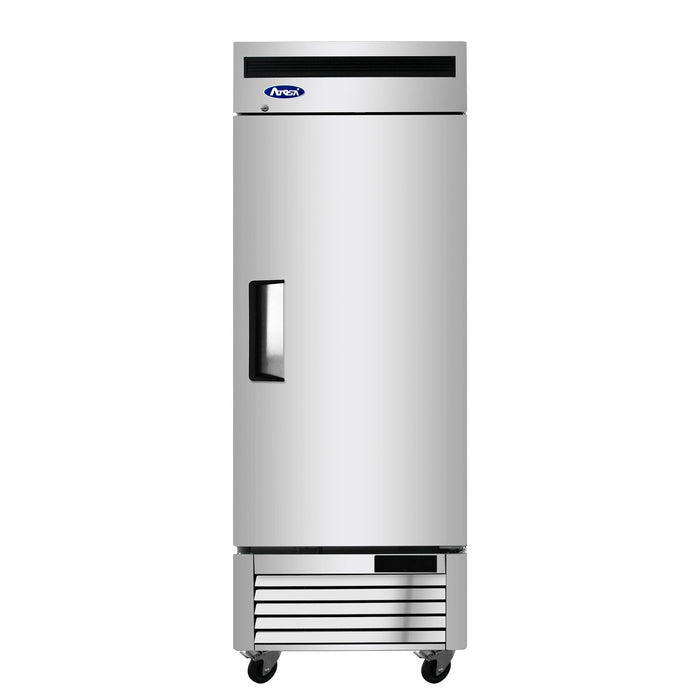

Atosa MBF8501GRL 27-Inch One Door Commercial Reach-In Freezer, Left Hinge, 19.1 cu. ft.
Atosa MBF8501GRL 27-Inch One Door Commercial Reach-In Freezer, Left Hinge, 19.1 cu. ft.
The Atosa MBF8501GRL is a one door commercial reach-in freezer with a bottom mount compressor. It holds 19.1 cu. ft. at -8°F to 0°F and plugs into a standard 115V outlet.
It is the left-hinge version of our MBF8501GR: same 27" cabinet, same 19.1 cu. ft., but the door swings open to the left. Pick it when the freezer sits with a wall or the end of a line on its left side, so the open door stays out of your walkway.
Need a different size? Shop all commercial freezers or compare reach-in freezers.
Most units ship within one business day from our warehouse with free freight to the lower 48.
A Left Hinge Bottom Mount Freezer
The Atosa MBF8501GRL is a left hinge single door commercial freezer with 19.1 cu. ft. of frozen storage in a 27-inch-wide cabinet. Its door opens to the left, making this bottom mount reach in freezer a practical choice when the kitchen layout calls for that door swing. It has the same capacity and core features as the MBF8501GR, with the hinges on the opposite side.
Where the Left-Hinge MBF8501GRL Fits Best
- A left wall or corner: the door opens against the wall and stays out of your walkway
- Work area on the right: you reach in from the right side, right beside your prep table or line
- Side-by-side units: place it to the left of the MBF8501GR so both doors swing open away from each other
- Cook lines: frozen proteins and fries right where you cook
Why Kitchens Choose the MBF8501GRL
- 19.1 cu. ft. in a 27" wide cabinet
- Holds -8°F to 0°F for meat, seafood, fries, desserts and prepared foods
- Locking solid door (left-hinged)
- 3 adjustable shelves and LED interior lighting
- 3-year parts and labor and 5-year compressor warranty
Cooling and Controls
A 1/2 HP compressor runs on R290, a natural refrigerant. A digital controller holds -8°F to 0°F, and down duct airflow spreads cold air evenly from top to bottom. Automatic evaporation takes care of condensate water for you. It is a self-contained, plug-in unit, so there is nothing to plumb.
Built for a Commercial Kitchen
The inside and outside are stainless steel, so it stands up to spills and daily cleaning. The back is galvanized steel. The door closes on its own and stays open when you swing it all the way, which makes loading easier. It opens to 105°. The door locks, the handle is recessed so it does not catch on carts, and magnetic gaskets seal tight. It rolls on pre-installed 4" casters, so you can pull it out to clean behind it.
Why Bottom Mount?
On this freezer the compressor sits under the cabinet. It is easy to reach for cleaning and service. Prefer the compressor up top, away from floor dust and grease? See our top mount freezers.
The Atosa Bottom Mount Freezer Line
Every model below is a bottom mount reach-in that holds -8°F to 0°F:
| Model | Doors | Width | Height | Capacity | Note |
|---|---|---|---|---|---|
| MBF8520GR | 1 | 24-1/4" | 63-1/4" | 8.3 cu. ft. | Low height, 2" casters |
| MBF8531GR | 1 | 25-5/8" | 76-3/8" | 12.57 cu. ft. | Low height, right hinge |
| MBF8501GR | 1 | 27" | 83-1/10" | 19.1 cu. ft. | Standard hinge |
| MBF8501GRL (this model) | 1 | 27" | 83-1/10" | 19.1 cu. ft. | Left hinge |
| MBF8502GR | 2 | 39-1/2" | 83-1/10" | 28.5 cu. ft. | ENERGY STAR® |
| MBF8503GR | 2 | 54-2/5" | 83-1/10" | 43.8 cu. ft. | ENERGY STAR® |
| MBF8504GR | 3 | 81-9/10" | 83-1/10" | 68 cu. ft. | 115/208-230V, L14-20P plug |
Need the same size cabinet for refrigerated food? See the matching Atosa MBF8505GRL left-hinge refrigerator.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Reach-in freezer, one-section, bottom mount |
| Doors | (1) locking solid door (left-hinged), self-closing with stay-open feature |
| Capacity | 19.1 cu. ft. |
| Shelves | (3) adjustable epoxy-coated shelves |
| Exterior dimensions | 27" W x 31-7/10" D x 83-1/10" H |
| Temperature range | -8°F to 0°F |
| Temperature control | Digital |
| Refrigerant | R290 hydrocarbon |
| Compressor | 1/2 HP |
| Condensate | Automatic evaporation |
| Lighting | Interior LED |
| Construction | Stainless steel interior and exterior, galvanized steel back |
| Casters | 4", pre-installed |
| Electrical | 115V / 60Hz / 1-phase, 6.3 amps |
| Plug | NEMA 5-15P |
| Net weight | 265 lb |
| Shipping weight | 298 lb |
| Extra shelf | W0402393 (includes 4 shelf clips) |
| Warranty | 3-year parts and labor, 5-year compressor |
| Certifications | cETLus, ETL-Sanitation |
Installation and Care
Set the freezer on a level floor near a standard 115V outlet with a NEMA 5-15 receptacle. Leave the unit some room to breathe so the compressor gets fresh air, and clean the condenser often. Extra shelves are Atosa part W0402393, and each comes with 4 shelf clips.
Atosa MBF8501GRL FAQ
What size is the Atosa MBF8501GRL?
The MBF8501GRL is 27" wide, 31-7/10" deep and 83-1/10" tall. It weighs 265 lb (298 lb shipping weight).
How much does the MBF8501GRL hold?
It holds 19.1 cu. ft. and comes with 3 pre-installed shelves.
What temperature does the MBF8501GRL hold?
It holds -8°F to 0°F with a digital temperature control.
Which way does the MBF8501GRL door open?
The door is hinged on the left, so it swings open to the left. If you need it to open the other way, the MBF8501GR is the same freezer with the standard hinge.
What power does the MBF8501GRL need?
It runs on 115V / 60Hz / 1-phase and draws 6.3 amps. It has a NEMA 5-15P plug, so it plugs into a standard 115V outlet.
Can I add more shelves to the MBF8501GRL?
Yes. Order Atosa shelf W0402393. Each extra shelf comes with 4 shelf clips.
How do I keep the MBF8501GRL running well?
Leave the unit some room to breathe so the compressor gets fresh air, and clean the condenser often. Those are the two tips on the Atosa spec sheet.
What warranty comes with the MBF8501GRL?
3 years parts and labor and 5 years on the compressor.
Spec Sheet
Download the Atosa MBF8501GRL spec sheet (PDF, Rev. 07/26)
Parts Compatibility for the MBF8501GRL
When your MBF8501GRL needs service, order genuine OEM Atosa parts direct from The Restaurant Warehouse. Frequently ordered items include the W0409084 pressure release, the 85011426-430 top panel, and the 85010202 left door (with magnetic switch). Visit the Atosa parts catalog or consult the Atosa parts manuals for a full component breakdown.
