Atosa MBF8531GR 26-Inch One Door Low Height Reach-In Freezer, 12.57 cu. ft.
Atosa MBF8531GR 26-Inch One Door Low Height Reach-In Freezer, 12.57 cu. ft.

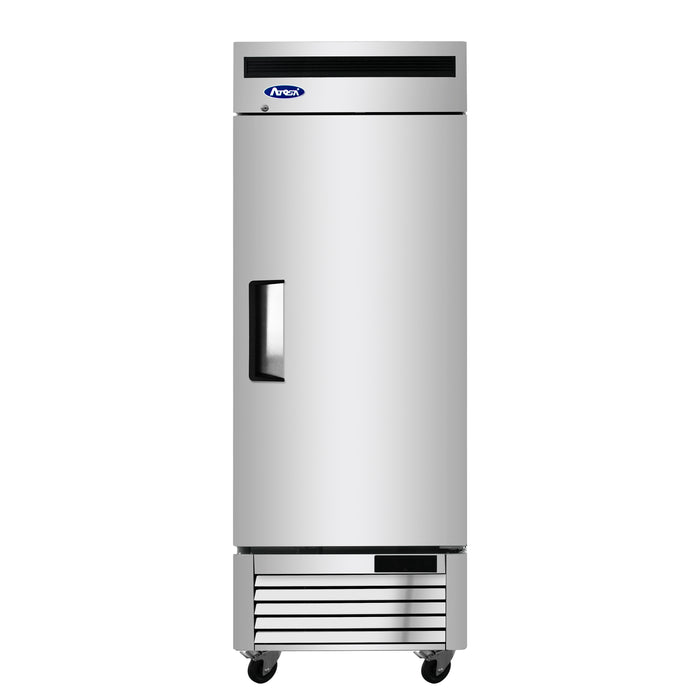

The Atosa MBF8531GR is a one door commercial reach-in freezer with a bottom mount compressor. It holds 12.57 cu. ft. at -8°F to 0°F and plugs into a standard 115V outlet.
At 76-3/8" tall and 26" deep it is shorter and shallower than a standard 83" reach-in, but still gives you 12.57 cu. ft. behind one right-hinged door.
Need a different size? Shop all commercial freezers or compare reach-in freezers.
Most units ship within one business day from our warehouse with free freight to the lower 48.
A Shorter Reach-In Freezer
The Atosa MBF8531GR is a low height reach in freezer standing 76-3/8 inches tall and measuring just 26 inches deep. This shallow depth commercial freezer offers 12.57 cu. ft. of frozen storage behind one door, making it useful where a standard 83-inch-tall reach-in is too large. Need an even shorter cabinet? Compare the 63-1/4-inch-tall MBF8520GR.
Where the MBF8531GR Fits Best
- Small restaurants: a full door of frozen storage in less space
- Back rooms with low ceilings: shorter than a standard reach-in
- Food trucks and kiosks: a shallower, shorter cabinet
- Cafés and bakeries: frozen dough, desserts and ice cream mix
Why Kitchens Choose the MBF8531GR
- 12.57 cu. ft. in a 25-5/8" wide cabinet
- Holds -8°F to 0°F for meat, seafood, fries, desserts and prepared foods
- Locking solid door (right-hinged)

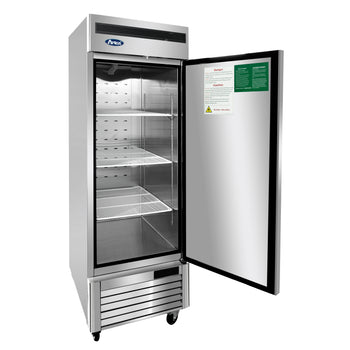

- 3 adjustable shelves and LED interior lighting
- 3-year parts and labor and 5-year compressor warranty
Cooling and Controls
A 1/2 HP compressor runs on R290, a natural refrigerant. A digital controller holds -8°F to 0°F, and down duct airflow spreads cold air evenly from top to bottom. Automatic evaporation takes care of condensate water for you. It is a self-contained, plug-in unit, so there is nothing to plumb.
Built for a Commercial Kitchen
The inside and outside are stainless steel, so it stands up to spills and daily cleaning. The back is galvanized steel. The door closes on its own and stays open when you swing it all the way, which makes loading easier. It opens to 105°. The door locks, the handle is recessed so it does not catch on carts, and magnetic gaskets seal tight. It rolls on pre-installed 4" casters, so you can pull it out to clean behind it.
Why Bottom Mount?
On this freezer the compressor sits under the cabinet. It is easy to reach for cleaning and service. Prefer the compressor up top, away from floor dust and grease? See our top mount freezers.
The Atosa Bottom Mount Freezer Line
Every model below is a bottom mount reach-in that holds -8°F to 0°F:
| Model | Doors | Width | Height | Capacity | Note |
|---|---|---|---|---|---|
| MBF8520GR | 1 | 24-1/4" | 63-1/4" | 8.3 cu. ft. | Low height, 2" casters |
| MBF8531GR (this model) | 1 | 25-5/8" | 76-3/8" | 12.57 cu. ft. | Low height, right hinge |
| MBF8501GR | 1 | 27" | 83-1/10" | 19.1 cu. ft. | Standard hinge |
| MBF8501GRL | 1 | 27" | 83-1/10" | 19.1 cu. ft. | Left hinge |
| MBF8502GR | 2 | 39-1/2" | 83-1/10" | 28.5 cu. ft. | ENERGY STAR® |
| MBF8503GR | 2 | 54-2/5" | 83-1/10" | 43.8 cu. ft. | ENERGY STAR® |
| MBF8504GR | 3 | 81-9/10" | 83-1/10" | 68 cu. ft. | 115/208-230V, L14-20P plug |
Need the same size cabinet for refrigerated food? See the matching Atosa MBF8532GR low height refrigerator.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Reach-in freezer, one-section, bottom mount |
| Doors | (1) locking solid door (right-hinged), self-closing with stay-open feature |
| Capacity | 12.57 cu. ft. |
| Shelves | (3) adjustable epoxy-coated shelves |
| Exterior dimensions | 25-5/8" W x 26" D x 76-3/8" H |
| Temperature range | -8°F to 0°F |
| Temperature control | Digital |
| Refrigerant | R290 hydrocarbon |
| Compressor | 1/2 HP |
| Condensate | Automatic evaporation |
| Lighting | Interior LED |
| Construction | Stainless steel interior and exterior, galvanized steel back |
| Casters | 4", pre-installed |
| Electrical | 115V / 60Hz / 1-phase, 6.3 amps |
| Plug | NEMA 5-15P |
| Net weight | 232 lb |
| Shipping weight | 276 lb |
| Extra shelf | W0402315 (includes 4 shelf clips) |
| Warranty | 3-year parts and labor, 5-year compressor |
| Certifications | cETLus, ETL-Sanitation |
Installation and Care
Set the freezer on a level floor near a standard 115V outlet with a NEMA 5-15 receptacle. Leave the unit some room to breathe so the compressor gets fresh air, and clean the condenser often. Extra shelves are Atosa part W0402315, and each comes with 4 shelf clips.
Atosa MBF8531GR FAQ
What size is the Atosa MBF8531GR?
The MBF8531GR is 25-5/8" wide, 26" deep and 76-3/8" tall. It weighs 232 lb (276 lb shipping weight).
How much does the MBF8531GR hold?
It holds 12.57 cu. ft. and comes with 3 pre-installed shelves.
What temperature does the MBF8531GR hold?
It holds -8°F to 0°F with a digital temperature control.
Which way does the MBF8531GR door open?
The door is hinged on the right, so it swings open to the right.
How is the MBF8531GR different from a standard reach-in freezer?
It is 76-3/8" tall and 26" deep. A standard 27" Atosa reach-in like the MBF8501GR is 83-1/10" tall and 31-7/10" deep, so the MBF8531GR fits under lower ceilings and overhead shelves and in shallower spaces.
What power does the MBF8531GR need?
It runs on 115V / 60Hz / 1-phase and draws 6.3 amps. It has a NEMA 5-15P plug, so it plugs into a standard 115V outlet.
Can I add more shelves to the MBF8531GR?
Yes. Order Atosa shelf W0402315. Each extra shelf comes with 4 shelf clips.
How do I keep the MBF8531GR running well?
Leave the unit some room to breathe so the compressor gets fresh air, and clean the condenser often. Those are the two tips on the Atosa spec sheet.
What warranty comes with the MBF8531GR?
3 years parts and labor and 5 years on the compressor.
Spec Sheet
Download the Atosa MBF8531GR spec sheet (PDF, Rev. 07/26)
Replacement Parts & Service
Need replacement parts or service components for your MBF8531GR freezer? Browse the full Atosa parts catalog or reference the Atosa parts manuals to identify OEM components for your unit.
