Atosa MBF8003GR 78-Inch Three Door Commercial Reach-In Freezer, Top Mount, 64.9 cu. ft.
Atosa MBF8003GR 78-Inch Three Door Commercial Reach-In Freezer, Top Mount, 64.9 cu. ft.
The Atosa MBF8003GR is a three door commercial reach-in freezer with a top mount compressor. It holds 64.9 cu. ft. at -8°F to 0°F.
It is the largest top mount model in the line: three doors and nine shelves. Note that it needs a 208-230V L14-20R outlet, not a standard wall plug.
Need a different size? Shop all commercial freezers or compare reach-in freezers.
Most units ship within one business day from our warehouse with free freight to the lower 48.

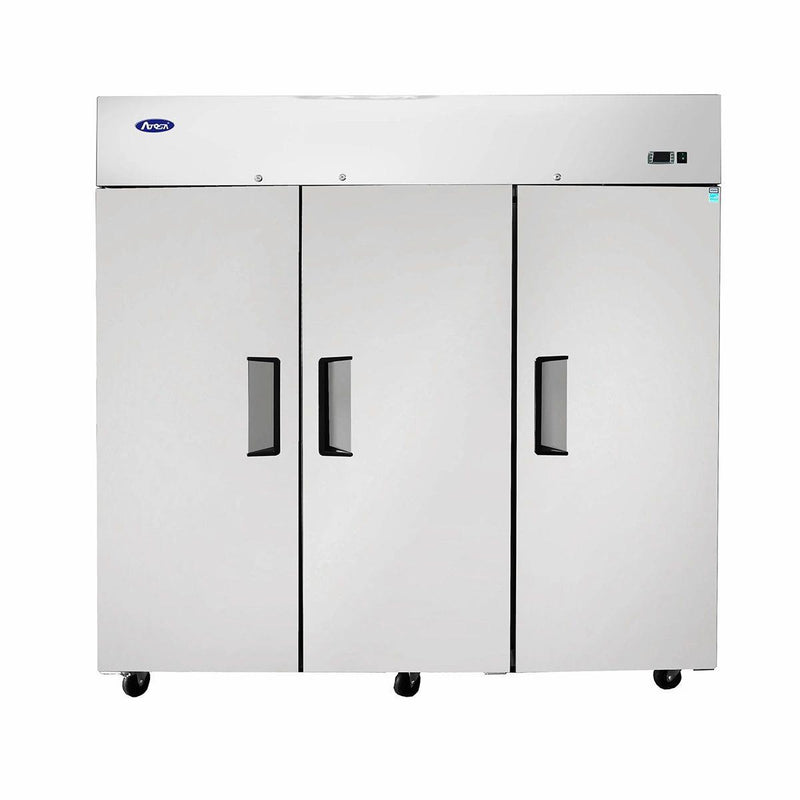

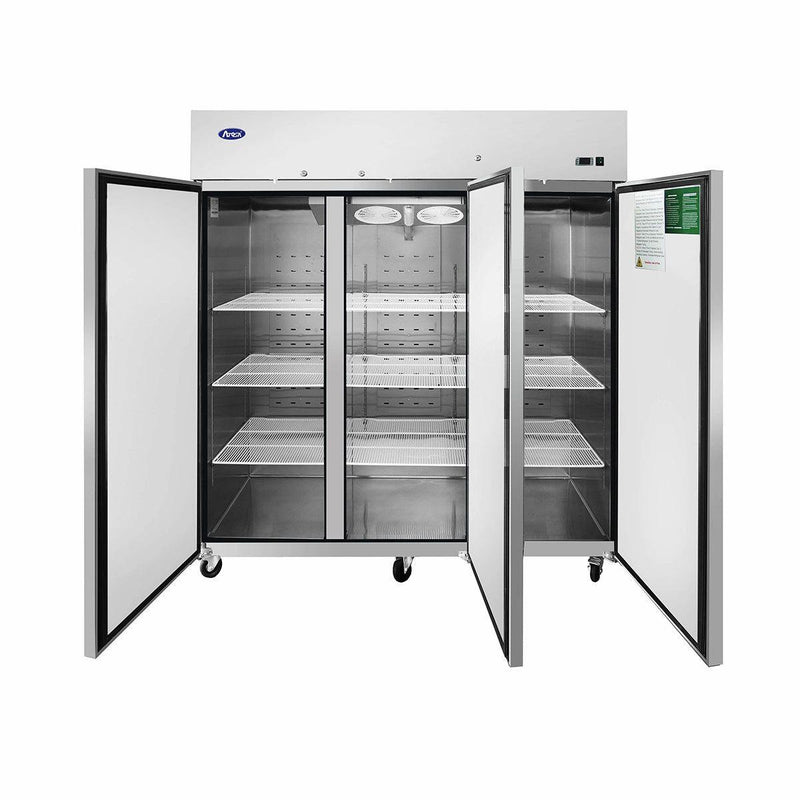

A Three Door Reach-In Freezer
This 3 door reach in freezer holds 64.9 cu. ft. in a 77.8" wide cabinet, the most in this top mount line. It is a strong freezer for restaurant kitchens that stock a lot of frozen food.
Where the MBF8003GR Fits Best
- High-volume restaurant kitchens: 64.9 cu. ft. of frozen storage across three sections
- Banquet and catering operations: nine adjustable shelves for larger quantities of frozen ingredients
- Multi-station prep teams: three doors let staff reach different sections without opening the whole cabinet
- Operations needing reach-in access at scale: substantial capacity in a 77.8" wide cabinet
Before you buy: This model does not use a standard 115V wall outlet. It needs a 115/208-230V supply and a NEMA L14-20R receptacle. Also check the delivery path for the 77.8" cabinet width.
Why Kitchens Choose the MBF8003GR
- 64.9 cu. ft. in a 77.8" wide cabinet
- Holds -8°F to 0°F for meat, seafood, fries, desserts and prepared foods
- Three locking solid doors

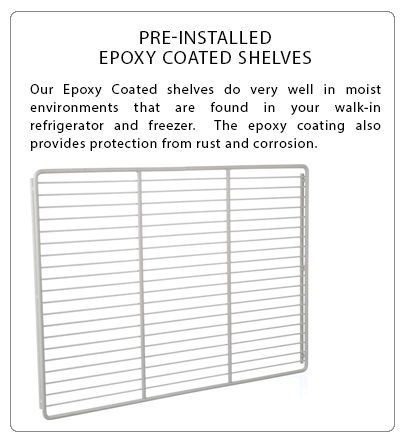

- 9 adjustable shelves and LED interior lighting
- 3-year parts and labor and 5-year compressor warranty
Cooling and Controls

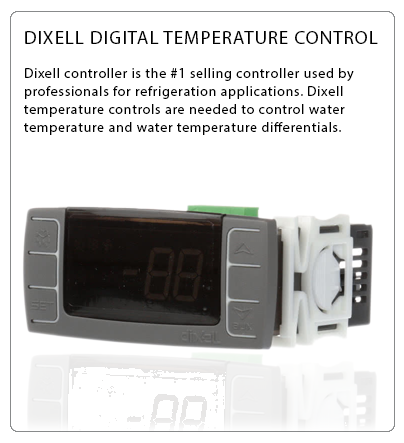

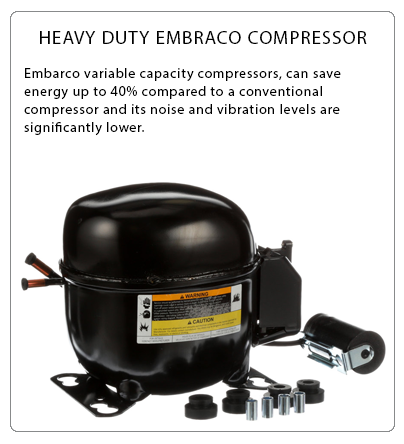

A 1 HP compressor runs on R290, a natural refrigerant. A digital controller holds -8°F to 0°F, and down duct airflow spreads cold air evenly from top to bottom. Automatic evaporation takes care of condensate water for you. It is a self-contained, plug-in unit, so there is nothing to plumb.
Built for Daily Commercial Use

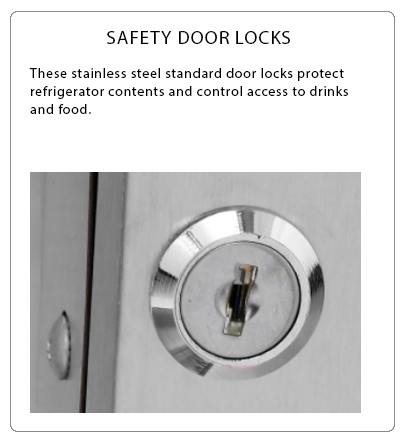

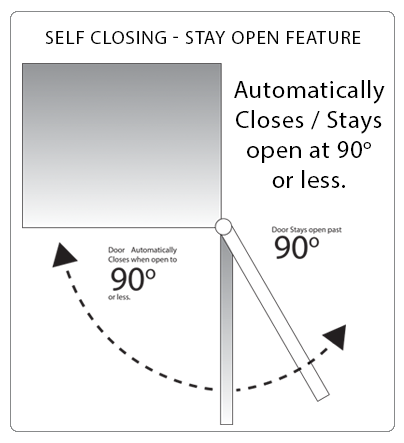

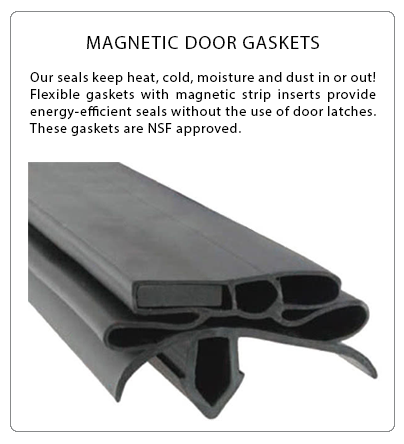

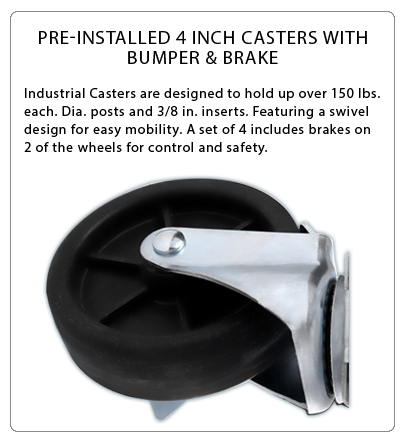

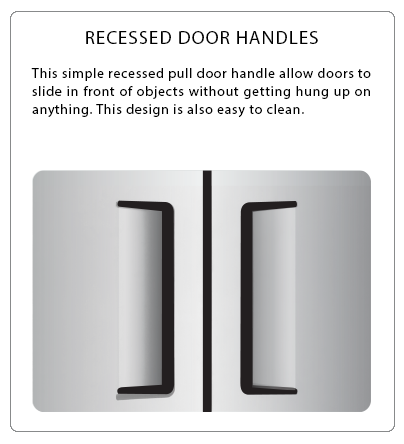

The inside and outside are stainless steel, and the back is galvanized steel. The doors close on their own and stay open when you swing them all the way, which makes loading easier. They open to 105°. Every door locks, the handles are recessed, and magnetic gaskets seal tight. It rolls on pre-installed 4" casters, so you can pull it out to clean behind it.

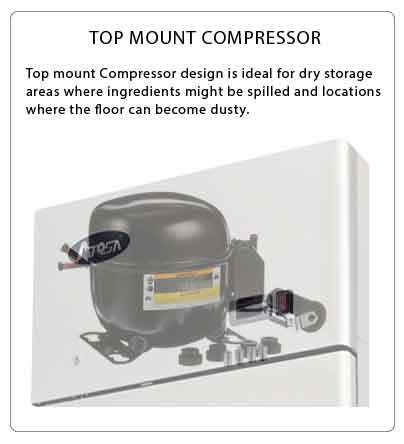

Why Top Mount?
On this freezer the compressor sits on top of the cabinet, up and away from floor dust, grease and mop water. Prefer the compressor on the bottom? See our bottom mount freezers.
The Atosa Top Mount Freezer Line
Every model below is a top mount reach-in that holds -8°F to 0°F:
| Model | Doors | Width | Capacity | Power |
|---|---|---|---|---|
| MBF8001GR | 1 | 28.7" | 21.4 cu. ft. | 115V, 5-15P plug |
| MBF8001GRL | 1 (left hinge) | 28.7" | 21.4 cu. ft. | 115V, 5-15P plug |
| MBF8002GR | 2 | 51.7" | 43.2 cu. ft. | 115V, 5-15P plug |
| MBF8003GR (this model) | 3 | 77.8" | 64.9 cu. ft. | 115/208-230V, L14-20P plug |
| MBF15FSGR | 1 | 17.7" | 13 cu. ft. | 115V, 5-15P plug |
Need the same size cabinet for refrigerated food? See the matching Atosa MBF8006GR three door refrigerator.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Commercial reach-in freezer, three-section, top mount |
| Doors | (3) locking solid doors, self-closing with stay-open feature |
| Capacity | 64.9 cu. ft. |
| Shelves | (9) adjustable shelves, 3 per section |
| Exterior dimensions | 77.8" W x 31.75" D x 81.3" H |
| Temperature range | -8°F to 0°F |
| Temperature control | Digital |
| Refrigerant | R290 hydrocarbon |
| Compressor | 1 HP |
| Condensate | Automatic evaporation |
| Lighting | Interior LED |
| Construction | Stainless steel interior and exterior, galvanized steel back |
| Casters | 4", pre-installed |
| Electrical | 115/208-230V / 60Hz / 1-phase, 6.2 amps |
| Plug | NEMA L14-20P |
| Net weight | 489 lb |
| Shipping weight | 569 lb |
| Extra shelf | W0402385 (left and right sections) and W0402386 (middle section) (each includes 4 shelf clips) |
| Warranty | 3-year parts and labor, 5-year compressor |
| Certifications | cETLus, ETL-Sanitation |
Installation and Care
Set the freezer on a level floor near a 208-230V NEMA L14-20R outlet. Leave the unit some room to breathe so the compressor gets fresh air, and clean the condenser often. Extra shelves are Atosa part W0402385 (left and right sections) and W0402386 (middle section), and each comes with 4 shelf clips.
Atosa MBF8003GR FAQ
What size is the Atosa MBF8003GR?
The MBF8003GR is 77.8" wide, 31.75" deep and 81.3" tall. It weighs 489 lb (569 lb shipping weight).
How much does the MBF8003GR hold?
It holds 64.9 cu. ft. and comes with 9 pre-installed shelves, 3 per section.
What temperature does the MBF8003GR hold?
It holds -8°F to 0°F with a digital temperature control.
What power does the MBF8003GR need?
It runs on 115/208-230V / 60Hz / 1-phase and draws 6.2 amps. It has a NEMA L14-20P twist-lock plug, so you need a matching L14-20R outlet.
Can I add more shelves to the MBF8003GR?
Yes. Order Atosa shelf W0402385 (left and right sections) and W0402386 (middle section). Each extra shelf comes with 4 shelf clips.
How do I keep the MBF8003GR running well?
Leave the unit some room to breathe so the compressor gets fresh air, and clean the condenser often. Those are the two tips on the Atosa spec sheet.
What warranty comes with the MBF8003GR?
3 years parts and labor and 5 years on the compressor.
Spec Sheet
Download the Atosa MBF8003GR spec sheet (PDF, Rev. 07/26)
MBF8003GR Parts & Service
Keep your MBF8003GR freezer running like new with genuine OEM Atosa service parts. Common wear components we stock include the W0302317 temperature sensor/probe, the W0302184 temperature controller, the W0310068 heater, the W0409858 connector, and the W0409859 connector.
We are an authorized Atosa parts dealer. See every part for this unit on the MBF8003GR parts page, shop the full Atosa parts collection, or check the Atosa parts manuals.
