Atosa Fryer Troubleshooting & Maintenance Guide

Atosa fryer troubleshooting starts with a safe decision: is this a routine operating issue, or should the fryer be taken out of service? Staff can check oil level, loading, cleaning records, and the observations needed for a service call. Gas pressure tests, burner adjustments, thermostat calibration, and safety-control repairs belong to authorized technicians.

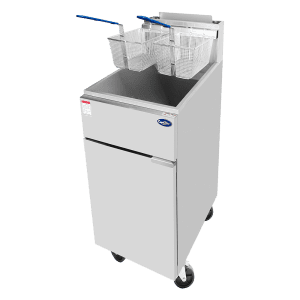

This guide covers the Atosa ATFS-40, ATFS-50, and ATFS-75 gas fryers described in the ATFS operating manual. It is an operator's checklist and service handoff guide, not a substitute for that manual or a repair procedure. Other Atosa fryer models and controller types require their own instructions.

Stop First for Gas Odor, Abnormal Flames, or Overheating

Do not keep testing a fryer that smells of gas, produces delayed ignition or flame outside the normal burner area, leaks oil, or overheats uncontrollably. Report the condition immediately and keep the equipment out of service until the responsible qualified person resolves it.

• Suspected gas leak: Leave the affected area, warn others, and follow the posted gas-emergency procedure. Call emergency services or the gas provider from a safe location. Do not operate switches, phones, or ignition sources in the affected area, and do not delay evacuation to investigate or close a valve.
• Fire: Follow the kitchen's fire-emergency plan, raise the alarm, evacuate as required, and call emergency services. Never put water on an oil fire or move a burning fryer.
• Bang, puff, soot, or abnormal flame: Stop operation using the normal shutdown procedure only if it is safe to do so, and arrange service. Do not treat a propane flame puff as harmless or try to disperse leaking gas with a fan.
• Smoking oil or uncontrolled heating: Stop heating if safe, keep people clear, and have the condition investigated. Do not assume the high-limit will make continued operation safe.

Do not bypass, jumper, or disable the high-limit or flame-failure protection. A safety shutdown is a reason to investigate, not an instruction to replace a particular component or repeatedly relight the fryer.

Identify the Model and Fuel Before Requesting Service

Record the model, serial number, and fuel designation from the equipment's data plate. Natural gas and propane configurations are not interchangeable, and a model-family name alone is not enough to select a gas valve, pilot component, or burner nozzle.

The table below reproduces the burner counts and fuel-specific inputs in Table 1 of the ATFS-40/50/75 operating manual. Use the installed unit's data plate and applicable documentation for service and gas-load calculations, particularly if its revision differs from this manual.

These product links identify the fuel-specific models; they are not repair recommendations. For equipment selection, use the commercial deep fryer collection or the broader Atosa equipment collection.

Safe Operator Checks Before a Service Call

Only perform routine checks when there is no gas odor, fire, abnormal flame, or other unsafe condition. Follow the lighting and shutdown instructions supplied with the installed fryer; do not improvise a gas-purging method or hold a control open for an arbitrary period.

• Oil: Confirm the correct operating level using the equipment's fill markings and instructions. Never fire the main burners with an empty frypot, and do not overfill.
• Controls: Confirm that trained staff have followed the normal operating sequence. Record what the pilot and main burners do without removing parts or adjusting them.
• Loading: Check whether oversized batches or back-to-back loading are preventing normal recovery. Record the product and batch size rather than assuming low heat means a failed gas valve.
• Access and ventilation: Keep specified air paths and the flue unobstructed. Report changes to the ventilation system or nearby equipment.
• History: Note whether the problem began after cleaning, relocation, a fuel-supply change, installation work, or a service visit.

Do not operate the fryer during an outage simply because its controls do not require a wall outlet. Required exhaust, make-up air, interlocks, and other safety systems must be operating as intended before cooking resumes.

Atosa Fryer Troubleshooting by Symptom

A symptom can have more than one cause. Use this table to collect useful information and decide when to stop; it does not authorize operators to perform the service checks listed in the last column.

E10 Codes and High-Limit Reset Advice

The ATFS-40/50/75 operating manual used for this guide does not define an E10 code or provide a universal red-button reset sequence. Do not apply an internet reset procedure to these fryers just because another appliance uses the same code or a similar-looking control.

If your equipment actually displays a code, record the exact code, model, serial number, and controller identification for service. Reset behavior depends on the installed safety device; there is no universal “wait 20 minutes and press the red button” instruction for every Atosa fryer.

Repeated shutdowns require investigation. They do not prove that the thermostat alone has failed, and they are not permission to replace a limiter or gas-control component without diagnosis.

Leave Gas Pressure, Calibration, and Conversion to Service

Section 10 of the ATFS operating manual is explicitly for authorized technicians. It covers burner adjustment, pressure-regulator testing, thermostat calibration, and safety-controller adjustment. Operators should describe symptoms and preserve service records, not perform these procedures.

The manual lists regulator settings of 4 inches water column for natural gas and 10 inches water column for propane. Those figures are not a universal building-supply pressure specification or instructions to adjust a regulator. A technician must distinguish the appliance's test point, supply requirements, fuel type, and operating conditions.

Do not use a generic millivolt number to condemn a thermoelectric component. The supplied manual does not establish the old article's 250–750 mV pass/fail procedure; the component and test conditions determine the appropriate measurement.

The manual also reserves thermostat calibration for service personnel. Reporting an oil-temperature discrepancy is different from turning a calibration screw, altering a sensing component, or adjusting the burner flame.

Do not assume every natural gas fryer ships with a propane conversion kit. The manual prohibits unauthorized alterations; any proposed conversion requires manufacturer approval, the correct authorized parts and procedure, and qualified installation and verification. When selecting Atosa replacement parts, provide the model, serial number, fuel type, and component identification to the supplier or service provider.

Routine Cleaning and Preventive Maintenance

Build the cleaning schedule around the manual, the oil-management program, and actual use intensity. The ATFS manual calls for frequent cleaning and daily care; it does not justify a blanket instruction to keep the same oil for a month.

Operator care

• Check oil level and the condition of the fryer before each operating period.
• Manage crumbs, filtering, and oil replacement under the kitchen's procedure and oil or filtration-system instructions.
• Turn off controls and allow safe cooling before routine cleaning, as directed by the manual.
• Clean accessible exterior surfaces, baskets, and other approved removable accessories with suitable nonabrasive products.
• Do not hose down, immerse, or pressure-wash the fryer, and do not use flammable or corrosive cleaners.
• Keep the exhaust opening and required clearances unobstructed; report damage, leaks, and abnormal operating behavior.

Deep cleaning needs a separate, trained procedure. Keep water and cleaning solution away from hot oil; remove oil safely before introducing a water-based cleaning solution, follow the approved cleaning instructions, and ensure the frypot is properly rinsed and completely dry before refilling with oil. Do not improvise chemical mixtures or leave a heated cleaning process unattended.

Qualified maintenance

The supplied ATFS manual calls for internal smokestack cleaning or maintenance after three to six months of use, or when necessary, by the manufacturer, its service agent, or a similarly qualified person. It also calls for a comprehensive inspection at least annually by authorized and licensed technicians.

Keep burner, nozzle, gas-connection, safety-control, and calibration work in that qualified-service program rather than assigning it to staff as weekly cleaning. The commercial kitchen equipment maintenance guide can help organize responsibilities and records across the kitchen.

Warranty: Keep the Claim Specific

Atosa's published Cooking and Holding Equipment Warranty provides one year of parts and labor coverage subject to its terms. It generally starts at shipment from Atosa, with a documented stocking-dealer allowance of up to six months before sale; retain the proof of purchase and installation information needed to establish the applicable dates.

Do not assume a five-year frypot warranty or a five-year whole-fryer extension applies. Those benefits are not stated in the cooking-equipment warranty document reviewed for this guide. If a separate tank warranty or extended plan was supplied with the purchase, have Atosa confirm its scope in writing.

Coverage is not a guarantee that every service charge or food loss will be reimbursed. The policy includes exclusions for conditions such as alteration, neglect, abuse, misuse, and installation damage, and excludes food-spoilage and consequential losses. Confirm the claim process and service arrangements before assuming a repair is covered.

Information to Send With a Service Request

• ☐ Model, serial number, and natural gas or propane designation.
• ☐ Purchase documents, shipment information, and installation date.
• ☐ The symptom, when it began, and whether the fryer is out of service.
• ☐ Pilot and main-burner observations made without dismantling equipment.
• ☐ Oil level, batch size, control setting, and any safely obtained temperature readings.
• ☐ Recent cleaning, relocation, fuel-supply changes, or repairs.
• ☐ Photographs of the data plate and visible condition, taken only when safe.
• ☐ Previous service findings and the contact responsible for approving work.

Do not reproduce an unsafe condition to obtain a video or prove a fault. Clear observations and equipment identification are more useful than repeated ignition attempts.

Atosa Fryer Troubleshooting Questions

A useful troubleshooting guide helps staff recognize the fault, protect people, and give the technician accurate information. Keep routine care separate from gas and safety-control service, and return the fryer to use only after the problem has been resolved.
