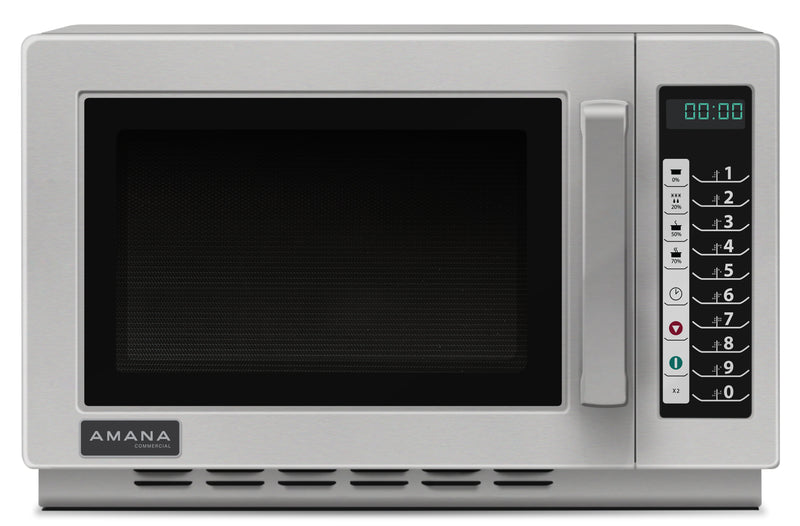

Amana RCS10TS 1000W Commercial Microwave, 1.2 cu ft, Touchpad, 100 Memory, Braille

Amana RCS10TS 1000-Watt Commercial Microwave Oven (1.2 cu ft, Medium Volume, Touchpad, 100 Memory, Braille, 120V)

The Amana RCS10TS is a 1000-watt medium-volume commercial microwave oven with touchpad controls, 100 programmable memory settings, 4-stage cooking, and Braille touchpads for ADA-compliant operation. It is the touchpad sibling of the dial-controlled RCS10DSE and shares the same 1.2 cubic foot stainless steel cavity, 14-inch plate accommodation, and 1550W input power. The RCS10TS is built for operations that want pre-programmed menu items so any staff member can hit a single button and re-thermalize, defrost, or warm a portion exactly the way the menu requires.

Amana Commercial is the foodservice microwave division built by ACP (Aladdin Combustion Products), an Ali Group company. The RCS10TS is rated for medium-volume commercial use (roughly 50 to 100 cycles per day) and serves healthcare tray lines, school cafeterias, sandwich and salad concepts, convenience stores, and quick-service restaurants that need menu consistency across multiple shifts.

The RCS10TS is cETLus listed and ETL-Sanitation certified to NSF/ANSI 4 standards, which is the certification health inspectors and commercial insurance carriers require for any commercial microwave.

Best Use Cases for the RCS10TS

• Healthcare tray lines and hospital cafeterias where every patient meal must be re-thermalized to the same temperature for the same duration
• Assisted-living, memory care, and senior dining where Braille touchpads aid visually impaired residents and staff
• School cafeterias and university dining where menu consistency across shifts and locations is required
• Sandwich shops, salad chains, and bowl concepts that pre-program "panini," "soup," "burrito," and "bowl" buttons
• Convenience store hot-case stations re-thermalizing pre-packaged breakfast sandwiches, burritos, and pizza slices
• Quick-service restaurants that need standardized cycle times for menu items prepared by rotating crews
• Coffee shops re-thermalizing pastries, breakfast sandwiches, and oatmeal cups
• Bakeries and cafes warming muffins, scones, and pre-baked goods at consistent temperatures
• Hotel breakfast and grab-and-go programs where staff turnover requires push-button simplicity
• Institutional foodservice (correctional, military, government cafeterias) where ADA compliance is required

Touchpad Controls and 100 Memory Settings

The RCS10TS uses a membrane touchpad with 100 programmable memory slots, 5 power levels, and 4-stage cooking. The manager pre-programs each menu item one time, assigns it to a button, and from then forward any staff member can re-thermalize that menu item by pressing the assigned button. This locks down menu consistency across shifts, eliminates training variance, and removes the staff-judgment step that causes overcooked or undercooked plates at peak hours.

4-stage cooking means a single program can run up to four sequential power levels in one cycle. For example, a frozen breakfast sandwich can defrost at 30 percent power for 45 seconds, heat at 100 percent for 35 seconds, hold at 50 percent for 15 seconds, and then signal "ready." Multi-stage programs are particularly useful for healthcare tray lines, where chilled plated meals need to be re-thermalized through specific stages to bring all components (entree, sides, sauce) to the right temperature without overcooking the most heat-sensitive item.

5 power levels (one more than the dial-controlled RCS10DSE) give the operator finer control between defrost, simmer, warm, half-power cook, and full-power cook.

Braille Touchpads and ADA Compliance

The RCS10TS has Braille touchpads, which makes it a strong fit for institutional foodservice operations subject to ADA accessibility requirements: assisted-living facilities, memory care, hospital cafeterias serving visually impaired patients or staff, government cafeterias, and any operation where a staff member with visual impairment may operate the unit. Braille touchpads are an Amana commercial-specific feature and not standard across the category.

1000 Watts and Medium-Volume Throughput

At 1000 watts of output, the RCS10TS re-thermalizes a typical 10-ounce pre-chilled entree in 60 to 75 seconds, melts cheese on a sandwich in 15 to 25 seconds, and defrosts a half-pound portion in 90 to 120 seconds. Output is identical to the RCS10DSE because both units share the same magnetron and cavity. The differentiator is the controls, not the cooking power.

Total input power is 1550 watts on a 120V, 13.0 amp circuit. Minimum circuit ampacity is 15 amps. The unit ships with a power cord and standard NEMA 5-15P plug.

1.2 Cubic Foot Cavity and 14-Inch Plate

The 1.2 cu ft stainless steel cavity accommodates a 14-inch dinner plate, which is the largest plate size used in commercial healthcare and institutional foodservice. Half-size steam table pans (12.75 by 10.4 inches) also fit. The stationary ceramic deck and side-mounted stirrer fan distribute microwave energy evenly across the cavity without a rotating turntable. Square pans and large round plates heat with the same evenness because the stirrer is doing the work, not a turntable.

Construction

Stainless steel interior and exterior, NSF/ANSI 4 sanitation construction, side-hinged tempered glass door with reinforced commercial hinges, and non-removable magnetron air filter. The non-removable filter is integrated into the chassis cooling assembly to prevent grease and dust from reaching the magnetron without giving service shortcuts that could compromise magnetron life. The cooling architecture is sealed.

Comparison to RCS10DSE (Dial Timer)

The RCS10TS and RCS10DSE share identical output power (1000W), cavity size (1.2 cu ft), plate accommodation (14-inch), electrical hookup (120V/15A NEMA 5-15P), and total input (1550W). The differences are the controls. The RCS10TS has touchpad, 100 memories, 5 power levels, 4-stage cooking, and Braille. The RCS10DSE has a 10-minute mechanical dial, 4 power levels, and no memory. Choose RCS10TS if menu consistency or ADA compliance matters. Choose RCS10DSE if simplicity, durability, and lowest learning curve matter.

Comparison to RMS10TSA (0.8 cu ft Low Volume Touchpad)

The RMS10TSA is the low-volume touchpad unit with the same 1000W output but a smaller 0.8 cu ft cavity, 20 memory settings (not 100), and 30-minute max cook time. Choose RCS10TS for 1.2 cu ft cavity and 100 memories; choose RMS10TSA for smaller footprint and lower volume operations under 50 cycles per day.

Specifications

Installation Requirements

The RCS10TS installs on any commercial countertop or microwave shelf rated for the unit's weight. A dedicated 120V, 15 amp circuit is required to avoid voltage drop and breaker trips.

Installation Checklist

• Dedicated 120V, 15 amp circuit with NEMA 5-15R outlet
• Outlet positioned within 4 feet of the unit's rear panel for the included cord
• Manufacturer-specified air clearance on all sides (typically 1 to 4 inches sides, 7 to 12 inches top)
• Countertop or shelf rated for at least 70 pounds
• Stable, level installation surface
• Air intake unobstructed by walls, shelves, or stored equipment
• Door swing path clear of adjacent equipment, walls, or operator workflow
• Initial programming session scheduled to set up the 100 memory presets for the operation's menu

Frequently Asked Questions

What is the RCS10TS used for?

Medium-volume commercial microwave with touchpad memory programming for healthcare tray lines, school cafeterias, sandwich and salad concepts, convenience stores, and quick-service restaurants running 50 to 100 cycles per day with menu consistency requirements.

What does 4-stage cooking mean?

A single program can run up to four sequential power levels in one cycle. For example, defrost at 30 percent for 45 seconds, heat at 100 percent for 35 seconds, hold at 50 percent for 15 seconds, then signal done. Useful for healthcare tray lines and any menu item with multiple components that need different heating profiles.

How many menu items can I pre-program?

100 memory settings. The manager programs each menu item once and any staff member can recall it by pressing the assigned button.

Why does it have Braille touchpads?

ADA accessibility. The unit can be operated by visually impaired staff in assisted-living, memory care, hospital cafeterias, government cafeterias, and any institutional foodservice operation subject to ADA compliance requirements.

What is the difference between RCS10TS and RCS10DSE?

Same output, cavity, electrical, and total input. RCS10TS has touchpad, 100 memories, 5 power levels, 4-stage cooking, and Braille. RCS10DSE has a mechanical 10-minute dial, 4 power levels, no memory. Choose RCS10TS for menu consistency or ADA compliance; choose RCS10DSE for simplicity and durability.

What is the maximum plate size?

A 14-inch dinner plate. Half-size steam table pans (12.75 by 10.4 inches) also fit. Cavity is 1.2 cubic feet.

What electrical hookup does it need?

Dedicated 120V, 15 amp circuit with NEMA 5-15R outlet. Cord and NEMA 5-15P plug included.

Is it NSF and UL listed?

cETLus listed and ETL-Sanitation certified to NSF/ANSI 4 sanitation standards. Health inspectors accept ETL-Sanitation in place of NSF in every U.S. jurisdiction.

Is the air filter cleanable?

The filter is non-removable, integrated into the chassis cooling assembly to protect the magnetron. Wipe the exterior intake area weekly and have a service technician inspect the cooling path during the annual PM visit.

Can I run this on a food truck?

Yes if the food truck generator or shore power supplies a stable 120V, 15 amp dedicated circuit and the unit has manufacturer-specified clearance.

What is the warranty?

Amana Commercial standard warranty applies. Contact us with the order confirmation for specific warranty terms applicable to your unit.

Pricing and ordering?

Contact us for current pricing, lead time, and freight quote on the Amana RCS10TS.
