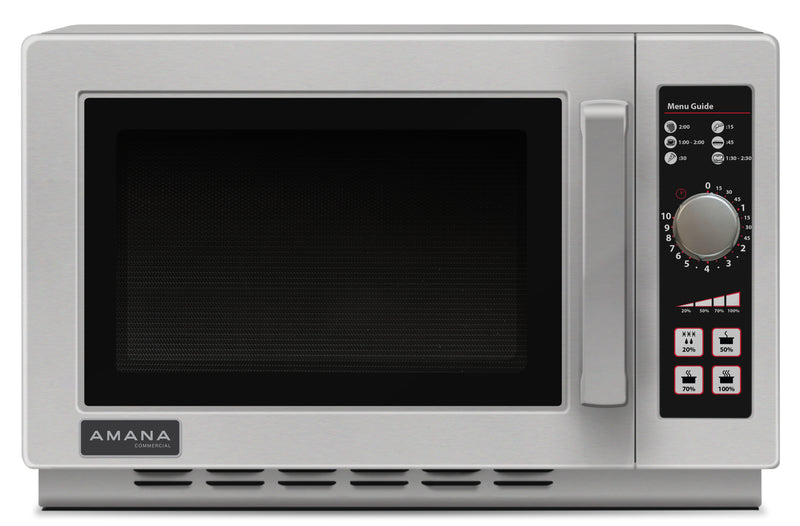

Amana RCS10DSE 1000W Commercial Microwave, 1.2 cu ft, Dial Timer, Medium Volume

Amana RCS10DSE 1000-Watt Commercial Microwave Oven (1.2 cu ft, Medium Volume, Dial Timer, 120V)

The Amana RCS10DSE is a 1000-watt medium-volume commercial microwave oven built around a 1.2 cubic foot stainless steel cavity that accommodates a full 14-inch dinner plate. This is the dial-control unit in Amana's RCS line, engineered for foodservice operations that want a fast, durable medium-duty microwave with mechanical controls rather than touchpad programming. Operators get a 10-minute dial timer, 4 power levels, and a side-hinged tempered glass door that swings clear of the counter on a low or right-side install.

Amana Commercial is the foodservice microwave division built by ACP (Aladdin Combustion Products), an Ali Group company. The RCS10DSE is rated for medium-volume commercial use, which Amana defines as roughly 50 to 100 cycles per day. That puts it in the right tier for cafes, sandwich shops, healthcare tray lines, school cafeterias, convenience stores, breakrooms, and any back-of-house station that needs steady throughput without the cost of a heavy-duty 1800 or 2100-watt unit.

The RCS10DSE is cETLus listed and ETL-Sanitation certified to NSF/ANSI 4 sanitation standards, which is the certification health inspectors and commercial insurance carriers require for any microwave used in a foodservice operation.

Best Use Cases for the RCS10DSE

• Cafes and coffee shops re-thermalizing pastries, breakfast sandwiches, soups, and quiches
• Sandwich shops melting cheese, heating soups, and re-warming pre-made sandwiches
• Healthcare tray lines and assisted-living facilities warming patient meals at simple dial-set times
• School cafeterias and university dining heating entrees, defrosting frozen portions, and warming bread
• Convenience stores re-thermalizing burritos, breakfast sandwiches, and pre-packaged hot foods
• Office breakrooms and hotel staff cafeterias where touchpad programming is more than the operation needs
• Bar and pub back-of-house re-warming pre-made apps and sides during late service
• Bakeries melting butter or chocolate, warming fillings, and softening cream cheese
• Small restaurant lines that want a backup or secondary microwave without a touchpad learning curve
• Operations that prefer mechanical controls because they survive in greasy, splashy environments where touchpads degrade

Dial Timer and Mechanical Controls

The RCS10DSE uses a 10-minute mechanical dial timer rather than a touchpad. The operator twists the dial to the desired cook time, selects one of four power levels, and the timer counts down audibly. When the cycle ends, the unit signals and shuts the magnetron off automatically. Dial timers have two operational advantages over touchpads: first, no learning curve for new staff or non-English-speaking staff (the dial is a universal interface), and second, the controls survive in environments where grease splatter, water spray, and aggressive cleaning would degrade a membrane touchpad over time. For operations with high staff turnover or rough handling, a dial-control microwave often outlasts a touchpad unit by years.

The four power levels allow the operator to defrost, simmer, warm, and cook at appropriate energy outputs. A defrost cycle at 30 percent power thaws frozen portions evenly without cooking the exterior. A warm cycle at 50 percent holds plated food at temperature without overcooking. A standard cook cycle at 100 percent re-thermalizes pre-chilled food in 30 to 90 seconds depending on portion.

1000 Watts and Medium-Volume Throughput

At 1000 watts of output, the RCS10DSE re-thermalizes a typical 10-ounce pre-chilled entree in roughly 60 to 75 seconds, melts cheese on a sandwich in 15 to 25 seconds, and defrosts a half-pound portion in 90 to 120 seconds. That output is roughly 40 percent faster than a residential 700-watt microwave and is the right tier for 50 to 100 cycles per day. Operations running more than 100 cycles per day should step up to a heavy-duty 1800 or 2100-watt unit such as the Sharp R-22GTF or Winco EMW-1800AT to avoid magnetron stress.

Total input power is 1550 watts on a 120V, 13.0 amp circuit. Minimum circuit ampacity (MCA) is 15 amps, which means a dedicated standard 120V, 15 amp circuit is the required electrical supply. The unit ships with a power cord and standard NEMA 5-15P plug for direct outlet connection.

1.2 Cubic Foot Cavity and 14-Inch Plate

The 1.2 cu ft stainless steel cavity accommodates a 14-inch dinner plate, which is the largest plate size used in most commercial healthcare and institutional foodservice. Half-size steam table pans (12.75 by 10.4 inches) also fit. The cavity is wider than the 0.8 to 1.0 cu ft cavities in lighter-duty microwaves like the Sharp R-21LCFS or Amana RMS10DSA, which gives operators flexibility to heat larger portions or multiple smaller items at once. The stationary ceramic deck eliminates the breakage and sanitation issues of a residential glass turntable. The stirrer fan above the cavity distributes microwave energy evenly across the deck so square pans heat as evenly as round plates.

Construction

The exterior and interior are both stainless steel. Stainless steel construction is the NSF/ANSI 4 standard for any commercial cooking appliance because it does not corrode under repeated cleaning with sanitizing solutions and does not retain odors or stains the way painted or coated interiors do. The side-hinged door with tempered glass window swings clear of the counter and allows the operator to load larger items than a top-hinged or pull-down door would accommodate. The hinge is reinforced for commercial cycle counts.

The unit ships with a non-removable air filter at the magnetron intake. The filter prevents grease and dust from reaching the magnetron and cooling fan, which protects the most expensive component in the microwave. Non-removable means the filter is part of the chassis assembly rather than a customer-replaceable element; the cooling architecture is sealed to prevent service shortcuts that compromise magnetron life.

Comparison to RMS10DSA (0.8 cu ft Low Volume)

The RCS10DSE is the medium-volume sibling of the RMS10DSA. Both are 1000-watt dial-control units on a 120V circuit, but the RCS10DSE has a 1.2 cu ft cavity and accommodates a 14-inch plate, while the RMS10DSA has a smaller 0.8 cu ft cavity and is rated for low-volume use (under 50 cycles per day). The RCS10DSE has a 10-minute dial timer; the RMS10DSA has a 6-minute timer. Operations running 50 to 100 cycles per day with full dinner plates should buy the RCS10DSE. Operations running fewer than 50 cycles per day with smaller portions should buy the RMS10DSA.

Comparison to RCS10TS (Touchpad with Memory)

The RCS10TS is the touchpad counterpart to the RCS10DSE. Both have the same 1000W output, 1.2 cu ft cavity, and 1550W total input power. The RCS10TS adds 4-stage cooking, 5 power levels (one more than the RCS10DSE), 100 memory settings, and Braille touchpads for ADA compliance. The RCS10DSE keeps a simple dial and 4 power levels. Operations that want pre-programmed menu items for staff consistency should buy the RCS10TS; operations that want simplicity, durability, and the lowest learning curve should buy the RCS10DSE.

Specifications

Installation Requirements

The RCS10DSE installs on any commercial countertop or microwave shelf rated for the unit's weight. A dedicated 120V, 15 amp circuit is required to avoid voltage drop and breaker trips. The unit pulls 13.0 amps when running at full power, so sharing a circuit with a refrigerator, toaster, or coffee maker can cause voltage drops that reduce cook power and shorten magnetron life.

Installation Checklist

• Dedicated 120V, 15 amp circuit with NEMA 5-15R outlet
• Outlet positioned within 4 feet of the unit's rear panel for the included cord
• Manufacturer-specified air clearance on all sides (typically 1 to 4 inches sides, 7 to 12 inches top)
• Countertop or shelf rated for at least 70 pounds
• Stable, level installation surface; unit must not rock or vibrate
• Air intake (rear and sides) unobstructed by walls, shelves, or stored equipment
• Door swing path clear of adjacent equipment, walls, or operator workflow

Frequently Asked Questions

What is the RCS10DSE used for?

Medium-volume commercial microwave for cafes, sandwich shops, healthcare tray lines, school cafeterias, convenience stores, breakrooms, and any back-of-house station running 50 to 100 cycles per day with full 14-inch dinner plates or half-size steam table pans.

What is the difference between dial control and touchpad?

The dial control on the RCS10DSE is mechanical: the operator twists a knob to set time and selects one of four power levels. No memory, no programming, no learning curve. Touchpad units like the RCS10TS allow pre-programmed menu items and multi-stage cooking, but they are more expensive and the membrane keypads can degrade over time in greasy environments.

How many cycles per day can the RCS10DSE handle?

Roughly 50 to 100 cycles per day. Operations running more than 100 cycles per day should buy a heavy-duty 1800 or 2100-watt unit to avoid magnetron stress.

What is the maximum plate size?

A 14-inch dinner plate. Half-size steam table pans (12.75 by 10.4 inches) also fit. The cavity is 1.2 cubic feet.

What electrical hookup does it need?

A dedicated 120V, 15 amp circuit with a standard NEMA 5-15R outlet. The unit ships with a cord and NEMA 5-15P plug. Do not share the circuit with a refrigerator, toaster, or coffee maker.

Is it NSF and UL listed?

cETLus listed (the ETL equivalent of UL for safety) and ETL-Sanitation certified to NSF/ANSI 4 sanitation standards. Health inspectors accept ETL-Sanitation in place of NSF in every U.S. jurisdiction.

Is the air filter cleanable?

The air filter is non-removable, meaning it is part of the chassis cooling assembly rather than a customer-serviceable element. The unit's cooling architecture is sealed to protect the magnetron. Wipe the exterior intake area weekly and have a service technician inspect the cooling path during the annual PM visit.

Can I run this on a food truck?

Yes, if the food truck generator or shore power supplies a stable 120V, 15 amp dedicated circuit and the truck has the air clearance required by the manufacturer. Verify generator output and circuit availability before installation.

What is the warranty?

Amana Commercial standard warranty applies. Contact us with the order confirmation for specific warranty terms applicable to your unit.

Pricing and ordering?

Contact us for current pricing, lead time, and freight quote on the Amana RCS10DSE.
