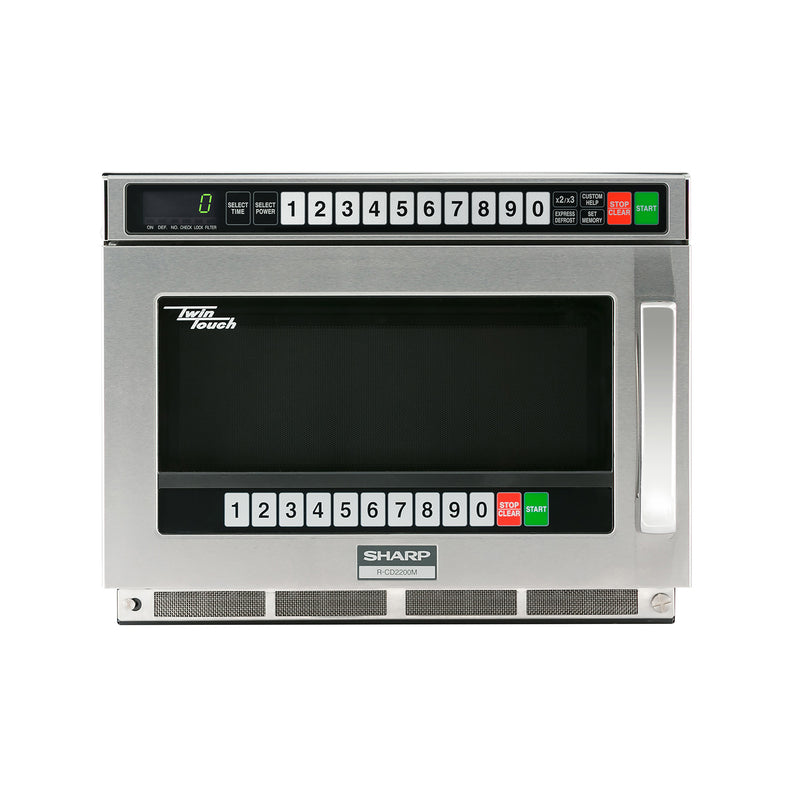

Sharp R-CD2200M TwinTouch 2200W Dual-Panel Commercial Microwave

Sharp R-CD2200M TwinTouch 2200-Watt Commercial Microwave Oven (0.75 cu ft, Dual Magnetron, Dual Control Panel, 11 Power Levels, 208/230V)

The Sharp R-CD2200M is a 2200-watt TwinTouch commercial microwave oven with dual magnetrons, dual control panels (one on each side of the unit), 10 computerized touchpads, 11 power levels, 4-stage cooking, SelectPower variable power, Express Defrost, and double and triple quantity programming. The R-CD2200M is the top-output TwinTouch model and the highest-wattage Sharp commercial microwave, designed for the most demanding two-operator service workflows.

The R-CD2200M runs on a 208/230V single-phase 20-amp circuit with a NEMA 6-20P plug. It uses the same TwinTouch dual-control architecture and dual-magnetron heating system as the 1200W R-CD1200M and 1800W R-CD1800M, scaled up to 2200W of output for maximum throughput.

The R-CD2200M is cULus listed and NSF certified.

Best Use Cases for the R-CD2200M

• Highest-volume pass-through service windows with two operators and 208/230V 20-amp wiring available
• Hospital and senior-living central tray lines re-thermalizing 400+ trays per meal service
• Stadium, arena, and major venue concession operations at peak service
• Hotel banquet operations running parallel re-thermalization for events of 200+ guests
• Casino, convention center, and large-venue food service operations
• High-volume quick-service flagship locations with paired operators at every peak
• Convenience store hot-case operations at high-traffic locations
• Catering operations running large events with two-zone re-thermalization
• Operations stepping up from R-CD1800M for faster cook times when 20-amp 208/230V is available
• Any operation that wants maximum Sharp commercial microwave output with TwinTouch dual-operator capability

TwinTouch Dual Control Panel

One full 10-touchpad control panel is mounted on each side of the unit, so two operators can program and start cycles independently from opposite sides. The dual-magnetron heating system feeds energy into the same shared 0.75 cu ft cavity, but the controls are duplicated so each operator runs their own programming without reaching across the unit or waiting for the other side.

This design saves counter space, runs on one electrical circuit, and lets both operators share the same set of programmed menu presets without reprogramming a second unit.

Dual-Magnetron System and 2200 Watts

At 2200 watts of output, the R-CD2200M re-thermalizes a typical 10-ounce pre-chilled entree in 25 to 35 seconds and defrosts a half-pound portion in 45 to 60 seconds. This is roughly 20 percent faster than the 1800W R-CD1800M and twice as fast as a 1000W medium-duty unit. The dual-magnetron architecture feeds energy into the cavity from two positions for more even heat penetration on dense portions.

The unit draws 16 amps at 208V or 14 amps at 230V on a 208/230V single-phase circuit and requires a dedicated 20-amp circuit with NEMA 6-20R outlet. The 6-20P plug ships with the unit.

11 Power Levels, 4-Stage Cooking, SelectPower

The R-CD2200M has 11 power levels, 4-stage cooking, SelectPower variable mid-cycle power, Express Defrost, and double and triple quantity programming. 4-stage cooking is useful for complex menu items that need a defrost stage, two cook stages at different power levels, and a hold or finish stage in one button press. Triple-quantity programming heats three portions in one cycle from a single button press.

0.75 Cubic Foot Cavity

The 0.75 cu ft stainless steel cavity accommodates a 10-inch plate, smaller bowls and cups, and pre-packaged single-serving items. Stationary ceramic deck with stirrer fan distribution.

Construction

Door, cavity, and outer wrapper are all stainless steel. NSF/ANSI 4 sanitation construction. Durable side-hinged see-through door with tempered glass. Sealed membrane touchpads on both control panels.

Comparison to R-CD1800M (TwinTouch 1800W)

Same TwinTouch design, same dual-magnetron system, same cavity, same controls. Both run on 208/230V single-phase. R-CD1800M ships with NEMA 6-15P plug on a 15-amp circuit and outputs 1800W. R-CD2200M ships with NEMA 6-20P plug on a 20-amp circuit and outputs 2200W. Choose R-CD2200M for maximum throughput when the available circuit is 208/230V 20-amp.

Comparison to R-CD1200M (TwinTouch 1200W)

Same TwinTouch design and dual-magnetron system. R-CD1200M is 1200W on 120V (NEMA 5-20P). R-CD2200M is 2200W on 208/230V (NEMA 6-20P). Choose R-CD2200M for maximum throughput when 208/230V is available.

Comparison to R-25JTF (Single-Control Heavy-Duty 2100W)

Similar output (R-25JTF is 2100W, R-CD2200M is 2200W). R-25JTF has a single control panel for one operator. R-CD2200M has dual TwinTouch panels for two operators. Choose R-CD2200M if two operators share the oven. Choose R-25JTF for single-operator maximum throughput.

Specifications

Installation Requirements

Installation Checklist

• Dedicated 208/230V, 20 amp single-phase circuit with NEMA 6-20R outlet
• Outlet positioned within 4 feet of the unit's rear panel for the included cord
• Manufacturer-specified air clearance on all sides
• Pass-through or side-by-side counter access from both sides for the TwinTouch dual operators
• Countertop or shelf rated for the unit's weight
• Stable, level installation surface
• Air intake unobstructed by walls, shelves, or stored equipment
• Door swing path clear of adjacent equipment
• Initial programming session scheduled to set up the menu presets shared by both control panels
• Voltage verification at the outlet before installation (208V buildings draw 16 amps, 230V buildings draw 14 amps)

Frequently Asked Questions

What is the R-CD2200M used for?

The highest-volume two-operator workflows on the Sharp commercial microwave lineup. Stadium and arena concessions, central tray lines at large hospitals, hotel banquet operations for large events, casino and convention center food service, and any operation that wants maximum Sharp commercial microwave output with TwinTouch dual-operator capability.

What is TwinTouch?

Sharp's TwinTouch design puts a full 10-touchpad control panel on each side of the unit so two operators can program and start cycles independently from opposite sides. Both panels feed the same shared cavity and dual-magnetron system.

What is the difference between R-CD2200M and R-CD1800M?

Same TwinTouch design and dual-magnetron system, both on 208/230V single-phase. R-CD2200M is 2200W on a 20-amp circuit (NEMA 6-20P). R-CD1800M is 1800W on a 15-amp circuit (NEMA 6-15P). Choose R-CD2200M for maximum throughput when a 20-amp 208/230V circuit is available.

What is the difference between R-CD2200M and R-25JTF?

Similar output (2200W vs 2100W). R-CD2200M has dual TwinTouch control panels for two operators. R-25JTF has a single control panel for one operator. Both ship with NEMA 6-20P plugs and run on 208/230V single-phase 20-amp circuits.

What electrical hookup does it need?

Dedicated 208/230V single-phase 20 amp circuit with NEMA 6-20R outlet. Draws 16 amps at 208V or 14 amps at 230V. The unit ships with a NEMA 6-20P plug.

What is 4-stage cooking?

4-stage cooking lets a single programmed button run the cycle through four different power level and time combinations in sequence. Useful for complex menu items that need a defrost stage, two cook stages at different power levels, and a hold or finish stage.

What is triple-quantity programming?

Triple-quantity programming heats three portions in one cycle from a single button press. The unit automatically scales the cook time based on the programmed single-portion time.

Can both control panels run different cycles at the same time?

The two control panels share the same cavity and dual-magnetron heating system, so only one cycle runs at a time. TwinTouch is about two operators having independent access to controls and shared menu presets.

Is it NSF and UL listed?

Yes, cULus listed for safety in the United States and Canada, and NSF certified for sanitation.

Pricing and ordering?

Contact us for current pricing, lead time, and freight quote on the Sharp R-CD2200M.
