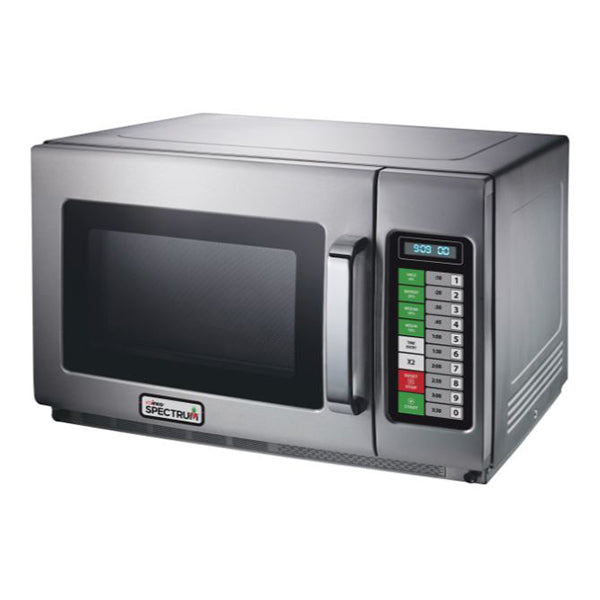

Winco EMW-2100BT Spectrum 2100W Stackable Commercial Microwave

Winco EMW-2100BT Spectrum 2100W Stackable Commercial Microwave
by Winco

Winco EMW-2100BT Spectrum 2100-Watt Stackable Commercial Microwave Oven (Touch Controls, 208/230V, NEMA 6-20P, ETL-Sanitation)

The Winco EMW-2100BT is a 2100-watt Spectrum heavy-duty commercial microwave with touch controls and a stackable chassis designed to be paired with another EMW-2100BT or with the EMW-1800AT for two-tier high-throughput service. At 2100 watts of output, it is the highest-wattage unit in the Winco Spectrum lineup and is built for the most demanding stacked service workflows.

The 22-5/8 inch wide by 20-3/4 inch deep by 14-1/2 inch high footprint matches the EMW-1800AT exactly, which means the two models stack interchangeably. The EMW-2100BT runs on a 208/230V single-phase 20-amp circuit with NEMA 6-20P plug and draws 18 amps.

The EMW-2100BT is cETLus listed and ETL-Sanitation certified.

Best Use Cases for the EMW-2100BT

  • Stadium and arena concession stands needing maximum throughput at peak
  • Hotel banquet operations running large events with stackable high-output units
  • Hospital and senior-living tray lines re-thermalizing 400+ trays per meal service
  • Casino, convention center, and large-venue food service operations
  • High-volume quick-service flagship locations with stacked positions at peak
  • Convenience store hot-case operations at the busiest locations
  • Catering operations running the largest events with two-tier re-thermalization
  • Operations stepping up from EMW-1800AT for faster cook times in the same chassis
  • Mixed stacks pairing EMW-2100BT (faster top unit) with EMW-1800AT (slightly slower bottom unit)
  • Any 208/230V operation that wants maximum Winco Spectrum output with stackable footprint

Stackable with EMW-1800AT

The EMW-2100BT chassis stacks with another EMW-2100BT or with the EMW-1800AT (same 22-5/8 x 20-3/4 x 14-1/2 inch footprint). Stacking two units gives one counter footprint two independent microwave positions, each running on its own 208/230V 20-amp circuit. Each stacked cavity is completely independent, which means two cycles can run truly simultaneously.

A mixed stack of one EMW-2100BT and one EMW-1800AT lets the top position handle faster re-thermalization while the bottom position handles slower complex items, or vice versa, depending on staff workflow.

2100 Watts on 208/230V

At 2100 watts of output on a 208/230V single-phase circuit drawing 18 amps, the EMW-2100BT delivers the fastest cook times in the Winco Spectrum lineup. The unit re-thermalizes a typical 10-ounce pre-chilled entree in 25 to 35 seconds and defrosts a half-pound portion in 45 to 60 seconds, which is roughly 15 percent faster than the 1800W EMW-1800AT in the same chassis.

Touch Control Operation

The touch control panel lets staff program preset cook times and start cycles with a single button press per menu item. The EMW-2100BT shares the same control layout as the EMW-1800AT, so staff trained on one unit work the other without retraining, which matters for mixed stacks.

Construction and Sanitation

Stainless steel exterior. ETL-Sanitation certified to ANSI/NSF 4 requirements for commercial food-zone equipment. Side-hinged door. Designed for daily heavy-duty commercial service.

Comparison to EMW-1800AT (Spectrum 1800W Stackable)

Same chassis, same footprint, same stackable design, same 208/230V/18A NEMA 6-20P electrical, same touch controls, same certifications. EMW-2100BT outputs 2100W instead of 1800W for roughly 15 percent faster cook times. Both units stack with each other in mixed configurations. Choose EMW-2100BT when maximum cook speed is the priority.

Comparison to EMW-1000ST (Spectrum 1000W 120V Touch)

EMW-1000ST is 1000W on 120V/12A NEMA 5-15P (standard 15-amp outlet). EMW-2100BT is 2100W on 208/230V/18A NEMA 6-20P (heavy-duty 20-amp outlet) and stackable. Step up to EMW-2100BT for maximum cook speed and stackability when 208/230V is available.

Comparison to Sharp R-25JTF (Heavy-Duty Single-Control 2100W)

Both are 2100W heavy-duty units on 208/230V circuits with NEMA 6-20P plugs. Sharp R-25JTF is single-control with a 0.7 cu ft cavity and dual magnetron in a non-stackable chassis. Winco EMW-2100BT is touch control in a stackable chassis. Choose EMW-2100BT when stackability matters. Choose R-25JTF for the dual-magnetron heating system at single-position installations.

Comparison to Sharp R-CD2200M (TwinTouch 2200W)

Both are top-tier 208/230V heavy-duty units with similar output (2100W vs 2200W). Sharp R-CD2200M is one unit with TwinTouch dual control panels sharing one cavity for two-operator workflows. EMW-2100BT is one cavity with one control panel but stacks with a second unit for truly parallel two-cavity service. Choose EMW-2100BT for two independent cavities. Choose R-CD2200M for two operators sharing one cavity.

Specifications

Specification Value
Model Number EMW-2100BT
Manufacturer Winco
Series Spectrum
Output Power 2100 watts
Stackable Yes (with EMW-2100BT or EMW-1800AT)
Dimensions 22-5/8"W x 20-3/4"D x 14-1/2"H
Controls Touch controls
Voltage 208/230V / 60Hz / 1-phase
Amperage 18 amps
Plug Type NEMA 6-20P
Certifications cETLus, ETL-Sanitation

Installation Requirements

Installation Checklist

  • Dedicated 208/230V, 20 amp single-phase circuit with NEMA 6-20R outlet per stacked position
  • Outlet positioned within 4 feet of each unit's rear panel for the included cord
  • Manufacturer-specified air clearance on all sides, including between stacked units
  • Stacking hardware or rated shelf for the upper unit if stacked
  • Countertop or shelf rated for the combined stacked weight
  • Stable, level installation surface
  • Air intake unobstructed by walls, shelves, or stored equipment
  • Door swing paths clear of adjacent equipment on both stacked positions
  • Initial programming session scheduled to set up the menu presets
  • Voltage verification at the outlet before installation (208V vs 230V)

Frequently Asked Questions

What is the EMW-2100BT used for?

The highest-throughput stacked workflows in the Winco Spectrum lineup: stadium and arena concessions at peak, hotel banquet operations for large events, large hospital tray lines, casino and convention center food service, and any operation that wants maximum Winco Spectrum output with stackable footprint.

What does stackable mean?

The chassis stacks with another EMW-2100BT or with the EMW-1800AT (same footprint), giving two independent microwave positions on one counter footprint. Each unit runs on its own 208/230V 20-amp circuit, and each cavity is fully independent.

What is the difference between EMW-2100BT and EMW-1800AT?

Same chassis, same footprint, same electrical (208/230V/18A NEMA 6-20P). EMW-2100BT is 2100W, EMW-1800AT is 1800W. EMW-2100BT is roughly 15 percent faster on cook times. Both stack with each other in mixed configurations.

How is stackable different from Sharp TwinTouch?

Stackable units are two completely independent cavities and heating systems, so two cycles can run truly simultaneously. Sharp TwinTouch is one unit with two control panels sharing one cavity, where only one cycle runs at a time.

What electrical hookup does it need?

Dedicated 208/230V single-phase 20 amp circuit with NEMA 6-20R outlet. Draws 18 amps. Stacked configurations need one circuit per stacked position.

Can I mix EMW-2100BT with EMW-1800AT in a stack?

Yes. The two units share the same footprint and stack interchangeably. A common configuration is EMW-2100BT (faster cook) on top with EMW-1800AT on the bottom, or vice versa, depending on which side of the workflow has higher ticket pace.

Is it NSF and UL listed?

Yes, cETLus listed for safety in the United States and Canada and ETL-Sanitation certified to ANSI/NSF 4 requirements.

Pricing and ordering?

Contact us for current pricing, lead time, and freight quote on the Winco EMW-2100BT.
