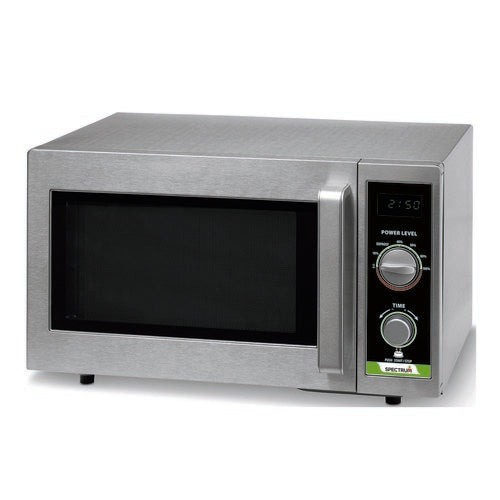

Winco EMW-1000SD Spectrum 1000W Dial Commercial Microwave

Winco EMW-1000SD Spectrum 1000-Watt Commercial Microwave Oven (0.9 cu ft, Dial Control, Bottom Energy Feed Ceramic Plate, 120V)

The Winco EMW-1000SD is a 1000-watt Spectrum commercial microwave with a 0.9 cubic foot stainless steel cavity, dial control, and a bottom energy feed system with ceramic plate for even heat distribution without a turntable. The unit accommodates a 12-inch diameter platter, has a backlit LED display, interior oven light, and a customizable cooking timer up to 60 minutes. The dial control makes it one of the simplest commercial microwaves on the line, designed for staff who want a single rotary knob with no menu programming.

The EMW-1000SD runs on a standard 120V/15A circuit with a NEMA 5-15P plug and draws 12 amps. With 1450 watts input power producing 1000 watts of microwave output, it sits in the medium-duty category alongside the Sharp R-21LCFS dial unit and the Amana RCS10DSE.

The EMW-1000SD is cULus listed for safety.

Best Use Cases for the EMW-1000SD

• Coffee shops and cafes re-thermalizing pre-made sandwiches and pastries
• Convenience stores with simple grab-and-go food service
• Hotel breakfast bars and continental service stations
• Bar and tavern food service for limited menu re-thermalization
• Healthcare break rooms, nurses stations, and staff dining
• Senior living and assisted living common-area pantries
• Office cafeterias and corporate break rooms with light commercial duty
• Concession stands at smaller venues with single-portion menu items
• Front-of-house re-thermalization at restaurants where back-of-house has separate heavy-duty units
• Operations that prefer dial controls over touchpads for fastest staff training

Bottom Energy Feed System with Ceramic Plate

The EMW-1000SD uses a bottom energy feed system instead of a turntable. Microwave energy enters the cavity through a ceramic plate mounted in the floor of the cavity, which distributes energy evenly across a 12-inch diameter platter without needing the food to rotate. This is the standard commercial design: more durable than residential turntables, easier to clean, and capable of accommodating rectangular pans and oversized platters that a turntable cannot rotate.

The ceramic plate is wipe-down sanitary and resists chips and stains from grease, sauce, and crumb buildup that defeat turntable bearings on residential units.

Dial Control Operation

The control panel is a single rotary dial for cook time up to 60 minutes, with a start button. There is no menu programming, no power-level selection, and no preset buttons. Staff turn the dial to the desired time and press start. This makes the EMW-1000SD the simplest training profile in the Winco Spectrum lineup and one of the simplest commercial microwaves available.

For staff who need power-level selection, multi-stage cooking, or programmable presets, step up to the EMW-1000ST touchpad model, which uses the same 0.9 cu ft cavity and the same 120V plug type.

0.9 Cubic Foot Cavity

The 0.9 cu ft stainless steel cavity accommodates a 12-inch diameter platter, which is larger than the cavity on Sharp's heavy-duty R-22GTF and R-25JTF units (0.7 cu ft) and the Sharp TwinTouch series (0.75 cu ft). It is similar in size to the Amana RCS10DSE and RCS10TS medium-duty cavities (1.2 cu ft) but slightly smaller. The larger cavity is helpful for plated entrees, salad bowls, and to-go containers that do not fit smaller cavities.

Construction

Stainless steel interior cavity and stainless steel exterior. Backlit LED display for the timer. Interior oven light. Side-hinged door. Sealed bottom with ceramic energy feed plate. The unit is designed for daily commercial service in light to medium duty.

Comparison to EMW-1000ST (Spectrum Touchpad)

Same 0.9 cu ft cavity, same 1000-watt output, same 120V/12A NEMA 5-15P plug, same Spectrum chassis. EMW-1000SD has a dial control with no menu programming. EMW-1000ST has touch control with motor-driven bottom antenna, three customizable key beep volumes, and programmable functions. Choose EMW-1000SD for the simplest possible training profile. Choose EMW-1000ST when staff needs preset menu programming and power-level selection.

Comparison to Sharp R-21LCFS (Medium-Duty Dial)

Both are 1000W medium-duty dial-control commercial microwaves on a 120V/15A circuit with NEMA 5-15P. Sharp R-21LCFS cavity is 1.0 cu ft. EMW-1000SD cavity is 0.9 cu ft. Both are similar in feature set and training profile. Choose based on parts and service availability in your region or based on which chassis ergonomically fits your station.

Comparison to Amana RCS10DSE (Medium-Duty Dial)

Amana RCS10DSE cavity is 1.2 cu ft and output is 1000W on 120V/15A. EMW-1000SD cavity is 0.9 cu ft. Choose RCS10DSE if cavity volume is the priority for oversized platters. Choose EMW-1000SD if the smaller footprint fits the station better.

Specifications

Installation Requirements

Installation Checklist

• Dedicated 120V, 15 amp circuit with NEMA 5-15R outlet
• Outlet positioned within 4 feet of the unit's rear panel for the included cord
• Manufacturer-specified air clearance on all sides
• Countertop or shelf rated for the unit's weight
• Stable, level installation surface
• Air intake unobstructed by walls, shelves, or stored equipment
• Door swing path clear of adjacent equipment
• Operator station with clear sightline to the dial and timer display

Frequently Asked Questions

What is the EMW-1000SD used for?

Light to medium-duty commercial service: coffee shops, cafes, convenience stores, hotel breakfast bars, bar and tavern food service, healthcare break rooms, senior living common areas, and any operation that wants the simplest possible commercial microwave with no menu programming.

What is the difference between EMW-1000SD and EMW-1000ST?

Same Spectrum chassis, same 0.9 cu ft cavity, same 1000W output on 120V. EMW-1000SD has a dial control with no programming. EMW-1000ST has touch control with motor-driven bottom antenna, programmable functions, and three customizable key beep volumes. Choose EMW-1000SD for fastest staff training.

What is the bottom energy feed system?

Microwave energy enters the cavity through a ceramic plate mounted in the floor of the cavity, distributing energy evenly without needing the food to rotate. This is the standard commercial design and eliminates turntable bearings that fail under daily commercial use.

What size platter does it fit?

The 0.9 cu ft cavity accommodates a 12-inch diameter platter. It also fits rectangular half-size and quarter-size hotel pans, salad bowls, and to-go containers.

How does it compare to a Sharp R-21LCFS?

Both are 1000W medium-duty dial-control commercial microwaves on 120V/15A NEMA 5-15P. Sharp cavity is 1.0 cu ft, Winco cavity is 0.9 cu ft. Similar training profile and use cases.

What electrical hookup does it need?

Standard 120V, 15 amp circuit with NEMA 5-15R outlet. Draws 12 amps and ships with a NEMA 5-15P plug.

Is it NSF and UL listed?

The EMW-1000SD is cULus listed for safety in the United States and Canada. For NSF/ANSI 4 sanitation listing, see the EMW-1000ST touchpad model which carries ETL-Sanitation certification.

Pricing and ordering?

Contact us for current pricing, lead time, and freight quote on the Winco EMW-1000SD.
