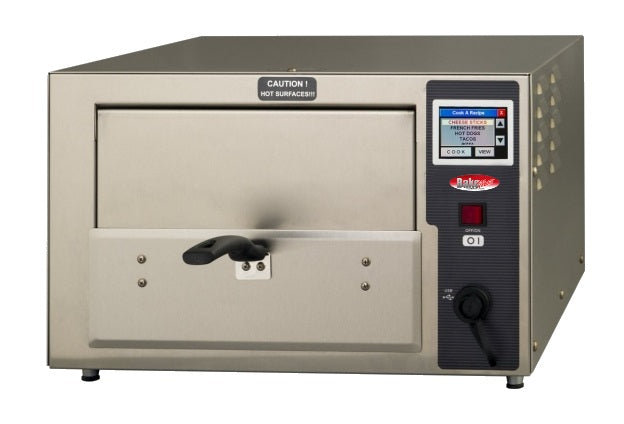

Bakemax BMSGF203 Greaseless Air Fryer

The Bakemax BMSGF203 is a compact countertop greaseless air fryer engineered for quick-service operations that have access to 208V power and need rapid warm-up and recovery. The 2 lb single-batch capacity is matched to bars, snack counters, delis, convenience stores, and quick-service start-ups where production rhythm depends on responsive heat-up between cycles. Forced hot air and radiant heat work together to produce a crisp exterior and a moist interior on frozen and par-cooked products without submerging them in oil.

What distinguishes the BMSGF203 from the 120V BMSGF202 is the step up to 208V power on a NEMA 14-30P plug. That voltage increase substantially reduces warm-up time, supports faster cycle-to-cycle recovery, and roughly doubles hot dog production speed in the same compact 12-inch basket footprint. For sites with 208V service available, the BMSGF203 is the performance-tier compact unit in the Bakemax greaseless air fryer line.

Key Features

• 2 lb single-batch capacity for portion-controlled commercial production
• Countertop footprint for space-constrained operations
• 208V power with NEMA 14-30P plug for fast warm-up and recovery
• Greaseless cooking using forced hot air and radiant heat - no oil, no shortening, no boil-out
• Ventless operation with integrated catalytic converter - no hood system required for approved applications
• Color LCD touchscreen control interface for direct operator input
• 15 programmable recipes for repeatable cook cycles across menu items
• USB port for exporting and importing recipe files between locations
• Cooking basket dimensions: 12" W x 12" D x 2" H
• cULus and UL Classified for code compliance and site-level approval
• Compatible with standard, mini, and pizza basket configurations

Specifications

Download the BMSGF203 spec sheet (PDF)

How the BMSGF203 Works

The BMSGF203 uses a dual-heat methodology built around two coordinated processes. Forced convection circulates high-velocity heated air around the product to strip away the moisture boundary layer, while radiant heating elements provide infrared energy that penetrates the food product. The combination produces fryer-style surface texture with a 20 percent to 40 percent reduction in fat content compared to immersion frying, at speeds 30 percent to 40 percent faster than standard convection ovens.

The 208V power supply provides substantially more available heating energy than 120V configurations. In practical kitchen terms, that means faster warm-up from cold start, faster recovery after door openings, and faster turnaround between batches. The chamber and airflow design are the same as the 120V BMSGF202, so cooking quality is comparable when product is loaded in a single layer that preserves airflow exposure on all surfaces.

208V vs 120V Power Tradeoffs

Choosing between the BMSGF203 (208V) and the BMSGF202 (120V) comes down to one variable: electrical infrastructure at the install location.

• BMSGF203 (208V, NEMA 14-30P): Faster warm-up, faster recovery, faster hot dog throughput in the same basket footprint. Requires a 208V circuit and NEMA 14-30 receptacle.
• BMSGF202 (120V, NEMA 5-20P): Plug-and-play on a dedicated 20A 120V circuit. Slower warm-up. Best for food trucks, kiosks, and retrofit spaces without 208V service.

If 208V service is already available at the install location, the BMSGF203 delivers materially better production rhythm than the 120V version without requiring a larger footprint or higher batch capacity.

Why a 2 lb Batch Capacity Works for Compact Operations

A 2 lb batch rating does not mean the unit is underpowered. It means the chamber and airflow design are optimized for smaller, more controlled loads. Overloading any rapid-air system reduces air exposure to each piece of product. When basket density gets too high, air pathways are restricted, surface dehydration slows, browning becomes uneven, and cook times increase.

Paired with 208V power, the 2 lb capacity becomes especially efficient because the faster warm-up and recovery cycle compensates for the smaller batch size. A unit that can recover quickly between batches often outproduces a larger unit that warms up slowly.

Ventless Operation

The ventless designation is achieved through the integrated catalytic converter and filtration train. As cooking vapors and grease aerosols move through the system, the filtration package removes particulate and airborne grease fractions. The heated catalyst then oxidizes remaining vapors into water vapor and carbon dioxide before the air is recirculated or discharged.

That eliminates the need for a traditional vented hood in many approved installations. Removing the hood requirement can substantially reduce mechanical buildout costs in kiosks, retrofit spaces, and locations where roof penetrations or duct routing would otherwise drive the project scope. Final ventless acceptance still depends on the local authority having jurisdiction, health department, and fire marshal at the install location.

Recipe Programming and Data Portability

The color LCD touchscreen stores up to 15 programmable recipes. Each programmed entry locks in cook temperature, cook time, stage sequencing, and any holding or finish parameters required for the menu item. That repeatability reduces variability between shifts because operators select named programs instead of manually entering time and temperature for every batch.

The USB port allows recipe sets to be exported to a data stick and imported into other Bakemax units at the same location or shared across multi-site operations. That portability is useful for chain operators who need consistent execution of the same recipes across multiple locations.

Target Applications

• Quick-service start-ups requiring fast batch turnaround
• Bars and pubs with 208V service running fried-style appetizer menus
• Snack counters and concession stands with high-frequency low-volume orders
• Convenience stores expanding hot food service
• Delis adding crisped sides and appetizers
• Small cafes and limited-space kiosks with 208V access
• Front-of-house service zones where a hood system is not feasible

Cleaning and Maintenance

Daily maintenance includes basket and drip tray removal, chamber wipe-down with an approved greaseless fryer cleaner, and filter inspection. Weekly maintenance includes a 2 to 4 hour deep soak of baskets and drip trays in a dip tank cleaning solution, convection fan inspection, and verification of filter loading. Carbon or electrostatic filters typically require replacement every 1 to 3 months depending on production volume. Maintaining a clean catalytic converter and filtration package is what preserves the ventless certification over time.
