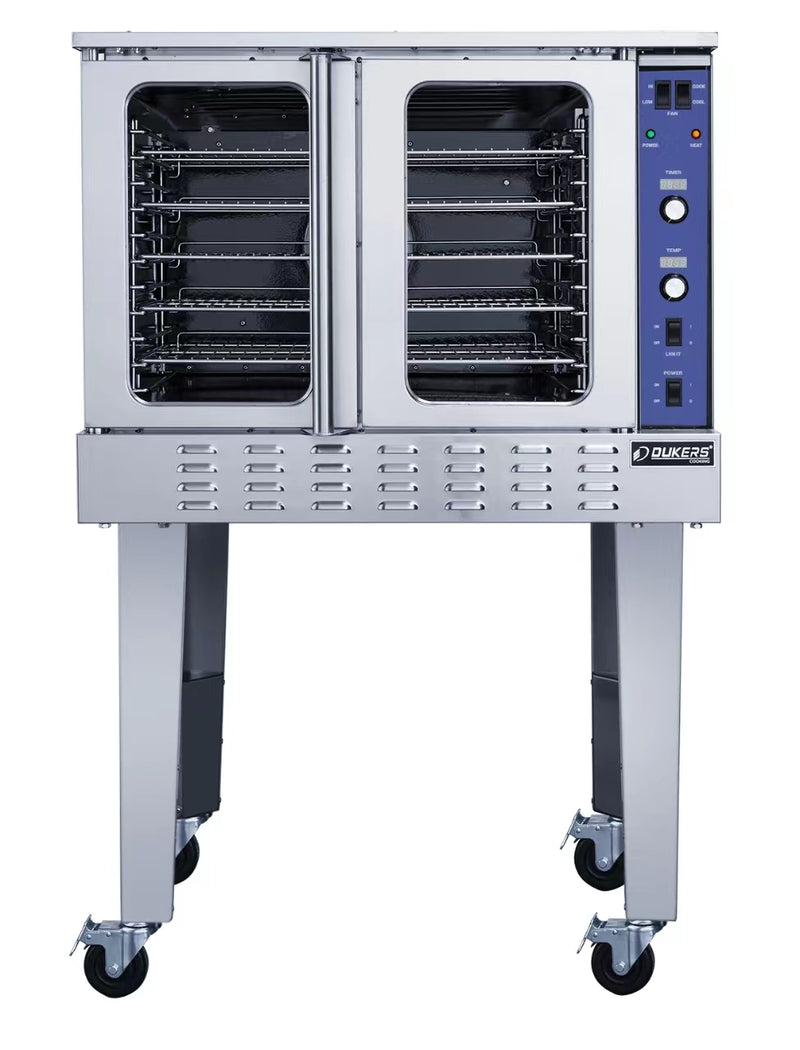

Dukers DCCOG1 Gas Convection Oven, Single Deck, 54,000 BTU, Digital Controller

The Dukers DCCOG1 is a single-deck full-size gas convection oven with a digital controller, 50/50 dependent doors with double-pane thermal tempered glass, and 54,000 BTU output. Five wire racks, 11 removable rack positions, two-speed fan with adjustable cool-down mode, and automatic pilot with safety shut-off. Built for restaurants, bakeries, banquet lines, and ghost kitchens that want a digital-control gas convection at the entry tier.

What You Get

• 54,000 BTU/HR, single oven cavity, gas-fired
• Digital controller with programmable bake settings
• 175F to 500F temperature range
• 5 wire racks with 11 removable rack position guides
• Standard depth (pans load side-to-side, 18 by 26 inch full sheets)
• 50/50 dependent doors with double-pane thermal tempered glass
• Two-speed fan with adjustable cool-down mode
• Automatic pilot system with safety shut-off
• Door interlock switches (fan and burners cut when doors open)
• Interior lighting
• Stainless steel exterior
• Leg kit included: (4) stainless steel legs with locking casters
• cCSAus design certified and CSA-Sanitation certified

Specs at a Glance

Who the DCCOG1 Is For

Pick the DCCOG1 if you want a gas convection with digital controls at the value tier, you can work with dependent (50/50) doors, and your menu calls for 5 full sheets at a time. Best fit:

• Full-service restaurants doing 100 to 300 covers a night
• Bakeries running batch production where loading both doors at once is the norm
• Banquet kitchens prepping plated meals in batches
• Ghost kitchens and supermarket hot-bar production
• School and institutional foodservice
• Catering operations

Need independent doors that open one side at a time? See alternatives in our convection oven collection.

Dependent (50/50) Doors: When They Make Sense

The DCCOG1 ships with 50/50 dependent doors: pull one handle and both doors swing open together. Best for batch production where you load and unload the full cavity at once (sheet pan trays of cookies, full bake racks of bread). You give up the heat-retention advantage of independent doors when pulling a single pan, but you gain one-handed loading when both arms are full.

Digital Controller and Cool-Down Mode

The DCCOG1 uses a digital controller for setpoint accuracy and programmable bake cycles, paired with a two-speed fan that has an adjustable cool-down mode. Cool-down pulls cavity temp down quickly between recipe changes: the fan runs at speed with the burners off until you hit your next setpoint, saving 10 to 20 minutes per temperature change vs natural cool-cycle.

Safety: Door Interlocks and Pilot Shut-Off

Two safety features that aren't standard on entry-tier gas convections:

• Door interlock switches: Open a door mid-bake and the fan and burners cut automatically. Prevents flame disruption and accidental burns.
• Automatic pilot with safety shut-off: If the pilot drops out, the gas valve closes. No accidental gas accumulation.

Installation Requirements

• Gas: Standard rear gas connection. Pressure regulator on the gas line. Verify pressure spec on the manufacturer spec sheet for your fuel type (NG or LP).
• Electrical: 120V outlet on a dedicated circuit for the controller and fan. Don't share with a fryer or refrigerator.
• Ventilation: Gas convection requires a Type 1 grease hood under NFPA 96. See our commercial oven hood guide for sizing rules.
• Clearance: 6 inches rear, 1 inch sides, 6 inches above for service access.
• Floor: Level. Locking casters allow rolling for cleaning behind.

How to Use a DCCOG1 (25/25 Rule)

The fan moves heat about 25 percent more efficiently than still-air radiant ovens. Convert any conventional recipe by dropping the temperature 25F and cutting the time 25 percent. A 350F / 60 minute conventional roast becomes a 325F / 45 minute DCCOG1 roast. Full recipe protocols for bread, roasting, and pastry are in our commercial convection oven guide.

Maintenance

• Daily: Wipe stainless interior with a damp cloth (cold). Empty crumb tray. Vacuum visible debris near fan intake.
• Weekly: Pull racks, clean rack supports and rack guides, deep wipe cavity walls, clean glass doors inside and out.
• Monthly: Vacuum fan housing. Inspect door gaskets and interlock switches. Calibrate digital controller against an external thermocouple.
• Quarterly: Pull fan baffle, clean blades, inspect burner ports for soot or carbon buildup.
• Annually: Replace gaskets at first sign of compression set. Technician inspection of pilot system, safety shut-off valve, fan motor bearings, and digital controller.

Frequently Asked Questions

Is the DCCOG1 natural gas or propane?

Verify the configuration on the manufacturer spec sheet for your specific order. Most Dukers gas convections ship configured for natural gas with conversion options available; have a qualified gas technician handle any conversion.

How many sheet pans does the DCCOG1 hold?

Five 18" x 26" full sheet pans, one per rack. The cavity has 11 removable rack position guides so you can space racks closer for shorter items or wider for taller loads.

What are 50/50 dependent doors?

Both doors are linked: pull one handle and both swing open together. Best for batch production where you load and unload the full cavity at once. Independent doors (each opens separately) cut heat loss when pulling a single pan, but cost more.

Does the DCCOG1 need a hood?

Yes. NFPA 96 requires a Type 1 grease hood over gas commercial cooking equipment, including gas convection ovens. Plan roughly 300 CFM per linear foot of medium-duty wall canopy hood.

What is the temperature range?

175F to 500F. The 175F low end works for holding and gentle proofing; the 500F high end covers crusty bread, roasted vegetables, and high-heat blast bakes.

What does the cool-down mode do?

The two-speed fan runs with the burners off to pull cavity temperature down quickly between recipe changes. Saves 10 to 20 minutes per temperature change vs natural cool-cycle. Speed is adjustable.

How do the door interlock switches work?

Door interlock switches cut the fan and burners automatically when you open a door mid-bake. This prevents flame disruption from airflow and reduces the risk of burns from active heat sources. Reclosing the doors restores normal operation.

How tall is the DCCOG1?

61.75 inches overall height with the included legs and locking casters. Plan ceiling clearance accordingly, plus 6 inches above for service.

Is the DCCOG1 stackable?

Verify stacking compatibility with the manufacturer before ordering a second unit for stack configuration; not all single-deck gas convections support double-stack.

How long does a gas convection oven last?

12 to 20 years with proper maintenance. Door gaskets typically need replacement every 2 to 5 years; fan motors run 7 to 12 years; pilot and safety shut-off components 3 to 7 years; digital controllers 8 to 15 years.
