Atosa Refrigerator and Freezer: Cleaning the Condenser

Why Cleaning the Condenser Coil Matters

Cleaning the condenser coil on your Atosa refrigerator or commercial freezer is the single most important preventive task for energy efficiency, compressor longevity, and avoiding service calls. Over time, dust, grease, flour, and lint accumulate on the coil's fins. That buildup acts as insulation — it traps heat against the coil instead of letting it dissipate into the air. The compressor then runs longer, hotter, and harder to compensate, which spikes your electricity bill, drives the unit out of food-safe holding temperatures, and is the leading cause of premature compressor failure on Atosa reach-ins and reach-in freezers.

If your Atosa refrigerator is not cooling properly or your Atosa freezer is not freezing, a dirty condenser coil is the first thing to check before assuming a refrigerant or compressor problem. In most service calls, a 10-minute coil cleaning resolves the issue.

How Often to Clean the Condenser Coil

The right cleaning frequency depends on your kitchen environment:

• Every 90 days — standard for most commercial kitchens.
• Every 30 days — high-grease line stations, bakeries, pizzerias, or any kitchen with airborne flour or oil.
• Every 30 days — units near a fryer, char-broiler, or open flame.
• Every 60 days — units with bottom-mount condensers (closer to floor-level dust).

Quarterly is the floor for any commercial reach-in. Skipping condenser cleanings is the fastest path to a compressor failure that turns a $0 maintenance task into a $600+ service call or a full replacement.

How to Clean the Condenser Coil on an Atosa Refrigerator or Freezer

Tools you'll need:

• Soft nylon brush or condenser coil brush (long, narrow bristles)
• Shop-vac with brush attachment
• Flashlight
• Foaming commercial coil cleaner (optional, for heavy buildup)
• Damp cloth
• Phillips screwdriver (for the front grille)

Step-by-Step Cleaning Process

1. Disconnect power. Unplug the unit at the wall. Do not rely on the thermostat or front-panel switch — fully disconnect to safely access the condensing unit.
2. Locate the condensing unit. On most Atosa reach-ins, the condenser sits behind the top-mount grille. On bottom-mount and undercounter models, it's behind the front kick-plate or rear panel. The fins look like a small car radiator.
3. Remove the front grille. Most Atosa grilles lift off or unscrew with a Phillips driver in 30 seconds. Set the grille aside; you'll wipe it down before reinstalling.
4. Vacuum loose debris first. Run the shop-vac with brush attachment across the face of the coil to pull out loose dust. This prevents you from pushing debris deeper into the fins with the brush in step 5.

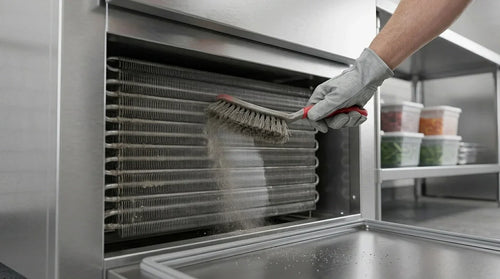

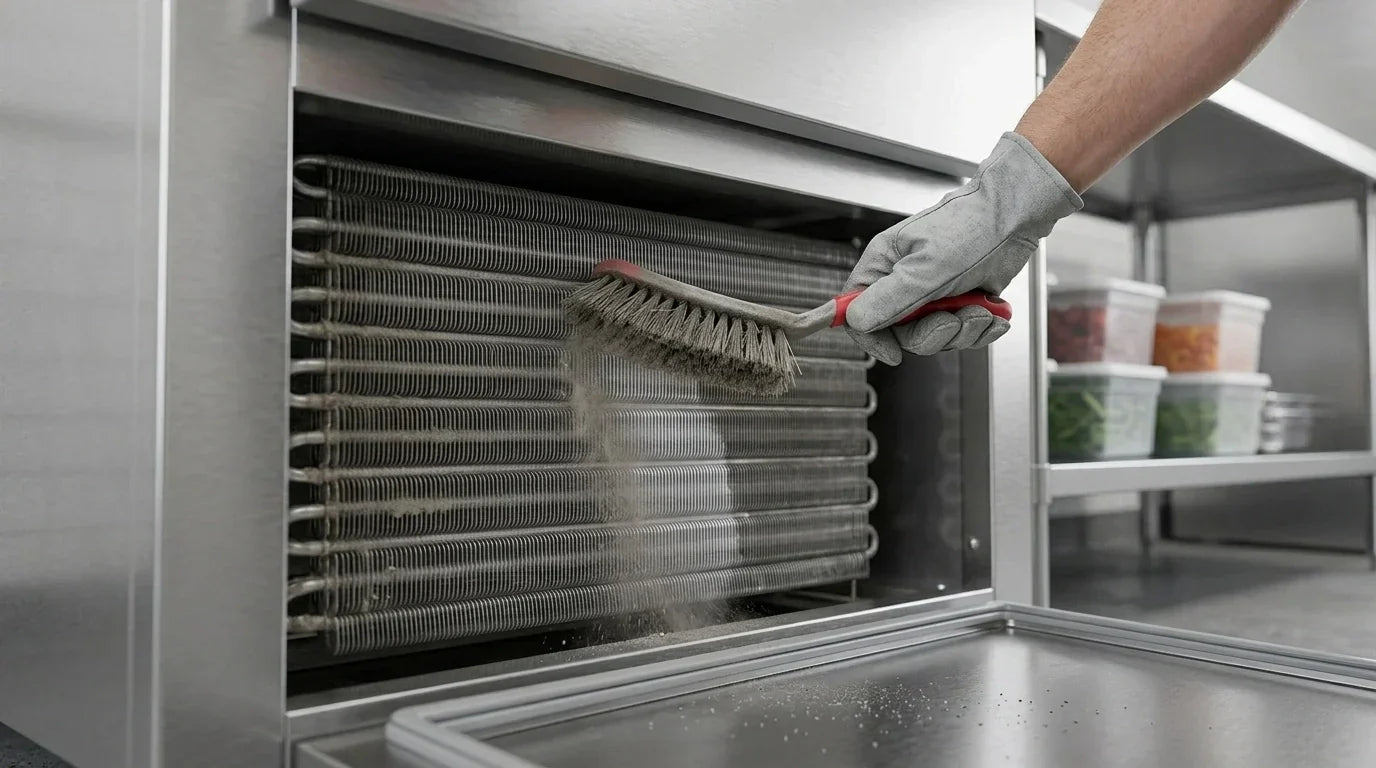

5. Brush in the direction of the fins. Use a soft nylon brush or coil brush in a downward motion, always parallel to the fin direction. Brushing across the fins bends them, which restricts airflow permanently. If fins are already bent, a fin comb can straighten them back to spec.
6. Inspect with a flashlight. Shine the flashlight through the coil from the back side. If light passes through clean lines between fins, the coil is clean. Dark patches indicate trapped debris that needs another vacuum/brush pass.
7. Use foaming coil cleaner for heavy buildup. If brush and vacuum aren't enough, spray a no-rinse foaming commercial coil cleaner per the manufacturer's directions, let it dwell 5–10 minutes, then wipe off. Do not use water or general degreasers near electrical components.
8. Wipe the surrounding area. Damp-cloth the cabinet around the condenser, the fan shroud, and the inside of the grille.
9. Clean the condenser fan blades. Wipe each blade with a damp cloth. A grease-coated fan moves significantly less air, which defeats a freshly cleaned coil.
10. Reattach the grille and restore power. Plug the unit back in, let it pull down to set point (usually 30–60 minutes for a refrigerator, 90–120 minutes for a freezer), and verify the temperature reads normally on the digital display.

If Your Atosa Refrigerator Is Still Not Cooling After Cleaning

Coil cleaning resolves most "not cooling" complaints. If your unit still runs warm after a thorough cleaning and a full pull-down cycle, work this checklist before calling a tech:

• Door gasket integrity. Close a dollar bill in the door and tug. If it slides out without resistance, the gasket is leaking cold air. Replace.
• Evaporator coil ice-up. If the thermostat is set too low, the evaporator coil (inside the cabinet, behind the rear panel) can freeze over completely. Counterintuitively, this raises cabinet temperature because frozen coils can't transfer heat. Run a manual defrost or thaw the unit fully overnight.
• Airflow inside the cabinet. Items packed against the rear vents block evaporator airflow. Keep the cabinet 75–85% full and leave 1" between product and walls.
• Ambient temperature around the unit. Most Atosa reach-ins are rated for 100°F ambient. If the unit is wedged against a hot wall, fryer, or oven, ambient heat pushes the system past its design envelope.
• Door-closer and self-closing hinges. Doors that don't fully self-close cost the unit several degrees of holding temp.
• Digital controller setpoint. Verify the Dixell or comparable controller is set to the correct food-safe range (33°F–40°F for fresh; 0°F or below for frozen).

If everything above checks out and the unit still won't hold temperature, the issue is likely refrigerant charge, compressor wear, or a failed fan motor — call a refrigeration tech.

Additional Maintenance Tips

• Inspect the condenser fan every cleaning. A wobbling, grease-coated, or seized fan starves the coil of airflow.
• Keep clearance around the unit. Most Atosa reach-ins need 2–3" on the back and sides for top-mount condensers; bottom-mount units need clear airflow under the kick-plate.
• Schedule a professional service annually. A licensed refrigeration tech can verify refrigerant charge, check superheat/subcool, inspect contactors, and catch issues before they cause downtime.
• Replace door gaskets at the first sign of cracking. Worn gaskets force the compressor to overcompensate; replacing them is a $30–$80 part swap that saves hundreds in energy and compressor life.
• Log internal temps daily. A logbook (or external digital data logger) gives you early warning of cooling drift before food safety becomes an issue.

Frequently Asked Questions

How often should I clean the condenser coil on a commercial refrigerator?

Every 90 days is the minimum for a standard commercial kitchen. Bump that to monthly for high-grease environments — bakeries, pizzerias, fryer-adjacent line stations — and for bottom-mount condensers that pull dust from floor level. Skipping cleanings is the leading cause of compressor failure.

What tools do I need to clean a refrigerator condenser coil?

A soft nylon brush or dedicated condenser coil brush, a shop-vac with brush attachment, a flashlight, and a damp cloth handle 90% of cleanings. For heavy grease buildup, add a no-rinse foaming commercial coil cleaner. Avoid water sprays and household degreasers near the electrical components.

My Atosa refrigerator is not cooling — is the condenser the problem?

A dirty condenser coil is the most common cause of an Atosa refrigerator not cooling properly. Before assuming a refrigerant or compressor failure, clean the coil thoroughly and let the unit pull down for 60 minutes. If it still runs warm, check door gaskets, evaporator ice-up, ambient temperature, and controller setpoint before calling a tech.

Which direction should I brush the condenser fins?

Always brush in the same direction as the fins — typically downward — and never across them. Brushing across bends the fins permanently and restricts airflow, which defeats the entire purpose of cleaning. If fins are already bent, a fin comb straightens them back to spec.

Conclusion

Quarterly condenser coil cleaning is the highest-ROI maintenance task on any commercial refrigerator or freezer. It costs nothing but 15 minutes of labor, and it directly extends compressor life, lowers your monthly energy bill, and prevents the most common cause of "not cooling" service calls. Build it into a recurring kitchen calendar — every 90 days, or every 30 days in high-grease environments — and your Atosa unit will run reliably for the full 10–15 year service life it's designed for.

For the manufacturer's official maintenance documentation, see page 12 of the Atosa freezer operation manual (PDF). Browse condenser parts, compressor parts, door gaskets, and the full lineup of Atosa replacement parts for ongoing maintenance.
