Atosa MSF8301GR 27-Inch One Door Sandwich Prep Table, 8 Pans, 7.2 cu. ft.

Atosa MSF8301GR 27-Inch One Door Sandwich Prep Table, 8 Pans, 7.2 cu. ft.

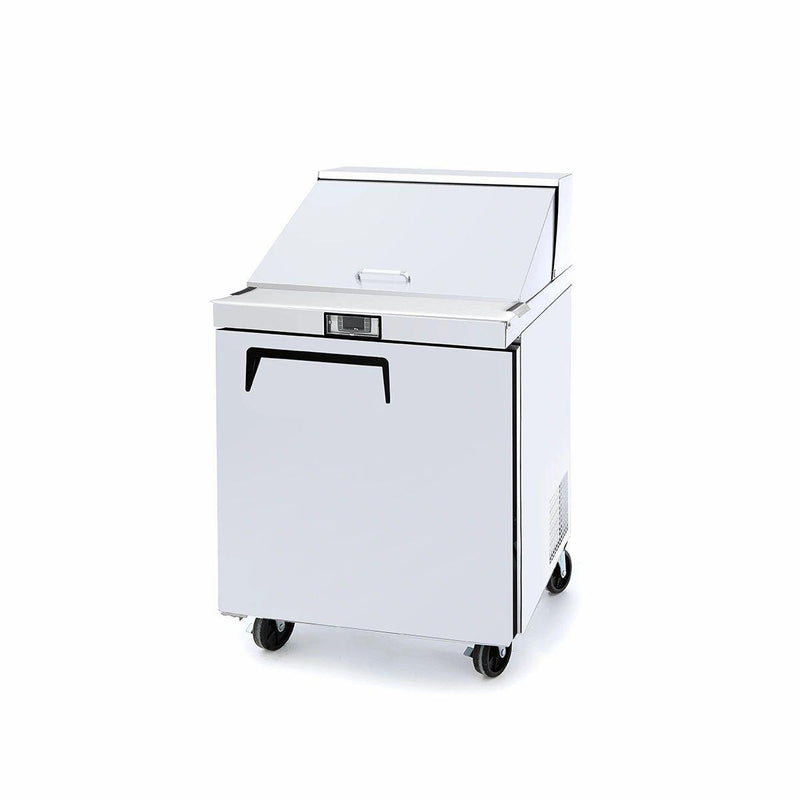

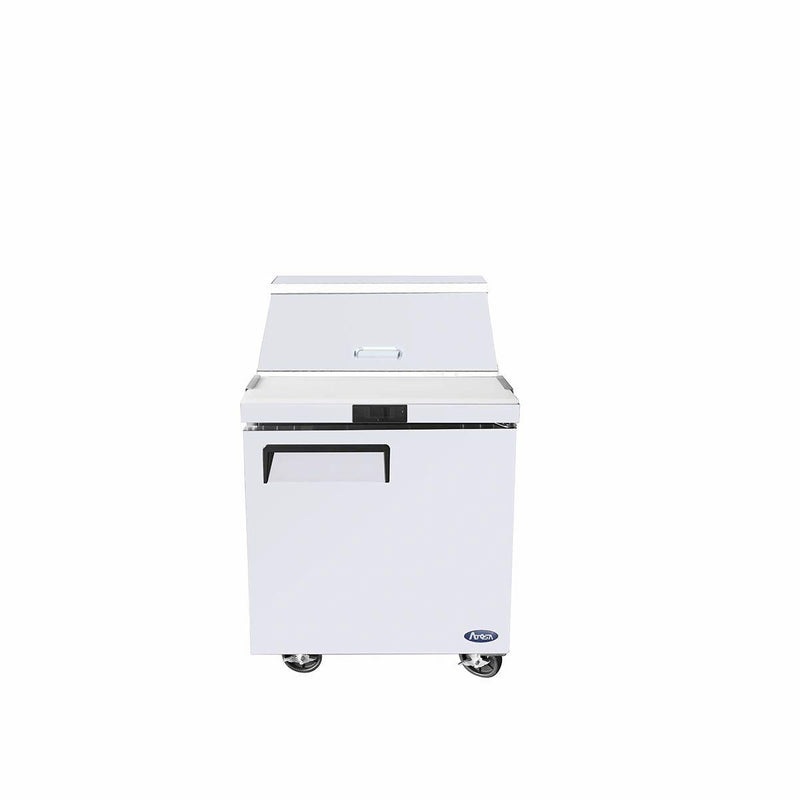

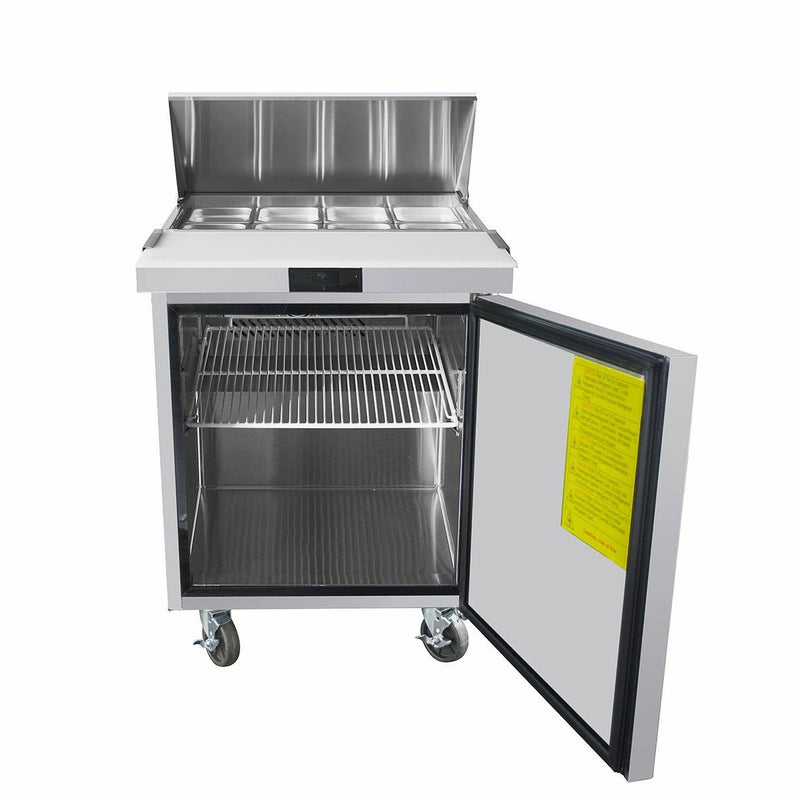

The Atosa MSF8301GR is a 27-inch one-door refrigerated sandwich prep table with 8 included 1/6-size ingredient pans and 7.2 cu. ft. of refrigerated storage below. Its standard two-row pan rail keeps chilled ingredients within reach for sandwich and salad assembly, while the 9-1/4-inch-deep cutting board provides a convenient prep surface. The refrigerator maintains 35°F to 38°F and operates on 115V power.

At a Glance

• Size: 27-1/2" W x 30" D x 41-3/8" H
• Pans: (8) 1/6 size poly pans, 6" deep, in two rows
• Cutting board: 9-1/4" deep
• Storage below: 7.2 cu. ft., (1) shelf, one door
• Temperature: 35°F to 38°F
• Power: 115V, 2.3 amps, standard plug (NEMA 5-15P)
• Warranty: 3 years parts and labor, 5 years compressor

Most units ship within one business day from our warehouse with free freight to the lower 48.

A 27 Inch Sandwich Prep Table

The MSF8301GR combines 8 chilled topping positions with a single-door refrigerated base for backup ingredients. Compared with the same-width MSF8305GR mega-top model, it uses a shallower 30-inch cabinet depth and has 4 fewer pan positions. Choose this standard-top layout when aisle space and a focused ingredient selection matter more than maximum topping variety.

Compact 27-Inch Sandwich Station for Tight Kitchens

Eight top pans and a 7.2 cu. ft. one-door base make this 27-inch sandwich prep table suitable for compact cafés, concession counters, and focused sandwich menus.

Choosing Between Models

Choose the standard-top MSF8301GR when its 30-inch depth and eight-pan rail are sufficient. For twelve top pans, compare the deeper MSF8305GR mega top.

Built for Daily Commercial Use

• Stainless steel inside and out

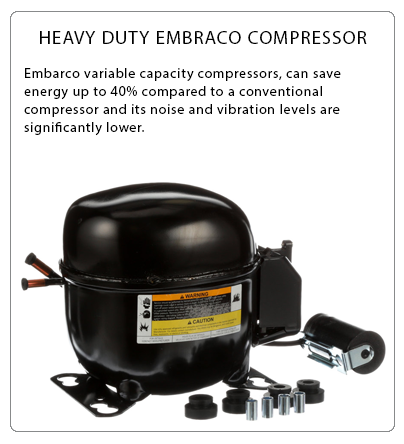

• Rear mount compressor with R290, a natural refrigerant
• Air flows evenly around the pans, so the top stays cold

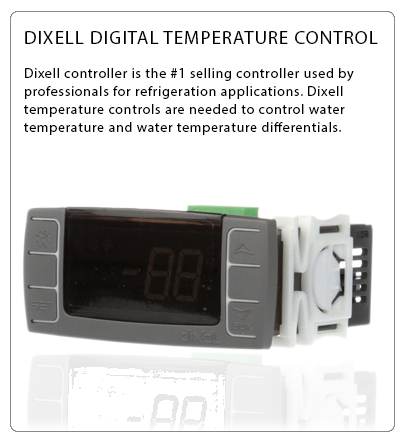

• Electronic temperature controller
• Removable stainless steel pan liner
• Locking divider bars

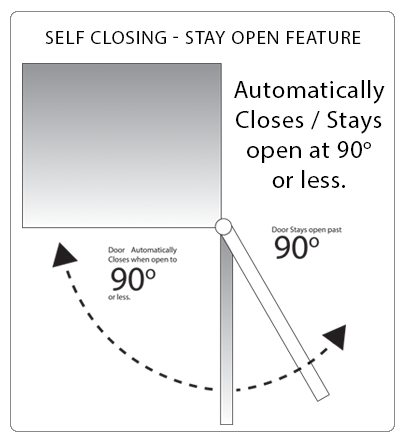

• Self-closing door with a stay-open feature

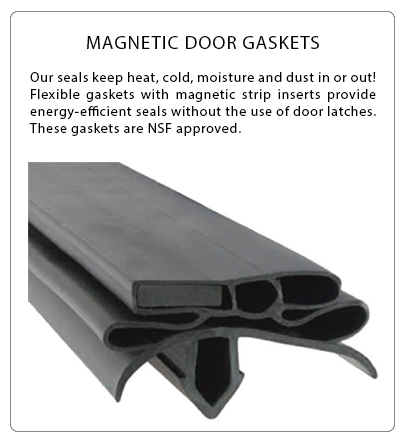

• Recessed door handle and magnetic door gasket

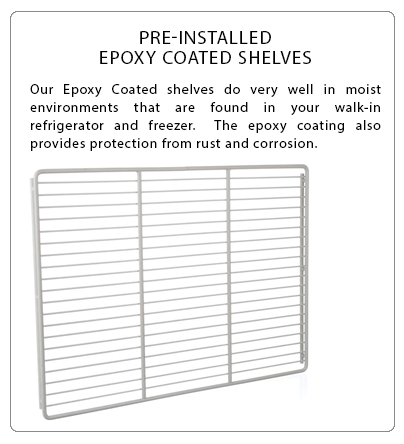

• One pre-installed shelf per section
• Pre-installed 2" casters

Add-Ons

• Double overshelf: MROS-2RE mounts above the pans for extra storage
• Night cover: MSF8301234000 covers the pans when you close
• Drawer kit: MSF8309227A00 swaps a door for two drawers, installed in the field
• 12" cross bar: 82021902

Pick the Right Size

Need a different size? Shop all sandwich prep tables or see the pizza prep tables.

Specifications

Before You Order

• Plan for a standard 115V outlet with a NEMA 5-15 receptacle.

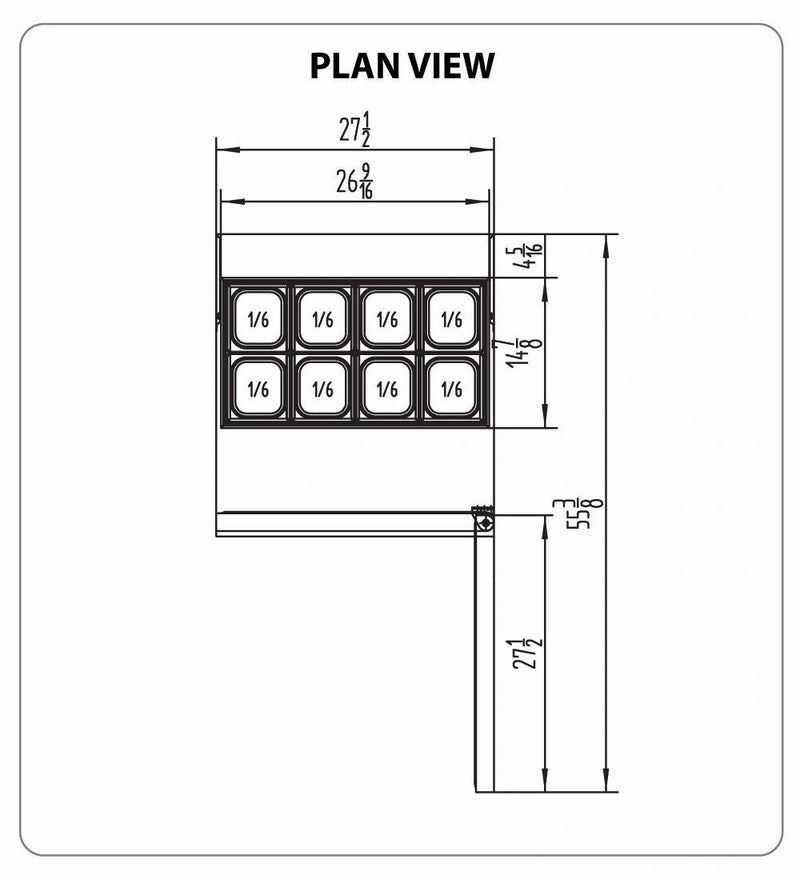

• Check your space: the unit is 27-1/2" wide, 30" deep and 41-3/8" tall.
• Need more pans in the same width? The mega top version adds a third row of pans and is 36-3/4" deep.
• Leave the unit some room to breathe and clean the condenser often, as Atosa advises.

Atosa MSF8301GR FAQ

Is the MSF8301GR a good fit for a small sandwich shop?

Yes, when the menu uses eight or fewer refrigerated toppings at once. For more ingredient choices in a similar width, consider the 12-pan MSF8305GR.

How does MSF8301GR differ from MSF8305GR?

Both are 27-inch one-door sandwich prep tables with 7.2 cu. ft. The standard-top MSF8301GR holds eight pans; the mega-top MSF8305GR holds twelve.

What size is the Atosa MSF8301GR?

The MSF8301GR is 27-1/2" wide, 30" deep and 41-3/8" tall. It weighs 159 lb (196 lb shipping weight).

How many pans does the MSF8301GR hold?

It comes with (8) 1/6 size poly pans, 6" deep, in two rows.

What temperature does the MSF8301GR hold?

It holds 35°F to 38°F with an electronic temperature controller.

How much storage is under the MSF8301GR?

It has 7.2 cu. ft. behind one door, with (1) shelf.

What is the difference between a standard top and a mega top?

A mega top has a third row of pans, so it holds more toppings in the same width. It is 36-3/4" deep, and the standard top is 30" deep.

Can I add drawers to the MSF8301GR?

Yes. Atosa makes a drawer kit that fits this model. It replaces a door with two drawers, and it installs in the field.

What power does the MSF8301GR need?

It runs on 115V and draws 2.3 amps. It has a standard NEMA 5-15P plug, so it plugs into a regular 115V outlet.

How often should I clean the MSF8301GR condenser?

Atosa says to clean the condenser frequently. Pull the unit out on its casters, vacuum the condenser coil, and brush off any dust or grease. A clean condenser helps the prep table hold temperature.

What warranty comes with the MSF8301GR?

3 years parts and labor and 5 years on the compressor.

Spec Sheet

Download the Atosa MSF8301GR spec sheet (PDF, Rev. 07/26)
