The 48-Inch Commercial Griddle Buying Guide for Restaurant Operators

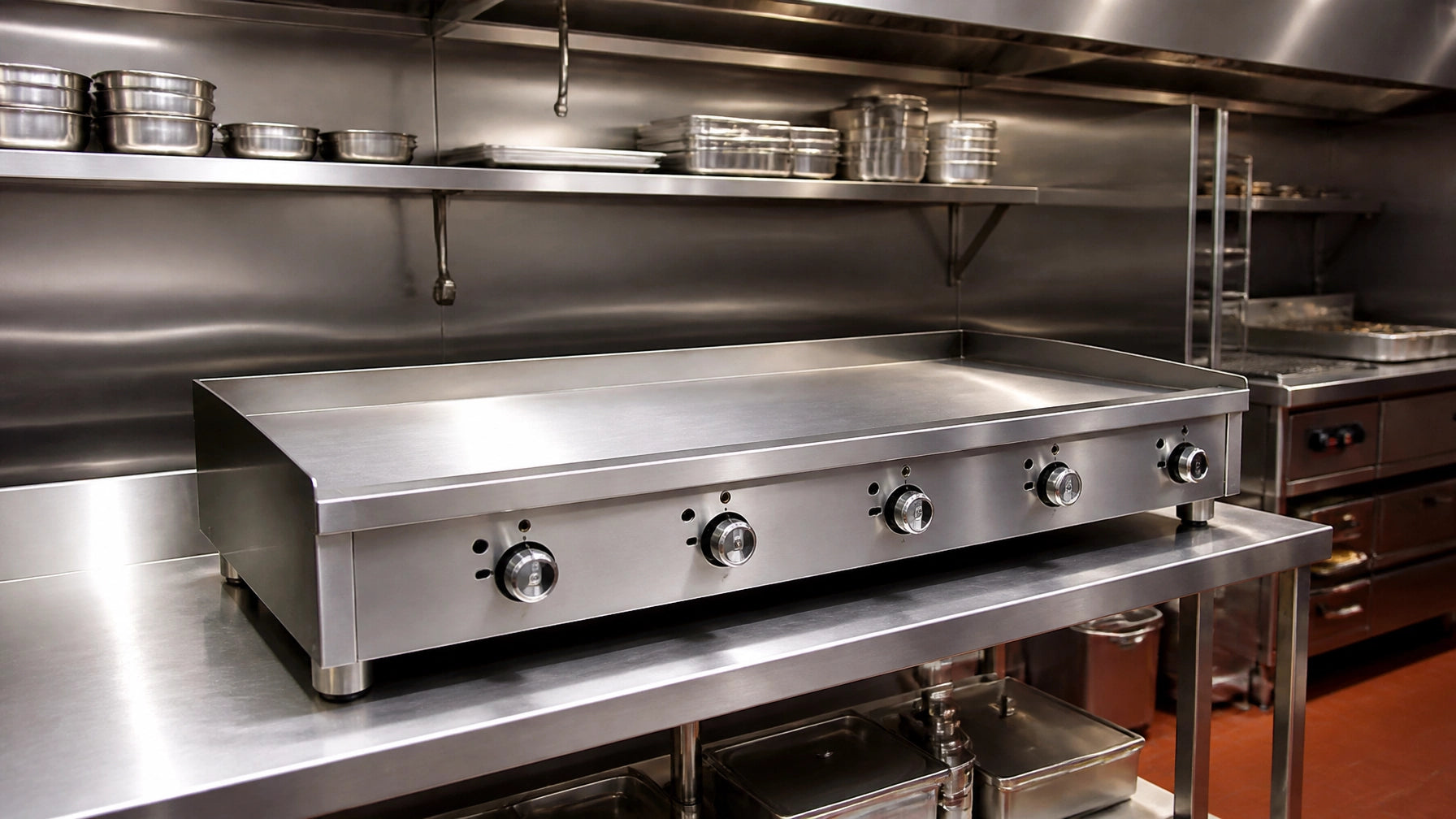

The 48-inch commercial griddle - the workhorse flat top grill of mid-volume foodservice - sits between the compact 36-inch unit that fits in tight prep lines and the 60-inch behemoth that needs its own dedicated station and hood line. For most operators serving between one hundred and two hundred covers per peak hour, the 48-inch griddle is the right answer. It gives a single line cook four independent twelve-inch zones to cook against, it spans a four-foot run of counter that fits inside a standard kitchen layout, and it produces enough surface area to handle a smashburger rush, a breakfast egg station, or a high-volume lunch sandwich line without bottlenecking the rest of the kitchen.
This guide is built for operators who want to know exactly what they are buying in this size class. It is also built for owner-operators comparing the Atosa ATMG-48 manual griddle against the Atosa ATTG-48 thermostatic griddle at the specification level, because those two units represent the most common purchase decision in this size class on the US market. Both products are explored in detail through the rest of this guide, with side-by-side spec comparisons, BTU and plate thickness analysis, hood and gas line sizing requirements, production throughput math, and clear decision frameworks for the size-up and size-down questions. For the broader category context across all sizes and configurations, see the definitive guide to commercial griddle options, which sits above this page as the master pillar in the series.
Everything below is organized so an operator can read it linearly to make a buying decision, or jump into a single section to answer a specific spec question. The first half covers spec sheet questions: plate thickness, BTU, controls, dimensions, weight, gas connection, and certifications. The second half covers installation and operations questions: hood sizing, gas line sizing, clearances, throughput math, food truck and ghost kitchen fit, and the size-up versus size-down decision against the 36-inch and 60-inch alternatives.
Who the 48-Inch Commercial Griddle Is Built For
The 48-inch class targets a specific operator profile. Volume thresholds, menu composition, station design, and staffing all point to or away from this size. For the size-up and size-down options, see Atosa ATMG-24, Atosa ATMG-36, Atosa ATTG-60, and Atosa ATTG-72.
Volume profile, menu composition, and station design fit
The 48-inch griddle hits its sweet spot at one hundred to two hundred covers per peak hour where griddle-cooked items represent a meaningful share of the menu. Below one hundred covers, a 36-inch unit is usually enough. Above two hundred covers, a 60-inch unit pulls ahead. The volume figure that matters is not total covers but griddle covers: how many of those orders touch the flat top during the peak hour. A breakfast diner where ninety percent of tickets include griddle items needs more square inches per cover than a Mexican concept where only the protein-portion side of the menu touches the griddle.
A 48-inch surface supports four simultaneous concurrent cooking zones, each at an independent temperature, which lines up directly with menus that demand multiple temperature targets at once. A breakfast operation running eggs at 300 degrees on zone one, pancakes at 375 degrees on zone two, bacon at 400 degrees on zone three, and home fries at 425 degrees on zone four uses the 48-inch format the way it was designed to be used. A burger-focused operation running smashburgers on two zones at 475 degrees while holding finished patties on the cooler zones uses a different zone strategy but still exercises the full surface. A short-order grill running sandwiches, melts, and proteins on a varied lunch menu cycles through the four zones in different patterns through the day.
One 48-inch griddle is operated by one line cook through the entire service. The four zones are reachable without leaving the station, the grease drawer is accessible from the front, and the controls are arranged so a single operator can manage all four zones in parallel. This is one of the structural advantages over a split layout of two 24-inch units, which usually pulls a second cook into the station for two-burner operation.
The 48-inch griddle requires a single hood section, a single gas stub-out, and a single grease management routine. Operations that have a continuous four-foot run of counter under a properly sized Type 1 hood are well-matched to this size. Operations with a fragmented two-and-a-half-foot plus two-and-a-half-foot layout under separate hood sections are forced into the split 24-inch path. The full commercial griddle category, including all of these size and layout options, is browsable in the commercial griddles collection.
48-Inch Commercial Griddle Specifications at a Glance
The two reference products covered in this guide are Atosa ATMG-48 and Atosa ATTG-48, both manufactured by Atosa under their CookRite commercial line. The two units share the same external footprint, the same gas connection, the same standing pilot ignition system, the same four-burner four-zone architecture, and the same construction materials. They differ in plate thickness, burner BTU output, control philosophy, and the cooking style each one favors. This first table is the cross-reference operators come back to most often during the purchase decision.
ATMG-48 versus ATTG-48 side-by-side specification table
| Specification | Atosa ATMG-48 (manual) | Atosa ATTG-48 (thermostatic) |
|---|---|---|
| Plate thickness | 3/4 inch polished steel | 1 inch polished steel |
| Number of burners | 4 | 4 |
| BTU per burner | 30,000 BTU/hr | 25,000 BTU/hr |
| Total BTU rating | 120,000 BTU/hr | 100,000 BTU/hr |
| Independent zones | 4 (one per burner, 12-inch sections) | 4 (one per burner, 12-inch sections) |
| Control type | Manual valves, infinite heat range | Thermostatic per zone, 200 to 575 F |
| Ignition | Standing pilots | Standing pilots |
| Width | 48 inches | 48 inches |
| Depth | 28.6 inches | 28.6 inches |
| Height | 15.2 inches | 15.2 inches |
| Net weight | 294 lbs | 295 lbs |
| Shipping weight | 414 lbs | 415 lbs |
| Gas connection | 3/4 inch NPT rear | 3/4 inch NPT rear |
| Inlet pressure NG | 4 inch W.C. | 4 inch W.C. |
| Inlet pressure LP | 10 inch W.C. | 10 inch W.C. |
| Construction | Stainless steel front and sides, galvanized rear and bottom | Stainless steel front and sides, galvanized rear and bottom |
| Grease management | Full-width front trough, removable drawer | Full-width front trough, removable drawer |
| Splash guard | 4 inches rear and sides | 4 inches rear and sides |
| Certifications | ETL, ETL-Sanitation, ANSI Z83.11 | ETL, ETL-Sanitation, ANSI Z83.11 |
| Best use case | Smashburger, high-skill line, varied menu | Breakfast, eggs and pancakes, training-heavy crews |
The 1-inch plate on the Atosa ATTG-48 carries an extra one-quarter inch of steel thickness over the Atosa ATMG-48. That seemingly small difference doubles the practical thermal mass under each burner, which is why the thermostatic model can run with 20,000 fewer total BTUs and still hold target temperature under heavy food loading. The deeper context on the manual versus thermostatic decision, including how it interacts with operator skill level, menu pattern, and rush intensity, lives in the Atosa griddle guide, which covers the full Atosa griddle lineup beyond just the 48-inch class.
Plate Thickness: 3/4 Inch versus 1 Inch on a 48-Inch Griddle
Plate thickness is the most consequential spec on a 48-inch griddle after total BTU output, and the two are tightly coupled. A thicker plate stores more heat and recovers temperature faster after a cold-food load, but it also takes longer to preheat and weighs more. The 3/4 inch plate on the Atosa ATMG-48 and the 1 inch plate on the Atosa ATTG-48 represent the two practical options on a commercial-grade 48-inch unit. Light-duty 1/2 inch and 3/8 inch plates exist on lower-end equipment but are not appropriate for a commercial operation running peak rushes.
Thermal mass, recovery time, and preheat energy use
Thermal mass is the quantity of heat the plate stores at operating temperature. When a cold food load (a tray of frozen patties, a pour of pancake batter, a batch of raw eggs) hits the plate, that food absorbs heat from the steel surface and the surface temperature drops in proportion to the load. A thicker plate has more stored heat and the temperature drops less. The plate recovers to target temperature faster because the burner only needs to make up the heat lost to the food, not also reheat a deeply cooled steel slab. The practical kitchen effect is consistent sear, consistent cook times, and no dead zone where the next batch hits a cold patch.
| Factor | 3/4 inch plate (ATMG-48) | 1 inch plate (ATTG-48) |
|---|---|---|
| Preheat from cold to 375 F | 15 to 18 minutes | 20 to 25 minutes |
| Recovery after full load | 2 to 3 minutes | 1 to 2 minutes |
| Temperature drop under full load | 40 to 60 F | 20 to 30 F |
| Idle BTU consumption | 10,000 to 12,000 BTU/hr | 9,000 to 11,000 BTU/hr |
| Full-load BTU consumption | 120,000 BTU/hr peak | 100,000 BTU/hr peak |
| Steel weight in plate | ~67 lbs of plate steel | ~89 lbs of plate steel |
For high-volume breakfast operations that constantly cycle cold pancake batter and raw eggs onto the plate, the 1 inch plate on the Atosa ATTG-48 pays back its higher purchase cost in consistency. For burger operations that want maximum BTU dump into a smashed patty in the first ten seconds of contact, the 30,000 BTU per burner on the Atosa ATMG-48 edges ahead.
When the 3/4 inch plate wins and when the 1 inch plate wins
The 3/4 inch plate on the Atosa ATMG-48 wins in three scenarios. First, smashburger operations where the cook wants the steel to deliver maximum heat into the patty during the smash event, then rebound fast for the next ball. The combination of higher per-burner BTU (30,000) and lower thermal mass produces a more reactive surface that the cook can drive aggressively. Second, varied-menu operations where the line cook needs to swing temperature ranges across a wide range during service: hot for proteins, then dropped for delicate vegetables, then back up for the next batch. The lighter plate responds to control changes faster. Third, faster preheat windows for prep cooks who fire the griddle thirty minutes before service rather than an hour ahead.
The 1 inch plate on the Atosa ATTG-48 wins in three different scenarios. First, breakfast-heavy operations with constant egg and pancake loading where temperature stability under repeated cold-food contact is the operational priority. Second, training-heavy operations with a rotating crew where the thermostatic per-zone temperature control reduces the cook-to-cook variability that manual valves introduce. Third, hotel breakfast and institutional operations where the same egg or pancake quality has to come off the plate from 6 AM to 10 AM without operator attention to constantly re-adjust burner output.
BTU Output: 100,000 versus 120,000 BTU on a 48-Inch Griddle
BTU rating describes the total heat output of the burner system, measured in British Thermal Units per hour. The Atosa ATMG-48 delivers 120,000 BTU/hr from four 30,000 BTU burners. The Atosa ATTG-48 delivers 100,000 BTU/hr from four 25,000 BTU burners. The 20,000 BTU difference between the two models is real and matters in some operations, but the thicker plate on the thermostatic unit substantially closes the practical gap because it stores more of the heat it does receive.
BTU per square inch benchmark and Atosa size comparison
Industry guidance puts the minimum BTU output on a commercial griddle at 75 to 100 BTU per square inch of cooking surface. The 48-inch cooking surface measures approximately 47.9 inches wide by 19.9 inches deep, or about 954 square inches. At 75 BTU per square inch, the minimum acceptable rating is roughly 71,500 BTU. At 100 BTU per square inch, the recommended rating is 95,400 BTU. The Atosa ATTG-48 at 100,000 BTU lands above the recommended minimum. The Atosa ATMG-48 at 120,000 BTU sits at roughly 126 BTU per square inch, which is the high end of the comfortable range and gives the cook headroom for heavy peak-hour loading.
| Model | Width | Burners | BTU per burner | Total BTU | BTU per sq inch |
|---|---|---|---|---|---|
| ATMG-24 | 24 inches | 2 | 30,000 | 60,000 | ~126 |
| ATMG-36 | 36 inches | 3 | 30,000 | 90,000 | ~126 |
| ATMG-48 | 48 inches | 4 | 30,000 | 120,000 | ~126 |
| ATTG-48 | 48 inches | 4 | 25,000 | 100,000 | ~105 |
| ATTG-60 | 60 inches | 5 | 25,000 | 125,000 | ~105 |
| ATTG-72 | 72 inches | 6 | 25,000 | 150,000 | ~105 |
How BTU interacts with plate thickness
Higher BTU into a thinner plate produces a more reactive but less stable surface. Lower BTU into a thicker plate produces a more stable but less reactive surface. The two design philosophies trade against each other: the 3/4 inch / 120,000 BTU manual unit responds fast and recovers fast with operator attention, while the 1 inch / 100,000 BTU thermostatic unit responds slower but holds temperature with less attention. Most kitchens that have run both prefer the manual format for smashburger and short-order, and the thermostatic format for breakfast and steady-state production.
Manual versus Thermostatic Controls on a 48-Inch Griddle
The controls decision is structurally separate from the plate thickness decision but in the Atosa lineup the two are bundled: the Atosa ATMG-48 is the manual 3/4 inch plate model, the Atosa ATTG-48 is the thermostatic 1 inch plate model. Buyers cannot mix and match those choices in a single product, so the controls decision and the plate decision get made together. The breakdown below covers each control type on its own terms.
Manual valve versus thermostatic control mechanics
A manual valve on a commercial griddle is an infinite-position needle valve between the gas supply and the burner. The operator turns the knob from off through low to high, and the valve opens proportionally to feed gas to the burner. There is no temperature feedback loop. The burner runs at whatever output the valve position dictates, and the plate temperature is whatever that fixed gas flow produces against whatever load is on the surface at that moment. The cook reads the plate temperature by visual cues (the smoke pattern from a drop of oil, the sizzle response from a test patty, the color of the polymerized seasoning around the burner zone) and adjusts the valve up or down by feel. The Atosa ATMG-48 uses this control system across all four zones.
A thermostatic control on a commercial griddle is a closed-loop temperature regulator. A bulb sensor embedded in the underside of the plate reads plate temperature in real time. The thermostat compares that reading to the dial setpoint, and modulates the gas valve open or closed to maintain the target. When the plate is below setpoint, gas flows; when the plate hits setpoint, gas cuts back to a maintenance level. When cold food loading drops the plate, gas opens wider until the setpoint is re-established. The cook sets the temperature once at the start of service and the controller maintains it through the shift. The Atosa ATTG-48 uses one of these per zone, four zones total.
Manual versus thermostatic operator decision table
| Decision factor | Manual (ATMG-48) | Thermostatic (ATTG-48) |
|---|---|---|
| Operator skill required | High; cook reads plate by feel | Low to medium; set and forget |
| Temperature precision | Operator-dependent, plus or minus 25 F | Controller-managed, plus or minus 10 F |
| Speed of response to large changes | Fastest (full open valve, full BTU) | Limited to controller modulation |
| Recovery from cold load | Fast with operator intervention | Automatic, slightly slower |
| Energy use during idle | Operator-dependent | Controller cycles to minimum |
| Failure points | Valve only | Valve, capillary tube, thermostat bulb |
| Best menu fit | Smashburger, varied menu, short-order | Breakfast, eggs, pancakes, batch production |
| Best operator fit | Experienced line cooks | Rotating staff, training-heavy operations |
| Best operation fit | QSR, smashburger concept, diner | Hotel breakfast, ghost kitchen, institutional |
Why manual wins for smashburgers and why thermostatic wins for breakfast
Smashburger cooking pushes a thin protein mass against a hot plate at maximum BTU for a short interval. The operator wants the plate to deliver every BTU it has during the smash event, then recover fast for the next ball. Manual valves can sit at fully open the entire service, which is something a thermostatic control will not do once setpoint is reached. The 30,000 BTU per burner on the Atosa ATMG-48 feeding directly into a 3/4 inch plate is the highest-output reactive gas flat top grill surface in this price class.
Breakfast cooking is a constant cycle of cold loads (eggs, batter, hash browns) onto a plate that needs to be held at three or four discrete temperature targets simultaneously. Eggs need 300 F. Pancakes need 375 F. Bacon needs 400 F. Home fries need 425 F. A thermostatic controller per zone holds each of those temperatures regardless of who is on the line and regardless of what just hit zone two while zone three was busy. The Atosa ATTG-48 is the right tool for that workflow.
The Reddit operator wisdom and the counterpoint
A consistent thread on commercial kitchen forums says to avoid thermostatic griddles because the controls fail in greasy environments and the repair bills add up. The capillary tube that connects the plate sensor to the control body is a known failure point, and a failed thermostat takes a zone offline until replacement. The counterpoint is that the operations that buy thermostatic griddles do so because the consistency value outweighs the repair exposure: a hotel breakfast served to 200 guests over three hours cannot tolerate a cook overshooting the egg zone by 50 F, and a ghost kitchen batching delivery orders cannot tolerate plate temperature drift between batches. The right answer depends on which side of that tradeoff your operation lives on.
48 versus 36 Inch Griddle: When to Step Up
The most common size-up question on the sales line is whether to go from the 36-inch Atosa ATMG-36 class up to the 48-inch class. The answer depends on covers per hour, menu composition, and station design. The framework below produces a clear go or no-go on the step-up decision.
Covers, menu composition, and station design thresholds
A 36-inch griddle handles roughly 60 to 100 peak covers per hour where griddle items are part of the order. A 48-inch griddle handles roughly 100 to 200. The crossover point is around 90 to 110 covers. If your operation is running near or above 100 covers per peak hour and griddle items are 50 percent or more of the menu, step up to 48 inches. If your operation is below 80 covers per peak hour, the 36-inch unit is enough and the extra foot of plate becomes idle BTU you pay for in gas every day.
The second test is menu composition. If your menu has three or more concurrent temperature zones in active use during a typical hour (proteins at one temp, eggs at another, sides at another), the 48-inch four-zone surface gives each cook target its own dedicated zone. The 36-inch three-zone surface forces the cook to share zones between cook targets, which slows ticket times and creates cross-contamination of cook temperatures.
The third test is station design. If the prep line has 48 inches of continuous counter run under a properly sized hood, the 48-inch unit drops in cleanly. If the prep line is fragmented into shorter sections, or if the hood is sized for a 36-inch footprint, the cost of upgrading the hood and reconfiguring the station may exceed the operational benefit of the larger plate. In a remodel scenario where the hood is being replaced anyway, this is a non-factor.
Decision table: 36 versus 48
| Factor | 36-inch wins | 48-inch wins |
|---|---|---|
| Peak covers per hour | Below 80 | Above 100 |
| Griddle share of menu | Below 30% | Above 50% |
| Concurrent cook temps needed | 2 or fewer | 3 or more |
| Counter run available | 36 inches or less | 48 inches or more |
| Existing hood | Sized for 36 only | Sized for 48 or larger |
| Operator count | One cook with light prep | One cook with full station |
| Cooking surface (sq in) | ~720 | ~954 |
| Total BTU | 90,000 | 100,000 to 120,000 |
48 versus 60 Inch Griddle: When to Step Up
The size-up question from 48 to 60 is structurally similar but lands at a higher volume threshold. The Atosa ATTG-60 represents the 60-inch class in the Atosa lineup and adds a fifth burner and a fifth zone to the surface. The added cost, the added hood width, and the added gas line load all factor into the decision.
Covers per hour, hood width, and BTU step-up
A 60-inch griddle handles 200 to 350 peak covers per hour. The step-up from 48 to 60 makes sense when peak hour covers consistently exceed 200, when griddle items represent 50 percent or more of the menu, or when the existing 48-inch unit is running at full capacity (no idle zones during the rush, ticket times stretched by griddle bottlenecks) for sustained periods of two or more hours per service.
A 60-inch griddle requires a minimum 72-inch wide Type 1 hood (six-inch overhang each side). Total BTU runs 125,000 to 150,000 depending on model. The Atosa ATTG-60 at 125,000 BTU is at the lower end of that range, with 25,000 BTU per burner and a 1-inch plate. The gas supply line that carried the 48-inch unit at 100,000 to 120,000 BTU usually still carries the 60-inch unit at 125,000 BTU on the same 3/4 inch NPT main, with adequate capacity for the higher load on the same run length. A 150,000 BTU 60-inch model with a high-BTU manual configuration may push the gas line specification to 1 inch.
Decision table: 48 versus 60
| Factor | 48-inch wins | 60-inch wins |
|---|---|---|
| Peak covers per hour | 100 to 200 | 200 to 350 |
| Hood width available | 60 to 70 inches | 72 inches or more |
| Counter run available | 48 inches | 60 inches or more |
| Gas line capacity | 3/4 inch NPT | 3/4 inch to 1 inch |
| Operating cost concern | Lower idle BTU | Higher idle BTU |
| Crew on griddle | One cook | One or two cooks |
| Cooking surface (sq in) | ~954 | ~1,200 |
| Sweet spot operation | Mid-volume diner, QSR | High-volume diner, breakfast bar |
When two shifts on a 48 beats one shift on a 60
An operational alternative to upsizing is to run two service shifts on the smaller unit. If your peak volume is concentrated in one two-hour window per day and the rest of the day is light, a 48-inch unit running flat out for that window may serve the business better than a 60-inch unit that idles at lower utilization for the rest of the day. The arithmetic favors the smaller unit when the peak is short and isolated, and favors the larger unit when the peak is sustained or when multiple service periods overlap.
One 48-Inch Griddle versus Two 24-Inch Griddles
This decision rarely shows up in published guides but it comes up regularly in real planning. The choice is between one continuous 48-inch surface and two separate 24-inch surfaces (such as a pair of Atosa ATMG-24 units) that add up to the same 48 inches of cooking width on paper but behave very differently in practice.
Where the single 48 wins versus where two 24-inch units win
The single 48-inch unit wins on cost (one chassis, one set of controls, one gas connection, one grease drawer), on installation (one gas stub-out, one hood section, one electrical-pilot consideration), on cleaning (one grease trough, one drawer to empty, one continuous surface to brick and re-season), and on cooking flexibility (a long batch of bacon can run across two zones with no plate seam in the middle, a row of pancakes can stage across all four zones, a smashburger production line can move patties along the surface from raw to finished without a transition). The Atosa ATMG-48 delivers all of those benefits in a single chassis.
Two 24-inch units win on placement flexibility (the units can sit on opposite ends of a line, or in two separate stations, or back-to-back on an island), on redundancy (one unit fails, the other still produces), on mobility (each unit is half the weight, and can be moved by two people instead of four), and on staffing (two cooks on two units run in parallel without crowding, while one 48-inch unit puts two cooks shoulder-to-shoulder). For broader category framing of the size and configuration tradeoffs, the parent guide at the definitive guide to commercial griddle options compares all sizes from compact 24-inch units up through 72-inch heavy-duty plates.
Cost, weight, and footprint comparison
| Factor | One 48-inch (ATMG-48) | Two 24-inch (two ATMG-24) |
|---|---|---|
| Total purchase cost | Single chassis | Two chassis, higher combined |
| Total cooking surface | ~954 sq in continuous | ~960 sq in split |
| Total BTU | 120,000 | 120,000 (60,000 + 60,000) |
| Net weight | 294 lbs single unit | ~310 lbs combined |
| Gas connections required | 1 (3/4 inch NPT) | 2 (each 3/4 inch NPT) |
| Hood sections required | 1 | 1 or 2 depending on layout |
| Grease drawers | 1 | 2 |
| Maintenance routines | 1 unit to clean | 2 units to clean |
| Best fit operation | Single-station kitchen | Multi-station, food truck, redundancy needs |
Verdict for permanent installation versus mobile
For a permanent commercial kitchen installation, the single 48-inch unit wins almost every time on simplicity, cost, and operational flow. For a mobile operation, a multi-station operation, or a redundancy-critical operation, the two-unit configuration may make more sense. The Atosa ATMG-48 is the right answer for the first case; a pair of Atosa ATMG-24 or two Atosa ATMG-36 units may be right for the second.
Production Throughput on a 48-Inch Griddle
How many burgers per hour, how many eggs per hour, how many pancakes per hour does a 48-inch griddle actually produce? This section answers those questions with arithmetic that starts from the cooking surface area and works up through cooking-zone-per-portion math. The numbers below assume the Atosa ATMG-48 or Atosa ATTG-48 surface area of approximately 47.9 by 19.9 inches, or 954 square inches.
Burgers, smashburgers, eggs, pancakes, and breakfast sandwich math
A quarter-pound raw burger patty measures roughly 4.5 inches in diameter, occupying about 16 square inches of plate footprint. With practical spacing for the flip and the lift, real-world footprint per patty is closer to 24 to 32 square inches. The 954 square inch surface holds 30 to 40 patties simultaneously at any given moment with that spacing. Cook time per patty is 3 to 4 minutes plus 30 seconds for flip and 30 seconds for lift, or roughly 5 minutes per cycle. Six cycles per hour times 30 patties per cycle equals 180 patties per hour sustainable. Real-world output with assembly bottlenecks, ticket variability, and operator fatigue lands between 150 and 200 burgers per hour.
A 2-ounce smashed patty hits the plate as a ball and gets smashed to roughly 4 inches in diameter, or 12.5 square inches of plate footprint. With smashburger format spacing, the same 954 square inch surface holds 40 to 48 patties at once. Cook time per smash is 2 to 3 minutes total (no flip, sear once, lift). Eight to ten cycles per hour times 40 patties equals 320 to 400 smash patties per hour theoretical. Real-world output with bun assembly, cheese melting, and ticket flow lands at 250 to 400 smash patties per hour, with high-end smashburger operations running near the upper bound.
A fried egg (over easy or sunny side up) occupies roughly 12 to 15 square inches at first crack. With practical spacing for flip access, the surface holds 50 to 60 eggs at once. Cook time per egg is 2 to 3 minutes for over easy, 4 minutes for fully cooked. Real-world breakfast operations on a 48-inch griddle produce 400 to 600 eggs per hour during peak service. The 1-inch plate on the thermostatic model holds the 300 F egg temperature better through repeated cold-egg loading, so an ATTG-48 outproduces an ATMG-48 on this specific item by 15 to 25 percent in a long sustained service.
A standard 4-inch diameter pancake occupies about 12.5 square inches at pour. Spacing for spatula access brings practical footprint to 18 to 22 square inches per pancake. The surface holds 45 to 50 pancakes at once. Cook time is 2 to 3 minutes per side, so 4 to 6 minutes total. Ten cycles per hour times 45 pancakes equals 450 pancakes per hour theoretical, with real-world output around 300 to 400 per hour accounting for batter pour cadence and stack delivery.
A breakfast sandwich (egg, sausage or bacon, cheese, English muffin) ties up roughly 35 square inches of plate during the build (egg cooking, meat warming, muffin toasting in parallel). Practical capacity is 25 simultaneous builds. Cycle time is 3 to 4 minutes. Sustainable hourly output is 350 to 450 breakfast sandwiches per hour on a 48-inch surface, with a single line cook capable of pushing 250 to 300 with consistent quality and 400 to 450 during peak surge with assist staff.
Production summary table
| Item | Footprint per portion | Simultaneous capacity | Cycle time | Sustainable per hour |
|---|---|---|---|---|
| Quarter-pound burger | ~24 to 32 sq in | 30 to 40 | 5 min | 150 to 200 |
| Smashburger (2 oz) | ~18 to 24 sq in | 40 to 48 | 3 min | 250 to 400 |
| Fried egg | ~15 to 18 sq in | 50 to 60 | 2 to 4 min | 400 to 600 |
| 4-inch pancake | ~18 to 22 sq in | 45 to 50 | 5 min | 300 to 400 |
| Breakfast sandwich build | ~35 sq in | 25 | 4 min | 250 to 350 |
| Bacon strip (8 inch) | ~12 sq in | 70 to 80 | 6 to 8 min | 400 to 500 |
| Hash brown patty | ~16 sq in | 55 to 60 | 5 to 7 min | 400 to 500 |
| Quesadilla (10 inch) | ~80 sq in | 10 to 12 | 4 min | 120 to 150 |
Lunch rush versus breakfast rush throughput
Breakfast rush on a 48-inch griddle is typically the highest-throughput service period of the day. Eggs, bacon, hash browns, and pancakes all share the surface and cycle every two to five minutes. A well-run 48-inch breakfast station produces 150 to 200 plated covers per hour during peak. Lunch rush, with longer-cooking proteins like burgers and chicken breasts, typically produces 90 to 130 covers per hour from the same surface. Dinner rush, with steak and longer cook items, drops further to 60 to 90 covers per hour. The 48-inch format is fundamentally optimized for breakfast and burger lunch service. The full size lineup with corresponding throughput numbers is browsable at the commercial griddles collection.
Hood Sizing for a 48-Inch Commercial Griddle
Hood sizing is one of the two highest-stakes installation decisions on a 48-inch griddle. An undersized hood fails inspection, fails to capture grease-laden vapor, and creates a fire risk. An oversized hood pulls excess conditioned air out of the building and runs up the utility bill. The right size is the minimum that satisfies code and clears the equipment. For a 48-inch griddle, that minimum is well-defined.
Minimum hood width, depth, and Type 1 requirement
The standard commercial kitchen code requires the hood to extend at least 6 inches beyond the cooking equipment on all sides. The 48-inch griddle is 48 inches wide; add 6 inches on each side and the minimum hood width is 60 inches. Some jurisdictions require 12-inch overhang on the open sides, pushing the minimum to 72 inches. The same 6-inch front-and-rear overhang rule applies to depth. The griddle is 28.6 inches deep. Add 6 inches front (for grease drawer access and operator working space) and 6 inches rear (for the hood to extend over the rear gas connection and splash guard). The minimum hood depth is 40.6 inches. A 42-inch deep hood is the common round-up specification.
Commercial griddles are grease-producing appliances and require a Type 1 (grease-rated) hood. Type 2 (steam and heat only) hoods are not acceptable for griddle installation under any US commercial kitchen code. The Type 1 hood includes grease baffles, a stainless steel grease gutter, and connection to a grease-rated exhaust duct routed to roof discharge. The duct must be wrapped per code for fire safety.
CFM requirement for 48-inch griddle hood
| Hood configuration | Width | CFM range | Notes |
|---|---|---|---|
| Wall-mount canopy (medium duty) | 60 inches | 750 to 1,250 | Standard 5-foot hood, wall-installed |
| Wall-mount canopy (heavy duty) | 60 inches | 1,250 to 1,800 | For sustained peak heat output |
| Island canopy (medium duty) | 60 inches | 1,000 to 1,500 | Island requires more CFM than wall-mount |
| Island canopy (heavy duty) | 60 inches | 1,500 to 2,000 | Island plus heavy duty |
| Backshelf (low proximity) | 60 inches | 500 to 800 | Lower CFM, requires close proximity to plate |
The medium-duty appliance classification applies to griddles. ASHRAE and IMC code reference CFM per linear foot of hood opening, with medium-duty values typically at 150 to 400 CFM per linear foot. A 60-inch (5-foot) hood at the higher end of medium-duty pulls roughly 2,000 CFM. The exact value depends on the manufacturer's listed CFM, the local code interpretation, and the building exhaust system design.
Hood mounting height, overhang, and make-up air balance
The bottom of the hood should sit at approximately 78 inches above the finished floor for a standard 36-inch-high counter installation. The hood front lip should be 24 to 30 inches above the cooking surface for a griddle (lower than for a range because the griddle is shorter and the heat plume rises more slowly). Front overhang should be 6 inches minimum from the front edge of the griddle. Side overhang should be 6 inches minimum from each side. Rear overhang should be 6 inches minimum from the rear of the unit including splash guard and gas connection.
Every CFM of exhaust must be balanced by a CFM of make-up air or the kitchen will go into negative pressure, pulling air through cracks, undercut doors, and dining room HVAC returns. A 60-inch hood pulling 1,500 CFM needs a corresponding 1,500 CFM make-up air unit (MAU) sized into the building HVAC plan. The MAU should be tempered (heated or cooled) so the make-up air does not turn the kitchen into an outdoor-temperature space. Some jurisdictions allow up to 10 percent of the exhaust to be made up by transfer air from adjacent conditioned spaces; the rest must come from a dedicated MAU.
Gas Line Sizing for a 48-Inch Commercial Griddle
Gas line sizing is the other high-stakes installation decision. An undersized gas line cannot deliver full BTU to the burners under load. The griddle pre-heats slowly, recovers slowly, and never quite reaches advertised temperature when other equipment on the same line is also running. The Atosa ATMG-48 and Atosa ATTG-48 both use a 3/4 inch NPT rear gas connection, but the gas connection at the unit is not the same question as the gas supply line capacity feeding it.
3/4 inch NPT inlet on both ATMG-48 and ATTG-48
The inlet on the back of the Atosa ATMG-48 and the Atosa ATTG-48 is a 3/4 inch NPT (National Pipe Thread) fitting. This is the connection point for the supply pipe coming from the building gas line. A flexible gas hose with a quick-disconnect coupling is typically installed between the supply pipe and the unit so the griddle can be pulled forward for cleaning without breaking the gas seal. The flex hose must be commercial-grade, sized to 3/4 inch ID, and rated for the operating BTU load.
Supply line capacity by pipe size and run length
| Pipe size | Run length | Natural gas capacity (BTU/hr) | Notes |
|---|---|---|---|
| 1/2 inch iron pipe | 10 feet | ~172,000 | Adequate for ATTG-48 at short run |
| 1/2 inch iron pipe | 20 feet | ~118,000 | Borderline for ATMG-48 at 120,000 BTU |
| 1/2 inch iron pipe | 30 feet | ~95,000 | Insufficient for either 48-inch model |
| 3/4 inch iron pipe | 10 feet | ~360,000 | Far above 48-inch griddle load |
| 3/4 inch iron pipe | 20 feet | ~247,000 | Comfortable for either 48-inch model |
| 3/4 inch iron pipe | 30 feet | ~200,000 | Still adequate for either 48-inch model |
| 3/4 inch iron pipe | 50 feet | ~152,000 | Adequate, marginal headroom |
| 1 inch iron pipe | 30 feet | ~378,000 | Supports 48 plus shared appliances |
| 1 inch iron pipe | 50 feet | ~286,000 | Supports 48 plus shared appliances |
For a standalone 48-inch griddle on its own supply branch, a 3/4 inch pipe run of up to 50 feet is comfortably adequate. The challenge appears when the griddle shares a supply line with a range, a fryer, or a salamander. Total combined BTU load on the shared line must fit within the capacity at the listed run length.
Shared supply line BTU math and manifold pressure
A common kitchen layout puts the griddle, a four-burner range, and a fryer all on one supply run. The range may draw 120,000 BTU. The fryer may draw 90,000 BTU. The 48-inch griddle draws 100,000 to 120,000 BTU. Combined load is 310,000 to 330,000 BTU. A 3/4 inch line at 20 feet caps at 247,000 BTU. The combined load exceeds the pipe capacity by 60,000 to 80,000 BTU and the system will starve under simultaneous high-demand use. The correct sizing for that load is 1 inch iron pipe, which carries 360,000 BTU at 20 feet or 286,000 at 50 feet.
The internal manifold pressure on both the ATMG-48 and ATTG-48 is regulated at 4 inches W.C. (water column) for natural gas and 10 inches W.C. for propane. The pressure regulator is built into the unit. The supply pressure from the building gas meter is typically 7 inches W.C. for natural gas, which the regulator drops to the 4-inch manifold setting. For propane installations, the building or tank regulator provides supply at 11 inches W.C. and the unit drops to 10 inches. Inlet pressure outside the 4 to 14 inch W.C. range for NG or 10 to 14 inch W.C. for LP voids the equipment warranty and degrades burner performance.
Always use a licensed gas contractor
The figures and tables above are guidance for planning. Final gas line specification, installation, and pressure testing must be performed by a licensed gas contractor working to local code and to the equipment installation manual. The pressure test (typically 10 PSI air for 15 minutes per code) and the leak check (soap solution on every joint after gas is restored) are mandatory before first lighting.
Clearance Requirements and Installation Specifications
The clearance requirements for a 48-inch commercial griddle govern where the unit can sit relative to combustible and non-combustible adjacent surfaces. Code compliance, fire safety, and operator access all depend on getting these distances right. The Atosa ATMG-48 and Atosa ATTG-48 installation manuals specify the clearance distances below.
Clearance table for 48-inch griddle installation
| Surface | Combustible material | Non-combustible material |
|---|---|---|
| Left side | 6 inches minimum | 0 inches (flush install OK) |
| Right side | 6 inches minimum | 0 inches (flush install OK) |
| Rear | 6 inches minimum | 0 inches (flush install OK) |
| Front (operator clearance) | 30 inches minimum | 30 inches minimum |
| Above (to hood bottom) | 24 inches minimum | 24 inches minimum |
| Floor (countertop loading) | Counter must support 300 lbs | Counter must support 300 lbs |
Counter and chef base load rating
The Atosa ATMG-48 weighs 294 lbs net. The Atosa ATTG-48 weighs 295 lbs net. A countertop or chef base supporting the griddle must be rated for at least 300 lbs static load over the 48-inch footprint, plus a working load allowance for food, prep tools, and operator pressure on the front edge during scraping and cleaning. Most commercial stainless steel countertops with proper bracing rate at 200 to 400 lbs per linear foot, which clears the griddle weight comfortably. Standard residential decorative countertops are not rated for commercial griddle weight and should never be used. A refrigerated chef base (which doubles as cold storage for proteins under the griddle) is one of the most space-efficient installations for the Atosa ATTG-48 or Atosa ATMG-48.
Floor clearance and operator zone
Both Atosa 48-inch units have a 6-inch clearance under the chassis for grease drawer removal. The grease drawer slides out the front, so 6 to 8 inches of front access at floor level is required for routine drawer cleaning. If the unit sits on a chef base, the chef base provides this clearance automatically. If it sits on an open stand, verify the stand has the necessary clearance under the front edge. The operator stands at the front of the griddle and reaches across the 28.6-inch depth to the rear of the surface. Standard operator workspace is 30 to 36 inches in front of the equipment. Pass-through windows, expo counters, or service stations behind the operator should be located at least 30 inches behind the cook position for safe two-cook operation during peak service. The walking aisle behind the operator should be at least 36 inches for circulation while the cook is at the station.
Does a 48-Inch Griddle Fit in a Food Truck?
The food truck question - whether a 48-inch flat top grill fits on a mobile rig - is one of the most-asked on the sales line for this size class, and the honest answer is: usually no, but sometimes yes. The Atosa ATMG-48 and Atosa ATTG-48 both measure 48 inches wide by 28.6 inches deep with a 4-inch rear splash guard, putting the total back-to-front depth at roughly 32 to 33 inches. That depth sits at the upper edge of what a standard food truck galley can accommodate.
Standard food truck dimensions
| Truck length | Exterior width | Interior usable width | Galley counter depth | 48-inch griddle fit |
|---|---|---|---|---|
| 14 to 16 feet | 7 feet | ~6 feet | 22 to 26 inches | Does not fit |
| 16 to 18 feet | 7 to 7.5 feet | 6 to 6.5 feet | 24 to 28 inches | Tight, usually no |
| 18 to 22 feet | 8 feet | 6.5 to 7 feet | 26 to 30 inches | Marginal, custom build |
| 22 to 26 feet | 8 to 8.5 feet | 7 to 7.5 feet | 28 to 32 inches | Fits with planning |
| Trailer (custom) | 8 to 8.5 feet | 7.5 to 8 feet | 30 to 36 inches | Fits comfortably |
The depth, width, and ventilation problems
The 28.6-inch unit depth plus 4-inch splash guard plus 2 to 4 inches of rear gas connection clearance puts total depth at 34 to 37 inches. Most standard food truck galley counters are built at 24 to 30 inches deep. The 48-inch griddle does not fit on those counters without overhanging the front edge, which puts the hot grease trough into the walking aisle. Trucks built specifically around a 48-inch griddle use a deeper custom galley counter (32 to 36 inches deep) to accommodate the depth.
The 48-inch width eats four linear feet of the galley counter. An 8-foot wide truck has 6.5 to 7 feet of interior usable width, leaving 2.5 to 3 feet of remaining galley space for everything else: a sink, a refrigerated chef base, prep counter, drink station, and pass-through window. That leaves the operator working in a very tight space. Trucks under 20 feet long usually cannot afford the loss of galley width.
The 48-inch griddle requires a Type 1 hood with proper CFM. A truck-mounted hood must extend 6 inches on each side, putting the minimum hood width at 60 inches against a typical truck interior of 78 to 90 inches. The hood plus duct plus exhaust fan must be engineered to the truck body, which adds weight (200 to 400 lbs of hood and ducting), height (the hood eats 18 to 24 inches of vertical clearance), and roof penetration complexity. Many truck builders prefer to top out the griddle at 36 inches for these reasons.
When the 48-inch food truck install works
The 48-inch griddle does work in food trucks built specifically around it. Smashburger concept trucks, breakfast taco trucks, and high-volume festival trucks running 20 to 26-foot bodies with custom galley layouts can accommodate the Atosa ATMG-48 or Atosa ATTG-48 comfortably. The decision factor is whether the truck is being built around the griddle (yes, 48 inches works) or whether the griddle is being squeezed into an existing layout (no, 36 inches is the better choice via Atosa ATMG-36).
Ghost Kitchen and Delivery-Only Operations
Ghost kitchens (cloud kitchens, delivery-only kitchens, virtual restaurants) are a growing buyer segment for the 48-inch griddle. The format favors equipment that supports multi-brand operation, batch production for delivery windows, and tight space utilization under shared ventilation. The Atosa ATMG-48 and Atosa ATTG-48 both fit that profile, with the thermostatic model often pulling ahead in ghost kitchen environments because of its consistency advantage.
Ghost kitchen format fit table
| Ghost kitchen size | Typical sq ft | Recommended griddle | Reasoning |
|---|---|---|---|
| Single-brand pod | 150 to 250 | 24 or 36 inch | Single concept, limited ventilation |
| Dual-brand pod | 250 to 400 | 48 inch | Four-zone control for two concept temps |
| Triple-brand pod | 400 to 600 | 48 or 60 inch | Higher throughput, more zones |
| Quad-brand kitchen | 600 to 900 | 60 inch plus auxiliary | Beyond single-griddle scope |
| Modular container | 200 to 350 | 36 or 48 inch LP | LP fuel, limited grid power |
Why 48 inches is the ghost kitchen sweet spot
Most ghost kitchen units are 200 to 500 square feet with shared ventilation infrastructure and limited counter run. The 48-inch griddle is often the largest cooking equipment that fits within those constraints. Larger units (60 or 72 inches) exceed the available counter and hood capacity. Smaller units (24 or 36 inches) cap the output too low to support multi-brand operation. The 48-inch sits at the upper bound of what most ghost kitchen facility agreements permit.
Multi-brand operation on a single 48-inch unit
The four-zone independent control on the 48-inch griddle is the structural feature that makes multi-brand operation work. A ghost kitchen running two virtual brands (for example, a smashburger concept and a breakfast burrito concept) can dedicate zones one and two to smashburger production at 475 F and zones three and four to breakfast burrito production at 350 F simultaneously. The Atosa ATTG-48 thermostatic model maintains those temperature splits automatically through the shift, freeing the operator to focus on order fulfillment.
Batch production, chef base configuration, and gas options
Ghost kitchen throughput is batch-focused: orders arrive in clusters tied to delivery driver pickup windows (every 10 to 15 minutes during peak), and the kitchen produces in batches that match those windows rather than continuous a la carte service. A 1-inch plate with thermostatic control is well-matched to batch production because the temperature stability across repeated cold-load events keeps batch quality consistent. The cook is not constantly adjusting; the controller holds, and the batches come off the plate at the same quality from the first to the last.
Most ghost kitchen 48-inch installs sit on a refrigerated chef base. The chef base provides cold storage for proteins directly under the griddle, eliminating the walk to a reach-in for restock during peak. The combined unit footprint is the 48-inch wide chef base plus the 48-inch griddle on top, total 48 wide by 28 to 30 deep, with the operator working from the front. The chef base also provides the structural counter rating to support the 295-lb griddle.
Most shared ghost kitchen facilities supply natural gas as the standard fuel. Operators moving in usually inherit a NG stub-out at the unit position. Modular ghost kitchen containers and pop-up ghost kitchen setups sometimes use propane tanks instead, which requires the LP-configured version of the unit (or a field gas conversion kit installed by a licensed gas technician).
Gas versus Electric 48-Inch Griddle
Most 48-inch commercial griddles in US kitchens run on natural gas, but electric variants exist and serve specific niches. The Atosa lineup centers on gas (the Atosa ATMG-48 and Atosa ATTG-48 are gas-only models). The decision between gas and electric is driven by utility infrastructure, regulatory environment, and operational pattern. The full electric category is covered in detail in the best electric griddles guide for operators evaluating that path.
Why most operations choose gas, when electric makes sense, and electric power requirements
Gas delivers higher peak BTU output per dollar of energy cost in most US markets. A natural gas flat top grill runs 30 to 60 percent below electric rates per delivered BTU in most regions. Recovery time after a cold-load event is faster on gas because the burner can dump 30,000 BTU into the plate the moment the valve opens. Gas equipment has fewer electrical failure points (no heating elements to burn out, no contactors to fail). For high-volume commercial operations, gas is the default and remains the right choice in most regions.
An electric flat top grill in the 48-inch class makes sense in three scenarios. First, locations with no gas infrastructure (some urban high-rise buildings, some shopping center kiosks, some pop-up retail spaces) where running a new gas line is cost-prohibitive or not permitted. Second, jurisdictions with gas restrictions in new construction (parts of California, parts of the Northeast) where building codes now prohibit gas appliances in new builds. Third, food truck applications with sufficient onboard electrical capacity (generally 240V three-phase or a 240V single-phase circuit at 60 amps minimum) where the operator wants to avoid propane tank logistics.
Commercial 48-inch electric griddles typically draw 10,000 to 14,000 watts at full load. That translates to roughly 42 to 58 amps at 240V single-phase, or 28 to 39 amps at 208V three-phase. Most commercial 48-inch electric units require a dedicated 60-amp circuit at the voltage configuration the unit specifies. The wiring and breaker sizing should be verified against the unit's electrical specifications before purchase.
Natural Gas versus Liquid Propane Configuration
Both the Atosa ATMG-48 and the Atosa ATTG-48 ship in either natural gas (NG) or liquid propane (LP) configuration - the same chassis can be spec'd as a propane flat top grill for mobile use or an NG unit for a permanent restaurant kitchen. The two fuel types differ in BTU content per cubic foot, in operating pressure, and in regulator and orifice sizing. The unit ordered must match the fuel supplied at the site. Conversion between NG and LP is possible in the field by a licensed gas technician using the manufacturer's conversion kit.
NG versus LP comparison table
| Factor | Natural gas | Liquid propane |
|---|---|---|
| Energy content | ~1,000 BTU/cubic foot | ~2,500 BTU/cubic foot |
| Inlet pressure | 4 inch W.C. | 10 inch W.C. |
| Orifice size | Larger (more gas volume needed) | Smaller (less volume needed) |
| Supply source | Building utility line | Tank (refillable) |
| Best for | Permanent installation | Food trucks, mobile, off-grid |
| Cost per BTU | Lower in most US markets | Higher per delivered BTU |
| Field conversion | Possible from LP | Possible from NG |
NG for permanent installations, LP for food trucks and mobile
Any operation with natural gas service at the site should order the NG configuration. The fuel cost over the equipment life is meaningfully lower, the supply is uninterrupted (no tank swaps), and the regulatory environment is simpler (no propane storage rules). Commercial kitchens, ghost kitchens with shared NG service, and standalone restaurants almost always choose NG.
Food trucks, concession trailers, festival kitchens, and any installation without grid gas service order the LP configuration. The propane tank (typically a 40 to 100 lb tank for commercial mobile use) is mounted external to the cooking compartment, often on a rear rack or in a dedicated propane locker. Tank exchange happens on a schedule based on operating hours: a 100-lb tank supports roughly 8 to 16 hours of full-load 120,000 BTU griddle operation.
Standing Pilot Ignition on the Atosa 48-Inch Models
Ignition system comparison table
| Factor | Standing pilot | Electronic ignition |
|---|---|---|
| Lighting speed | Instant when knob turns | 2 to 5 second delay for spark or hot surface |
| Idle gas consumption | 200 to 300 BTU per pilot per hour | Zero idle gas |
| Failure points | Thermocouple only | Igniter, sensor, control board, wiring |
| Performance in grease | High reliability | Igniter and sensor can foul |
| Power requirement | None (millivolt thermocouple) | 120V outlet required |
| Annual repair frequency | Low; thermocouple every 2 to 5 years | Moderate; sensor or board every 2 to 4 years |
| Best for | High-grease commercial environment | Energy-conscious lower-grease environments |
Both the Atosa ATMG-48 and Atosa ATTG-48 use standing pilot ignition. A small continuous pilot flame burns in front of each main burner. When the operator turns the knob, the gas valve opens and the gas stream contacts the pilot, lighting the main burner immediately. The pilot stays lit between cooking sessions and through the entire service day. The pilot is shut off only during deep cleaning, end-of-week shutdown, or unit maintenance.
Standing pilot versus electronic ignition
Electronic ignition (also called pilot-less ignition) replaces the continuous pilot flame with a spark or hot-surface igniter that fires only when the main burner needs to light. Electronic ignition saves the standing pilot gas (roughly 200 to 300 BTU per pilot per hour, or 800 to 1,200 BTU per hour across four pilots) over the life of the unit. The tradeoff is reliability: the igniter, the flame sensor, the control board, and the wiring in a greasy commercial environment introduce four to five failure points that the standing pilot system does not have.
Why Atosa chose standing pilots for the 48-inch models
The standing pilot system is structurally simpler and more reliable in a high-grease commercial environment. There is no control board to fail in heat and grease. There is no spark igniter to crack from thermal cycling. There is no flame sensor to foul with grease. The pilot is a small gas jet and a thermocouple, and the thermocouple is the only electrical-adjacent component on the entire ignition path. The Atosa ATMG-48 and Atosa ATTG-48 are both designed around this simpler architecture for operational reliability.
Pilot light troubleshooting
When a pilot will not stay lit, the most common cause is a dirty thermocouple or a thermocouple that has drifted out of the pilot flame. The thermocouple is a small probe positioned just inside the pilot flame, and it generates a small voltage from the heat that tells the gas valve to keep the pilot gas flowing. A dirty or misaligned thermocouple drops voltage below the valve's hold threshold and the valve shuts the pilot gas off. The fix is to clean or reposition the thermocouple, or to replace it if it has aged out (typical thermocouple life is 2 to 5 years in a commercial environment).
Construction Quality and Materials
The 48-inch commercial griddle is built to take a daily commercial beating: heat cycles from cold to 500 F twice a day, grease splatter on every surface, water and chemistry contact during cleaning, repeated drawer pulls and slams, and the constant impact of metal spatulas and scrapers against the plate edge. Construction materials and assembly details determine how the unit holds up over years of that abuse. Both the Atosa ATMG-48 and Atosa ATTG-48 share the same chassis construction.
Plate, chassis, and burner construction
The cooking plate is polished cold-rolled steel, machined flat to roughly 0.005-inch flatness across the full 48-inch width. Polished steel takes a seasoning layer (polymerized oil bonded to the iron at the molecular level) which provides the non-stick performance and corrosion resistance during operation. The plate edge is welded into the surrounding stainless steel chassis to seal against grease intrusion under the plate. The front, sides, and top trim are 430 grade stainless steel. The rear and bottom are galvanized steel, which is structurally adequate and cost-efficient for the non-visible surfaces. The fasteners are stainless to prevent rust streaks at the joints. The control panel is a stainless front face with mechanical knobs (manual) or thermostat dials (thermostatic) recessed to minimize damage from impacts. The burners are cast iron H-style burners positioned directly under the plate. Cast iron handles thermal cycling better than stamped steel burners and resists deformation over thousands of light-off cycles. Each burner is independently mounted and can be removed for cleaning or replacement without pulling the entire chassis apart.
Grease management and splash guard
The full-width front grease trough on both models drains into a removable stainless steel grease drawer at floor level. The drawer pulls out the front for emptying. The trough on a 48-inch unit catches roughly 1 to 3 gallons of grease during a heavy service period and should be checked mid-service during high-volume bacon or burger production. Detailed grease management procedures, including disposal regulations and cleaning chemistry, live in the how to clean a commercial griddle.
The rear and side splash guards rise 4 inches above the cooking surface and protect the wall and adjacent equipment from grease splatter. The splash guard is fixed (not removable) and is part of the chassis weldment. The 4-inch height is sufficient for most cooking applications; aggressive smashburger production may benefit from an aftermarket auxiliary splash guard on the rear, especially when the griddle is installed in an island layout where backsplatter has no wall to land on.
Certifications and Code Compliance
Commercial griddles must carry specific safety and sanitation certifications to be installed legally in commercial kitchens. The Atosa ATMG-48 and Atosa ATTG-48 carry the full set of certifications required for US commercial operation.
Required certifications for 48-inch commercial griddle
| Certification | What it covers | Why it matters |
|---|---|---|
| ETL (Intertek) | Electrical and gas safety compliance to ANSI standards | Required by most AHJs in place of UL listing |
| ETL-Sanitation | Food contact surface sanitation per NSF/ANSI 4 | Required by health departments for food service |
| ANSI Z83.11 | Gas-fired commercial food service equipment safety | Required for gas-fired commercial equipment |
| NSF/ANSI 4 | Commercial cooking, rethermalization, and powered hot food holding equipment | Required for food safety code compliance |
| CSA (optional) | Canadian Standards Association equivalent | Required for Canadian installations |
The ETL and ETL-Sanitation marks on the Atosa ATMG-48 and Atosa ATTG-48 spec plates satisfy the AHJ requirement in nearly every US jurisdiction. The combination is functionally equivalent to UL plus NSF and is accepted everywhere UL is accepted. Verify with the local AHJ during permit application if there is any question.
Daily and Periodic Cleaning of a 48-Inch Griddle
A 48-inch griddle is 33 percent more surface area to clean than a 36-inch unit, and the maintenance routine has to scale accordingly. A systematic front-to-back scraping pattern using the four-section layout as a guide is the most efficient way to clean the larger surface. The full cleaning protocol with chemistry, scraping technique, and re-seasoning steps lives in the how to clean a commercial griddle. The summary below covers the high points specific to the 48-inch format.
End-of-shift cleaning sequence
The end-of-shift sequence on a 48-inch griddle is: drop plate temperature to 250 to 300 F, scrape the plate with a Winco SCRP-14 14-inch scraper working front-to-back zone by zone, apply ATGC101 griddle cleaner to dissolve carbonized grease, scrub with a griddle screen or non-abrasive pad, squeegee the chemistry slurry into the front trough, rinse with water, dry with heat, and apply a thin oil coat for overnight protection. Total time for a 48-inch surface is 15 to 25 minutes versus 10 to 18 minutes for a 36-inch surface.
Scraper size for 48-inch plate
The 14-inch wide scraper blade on the Winco SCRP-14 14-inch scraper is the optimal size for 48-inch plate cleaning. A 14-inch blade covers each 12-inch burner zone in a single pass with overlap into the adjacent zone, which produces a more uniform scrape pattern than a narrower blade. A wider blade (16-inch and up) becomes awkward to control on a 28.6-inch deep surface. The 14-inch blade hits the right balance for the 48-inch format.
Weekly deep clean with bricking
The weekly deep clean adds a Winco GBK-348 grill brick pass to the routine. After the chemistry step, the brick is run lane-by-lane across the full 48-inch width in a vertical pass and then a horizontal pass, smoothing the chemistry-exposed plate surface before re-seasoning. The 48-inch width benefits from a brick holder (rather than a folded towel) for operator comfort and consistent pressure. The full bricking technique, lane method, and re-seasoning protocol are in the bricking the griddle complete guide. Operators rebuilding a neglected plate should also reference the chrome safety section of that same bricking guide before any abrasive contact with the plate surface.
Grease drawer schedule
The grease drawer on a 48-inch unit fills faster than on a smaller unit because the larger surface produces more grease. During a heavy burger lunch or bacon-heavy breakfast service, check the drawer at mid-service (around 90 minutes into the rush) and again at end of service. A full drawer that overflows into the chassis floor is the most common preventable maintenance failure on a commercial griddle.
Operating Cost and Energy Use
The Atosa ATMG-48 and Atosa ATTG-48 both have predictable operating cost profiles. Idle BTU consumption (the gas burned to keep the plate warm between active cooking) is the biggest single line item on the gas bill. Peak BTU only runs during sustained high-volume cooking. The thermostatic model uses slightly less gas overall because the controller cycles burners back to maintenance level once setpoint is reached.
BTU consumption profile by operating mode
| Operating mode | ATMG-48 BTU/hr | ATTG-48 BTU/hr | Notes |
|---|---|---|---|
| Cold start preheat | 120,000 | 100,000 | Burners at full output during preheat |
| At-temperature idle | 10,000 to 15,000 | 9,000 to 12,000 | Maintenance BTU only |
| Light service load | 30,000 to 50,000 | 25,000 to 45,000 | Some zones active |
| Peak service load | 80,000 to 120,000 | 70,000 to 100,000 | All zones active |
| Sustained idle (post-service) | 10,000 to 12,000 | 9,000 to 11,000 | Plate held warm |
Cost per service hour
At a natural gas rate of around 1.20 dollars per therm (roughly 100,000 BTU), a 48-inch griddle running an average of 60,000 BTU/hr through a 10-hour service day consumes about 600,000 BTU or 6 therms, costing around 7 to 8 dollars in gas per day. Annual gas cost runs in the range of 2,500 to 3,500 dollars for a 5-day-per-week operation. Electric variants consume more energy in absolute terms per BTU delivered to the plate but the conversion to delivered cooking heat is more efficient; the comparison usually favors gas on operating cost in most US markets.
Idle BTU reduction tactics
The simplest way to reduce gas consumption is to drop unused zones to low during slow periods rather than holding all four zones at full operating temperature. A breakfast operation that runs peak from 7 to 10 AM and slow from 10 AM to 2 PM can drop two zones to low after the peak and save 5,000 to 8,000 BTU/hr through the slow period. The thermostatic model does this automatically when the operator drops setpoint; the manual model requires the operator to back the valves down.
Atosa and the CookRite Sub-Brand
Atosa is one of the largest commercial foodservice equipment manufacturers selling into the US value-tier market. CookRite is Atosa's product line for cooking equipment (ranges, griddles, charbroilers, fryers, ovens). The Atosa ATMG-48 and Atosa ATTG-48 both carry the CookRite line designation. Some retailers list the models with the CookRite name prefix, some with the Atosa name prefix; the unit is the same product either way. Full context on the Atosa griddle family across all sizes and control types is in the Atosa griddle guide.
What the ATMG and ATTG model prefixes mean
ATMG stands for Atosa Manual Griddle: gas-fired, manual valve control, 3/4 inch plate, standing pilots. ATTG stands for Atosa Thermostatic Griddle: gas-fired, thermostatic valve control per zone, 1 inch plate, standing pilots. The trailing number is the width in inches. ATMG-24, ATMG-36, ATMG-48, ATTG-48, ATTG-60, and ATTG-72 are the major width variants in the line.
Why operators choose the value tier
The Atosa CookRite line targets the operator who wants commercial-grade reliability without the premium-tier price. Build quality is at the high end of value-tier (stainless front, polished plate, cast iron burners, ETL and NSF certified) without the brand premium that comes with the established US heritage names. For an operator opening their first restaurant, a mid-volume diner, a ghost kitchen, or a second concept location, the value tier hits the right balance of capability and cost. For high-end fine dining where equipment lifetime is amortized over 20 years and brand recognition matters to the chef, a premium-tier unit may be preferred. Operators evaluating the broader Atosa lineup beyond the 48-inch class should review the Atosa griddle guide for the complete model-by-model walkthrough.
Plate Material Alternatives: Steel, Chrome, and Stainless
The standard 48-inch commercial griddle uses a polished cold-rolled steel plate, including the Atosa ATMG-48 and Atosa ATTG-48. Two material alternatives exist in the broader category: chrome-plated steel and stainless steel. Each behaves differently in service and matches different operational priorities. Detailed coverage of the stainless option lives in the commercial stainless steel griddle complete guide.
Polished steel (standard)
Polished cold-rolled steel takes a polymerized seasoning layer and produces the classic commercial griddle cooking surface. The seasoning gives the surface its non-stick performance, its characteristic browned color, and its corrosion resistance during operation. The plate must be maintained with regular bricking and re-seasoning to keep the surface in working condition. Steel plates last 10 to 20 years in commercial service with proper care, and 5 to 7 years with neglect.
Chrome-plated steel
Chrome-plated steel adds a thin chromium layer over the steel substrate. Chrome plates do not need seasoning. The chrome surface is non-reactive, easier to clean, and looks bright and reflective. The tradeoff is that chrome plates cannot be bricked (the abrasive cuts through the chrome layer to the steel underneath, which then rusts), carry a higher upfront cost, and produce slightly different cooking results because the chrome surface conducts heat differently than seasoned steel. Chrome plates are not interchangeable with seasoned steel in the kitchen workflow.
Stainless steel
Stainless steel plates are rare in commercial griddle construction but exist. Stainless does not need seasoning and is highly corrosion-resistant. Like chrome, stainless plates cannot be bricked. They are typically found in specific niche applications (pancake operations, crepe stations, sushi-bar style hot plates) rather than general-purpose commercial griddles. The 48-inch class is overwhelmingly polished steel.
48-Inch Griddle versus Griddle-Charbroiler Combo Units
Some operations consider a combination unit instead of a dedicated 48-inch griddle. A combo unit might be a 24-inch griddle plus 24-inch charbroiler in a 48-inch chassis, or a 36-inch griddle plus 12-inch charbroiler. The combo gives two cooking surfaces in one footprint at the cost of less griddle area. The decision framework between a dedicated 48-inch griddle and a 48-inch combo is covered in detail in grill, griddle, go: how commercial combos save space and sizzle.
When a combo wins
A combo wins when the menu includes meaningful char-grilled items (steaks, char-marked chicken, grilled vegetables) and the kitchen does not have space for a separate dedicated charbroiler. The combo lets one cook handle both flat-top and char-grilled items from one station. The tradeoff is reduced griddle area: a 24-inch griddle section produces fewer burgers and pancakes than a 48-inch dedicated unit.
When the dedicated 48-inch wins
The dedicated 48-inch griddle wins when the menu is griddle-heavy (breakfast, burgers, sandwiches) and char-grilled items are a small or zero share of the menu. The full 48-inch width gives the cook room to run multiple temperature zones in parallel, which the combo cannot replicate. For most pure griddle operations, the Atosa ATMG-48 or Atosa ATTG-48 is the better choice than a combo.
Menu Fit: What to Cook on a 48-Inch Griddle
The 48-inch flat top grill accepts almost every protein, starch, and vegetable that takes well to flat-surface dry-heat cooking. The four-zone independent control on the Atosa ATMG-48 and Atosa ATTG-48 lets the restaurant flat top grill run a wide variety of items simultaneously at the right temperature for each. The list below covers the most common menu items and the temperature target for each.
Temperature target table by menu item
| Item | Plate temperature | Cook time | Notes |
|---|---|---|---|
| Eggs (fried, over easy) | 275 to 325 F | 2 to 4 min | Low and steady for tender white |
| Pancakes | 350 to 400 F | 4 to 6 min | Watch bubble formation for flip |
| French toast | 325 to 375 F | 4 to 6 min | Lower temp prevents over-browning |
| Bacon strips | 325 to 400 F | 6 to 10 min | Cooler temp renders fat better |
| Breakfast sausage | 325 to 375 F | 6 to 8 min | Avoid scorching at higher temps |
| Hash browns | 375 to 425 F | 6 to 8 min | Hot for crisp exterior |
| Quarter-pound burgers | 375 to 425 F | 3 to 5 min | Hot for sear, then finish |
| Smashburgers | 450 to 500 F | 2 to 3 min | Maximum heat for crust |
| Chicken breast | 350 to 400 F | 5 to 8 min | Medium high for sear and finish |
| Steak (thin cuts) | 450 to 500 F | 3 to 5 min | Hot for sear |
| Fish fillets | 325 to 375 F | 3 to 5 min | Medium for delicate flesh |
| Quesadillas | 325 to 375 F | 3 to 5 min | Medium to melt cheese without burning tortilla |
| Grilled cheese | 325 to 350 F | 3 to 5 min | Low-medium for even melt |
| Philly cheesesteak | 375 to 425 F | 4 to 6 min | Hot for thin sliced beef |
| Vegetables (peppers, onions) | 375 to 425 F | 3 to 6 min | Hot for caramelization |
| Crepes | 325 to 375 F | 1 to 2 min | Medium for thin batter |
Zone management for mixed menus
A typical breakfast diner runs zone one at 300 F for eggs, zone two at 375 F for pancakes, zone three at 400 F for bacon and sausage, and zone four at 425 F for hash browns. A typical burger operation runs zones one and two at 450 to 500 F for smashburgers, zone three at 400 F for protein cooking and bun toasting, and zone four at 325 F for cheese melting and finished patty holding. A Mexican concept runs zones one and two at 400 F for protein, zone three at 325 F for tortillas, and zone four at 350 F for quesadilla finishing. The four-zone format gives the cook a discrete temperature lane for each cook target, which is the structural reason the 48-inch format outperforms the 36-inch on multi-target menus.
Buying Decision Summary: Choosing Between ATMG-48 and ATTG-48
The 48-inch buying decision often comes down to choosing between the two Atosa models that share the footprint. The summary below consolidates the decision into a single checklist that an operator can run through in five minutes before finalizing the purchase.
Five questions to choose between ATMG-48 and ATTG-48
| Question | If yes | If no |
|---|---|---|
| Is the menu more than 50% breakfast (eggs, pancakes, bacon)? | Lean toward ATTG-48 | Either model works |
| Is the menu smashburger-heavy or short-order burger? | Lean toward ATMG-48 | Either model works |
| Is the crew highly trained and tenured? | ATMG-48 accepts skilled manual control | ATTG-48 lowers training burden |
| Is the crew rotating, training-heavy, or new? | ATTG-48 for consistency | ATMG-48 works with skilled crew |
| Is peak temperature stability under heavy load critical? | ATTG-48 1-inch plate wins | ATMG-48 3/4-inch plate is enough |
Free freight on qualifying orders
Both 48-inch Atosa models qualify for free freight to commercial business addresses in the contiguous US on standard ground shipments. Liftgate service and inside delivery are available add-ons. The 414 to 415 lb shipping weight requires curbside delivery by a freight carrier with a liftgate or a commercial loading dock at the receiving address. Confirm receiving capability before scheduling shipment.
Frequently Asked Questions About 48-Inch Commercial Griddles
Why choose a 48-inch griddle over a 36-inch or 60-inch?
The 48-inch format handles 100 to 200 peak covers per hour versus 60 to 100 for the 36-inch and 200 to 350 for the 60-inch. It is the sweet spot for mid-volume full-service restaurants, busy diners, smashburger QSR concepts, and ghost kitchens running multi-brand operations. Step up from 36 inches when peak covers consistently exceed 80 to 100 per hour with griddle-heavy menus. Step up to 60 inches when peak covers consistently exceed 200 per hour or when the 48-inch unit shows bottlenecks during rush service for two or more hours per day.
How many burgers per hour can a 48-inch griddle produce?
Quarter-pound patties at 3 to 4 minute cook time produce 150 to 200 burgers per hour sustainable on a 48-inch surface. Smashburger format (2-ounce ball, smashed thin, 2 to 3 minute cook) produces 250 to 400 patties per hour. The Atosa ATMG-48 at 120,000 total BTU recovers faster between smash events than the 100,000 BTU thermostatic model, which is why high-volume smashburger operations typically choose the manual model for the upper end of that range.
How many eggs can I cook per hour on a 48-inch griddle?
A 48-inch surface holds 50 to 60 fried eggs simultaneously with practical spatula spacing. Cook time per egg is 2 to 3 minutes for over easy or 3 to 4 minutes for fully cooked. Real-world breakfast operations on a 48-inch griddle produce 400 to 600 eggs per hour during peak service. The 1-inch plate on the ATTG-48 holds the 300 F egg temperature better through repeated cold loading and outproduces the ATMG-48 by 15 to 25 percent on sustained egg-heavy service.
Does a 48-inch commercial griddle need to be derated for high altitude?
Yes, if the kitchen is installed above 2,000 feet of elevation. The general industry rule is a 4 percent BTU input reduction per 1,000 feet of elevation above the 2,000-foot threshold, achieved by a licensed gas technician swapping the burner orifices to a smaller-bore size that meters less gas per unit time. A kitchen at 5,000 feet would derate the ATMG-48 from 120,000 BTU to roughly 105,600 BTU through this orifice swap. The derate is required by local code in most jurisdictions above 2,000 feet and protects against incomplete combustion, which produces a yellow flame, soot, and carbon monoxide as the burner cannot find enough oxygen in the thinner combustion air to achieve a complete burn.
What hood size do I need for a 48-inch commercial griddle?
The hood must extend at least 6 inches beyond the equipment on all sides per standard commercial kitchen code. For a 48-inch griddle (48 wide by 28.6 deep), the minimum Type 1 hood is 60 inches wide by 40.6 inches deep. Some jurisdictions require 12-inch overhang on open sides, pushing the minimum width to 72 inches. CFM requirement for a 60-inch hood over a medium-duty griddle is 750 to 2,000 CFM depending on hood style (wall canopy versus island) and duty level. Always confirm with the local authority having jurisdiction before committing.
What gas line size does a 48-inch commercial griddle need?
Both the ATMG-48 and ATTG-48 use a 3/4 inch NPT rear gas connection. The supply line feeding that connection should be 3/4 inch iron pipe for runs up to 50 feet on a standalone unit (120,000 BTU max). If the griddle shares a supply line with other high-BTU equipment (range, fryer, salamander), the combined BTU load may require 1 inch supply line. Inlet pressure must be 4 inches W.C. for natural gas or 10 inches W.C. for propane. A licensed gas contractor should size the supply line based on the full kitchen load.
What is the plate thickness on a 48-inch commercial griddle?
Depends on the model. The Atosa ATMG-48 has a 3/4 inch polished steel plate. The Atosa ATTG-48 has a 1 inch polished steel plate. The 1-inch plate stores roughly 33 percent more thermal mass and recovers temperature faster after cold-food loading. The 3/4-inch plate preheats faster (15 to 18 minutes versus 20 to 25 minutes) and responds more quickly to control changes. For high-volume breakfast operations with constant cold loading, the 1-inch plate is worth the cost premium. For smashburger and short-order operations, the 3/4-inch plate combined with higher BTU output is often preferred.
How many burners and sections does a 48-inch griddle have?
Standard 48-inch commercial griddles have 4 burners controlling 4 independent 12-inch zones (4 by 12 inch = 48 inches total). Each zone has its own dedicated control knob (manual valve on the ATMG-48 or thermostatic dial on the ATTG-48). The ATMG-48 rates each burner at 30,000 BTU/hr for 120,000 total. The ATTG-48 rates each burner at 25,000 BTU/hr for 100,000 total. Independent zone control allows the cook to run different cook items at different temperatures simultaneously across the same plate.
What is the BTU range for 48-inch commercial griddles?
Commercial 48-inch griddles typically run between 100,000 and 144,000 total BTU. The Atosa ATMG-48 sits at 120,000 BTU (4 burners by 30,000 BTU). The Atosa ATTG-48 sits at 100,000 BTU (4 burners by 25,000 BTU). Industry guidance recommends 75 to 100 BTU per square inch of cooking surface. A 48-inch plate at 954 square inches needs 71,500 to 95,400 BTU minimum to perform adequately. Both Atosa 48-inch models exceed that minimum, with the manual model providing peak headroom for smashburger and high-volume burger operations.
Atosa ATMG-48 versus ATTG-48: which one should I buy?
The ATMG-48 (3/4 inch plate, 4 by 30,000 BTU = 120,000 total, manual controls) is the right choice for kitchens with experienced cooks, smashburger and short-order menus, varied menu requiring rapid temperature swings, and operations valuing maximum BTU output over set-and-forget control. The ATTG-48 (1 inch plate, 4 by 25,000 BTU = 100,000 total, thermostatic controls per zone) is the right choice for breakfast diners, ghost kitchens, hotel breakfast operations, training-heavy kitchens with rotating staff, and any operation valuing temperature stability across the shift. Both models share identical footprints, weight, gas connection, and certification.
Will a 48-inch griddle fit in a food truck?
Most standard food trucks (14 to 18 feet, 7 to 7.5 feet wide) cannot accommodate a 48-inch griddle without significant compromise on galley layout and ventilation. The 48-inch width eats 4 feet of counter run and the 28.6-inch depth (33 to 37 inches including splash guard and gas connection) exceeds most truck galley counter depths. Trucks built specifically around a 48-inch griddle (20 to 26-foot bodies with custom galley layouts, dedicated 8 to 8.5-foot exterior width, deeper than standard galley counters, and engineered Type 1 hoods) can fit the unit. For most food trucks, a 36-inch ATMG-36 is the appropriate size.
How much does a 48-inch commercial griddle weigh?
The Atosa ATMG-48 weighs 294 lbs net (414 lbs shipping). The Atosa ATTG-48 weighs 295 lbs net (415 lbs shipping). The 1-pound difference reflects the slightly thicker plate on the thermostatic model. The countertop or chef base supporting the unit must be rated for at least 300 lbs static load over the 48-inch footprint, plus a working allowance for food, prep tools, and operator pressure. Standard residential countertops are not rated for this load and should never be used. Commercial fabricated stainless countertops and refrigerated chef bases are the appropriate supports.
What are the clearance requirements for a 48-inch commercial griddle?
Maintain 6 inches of clearance on combustible sides and rear surfaces. Non-combustible construction (cinder block, brick, stainless steel splash) allows 0-inch clearance (flush install). Maintain 24 inches minimum vertical clearance to the bottom of the hood (typically the hood sits at 78 inches above the finished floor for a standard counter install). Maintain 30 to 36 inches of front operator clearance. Allow 6 to 8 inches of front floor clearance for grease drawer removal. Always verify with the local authority having jurisdiction (AHJ) because some municipalities have stricter local requirements.
Is a 3/4-inch plate or 1-inch plate better for a 48-inch griddle?
Depends on the operation type. The 1-inch plate (ATTG-48) wins for high-volume breakfast operations, ghost kitchen batch production, and any application where temperature stability under repeated cold-food loading is critical. The 3/4-inch plate (ATMG-48) wins for smashburger operations needing maximum BTU per square inch, short-order operations with rapid temperature swings, and operations valuing faster preheat time (15 to 18 minutes versus 20 to 25 minutes). The 1-inch plate trades slower preheat for faster recovery and tighter temperature control during sustained service.
What is the difference between standing pilots and electronic ignition on a 48-inch griddle?
The Atosa ATMG-48 and ATTG-48 both use standing pilot ignition. A small continuous pilot flame burns in front of each main burner. When the operator turns the knob, gas contacts the pilot and lights the burner immediately. Standing pilots consume roughly 200 to 300 BTU per pilot per hour (800 to 1,200 BTU/hr across all four pilots) even when the griddle is off. Electronic ignition eliminates this idle gas consumption but introduces electrical failure points (igniter, flame sensor, control board) that can fail in the heat and grease of a commercial environment. For commercial operations valuing reliability, standing pilots are the more durable choice.
Can I use a 48-inch griddle for smashburgers?
Yes. A 48-inch griddle is the preferred format for smashburger operations because the large flat surface allows multiple simultaneous smash events without zone interference. The ATMG-48 with 120,000 total BTU (4 burners by 30,000 BTU) is typically preferred over the ATTG-48 because the cook wants maximum BTU availability for fast recovery between smash events. Heat the plate to 450 to 500 F, place the 2-ounce ball, smash flat within 10 seconds of contact, sear 60 to 90 seconds, scrape and flip if needed, lift. Real-world output is 250 to 400 smash patties per hour during sustained peak service.
How do I clean a 48-inch commercial griddle?
After each service: drop plate temperature to 250 to 300 F, scrape with a commercial griddle scraper working front-to-back zone by zone, deglaze with water or ATGC101 griddle cleaning solution, scrub with a griddle screen or non-abrasive pad, squeegee chemistry into the front grease trough, rinse with water, dry with heat, and apply a thin oil coat for overnight protection. Weekly deep clean: add a GBK-348 grill brick pass in two lane directions (vertical then horizontal) followed by full re-seasoning with 4 to 6 thin coats of high-smoke-point oil. Total time is 15 to 25 minutes for end-of-shift and 60 to 90 minutes for weekly deep clean.
What is the temperature range on a 48-inch commercial griddle?
The ATMG-48 manual operates from approximately 200 F to 575 F depending on burner setting. The ATTG-48 thermostatic provides adjustable 200 F to 575 F with automatic maintenance at the setpoint. Common targets: eggs at 275 to 325 F, pancakes at 325 to 375 F, breakfast meats at 325 to 400 F, burgers at 375 to 425 F, smashburgers at 450 to 500 F.
How does a 48-inch griddle compare to running two 24-inch griddles?
One 48-inch wins on cost (single chassis, single gas connection, single grease drawer) and simpler installation. Two 24-inch units win on placement flexibility, independent failure modes, and easier mobility. For permanent installations the single 48 is almost always preferable; for mobile or multi-station operations two 24-inch units may work better.
When should I step up to a 60-inch griddle instead of 48-inch?
Step up to 60 inches when peak covers consistently exceed 200 per hour with griddle-heavy menus, when the 48-inch unit is at full capacity with no idle zones during rush service, when ticket times are being stretched by griddle bottlenecks for two or more hours per day, or when the menu is dominated by griddle-cooked items (breakfast-all-day, high-volume burger operation, institutional breakfast service for 300-plus people). The 60-inch adds approximately 25 percent more cooking surface (about 192 additional square inches) and runs 125,000 to 150,000 BTU.
What certifications should a 48-inch commercial griddle have?
Required certifications: ETL (Intertek electrical and gas safety, accepted in place of UL by most US AHJs) and ETL-Sanitation (food contact surface sanitation per NSF/ANSI 4). Required compliance: ANSI Z83.11 for gas-fired commercial food service equipment. The Atosa ATMG-48 and ATTG-48 carry all three. Most US health departments and AHJs require both ETL and ETL-Sanitation for commercial installation. CSA certification is required separately for Canadian installations. Always verify with the local jurisdiction during permit application.
What can I cook on a 48-inch commercial griddle?
The four-zone independent temperature control on a 48-inch griddle accommodates breakfast items (eggs, bacon, sausage, pancakes, french toast, hash browns), proteins (burgers, smashburgers, chicken breast, steak, fish fillets), sandwiches (grilled cheese, philly cheesesteak, melts, breakfast sandwiches), QSR items (smashburgers, taco proteins, breakfast burritos), and ethnic cuisine (quesadillas, crepes, Korean BBQ proteins). The cook can run zones one and two at protein temperature (400 F) and zones three and four at delicate item temperature (325 F) simultaneously.
Does a 48-inch griddle need a dedicated gas line?
Not necessarily dedicated, but sufficient capacity. At 100,000 to 120,000 BTU, a 3/4 inch supply line handles either Atosa 48-inch model at typical run lengths under 50 feet. If the griddle shares a supply line with other high-BTU equipment such as ranges and fryers, total combined BTU load may require 1 inch or larger main supply line. A licensed gas contractor should calculate the total load across all equipment and size the supply branch accordingly during initial kitchen design or remodel.
How long does it take to preheat a 48-inch commercial griddle?
The 3/4 inch plate on the ATMG-48 reaches 375 to 400 F from a cold start in approximately 15 to 18 minutes. The 1 inch plate on the ATTG-48 takes 20 to 25 minutes due to higher thermal mass. Always allow full preheat before cooking. Loading food on an under-temperature plate leads to sticking, uneven cooking, and stretched ticket times. Many operators run the griddle at half-heat during slow periods rather than cycling it fully off, both for preheat convenience and to reduce thermal cycling stress on the plate.
Are 48-inch commercial griddles energy efficient?
Gas griddles at this size consume 100,000 to 120,000 BTU/hr at full peak load but idle consumption is much lower (typically 10,000 to 15,000 BTU/hr at idle, roughly 10 to 15 percent duty cycle through a typical service day). Thermostatic models like the ATTG-48 maintain temperature more precisely than manual models, which reduces idle energy use because the controller cycles burners back to maintenance level once setpoint is reached. Average gas cost for a 5-day-per-week 10-hour-per-day operation is 2,500 to 3,500 dollars per year.
What is the grease management system on a 48-inch griddle?
The Atosa ATMG-48 and ATTG-48 both include a full-width front grease trough running the entire 48-inch length, draining into a removable stainless steel grease drawer at floor level. The drawer pulls out the front for emptying. During heavy service (smashburger lunch or bacon-heavy breakfast) the drawer fills within 90 minutes and should be checked mid-service. Empty and clean the drawer at minimum after each service period. Grease must be disposed of per local foodservice waste regulations; most jurisdictions require collection by a licensed grease hauler rather than disposal in regular trash.
What is the minimum hood CFM for a 48-inch griddle?
A 60-inch wide Type 1 wall canopy hood over a medium-duty 48-inch griddle typically requires 750 to 1,250 CFM. Heavy-duty or island-mount hoods may require 1,500 to 2,000 CFM. ASHRAE and IMC code reference 150 to 400 CFM per linear foot of medium-duty hood opening. Confirm with the hood manufacturer and local AHJ.
Can I convert a natural gas 48-inch griddle to propane?
Yes. The ATMG-48 and ATTG-48 ship with a conversion kit. The conversion involves swapping burner orifices, adjusting the pressure regulator, and verifying inlet pressure (4 inches W.C. for NG, 10 inches W.C. for LP). The conversion must be performed by a licensed gas technician with a leak test and combustion verification before placing the unit back in service.
How wide a scraper do I need for a 48-inch griddle?
A 14-inch wide scraper blade is the optimal size for 48-inch plate cleaning. The 14-inch blade covers each 12-inch burner zone in a single pass with overlap into the adjacent zone. A wider blade becomes awkward to control on a 28.6-inch deep surface. Use a metal blade for hot scraping and a polymer blade for delicate edges.
Can I brick the plate on a 48-inch Atosa griddle?
Yes. The Atosa ATMG-48 and ATTG-48 both use carbon steel plates that are bricking-compatible. The plate takes a polymerized seasoning layer and requires periodic bricking and re-seasoning to maintain optimal performance. Use a brick holder rather than a folded towel for the 48-inch width to maintain consistent pressure and operator comfort. Run two lane passes in alternating directions (vertical then horizontal) for full coverage. Do not brick chrome plates and do not brick stainless steel plates; the abrasive damages those surfaces permanently.
What is the cooking surface area of a 48-inch griddle?
The Atosa ATMG-48 and ATTG-48 both provide approximately 47.9 inches by 19.9 inches of usable cooking surface, or roughly 954 square inches total. The remaining width and depth of the chassis houses the front grease trough, the rear splash guard, the side rails, and the control panel. For production planning, 954 square inches is the working number. At industry guidance of 75 to 100 BTU per square inch, the 48-inch surface needs 71,500 to 95,400 BTU minimum and both Atosa models clear that threshold.
Does the ATTG-48 have true thermostatic control or just independent manual?
The ATTG-48 has true thermostatic control per zone. Some retailer listings describe it ambiguously as independent controls, which can be misread as manual valves. The actual spec is a thermostatic regulator per 12-inch zone with a temperature dial calibrated 200 to 575 F, reading plate temperature via a capillary bulb. The four zones operate independently.
What is the warranty on Atosa 48-inch griddles?
The ATMG-48 and ATTG-48 carry a 1-year parts and labor warranty plus a 1-year warranty on burners and valves. Coverage requires installation by a qualified gas technician and use in commercial applications. Residential use voids the warranty. Field gas conversion by a licensed technician using the manufacturer's kit does not void the warranty.
The 48-inch commercial griddle is a serious capital decision and a long-lived workhorse for the kitchens that buy the right one. The Atosa ATMG-48 and Atosa ATTG-48 cover the two main use-case profiles in this size class: the high-BTU 3/4 inch manual unit for smashburger and short-order service, and the 1-inch thermostatic unit for breakfast and batch production. Both ship qualifying orders with free freight to commercial business addresses. For category context above this guide, see the master pillar covering all commercial griddle options, and for the full size lineup browse the commercial griddles collection at therestaurantwarehouse.com.
Â
About The Author
Sean Kearney
Sean Kearney is the Founder of The Restaurant Warehouse, with 15 years of experience in the restaurant equipment industry and more than 30 years in ecommerce, beginning with Amazon.com. As an equipment distributor and supplier, Sean helps restaurant owners make confident purchasing decisions through clear pricing, practical guidance, and a more transparent online buying experience.
Connect with Sean on LinkedIn, Instagram, YouTube, or Facebook.
