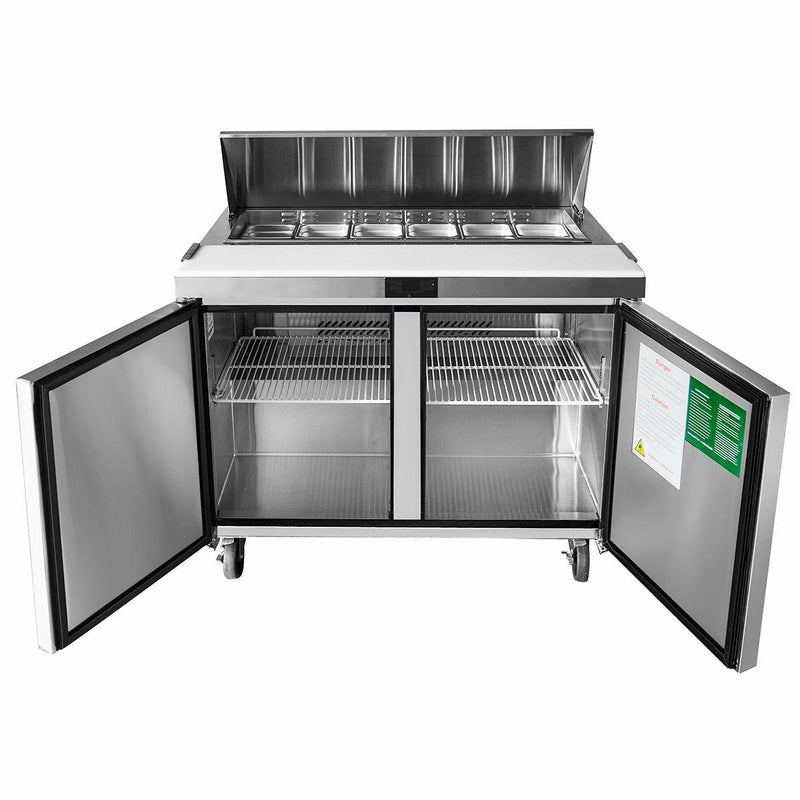

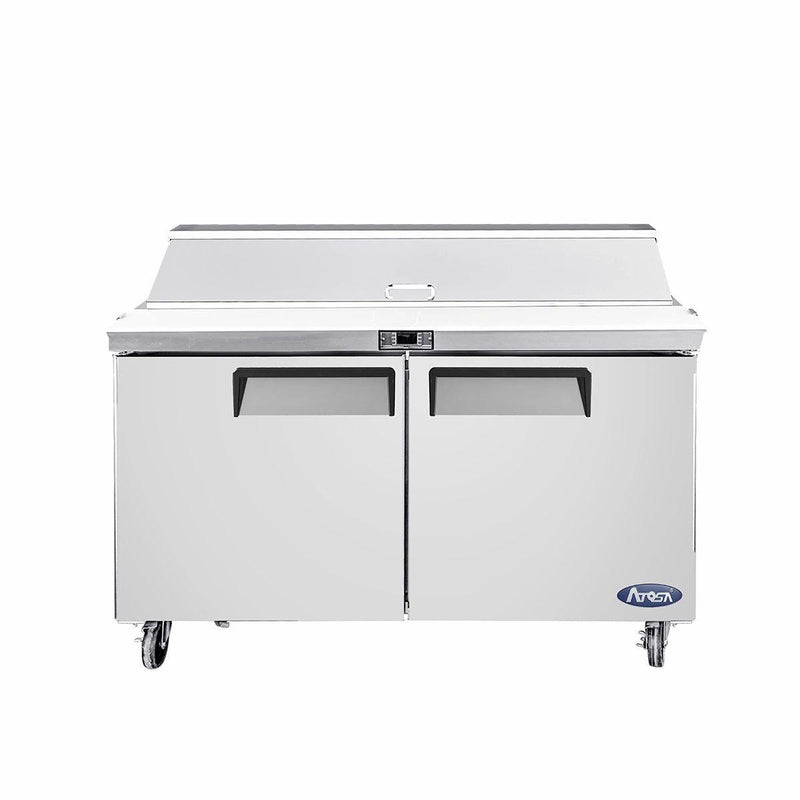

Atosa MSF3610GR 36-Inch Two Door Sandwich Prep Table, 10 Pans, 8.7 cu. ft.
Atosa MSF3610GR 36-Inch Two Door Sandwich Prep Table, 10 Pans, 8.7 cu. ft.
The Atosa MSF3610GR is a 36 inch sandwich prep table with two doors. It holds (10) 1/6 size pans on top and 8.7 cu. ft. below, at 35°F to 38°F. It plugs into a standard 115V outlet.
At a Glance
- Size: 36-5/16" W x 30" D x 41-3/8" H
- Pans: (10) 1/6 size poly pans, 6" deep, in two rows
- Cutting board: 9-1/4" deep
- Storage below: 8.7 cu. ft., (2) shelves, one per section, two doors
- Temperature: 35°F to 38°F
- Power: 115V, 2.3 amps, standard plug (NEMA 5-15P)
- Warranty: 3 years parts and labor, 5 years compressor
Most units ship within one business day from our warehouse with free freight to the lower 48.
A 36 Inch Sandwich Prep Table
This 36 inch sandwich prep table gives you two doors and (10) 1/6 size pans in a 36-5/16" wide cabinet. It is the Atosa sandwich prep table to pick when a 27" unit is too small and a 48" unit will not fit.
36-Inch Standard-Top Prep for Growing Menus
The MSF3610GR provides ten ingredient pans, two refrigerated doors, and 8.7 cu. ft. of storage for small delis that need more flexibility than a compact 27-inch table.
Choosing Between Models
Compare the standard-top MSF3610GR with the 15-pan MSF3615GR mega top. The standard top is shallower; the mega top offers five additional topping positions.
Built for Daily Commercial Use
- Stainless steel inside and out
- Rear mount compressor with R290, a natural refrigerant
- Air flows evenly around the pans, so the top stays cold
- Electronic temperature controller
- Removable stainless steel pan liner
- Locking divider bars
- Self-closing doors with a stay-open feature

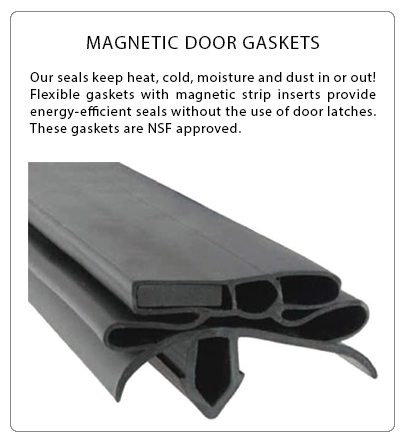

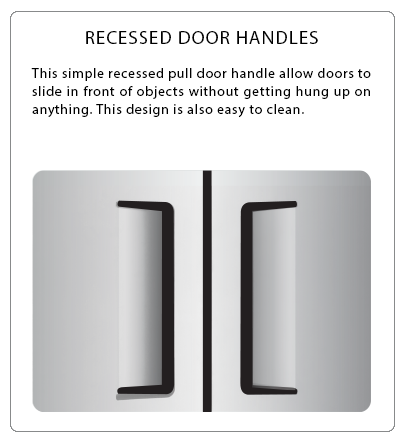

- Recessed door handles and magnetic door gaskets
- One pre-installed shelf per section
- Pre-installed 2" casters
Add-Ons
- Double overshelf: MROS-3RE mounts above the pans for extra storage
- Night cover: MSF3610234020 covers the pans when you close
- 12" cross bar: 82021902
Pick the Right Size
| Width | Doors | Standard top | Mega top | Capacity |
|---|---|---|---|---|
| 27-1/2" | 1 | MSF8301GR, (8) pans | MSF8305GR, (12) pans | 7.2 cu. ft. |
| 36-5/16" | 2 | MSF3610GR (this model), (10) pans | MSF3615GR, (15) pans | 8.7 cu. ft. |
| 48-1/5" | 2 | MSF8302GR, (12) pans | MSF8306GR, (18) pans | 13.4 cu. ft. |
| 60-1/5" | 2 | MSF8303GR, (16) pans | MSF8307GR, (24) pans | 17.2 cu. ft. |
| 72-7/10" | 3 | MSF8304GR, (18) pans | MSF8308GR, (30) pans | 21.1 cu. ft. |
Need a different size? Shop all sandwich prep tables or see the pizza prep tables.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Sandwich Prep Table, two doors |
| Pans | (10) 1/6 size poly pans, 6" deep, in two rows |
| Cutting board | 9-1/4" deep |
| Capacity | 8.7 cu. ft. |
| Shelves | (2) shelves, one per section |
| Exterior dimensions | 36-5/16" W x 30" D x 41-3/8" H |
| Temperature range | 35°F to 38°F |
| Temperature control | Electronic |
| Compressor | 1/7 HP, rear mount |
| Refrigerant | R290 |
| Construction | Stainless steel interior and exterior |
| Casters | 2", pre-installed |
| Electrical | 115V / 60Hz / 1-phase, 2.3 amps |
| Plug | NEMA 5-15P |
| Net weight | 173 lb |
| Shipping weight | 227 lb |
| Warranty | 3-year parts and labor, 5-year compressor |
| Certifications | cETLus, ETL-Sanitation |
Before You Order
- Plan for a standard 115V outlet with a NEMA 5-15 receptacle.
- Check your space: the unit is 36-5/16" wide, 30" deep and 41-3/8" tall.
- Need more pans in the same width? The mega top version adds a third row of pans and is 36-3/4" deep.
- Leave the unit some room to breathe and clean the condenser often, as Atosa advises.
Atosa MSF3610GR FAQ
Why choose a 36-inch sandwich prep table?
It bridges the gap between compact 27-inch models and wider 48-inch tables while providing two-door access and ten top-pan positions.
When should I choose MSF3610GR instead of MSF3615GR?
Both are 36-inch two-door sandwich prep tables with 8.7 cu. ft. The standard-top MSF3610GR holds ten pans; the mega-top MSF3615GR holds fifteen.
What size is the Atosa MSF3610GR?
The MSF3610GR is 36-5/16" wide, 30" deep and 41-3/8" tall. It weighs 173 lb (227 lb shipping weight).
How many pans does the MSF3610GR hold?
It comes with (10) 1/6 size poly pans, 6" deep, in two rows.
What temperature does the MSF3610GR hold?
It holds 35°F to 38°F with an electronic temperature controller.
How much storage is under the MSF3610GR?
It has 8.7 cu. ft. behind two doors, with (2) shelves, one per section.
What is the difference between a standard top and a mega top?
A mega top has a third row of pans, so it holds more toppings in the same width. It is 36-3/4" deep, and the standard top is 30" deep.
What power does the MSF3610GR need?
It runs on 115V and draws 2.3 amps. It has a standard NEMA 5-15P plug, so it plugs into a regular 115V outlet.
How often should I clean the MSF3610GR condenser?
Atosa says to clean the condenser frequently. Pull the unit out on its casters, vacuum the condenser coil, and brush off any dust or grease. A clean condenser helps the prep table hold temperature.
What warranty comes with the MSF3610GR?
3 years parts and labor and 5 years on the compressor.
Spec Sheet
Download the Atosa MSF3610GR spec sheet (PDF, Rev. 07/26)
Parts Compatibility for the MSF3610GR
When your MSF3610GR needs service, order genuine OEM Atosa parts direct from The Restaurant Warehouse. Frequently ordered items include the W0301126 fan motor, the W0302322 temperature probe/sensor, the W0604040 washer, the W0604039 thumb screw, and the W0604021 washer. Visit the Atosa parts catalog or consult the Atosa parts manuals for a full component breakdown.
MSF3610GR Parts & Service
For OEM replacement parts for the MSF3610GR, see the MSF3610GR parts list, with part numbers and quantities from Atosa's exploded-view diagram. Parts lists for every model are on the Atosa parts lists index.
