The Ultimate Guide to Under the Counter Fridge Dimensions

When you're mapping out your kitchen's flow, getting the dimensions right for under-the-counter equipment is everything. Standard under the counter fridge dimensions usually fall between 34 to 36 inches in height, 24 inches in depth, and come in common widths like 15, 24, and 30 inches. This specific sizing is designed so they can slide neatly under standard 36-inch countertops, leaving just enough breathing room for proper ventilation.

A Quick Guide To Undercounter Fridge Dimensions

Figuring out the typical dimensions for an undercounter refrigerator is the first critical step in smart kitchen planning. Whether you're a homeowner dreaming of a sleek beverage center or a commercial operator outfitting a busy bar, knowing the standard size ranges is what prevents those costly, frustrating installation mistakes. These units are engineered from the ground up to integrate seamlessly into your cabinetry for a clean, built-in look without sacrificing cooling power.

This is especially true when you're working with a smaller footprint. For anyone gathering small kitchen remodel ideas, you'll see how these compact units are true space-savers that maximize functionality without crowding the design.

At-A-Glance: Common Dimension Ranges

The market is full of different configurations, and each one has its own footprint. You'll find everything from slender wine coolers designed to squeeze into tight spots to wider, high-capacity beverage centers. The external size is always a direct reflection of its intended use and how much it can hold inside.

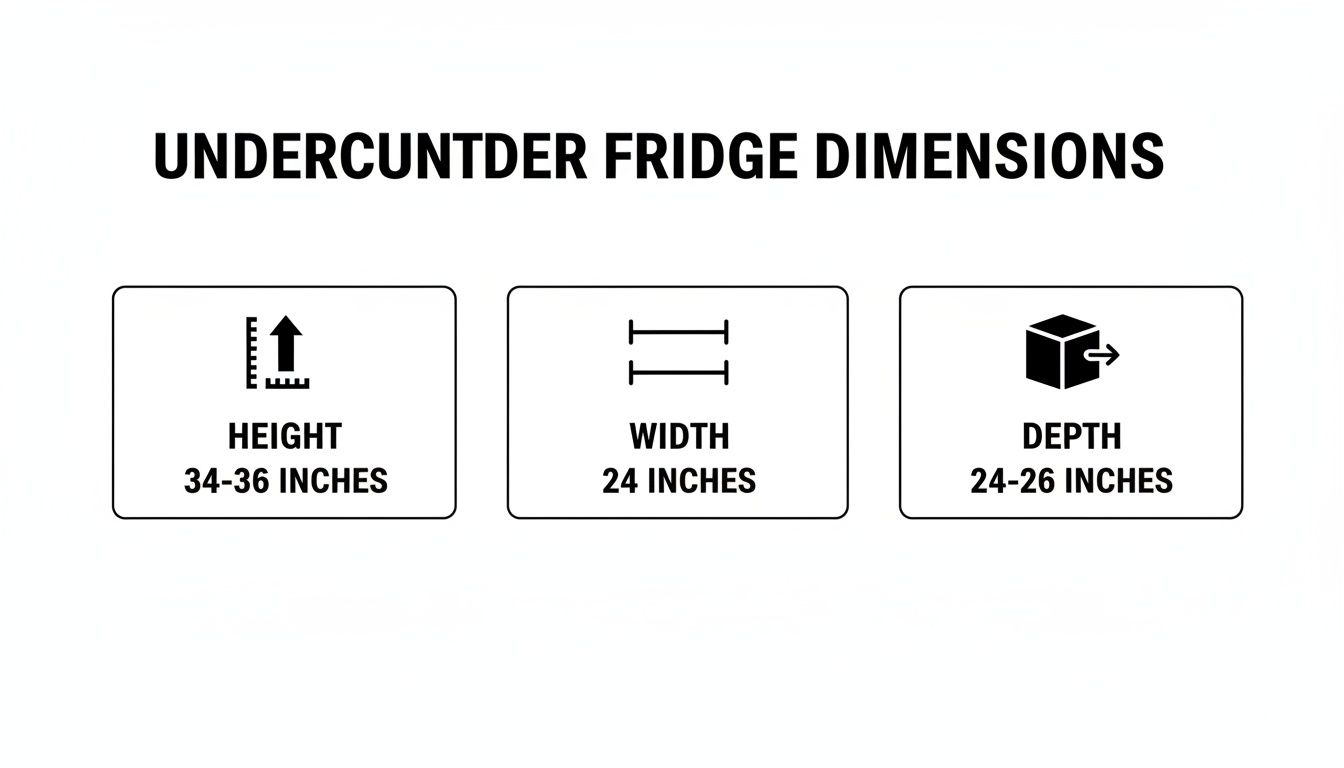

This image gives you a great visual summary of the key measurements for a typical undercounter unit.

As you can see, the 24-inch width is a real sweet spot in the industry, offering a perfect balance between generous capacity and a footprint that integrates easily into most standard kitchen layouts.

To make things even clearer, here’s a quick-reference table that breaks down the typical dimensions you’ll find for the most common undercounter fridge models on the market.

Standard Undercounter Fridge Dimension Ranges

This table should give you a solid starting point for planning your space and selecting the right unit to fit perfectly into your design.

What's Popular On The Market

The global market for household undercounter refrigerators, currently sitting at around USD 2.8 billion, shows just how popular these compact units have become. The 24-inch size is the clear leader, making up over 40% of all sales. Why? It hits that perfect balance of providing enough storage while fitting seamlessly under standard countertops. This size typically gives you 5 to 7 cubic feet of capacity, making it a super versatile choice for all sorts of applications.

Of course, choosing the right model is about more than just measurements. To help you sort through the options, you might want to check out our guide to the best under counter fridges, where we cover some of the top-rated models for various needs.

How to Decode Standard Undercounter Fridge Dimensions

Getting an undercounter fridge to fit perfectly comes down to understanding three key measurements: height, width, and depth. These dimensions are pretty standardized across the industry so they play nice with typical kitchen cabinetry, but even small variations can be the difference between a seamless, built-in look and a costly headache. Let's break down what these numbers really mean.

These aren't just random measurements; they're designed to align with established kitchen construction norms. This ensures that whether you're outfitting a commercial bar or a home kitchen island, the appliance should slide right in without needing custom modifications to your counters or cabinets.

Height The Foundation for a Perfect Fit

Of all the under the counter fridge dimensions, height is the most critical. You'll find most models fall between 32 to 34.5 inches tall. This range is specifically engineered to fit comfortably underneath a standard 36-inch high kitchen countertop.

That little bit of wiggle room is there for a reason and serves two crucial purposes:

1. Leveling Adjustments: Almost every unit comes with adjustable legs. This lets you tweak the height to get a perfectly level installation, even if your floors aren't perfectly even.
2. Ventilation Space: It also provides the essential clearance for air to circulate. Without it, the compressor can overheat, making the unit work harder and less efficiently.

A common mistake is thinking a 36-inch-tall fridge will fit under a 36-inch counter. You have to account for that 1.5 to 4-inch buffer for leveling and proper airflow. It’s the key to the unit's longevity and performance.

Width Tailoring to Your Space and Needs

Width is all about the refrigerator's footprint and how much it can hold. The most common widths are designed to match standard cabinet sizes, which makes planning your kitchen layout much more straightforward.

Here are the usual suspects:

• 15 Inches: This slim profile is perfect for tight spaces. It's often used for dedicated wine coolers or compact can storage.
• 24 Inches: This is the industry standard. It strikes a great balance between storage capacity and a manageable footprint, making it the most popular choice for beverage centers and general-purpose units.
• 30 Inches: When you need more storage, this wider option is common in larger kitchens or commercial setups where capacity is a top priority.

Thinking about how a new appliance will fit into the bigger picture is key. If you're undertaking a full remodel, you might explore professional kitchen and bathroom renovation services to make sure every element, down to the last inch, works together seamlessly.

Depth Achieving a Flush and Integrated Look

Depth determines how flush your fridge will sit with your surrounding cabinets. You’ll generally run into two main types: counter-depth and full-depth.

A counter-depth model typically has a body that is 24 inches deep, not including the door and handle. This design lets the fridge align perfectly with standard cabinets, creating that sleek, truly built-in aesthetic. A full-depth unit, on the other hand, might be a bit deeper and stick out past the cabinetry, which you see more often with freestanding models. For that clean, integrated look, a counter-depth model is almost always the way to go.

Mastering Ventilation and Clearance Requirements

Figuring out the external under the counter fridge dimensions is really just half the battle. If you want that appliance to run efficiently for years, you have to nail the ventilation. Without proper airflow, the compressor and condenser coils can't get rid of heat, forcing the unit to work way harder. That leads straight to higher energy bills, cooling that's all over the place, and a much shorter lifespan for your fridge.

Honestly, neglecting clearance is one of the most common—and costly—mistakes I see people make during installation. Giving your fridge enough room to breathe isn't just a friendly suggestion; it's a critical requirement that directly impacts how well it works and how long its parts will last.

Front-Venting vs. Rear-Venting Models

The single most important thing that dictates your clearance needs is how the unit ventilates. There are two main designs, and mixing them up can cause some serious headaches down the road.

• Front-Venting (Built-In) Units: These models are the ones specifically engineered to be installed with zero clearance. They pull in cool air and push out hot air through a grille at the front bottom, often right in the toe-kick area. This clever design is what allows them to sit perfectly flush within your cabinetry for that clean, integrated look.

• Rear-Venting (Freestanding) Units: These guys work just like a standard refrigerator, with coils on the back and sides that need open space to dissipate heat. If you enclose a rear-venting model without leaving the right gaps, you’ll just trap all that heat, causing the compressor to overheat and eventually fail.

It's absolutely crucial to never install a rear-venting, freestanding model into a tight cabinet enclosure. It might physically slide in, but the lack of airflow will cause severe performance problems and almost certainly void the manufacturer's warranty. Always, always choose a front-venting unit for a true built-in application.

Standard Clearance Guidelines

While you should always check the manufacturer's installation manual for your specific model, there are some general industry standards you can expect. These measurements are the absolute minimum space your unit needs to operate correctly.

For Rear-Venting (Freestanding) Models:

• Back: You'll need 2 to 3 inches of open space. This is essential for heat to escape from the condenser coils.
• Sides: Plan for 1 to 2 inches on each side to allow for proper air intake and circulation.
• Top: At least 1 inch of clearance is needed to keep heat from getting trapped above the unit.

For Front-Venting (Built-In) Models:

• Back & Sides: These often require 0 inches of clearance, letting them sit snug against walls and adjacent cabinets.
• Top: A very small gap of 1/8 to 1/4 inch might still be recommended.
• Front Grille: This area must be kept completely clear at all times. No exceptions.

Failing to stick to these minimums forces the refrigeration system into a constant state of overwork, and that’s the fastest way I know to cause component failure.

Commercial Undercounter Fridge Sizes and Applications

In a buzzing commercial kitchen, every inch of counter and floor space is prime real estate. When it comes to choosing an undercounter fridge, the dimensions you pick are more than just about fitting an appliance—it's a strategic move that directly shapes your kitchen's workflow, speed of service, and overall efficiency. Commercial models aren't like the ones you have at home; they're built tough for the daily grind, constant use, and to meet strict health codes.

These workhorse appliances are engineered to take a beating in a professional kitchen, from doors swinging open every few seconds to high ambient heat from the cookline. Their whole purpose is to give your team instant, point-of-use access to chilled ingredients, which is absolutely essential for speeding up prep and getting plates out faster.

Standard Widths for Professional Kitchens

You'll notice that commercial undercounter refrigerators are typically wider than residential ones. This is intentional, designed to handle larger volumes of food and accommodate standardized commercial food pans. The width you choose is one of the first things that will define how and where the unit fits into your kitchen's layout.

• 27-Inch Models: A very popular choice for smaller operations like food trucks and compact prep stations. They offer a great balance of storage capacity without demanding a huge footprint.
• 48-Inch Models: You'll see these everywhere—in busy prep lines, under back bars—wherever you need significant storage. They typically hold between 12 to 15 cubic feet of ingredients or drinks.
• 60-Inch and 72-Inch Models: These larger refrigerators are staples in high-volume kitchens. They often serve as chef bases under griddles or as long back bar coolers, maximizing cold storage right where the action is.

The market for commercial undercounter refrigerators, currently valued at USD 1.75 billion, is expected to keep growing, which shows just how essential they are in modern kitchens. While the wider units are common, plenty of urban restaurants where space is tight will use standard 24-inch models to tuck into specific stations. If you want to dive deeper into market trends, you can find more insights about commercial refrigeration trends on verifiedmarketreports.com.

Specialized Applications and Configurations

Beyond just being a cold box, commercial undercounter units are often designed for specific jobs that make a kitchen run smoother. The dimensions and features of these specialized models are carefully tailored to their function.

For example, a chef base or worktop refrigerator is a brilliant combination of refrigerated drawers and a heavy-duty, heat-resistant top. This design allows chefs to put heavy cooking equipment like charbroilers right on top of the unit, keeping proteins and prepped veggies perfectly chilled and within arm's reach.

A well-placed 48-inch worktop refrigerator can drastically cut down on a line cook's movement, saving precious seconds on every single order. By keeping everything right there, it eliminates those constant trips to the walk-in cooler, which directly boosts ticket times and kitchen productivity.

Similarly, back bar coolers are designed with glass doors for quick product visibility and are dimensioned to slide perfectly under a standard bar counter, helping bartenders serve drinks faster. For those exploring all the different options out there, our guide on commercial undercounter refrigerators provides a deeper look into various models and what they can do for your business.

Understanding Commercial-Grade Certifications

When you're picking out a commercial unit, it's critical to look for certifications that guarantee safety and durability. An NSF (National Sanitation Foundation) rating is non-negotiable, as it confirms the refrigerator is designed for easy cleaning and meets public health standards. This means it has features like coved corners, stainless steel construction, and components that prevent bacteria from growing. These commercial-grade requirements are a key difference from residential models and are absolutely essential for any professional foodservice business.

Connecting Dimensions to Real-World Storage Capacity

The outside under the counter fridge dimensions are what get the unit to fit perfectly, but it’s the inside volume that really determines what you can do with it. A fridge's usable capacity, measured in cubic feet (cu. ft.), tells you exactly how many cans, bottles, or food pans it can hold—and that’s the metric that truly matters in a busy kitchen or a home bar.

Getting this connection right is key. It helps you avoid the classic mistake of buying a fridge that fits the space but fails to meet your actual storage needs. You could have two units with identical external measurements, but their internal layouts—things like shelf placement, drawer configurations, and even the thickness of the wall insulation—can create a huge difference in real-world capacity.

From Inches to Cubic Feet

When you're trying to gauge a unit's potential storage, its width is the most telling clue. As the width increases, the internal capacity grows right along with it, giving you a lot more flexibility for different types of items. It's a fundamental part of picking the right fridge for your specific setup.

Here’s a general breakdown of what you can expect from standard widths:

• 15-Inch Models: These slim units typically offer 2.5 to 3.5 cubic feet of space. They're perfect for a small collection of wine bottles or a stash of canned drinks in a compact bar.
• 24-Inch Models: This is the industry standard, giving you a versatile 5.0 to 6.0 cubic feet. That’s plenty of room for a good mix of drinks, snacks, and prep ingredients.
• 30-Inch Models: Moving up in size, these wider refrigerators can offer 6.0 to 7.5 cubic feet or more, which is great for high-volume needs in larger kitchens or entertainment areas.

Just keep in mind that features like ice makers or bulky drawers will eat into that net usable space. Always look for the "net capacity" or "storage volume" on the spec sheet to get the most accurate picture of what you can actually store.

To make it even easier to see how these numbers play out in the real world, here’s a quick guide that connects a fridge's width to what you can realistically store inside.

Dimension to Capacity Correlation Quick Guide

This table gives you a solid starting point for matching a unit's footprint to your operational demands, whether you're stocking drinks for service or organizing ingredients for the line.

How Internal Layouts Maximize Space

A fridge's capacity isn't just about the raw cubic footage; it's about how cleverly that space is designed. A smart internal layout can make a smaller fridge feel surprisingly roomy, while a poor one can make a larger unit feel cramped and disorganized.

Adjustable shelving is a total game-changer, letting you reconfigure the interior to fit tall items like wine bottles or stackable food pans. Some beverage centers even have specialized scalloped shelves for wine or split shelving for cans, ensuring every inch is put to good use. While drawers are great for organization, they can sometimes limit your flexibility compared to open shelving.

Market analysis shows a clear preference for certain sizes based on what they can hold. For instance, in North America, 48-inch wide models with around 15 cubic feet of capacity make up 45% of commercial sales because they’re so effective in prep lines. Meanwhile, 15-inch narrow models hold a 25% global share for specialized beverage storage. You can dive deeper into these numbers by checking out commercial refrigeration market trends and analyses to see exactly how dimensions line up with industry needs.

Your Foolproof Pre-Purchase Measurement Checklist

Getting the measurements wrong is the number one reason for installation headaches and costly returns. I've seen it happen time and time again. A fridge that's even a half-inch too wide just won't fit, period. This checklist will walk you through every critical measurement to ensure your new under-counter refrigerator slides into place perfectly, saving you from a logistical nightmare.

Before you even think about clicking "add to cart," grab a tape measure and follow these steps. Precision is everything here. Getting it right guarantees a smooth process from the moment the delivery truck arrives.

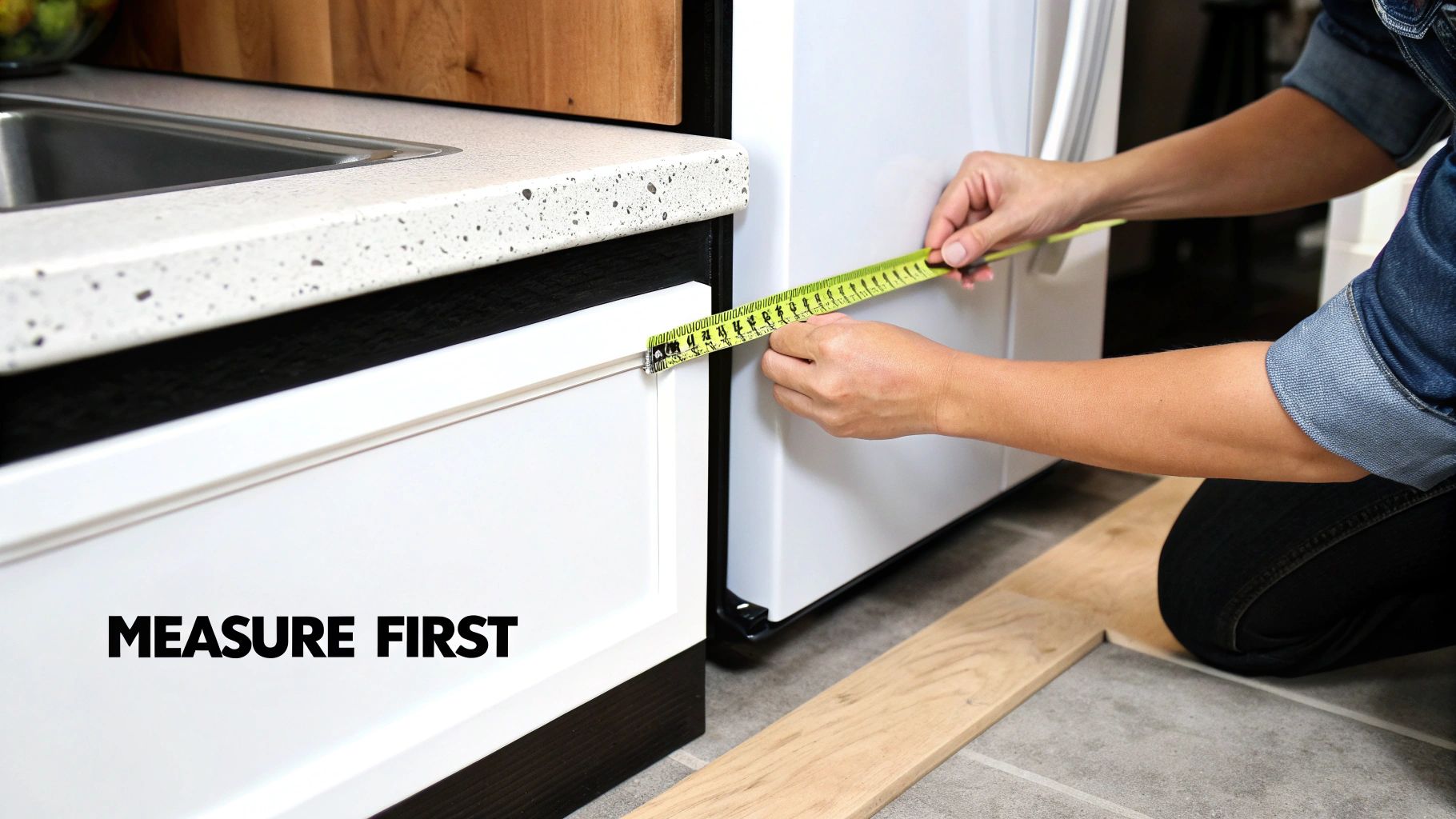

Step 1: Measure the Cabinet Opening

Never, ever assume your cabinet opening is perfectly square. Trust me on this. It’s absolutely essential to measure the under the counter fridge dimensions at multiple points to catch any sneaky inconsistencies in your flooring or cabinetry.

• Height: Measure from the floor to the bottom of the countertop on the left, in the middle, and on the right. Write down the smallest measurement—that's your real maximum height.
• Width: Measure the space between the cabinets at the back, middle, and front of the opening. Again, use the smallest number you get to determine your max width.
• Depth: Check the depth from the back wall to the front edge of your cabinetry on both the left and right sides. You guessed it: record the smaller of the two measurements.

Step 2: Confirm Utility and Clearance Space

A perfect fit isn't just about the box itself. You have to think about power, airflow, and simple physical access to make sure the unit runs right and the door doesn't smack into anything.

Don't forget the delivery path! Measure every single doorway, hallway, and tight corner from your restaurant's entrance to the final installation spot. A fridge that fits the kitchen but can't get through the front door is a common and completely avoidable problem.

1. Locate the Electrical Outlet: Pinpoint where the power outlet is. You need to be certain the refrigerator’s cord can reach it without an extension cord, which is a big no-no according to most safety codes and manufacturer warranties.
2. Verify Door Swing Clearance: Figure out how the fridge door is going to open. Will it hit an adjacent cabinet, a kitchen island, or another appliance? Most spec sheets will list the door swing radius, so compare that number to your available space.
3. Account for Ventilation: As we’ve covered, even front-venting models need their grille to be clear. Make sure nothing is going to block this critical area.

For a closer look at specific models that fit common commercial dimensions, you can find a detailed breakdown of an Atosa undercounter refrigerator and its installation requirements. Following this checklist ensures that whichever unit you choose, it will be the right one.

A Few Final Questions About Undercounter Fridge Dimensions

Even after you’ve measured twice, a few questions often pop up when you're zeroing in on the perfect undercounter fridge. Let's tackle some of the most common ones I hear from kitchen managers. Getting these details straight can be the difference between a smooth installation and a major headache.

Are All Undercounter Fridges Counter Height?

Not exactly, but they are all designed to be counter-height compatible. In a commercial kitchen, the standard countertop height is almost always 36 inches. Because of this, you’ll find that nearly every undercounter refrigerator has a height somewhere between 32 and 34.5 inches.

That specific range isn’t random—it’s engineered to give you just enough wiggle room. It lets the unit slide into place under the counter while leaving space for two critical things:

• Ventilation: That small gap at the top is crucial for air to circulate, especially for the front-venting models that are so common in professional kitchens.
• Leveling: The space also accommodates the unit's adjustable legs, letting you get a perfectly level and stable installation, even if your floor isn't perfectly even.

Keep in mind, some models are built for ADA (Americans with Disabilities Act) compliance and sit a bit lower, usually around 32 inches, for easier accessibility. Always double-check your counter height against the fridge’s specs to guarantee a perfect fit.

What Is the Difference Between a Built-In and Freestanding Undercounter Fridge?

The real difference comes down to how they breathe—that is, how they ventilate. Getting this right is absolutely essential for the fridge to perform well and last.

A built-in undercounter refrigerator is specifically engineered with front-facing ventilation grilles, which you’ll usually see at the bottom near the floor. This design pushes heat out from the front of the unit. That means you can install it completely flush within your cabinetry, with very little clearance needed on the sides or back.

On the other hand, a freestanding undercounter fridge works just like a standard, full-size refrigerator, with its vents on the back and sides. It needs several inches of open air all around it to get rid of heat and avoid overheating. You can put one under a counter, but you have to leave big gaps, which ruins that clean, integrated look.

Trying to enclose a freestanding, rear-venting fridge in a tight cabinet space is a critical mistake. It's a guaranteed recipe for poor cooling, sky-high energy bills, and a fried compressor. You can also be sure it will void the warranty.

Can I Install an Undercounter Fridge Outdoors?

Yes, but only if the model is specifically rated for outdoor use. An indoor unit just isn't built to handle the wild temperature swings and humidity of an outdoor setting.

Outdoor-rated undercounter refrigerators are tougher all around. They’re constructed with more durable materials like 304-grade stainless steel to fight off rust, corrosion, and sun damage. They also pack more powerful compressors and better insulation to hold a consistent temperature, whether it’s a blazing hot afternoon or a cool evening.

If you put a standard indoor model outside, it will struggle to keep food cool, leading to serious food safety risks and mechanical failure. On top of that, it will instantly void the warranty. When you’re outfitting a patio or outdoor kitchen, always look for units clearly labeled "outdoor-rated." It's the only way to ensure you're getting an appliance that's safe, durable, and built for the job.

For a complete selection of commercial-grade undercounter refrigerators designed for any application, explore the extensive catalog at The Restaurant Warehouse. Find the perfect dimensions and features for your kitchen by visiting https://therestaurantwarehouse.com today.
