Atosa CookRite AEFF-50-3TB Triple Vat Electric Fryer with Auto Lift and Built-In Filtration - Split Right Vat, 208V 3-Phase
Atosa CookRite AEFF-50-3TB Triple Vat Electric Fryer with Auto Lift and Built-In Filtration
The Atosa CookRite AEFF-50-3TB is a three-vat electric fryer battery with an automatic basket lift system and built-in oil filtration. The left and middle vats are full 50 lb vats, and the right vat is split into two 25 lb halves, giving you four separate oil zones for 150 lb of total capacity. Each 50 lb vat runs on 17 kW and each split half on 8.5 kW. Fully programmable electronic controls raise the baskets automatically when the timer ends, so product comes out on time even when the line gets busy.
It's built for high-volume quick-service restaurants, chicken concepts, and busy full-service kitchens that need to run fries, proteins, and allergen-sensitive or specialty items side by side without cross-contaminating oil.
Request a Quote
Request a quote and we'll confirm delivery, lead time, and electrical requirements for your kitchen. Call or text Sean at 206-419-5801 with any questions.
Auto Basket Lift
When a cook cycle ends, the auto lift system raises the baskets out of the oil automatically. That prevents overcooked or oil-soaked food when cooks are pulled away, keeps results consistent from shift to shift, and frees your crew to work other stations.
Split Vat for Separate Oil
The right-hand vat is divided into two 25 lb halves with independent 8.5 kW heating. Use them for smaller batches, specialty items, or products you want to keep out of your main fry oil, such as fish, gluten-free items, or allergen-sensitive menu items.
Built-In Filtration

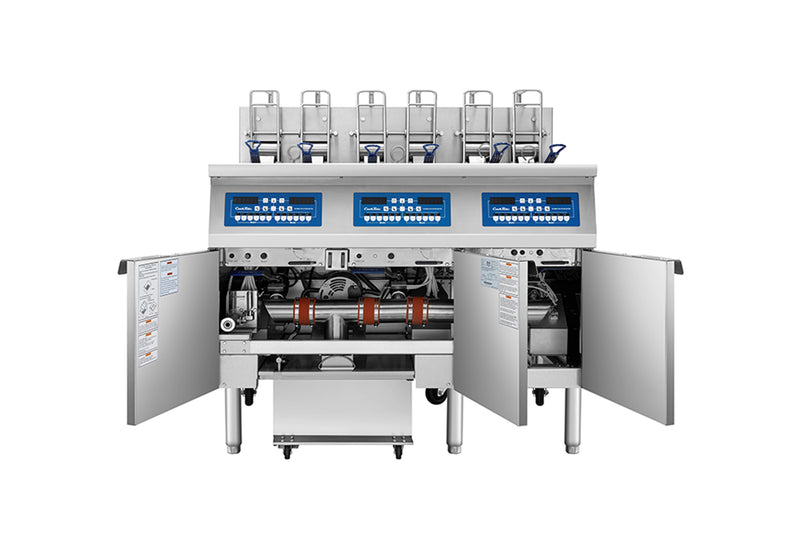

The built-in filtration system with pump lets your crew filter oil right at the fryer. Oil drains into the filter pan underneath, passes through filter paper, and pumps back into the vat, with no buckets, no lifting hot oil, and no separate portable filter to store. Filtering regularly removes crumbs and carbon that break oil down, which helps oil last longer.
The AEFF-50-3TB uses Atosa FP-1728-5 filter paper (100 sheets per box).
Key Features
- 150 lb total oil capacity: two full 50 lb vats plus one vat split into two 25 lb halves
- (2) 17 kW + (2) 8.5 kW electric heating, 51 kW total
- Automatic basket lift system
- Fully programmable electronic controls for consistent cook times
- Stainless steel tanks that are durable and easy to clean
- Two fryer baskets per tank
- Built-in filtration system with pump
- Three rear casters and three front legs so you can roll it out for cleaning
- Optional fryer mesh screens, vessel covers, and side splash available
Specifications
| Spec | Detail |
|---|---|
| Model | AEFF-50-3TB |
| Brand | Atosa CookRite |
| Type | Triple vat electric fryer battery with auto lift and built-in filtration |
| Vat configuration | Left and middle: full 50 lb vats; right: split vat (2 x 25 lb) |
| Oil capacity | 2 x 50 lb + 2 x 25 lb (150 lb total) |
| Baskets | 2 per tank |
| Power | (2) 17 kW + (2) 8.5 kW (51 kW total) |
| Electrical | 208V, 60Hz, 3-phase |
| Amps per wire | 48 A |
| Minimum wire size | 6/4 AWG |
| Controls | Fully programmable electronic |
| Basket lift | Automatic |
| Tanks | Stainless steel |
| Filtration | Built-in with pump |
| Filter paper | Atosa FP-1728-5 (100 sheets/box) |
| Mobility | 3 rear casters, 3 front legs |
| Exterior dimensions | 46-1/2"W x 33-3/4"D x 48-1/2"H |
| Net weight | 573 lb |
| Shipping weight | 708 lb |
| Warranty | 1 year parts and labor |
| Certifications | ETL, cETLus |
Installation
The AEFF-50-3TB requires a 208V, 3-phase electrical connection rated for 48 amps per wire, with a minimum 6/4 AWG wire size. Have a licensed electrician confirm your service before delivery. Install under a commercial exhaust hood per local code. Plan for the full 48-1/2" height with the basket lift.
Other Models in This Line
The triple battery also comes with all full vats (AEFF-50-3), with a split right vat and manual baskets (AEFF-50-3T), or with all full vats and auto lift (AEFF-50-3B). Need a smaller footprint? See the double AEFF-50-2TB or single AEFF-50-1TB. Browse all commercial deep fryers, or spread the cost with restaurant equipment financing.
Frequently Asked Questions
How much oil does the AEFF-50-3TB hold?
150 lb total: two full 50 lb vats plus one vat split into two 25 lb halves.
What does the "TB" in the model number mean?
T means the right-hand vat is a split vat, and B means it has the automatic basket lift system.
What does the auto lift system do?
It raises the baskets out of the oil automatically when the programmed cook time ends, so food isn't overcooked if a cook gets pulled away.
Why use a split vat?
Each half has its own oil and heating, so you can fry smaller batches or keep specialty and allergen-sensitive items out of your main fry oil.
What electrical service does it need?
208V, 60Hz, 3-phase, rated for 48 amps per wire, with a minimum 6/4 AWG wire size.
How does the built-in filtration work?
Oil drains from the vat into a filter pan underneath, passes through filter paper, and a built-in pump returns it to the vat.
What filter paper does it use?
Atosa FP-1728-5 filter paper, 100 sheets per box.
What are the dimensions?
46-1/2" wide, 33-3/4" deep, and 48-1/2" high.
Can it be moved for cleaning?
Yes. It has three casters at the rear and three legs at the front.
What warranty comes with it?
1 year parts and labor.
Is it certified for commercial use?
Yes. It's ETL and cETLus listed.
