Atosa CookRite AEFF-50-1TB Single Split-Vat Electric Fryer with Auto Lift and Built-In Filtration - 2 x 25 lb, 208V 3-Phase
Atosa CookRite AEFF-50-1TB Single Split-Vat Electric Fryer with Auto Lift and Built-In Filtration
The Atosa CookRite AEFF-50-1TB is a single electric floor fryer with a split vat, an automatic basket lift system, and built-in oil filtration. The tank is divided into two 25 lb halves, each with its own 8.5 kW heating, so you get two independent fry stations with separate oil in a 15-1/2" wide footprint. Fully programmable electronic controls raise the baskets automatically when the timer ends.
It's a great fit for kitchens that need to keep two products in separate oil, such as fries and fish, or regular and gluten-free items, and want consistent cook times without a cook standing at the fryer.
Request a Quote
Request a quote and we'll confirm delivery, lead time, and electrical requirements for your kitchen. Call or text Sean at 206-419-5801 with any questions.
Auto Basket Lift
When a cook cycle ends, the auto lift system raises the baskets out of the oil automatically. That prevents overcooked or oil-soaked food when cooks are pulled away, keeps results consistent from shift to shift, and frees your crew to work other stations.

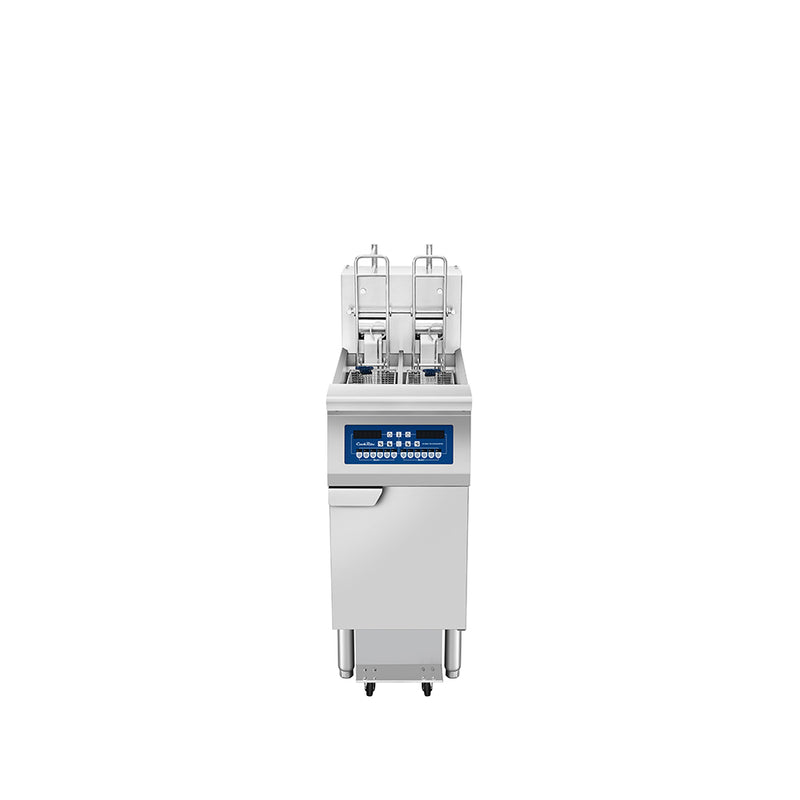

Split Vat for Separate Oil
Each 25 lb half has its own oil and its own 8.5 kW heating, so you can run two different products at two different temperatures at the same time. Use one side for your main menu item and the other for specialty, seafood, or allergen-sensitive items you want to keep out of your main fry oil.
Built-In Filtration

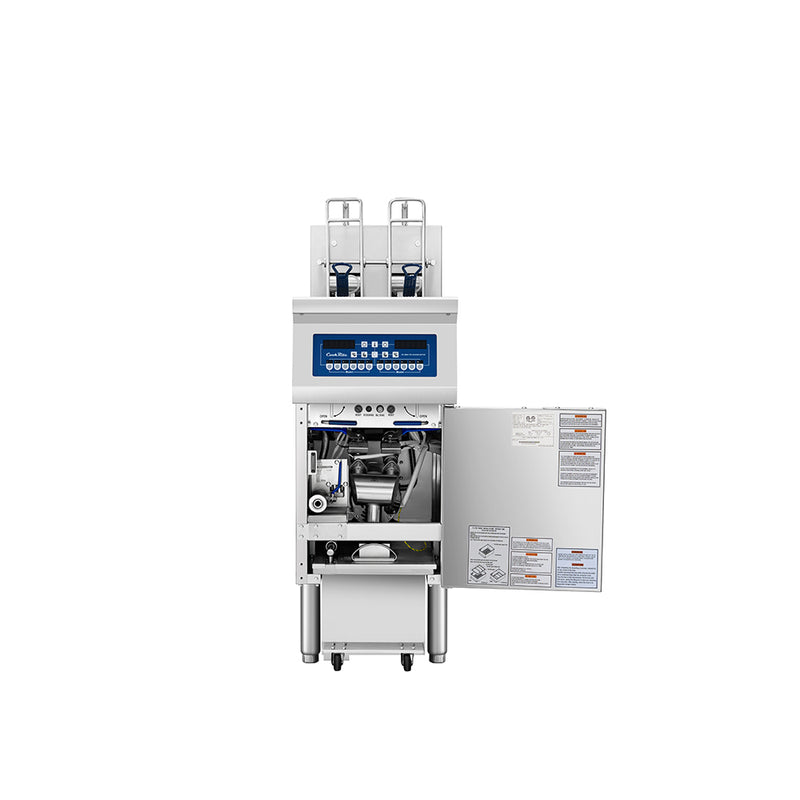

The built-in filtration system with pump lets your crew filter oil right at the fryer. Oil drains into the filter pan underneath, passes through filter paper, and pumps back into the vat, with no buckets, no lifting hot oil, and no separate portable filter to store. Filtering regularly removes crumbs and carbon that break oil down, which helps oil last longer.
The AEFF-50-1TB uses Atosa FP-1324-5 filter paper (100 sheets per box).
Key Features
- Split vat with two 25 lb halves (50 lb total)
- (2) 8.5 kW electric heating, 17 kW total, with independent control of each half
- Automatic basket lift system
- Fully programmable electronic controls for consistent cook times
- Stainless steel tank that's durable and easy to clean
- Two fryer baskets included
- Built-in filtration system with pump
- Two rear casters and two front legs so you can roll it out for cleaning
- Optional fryer mesh screen, vessel cover, and side splash available
Specifications
| Spec | Detail |
|---|---|
| Model | AEFF-50-1TB |
| Brand | Atosa CookRite |
| Type | Single split-vat electric floor fryer with auto lift and built-in filtration |
| Vat configuration | 1 split vat (2 x 25 lb) |
| Oil capacity | 2 x 25 lb (50 lb total) |
| Baskets | 2 |
| Power | (2) 8.5 kW (17 kW total) |
| Electrical | 208V, 60Hz, 3-phase |
| Amps per wire | 48 A |
| Minimum wire size | 6/4 AWG |
| Controls | Fully programmable electronic |
| Basket lift | Automatic |
| Tank | Stainless steel |
| Filtration | Built-in with pump |
| Filter paper | Atosa FP-1324-5 (100 sheets/box) |
| Mobility | 2 rear casters, 2 front legs |
| Exterior dimensions | 15-1/2"W x 33-3/4"D x 48-1/2"H |
| Net weight | 251 lb |
| Shipping weight | 326 lb |
| Warranty | 1 year parts and labor |
| Certifications | ETL, cETLus |
Installation
The AEFF-50-1TB requires a 208V, 3-phase electrical connection rated for 48 amps per wire, with a minimum 6/4 AWG wire size. Have a licensed electrician confirm your service before delivery. Install under a commercial exhaust hood per local code. Plan for the full 48-1/2" height with the basket lift.
Other Models in This Line
Prefer manual baskets? See the AEFF-50-1T, which has this same split vat without the auto lift. Prefer one full 50 lb vat? See the auto-lift AEFF-50-1B or the standard AEFF-50-1. Need more capacity? See the double AEFF-50-2TB or triple AEFF-50-3TB. Browse all commercial deep fryers, or spread the cost with restaurant equipment financing.
Frequently Asked Questions
How much oil does the AEFF-50-1TB hold?
50 lb total, split into two 25 lb halves.
What does the "TB" in the model number mean?
T means the vat is split into two halves, and B means it has the automatic basket lift system.
What does the auto lift system do?
It raises the baskets out of the oil automatically when the programmed cook time ends, so food isn't overcooked if a cook gets pulled away.
What's the difference between the AEFF-50-1TB and AEFF-50-1T?
Both have the same split vat. The AEFF-50-1TB adds the automatic basket lift system.
Can each half run at a different temperature?
Yes. Each half has its own 8.5 kW heating element and is controlled independently.
What electrical service does it need?
208V, 60Hz, 3-phase, rated for 48 amps per wire, with a minimum 6/4 AWG wire size.
How does the built-in filtration work?
Oil drains from the vat into a filter pan underneath, passes through filter paper, and a built-in pump returns it to the vat.
What filter paper does it use?
Atosa FP-1324-5 filter paper, 100 sheets per box.
What are the dimensions?
15-1/2" wide, 33-3/4" deep, and 48-1/2" high.
What warranty comes with it?
1 year parts and labor.
Is it certified for commercial use?
Yes. It's ETL and cETLus listed.
How do I order?
Request a quote on this page or call or text Sean at 206-419-5801. We'll confirm delivery and electrical requirements.
