Atosa CookRite AEFF-50-3B 47-Inch Triple Vat 150 lb Electric Fryer with Auto Lift and Built-In Filtration, 208V 3-Phase

by Atosa

Atosa CookRite AEFF-50-3B 47-Inch Triple Vat 150 lb Electric Fryer with Auto Lift and Built-In Filtration, 208V 3-Phase

The Atosa CookRite AEFF-50-3B is a 46-1/2" wide electric fryer with three vats, holding 150 lb of oil in total. It has built-in filtration with a pump, an auto lift system, and runs on 208V, 3-phase power.

At a Glance

  • Size: 46-1/2" W x 33-3/4" D x 48-1/2" H
  • Vats: three full 50 lb vats
  • Heating: 3 x 17 kW
  • Power: 208V, 3-phase
  • Filtration: built-in filtration system with pump
  • Controls: fully programmable electronic controls
  • Baskets: auto lift system
  • Certifications: cETLus, ETL-Sanitation
  • Warranty: 1 year parts and labor

A Triple Deep Fryer with Auto Lift

This triple deep fryer has three 50 lb vats and Atosa's auto lift system for the baskets. It has built-in filtration with a pump and runs on 208V, 3-phase power at 17 kW per vat.

Ships with free freight. Request a quote and we will confirm delivery and lead time. Call or text Sean at 206-419-5801 with any questions.

Is the AEFF-50-3B Right for Your Fry Station?

The AEFF-50-3B gives you 3 separate oil compartments: three full 50 lb vats. That is 150 lb of oil and 51 kW in total (3 x 17 kW), on 208V 3-phase power.

Atosa's auto lift system handles the baskets. It makes this model 33-3/4" deep and 48-1/2" tall, versus 31" and 45-3/8" for the AEFF-50-3 without it, and adds 75 lb (560 lb vs. 485 lb).

It is 46-1/2" wide and uses FP-1728-5 filter paper (17-1/2" x 28", 100 sheets per box) in its built-in filtration system. Want a split vat on the right? See the AEFF-50-3TB. Short on space? The AEFF-50-2B is 31" wide with one fewer vat.

Good For

  • High-volume lines: three vats side by side for stadiums, concessions and busy quick service
  • Busy restaurants and bars: filter oil without a separate cart
  • Busy crews: Atosa's auto lift system handles the baskets
  • Stadiums and concessions: 150 lb of oil across 46-1/2"

Built for Daily Commercial Use

  • Fully programmable electronic controls
  • Stainless steel tank
  • Two (2) fryer baskets per tank

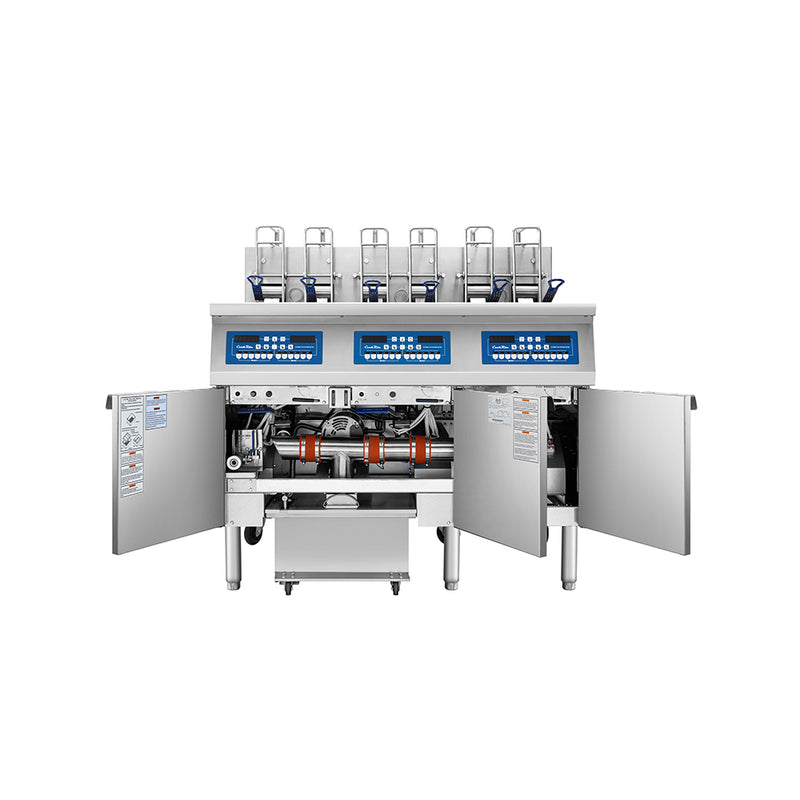

  • Built-in filtration system with pump
  • Auto lift system for the baskets
  • Three (3) casters at the rear and three (3) legs at the front
  • Optional fryer mesh screen, vessel covers and side splash

Pick the Right Fryer

Model Width Vats Split vat Auto lift
AEFF-50-1 15-1/2" 1 No No
AEFF-50-2 31" 2 No No
AEFF-50-3 46-1/2" 3 No No
AEFF-50-1T 15-1/2" 1 Yes No
AEFF-50-2T 31" 2 Yes No
AEFF-50-3T 46-1/2" 3 Yes No
AEFF-50-1B 15-1/2" 1 No Yes
AEFF-50-2B 31" 2 No Yes
AEFF-50-3B (this model) 46-1/2" 3 No Yes
AEFF-50-1TB 15-1/2" 1 Yes Yes
AEFF-50-2TB 31" 2 Yes Yes
AEFF-50-3TB 46-1/2" 3 Yes Yes

Do not need auto lift? See the Atosa AEFF-50-3. Need a split vat? See the Atosa AEFF-50-3TB. For a separate filter cart, see the Atosa FPOF-50.

Shop all commercial deep fryers, including electric models.

Specifications

Spec Detail
Configuration Triple battery electric fryer with built-in filtration
Vats Three full 50 lb vats
Oil capacity 3 x 50 lb
Power 3 x 17 kW
Electrical 208V, 3-phase
Amps per wire (Atosa spec) 48 A
Minimum wire size (Atosa spec) 6/4 AWG
Controls Fully programmable electronic
Tank Stainless steel
Baskets 2 per tank
Auto lift Yes
Filtration Built-in, with pump
Filter paper Atosa FP-1728-5 (100 sheets/box)
Mobility Three casters at the rear and three legs at the front
Exterior dimensions 46-1/2" W x 33-3/4" D x 48-1/2" H
Net weight 560 lb
Shipping weight 697 lb
Warranty 1 year parts and labor
Certifications cETLus, ETL-Sanitation

Before You Order

  • Electrical: 208V, 3-phase. Atosa lists 48 A per wire and a minimum 6/4 AWG wire size.
  • Check your space: the AEFF-50-3B is 46-1/2" wide, 33-3/4" deep and 48-1/2" tall. Auto lift models are taller and deeper than the standard models.
  • Filter paper: Atosa FP-1728-5, 17-1/2" x 28", 100 sheets per box. It is sold separately.
  • Mesh screens, vessel covers and side splash are optional.
  • Delivery: ships with free freight. The AEFF-50-3B weighs 560 lb, so plan how it will get from the truck to your kitchen.

Atosa AEFF-50-3B FAQ

What size is the Atosa AEFF-50-3B?

The AEFF-50-3B is 46-1/2" wide, 33-3/4" deep and 48-1/2" tall. It weighs 560 lb (697 lb shipping weight).

How much oil does the AEFF-50-3B hold?

3 x 50 lb.

What power does the AEFF-50-3B need?

208V, 3-phase. Atosa lists 3 x 17 kW, 48 A per wire and a minimum 6/4 AWG wire size.

Does the AEFF-50-3B have built-in filtration?

Yes. It has a built-in filtration system with a pump. It uses Atosa FP-1728-5 filter paper (100 sheets per box).

Does the AEFF-50-3B have auto lift?

Yes. It has Atosa's auto lift system for the baskets. Compared with the AEFF-50-3, it is 2-3/4" deeper, 3-1/8" taller and 75 lb heavier.

How many baskets come with the AEFF-50-3B?

Two per tank. The AEFF-50-3B has three full 50 lb vats.

Does the AEFF-50-3B have casters?

Two casters at the rear and two legs at the front, under a 560 lb fryer that is 46-1/2" wide.

What certifications does the AEFF-50-3B have?

cETLus and ETL-Sanitation, the same listings as the other AEFF-50 models.

What warranty comes with the AEFF-50-3B?

1 year parts and labor. FP-1728-5 filter paper for the built-in filtration is sold separately.

Should I choose the AEFF-50-3B or the AEFF-50-3TB?

Choose the AEFF-50-3B if every item can share full 50 lb vats. The AEFF-50-3TB splits the right vat into two 25 lb sides for small batches or allergen items. Both are 46-1/2" wide on 208V 3-phase.

Spec Sheet

Download the Atosa AEFF-50-3B spec sheet (PDF, Rev. 08/26)
