Atosa CookRite AEFF-50-1T Single Split-Vat Electric Fryer with Built-In Filtration - 2 x 25 lb, 208V 3-Phase

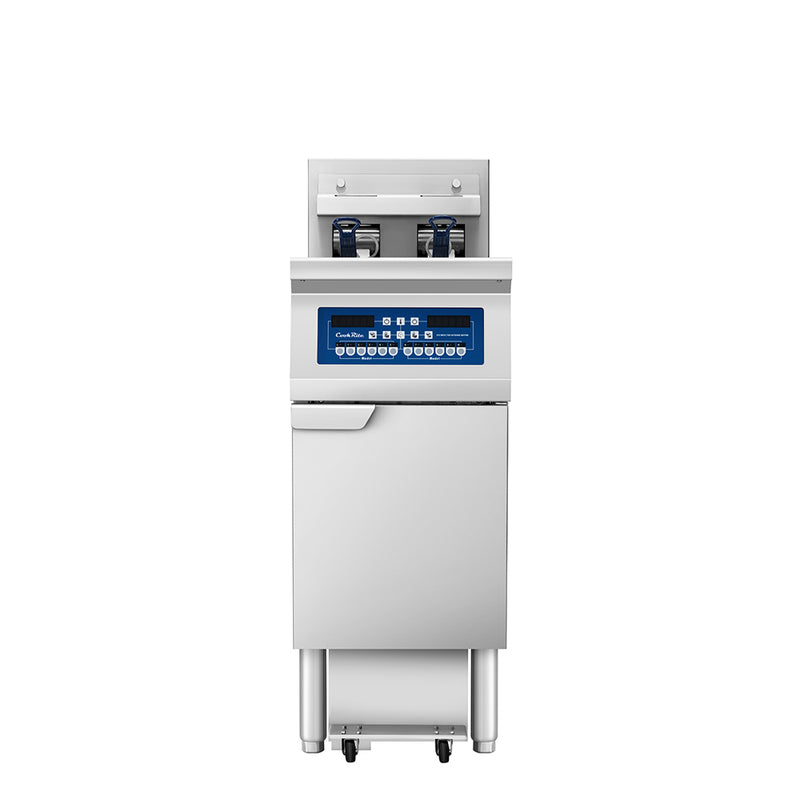

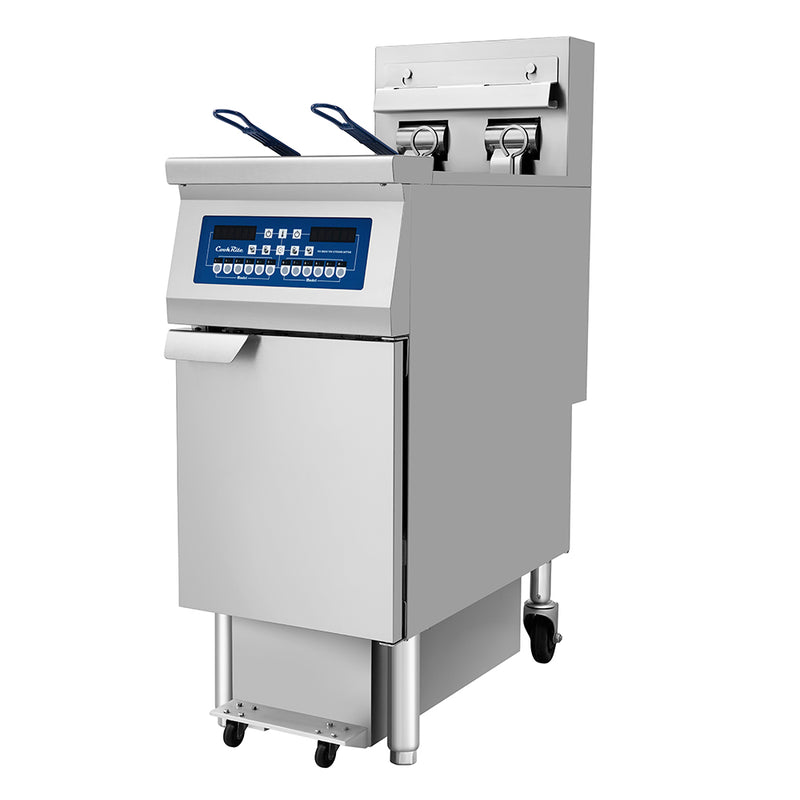

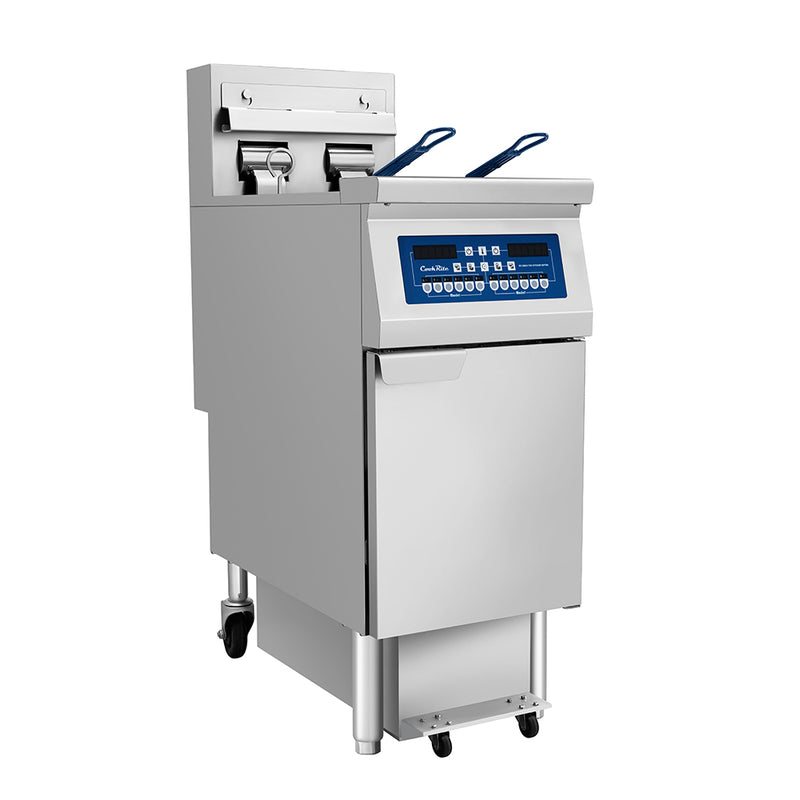

Atosa CookRite AEFF-50-1T Single Split-Vat Electric Fryer with Built-In Filtration
The Atosa CookRite AEFF-50-1T is a single electric floor fryer with a split vat and built-in oil filtration. The tank is divided into two 25 lb halves, each with its own 8.5 kW heating, so you get two independent fry stations with separate oil in a 15-1/2" wide footprint. Fully programmable electronic controls keep cook times consistent across shifts.
It's a great fit for kitchens that need to keep two products in separate oil, such as fries and fish, or regular and gluten-free items, but don't have room for two fryers.
Request a Quote
Request a quote and we'll confirm delivery, lead time, and electrical requirements for your kitchen. Call or text Sean at 206-419-5801 with any questions.

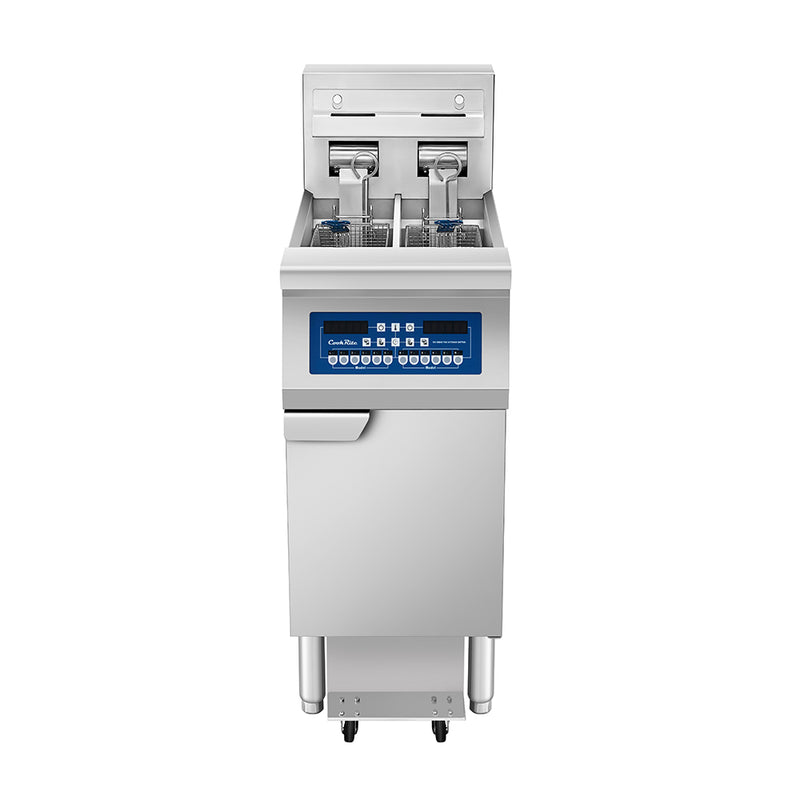

Split Vat for Separate Oil
Each 25 lb half has its own oil and its own 8.5 kW heating, so you can run two different products at two different temperatures at the same time. Use one side for your main menu item and the other for specialty, seafood, or allergen-sensitive items you want to keep out of your main fry oil. Smaller oil volumes also make sense for lower-volume items, since you're not heating and filtering a full 50 lb of oil.

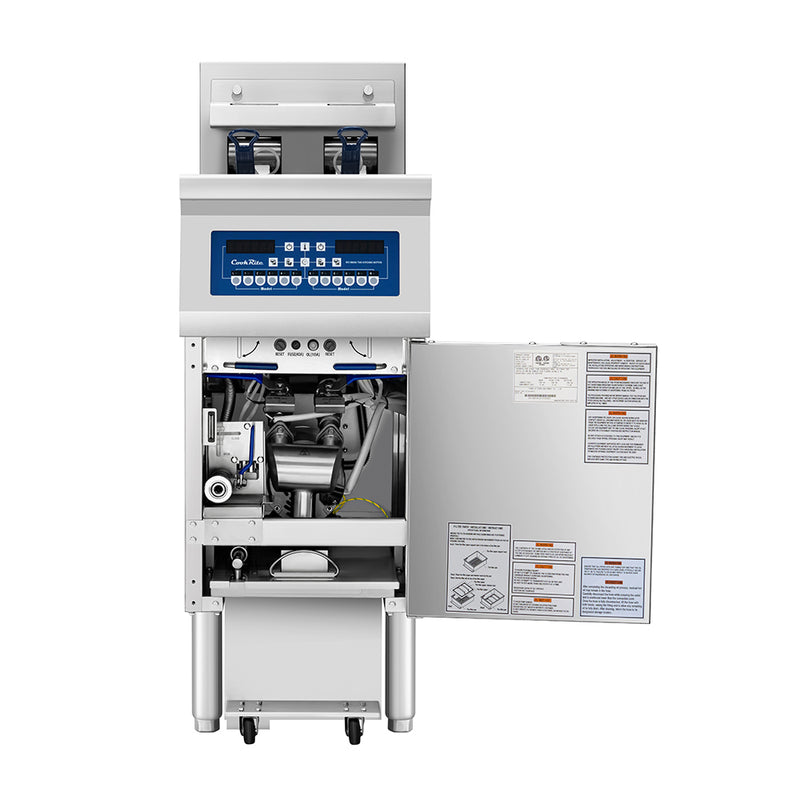

Built-In Filtration
The built-in filtration system with pump lets your crew filter oil right at the fryer. Oil drains into the filter pan underneath, passes through filter paper, and pumps back into the vat, with no buckets, no lifting hot oil, and no separate portable filter to store. Filtering regularly removes crumbs and carbon that break oil down, which helps oil last longer.
The AEFF-50-1T uses Atosa FP-1324-5 filter paper (100 sheets per box).
Key Features
- Split vat with two 25 lb halves (50 lb total)
- (2) 8.5 kW electric heating, 17 kW total, with independent control of each half
- Fully programmable electronic controls for consistent cook times
- Stainless steel tank that's durable and easy to clean
- Two fryer baskets included
- Built-in filtration system with pump
- Two rear casters and two front legs so you can roll it out for cleaning
- Optional fryer mesh screen, vessel cover, and side splash available
Specifications
| Spec | Detail |
|---|---|
| Model | AEFF-50-1T |
| Brand | Atosa CookRite |
| Type | Single split-vat electric floor fryer with built-in filtration |
| Vat configuration | 1 split vat (2 x 25 lb) |
| Oil capacity | 2 x 25 lb (50 lb total) |
| Baskets | 2 |
| Power | (2) 8.5 kW (17 kW total) |
| Electrical | 208V, 60Hz, 3-phase |
| Amps per wire | 48 A |
| Minimum wire size | 6/4 AWG |
| Controls | Fully programmable electronic |
| Basket lift | Manual |
| Tank | Stainless steel |
| Filtration | Built-in with pump |
| Filter paper | Atosa FP-1324-5 (100 sheets/box) |
| Mobility | 2 rear casters, 2 front legs |
| Exterior dimensions | 15-1/2"W x 31"D x 45-3/8"H |
| Net weight | 243 lb |
| Shipping weight | 298 lb |
| Warranty | 1 year parts and labor |
| Certifications | ETL, cETLus |
Installation
The AEFF-50-1T requires a 208V, 3-phase electrical connection rated for 48 amps per wire, with a minimum 6/4 AWG wire size. Have a licensed electrician confirm your service before delivery. Install under a commercial exhaust hood per local code.
Other Models in This Line
Want the baskets to lift automatically? See the AEFF-50-1TB, which adds the auto lift system to this same split vat. Prefer one full 50 lb vat? See the AEFF-50-1 or the auto-lift AEFF-50-1B. Need more capacity? See the double AEFF-50-2T or triple AEFF-50-3T. Browse all commercial deep fryers, or spread the cost with restaurant equipment financing.
Frequently Asked Questions
How much oil does the AEFF-50-1T hold?
50 lb total, split into two 25 lb halves.
What does the "T" in the model number mean?
T means the vat is split into two halves, each with its own oil and heating.
What's the difference between the AEFF-50-1T and AEFF-50-1?
The AEFF-50-1 has one full 50 lb vat. The AEFF-50-1T splits that vat into two 25 lb halves so you can run two products in separate oil.
What's the difference between the AEFF-50-1T and AEFF-50-1TB?
Both have the same split vat. The AEFF-50-1TB adds an automatic basket lift system.
Can each half run at a different temperature?
Yes. Each half has its own 8.5 kW heating element and is controlled independently.
What electrical service does it need?
208V, 60Hz, 3-phase, rated for 48 amps per wire, with a minimum 6/4 AWG wire size.
How does the built-in filtration work?
Oil drains from the vat into a filter pan underneath, passes through filter paper, and a built-in pump returns it to the vat.
What filter paper does it use?
Atosa FP-1324-5 filter paper, 100 sheets per box.
What are the dimensions?
15-1/2" wide, 31" deep, and 45-3/8" high.
What warranty comes with it?
1 year parts and labor.
Is it certified for commercial use?
Yes. It's ETL and cETLus listed.
How do I order?
Request a quote on this page or call or text Sean at 206-419-5801. We'll confirm delivery and electrical requirements.
