Atosa CookRite AEFF-50-2T Double Vat Electric Fryer with Built-In Filtration - Split Right Vat, 208V 3-Phase
Atosa CookRite AEFF-50-2T Double Vat Electric Fryer with Split Vat and Built-In Filtration

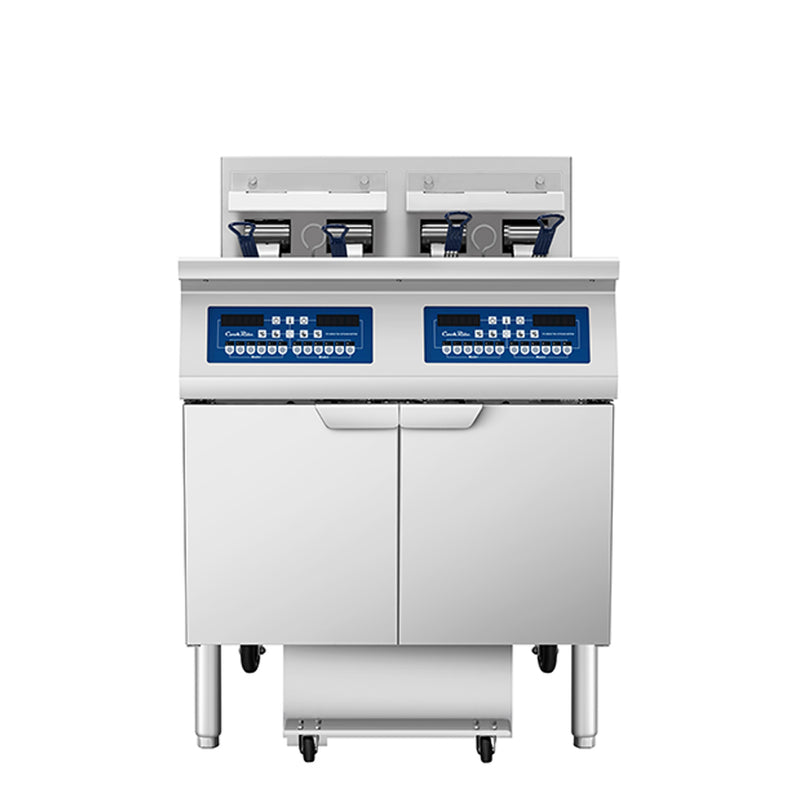

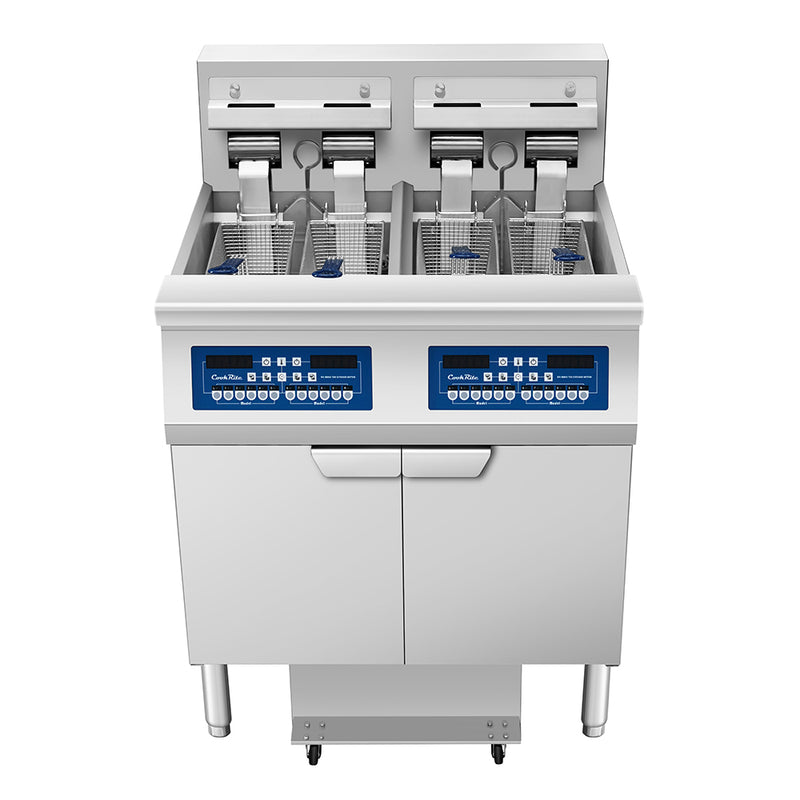

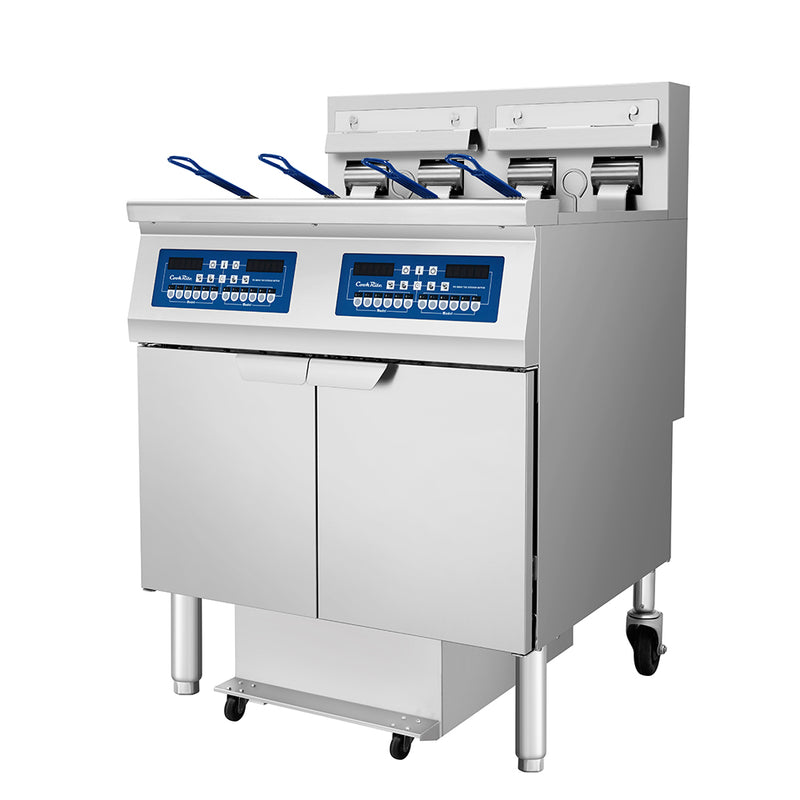

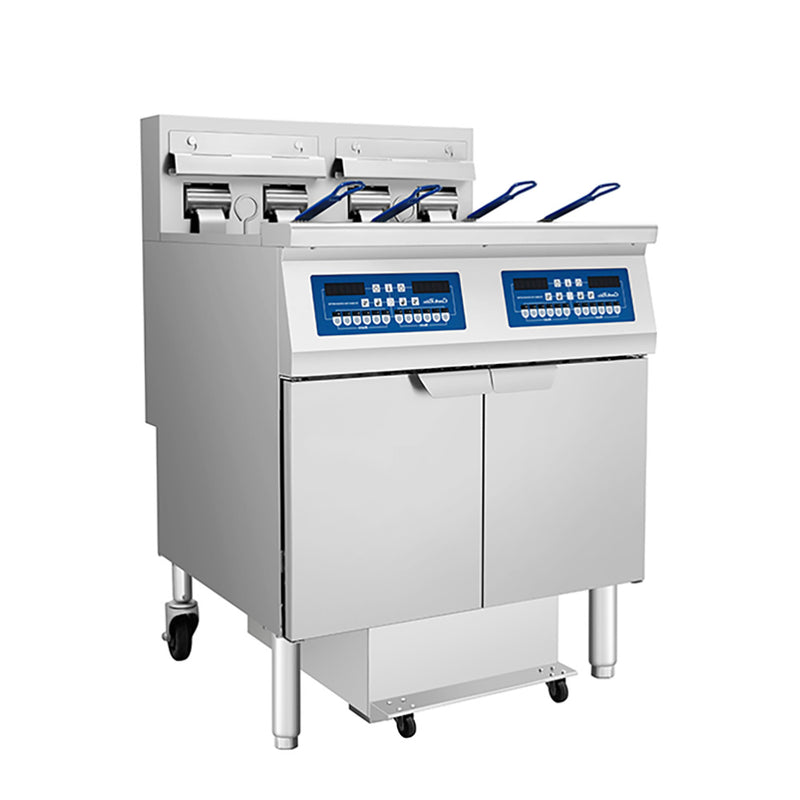

The Atosa CookRite AEFF-50-2T is a two-vat electric fryer battery with built-in oil filtration. The left vat is a full 50 lb vat, and the right vat is split into two 25 lb halves, giving you three separate oil zones and 100 lb of total capacity in a 31" wide footprint. The full vat runs on 17 kW and each split half on 8.5 kW, all managed by fully programmable electronic controls.
It's a smart fit for restaurants, bars, and quick-service kitchens that run a high-volume item like fries in the full vat and want separate oil for specialty or allergen-sensitive items.
Request a Quote
Request a quote and we'll confirm delivery, lead time, and electrical requirements for your kitchen. Call or text Sean at 206-419-5801 with any questions.
Split Vat for Separate Oil
The right-hand vat is divided into two 25 lb halves with independent 8.5 kW heating. Use them for smaller batches, specialty items, or products you want to keep out of your main fry oil, such as fish, gluten-free items, or allergen-sensitive menu items.

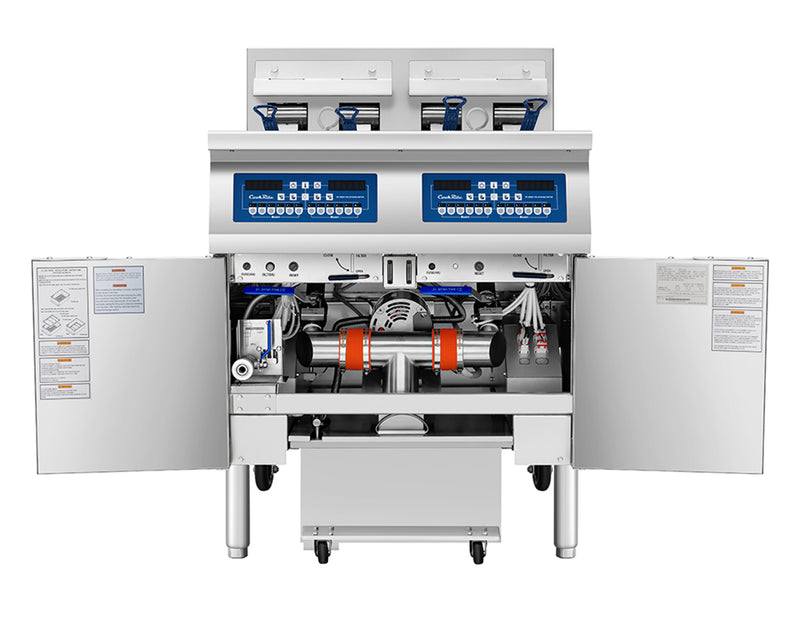

Built-In Filtration
The built-in filtration system with pump lets your crew filter oil right at the fryer. Oil drains into the filter pan underneath, passes through filter paper, and pumps back into the vat, with no buckets, no lifting hot oil, and no separate portable filter to store. Filtering regularly removes crumbs and carbon that break oil down, which helps oil last longer.
The AEFF-50-2T uses Atosa FP-1728-5 filter paper (100 sheets per box).
Key Features
- 100 lb total oil capacity: one full 50 lb vat plus one vat split into two 25 lb halves
- 17 kW + (2) 8.5 kW electric heating, 34 kW total
- Fully programmable electronic controls for consistent cook times
- Stainless steel tanks that are durable and easy to clean
- Two fryer baskets per tank
- Built-in filtration system with pump
- Two rear casters and two front legs so you can roll it out for cleaning
- Optional fryer mesh screens, vessel covers, and side splash available
Specifications
| Spec | Detail |
|---|---|
| Model | AEFF-50-2T |
| Brand | Atosa CookRite |
| Type | Double vat electric fryer battery with built-in filtration |
| Vat configuration | Left: full 50 lb vat; right: split vat (2 x 25 lb) |
| Oil capacity | 50 lb + 2 x 25 lb (100 lb total) |
| Baskets | 2 per tank |
| Power | 17 kW + (2) 8.5 kW (34 kW total) |
| Electrical | 208V, 60Hz, 3-phase |
| Amps per wire | 48 A |
| Minimum wire size | 6/4 AWG |
| Controls | Fully programmable electronic |
| Basket lift | Manual |
| Tanks | Stainless steel |
| Filtration | Built-in with pump |
| Filter paper | Atosa FP-1728-5 (100 sheets/box) |
| Mobility | 2 rear casters, 2 front legs |
| Exterior dimensions | 31"W x 31"D x 45-3/8"H |
| Net weight | 362 lb |
| Shipping weight | 463 lb |
| Warranty | 1 year parts and labor |
| Certifications | ETL, cETLus |
Installation
The AEFF-50-2T requires a 208V, 3-phase electrical connection rated for 48 amps per wire, with a minimum 6/4 AWG wire size. Have a licensed electrician confirm your service before delivery. Install under a commercial exhaust hood per local code.
Other Models in This Line
Want the baskets to lift automatically? See the AEFF-50-2TB, which adds the auto lift system to this same vat layout. The double battery also comes with two full vats (AEFF-50-2) or two full vats with auto lift (AEFF-50-2B). Need more or less capacity? See the triple AEFF-50-3T or single AEFF-50-1T. Browse all commercial deep fryers, or spread the cost with restaurant equipment financing.
Frequently Asked Questions
How much oil does the AEFF-50-2T hold?
100 lb total: one full 50 lb vat plus one vat split into two 25 lb halves.
What does the "T" in the model number mean?
T means the right-hand vat is a split vat with two 25 lb halves.
What's the difference between the AEFF-50-2T and AEFF-50-2TB?
Both have the same vat layout. The AEFF-50-2TB adds an automatic basket lift system.
Why use a split vat?
Each half has its own oil and heating, so you can fry smaller batches or keep specialty and allergen-sensitive items out of your main fry oil.
What electrical service does it need?
208V, 60Hz, 3-phase, rated for 48 amps per wire, with a minimum 6/4 AWG wire size.
How does the built-in filtration work?
Oil drains from the vat into a filter pan underneath, passes through filter paper, and a built-in pump returns it to the vat.
What filter paper does it use?
Atosa FP-1728-5 filter paper, 100 sheets per box.
What are the dimensions?
31" wide, 31" deep, and 45-3/8" high.
Can it be moved for cleaning?
Yes. It has two casters at the rear and two legs at the front.
What warranty comes with it?
1 year parts and labor.
Is it certified for commercial use?
Yes. It's ETL and cETLus listed.
How do I order?
Request a quote on this page or call or text Sean at 206-419-5801. We'll confirm delivery and electrical requirements.
