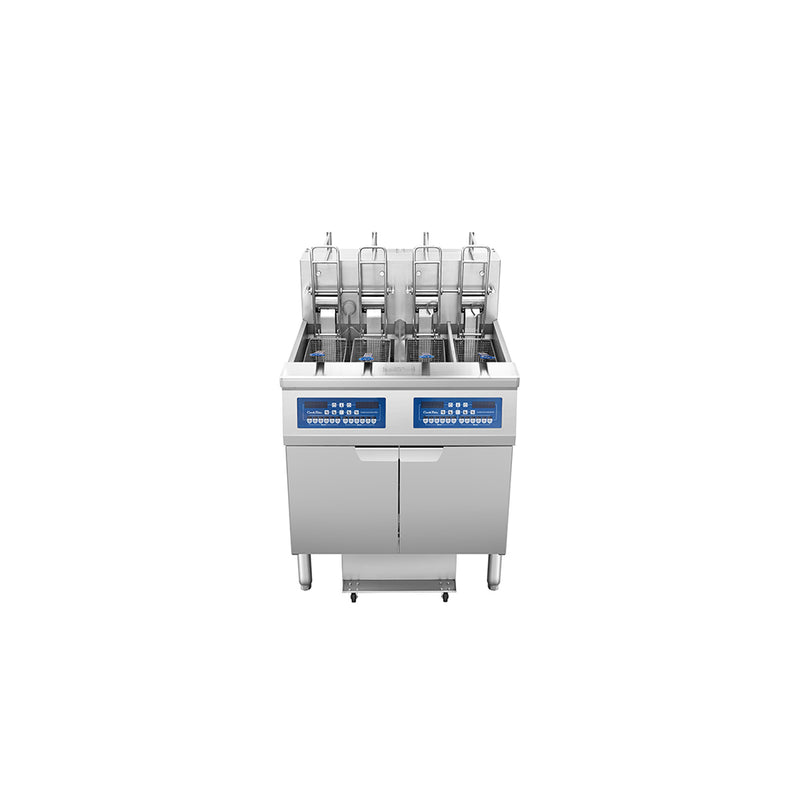

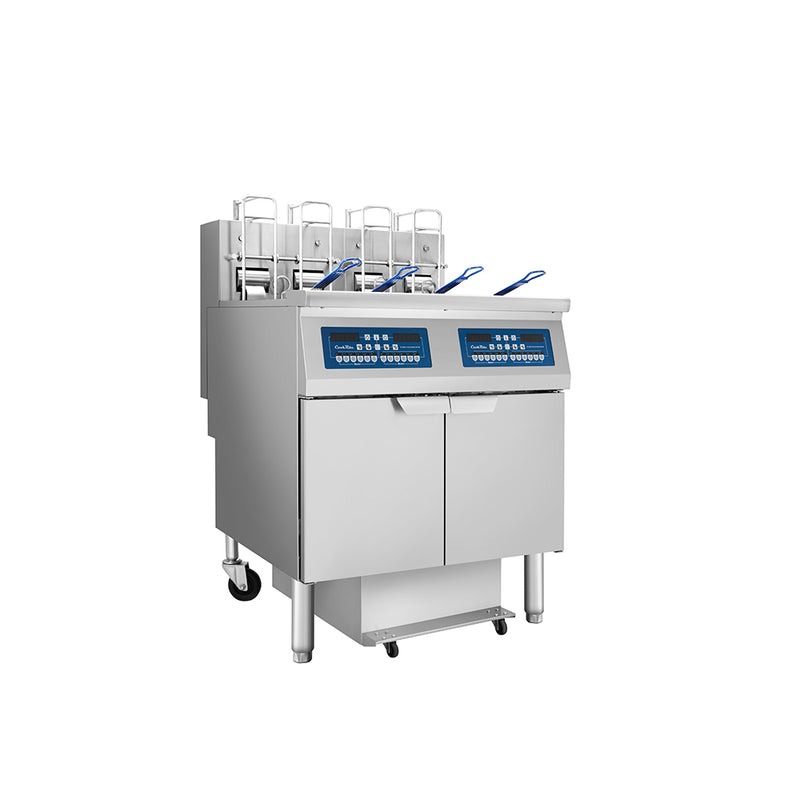

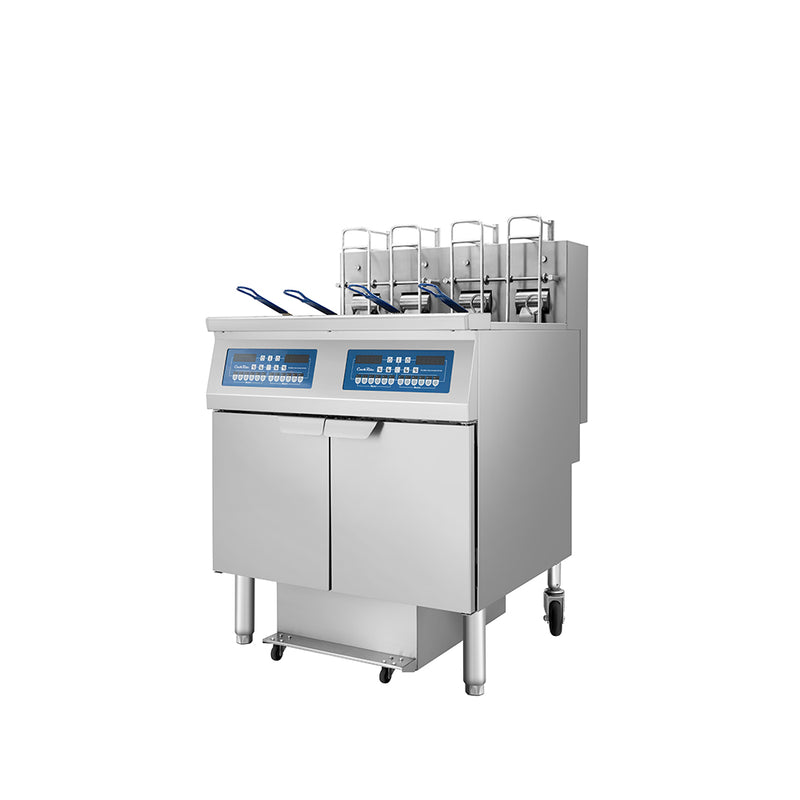

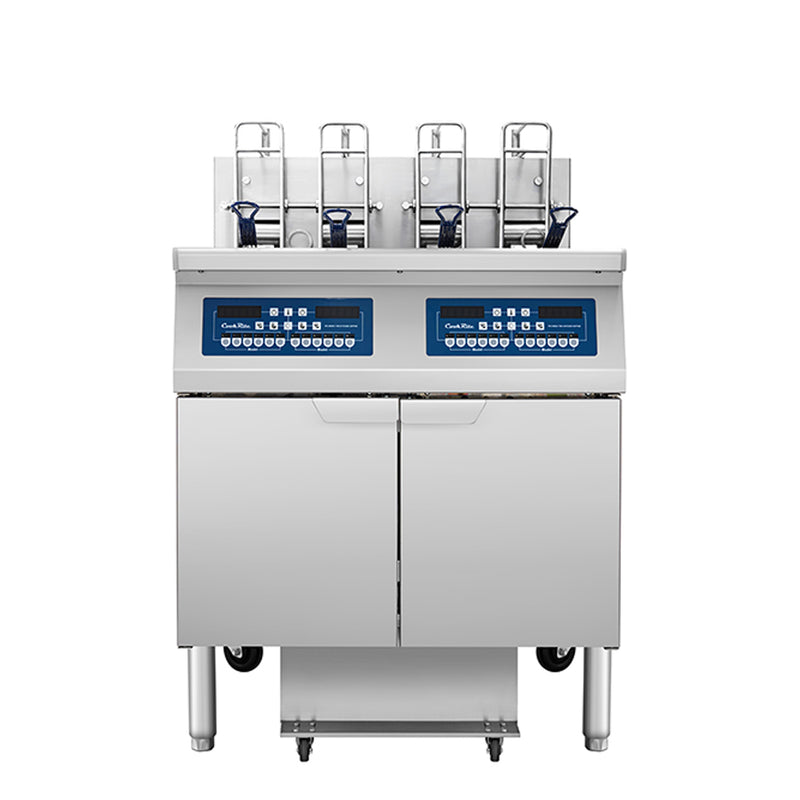

Atosa CookRite AEFF-50-2TB Double Vat Electric Fryer with Auto Lift and Built-In Filtration - Split Right Vat, 208V 3-Phase
Atosa CookRite AEFF-50-2TB Double Vat Electric Fryer with Auto Lift, Split Vat, and Built-In Filtration
The Atosa CookRite AEFF-50-2TB is a two-vat electric fryer battery with an automatic basket lift system and built-in oil filtration. The left vat is a full 50 lb vat, and the right vat is split into two 25 lb halves, giving you three separate oil zones and 100 lb of total capacity in a 31" wide footprint. The full vat runs on 17 kW and each split half on 8.5 kW. Fully programmable electronic controls raise the baskets automatically when the timer ends.
It's a smart fit for quick-service restaurants, bars, and busy kitchens that run a high-volume item in the full vat, want separate oil for specialty or allergen-sensitive items, and want to take timing off their cooks' plates.
Request a Quote
Request a quote and we'll confirm delivery, lead time, and electrical requirements for your kitchen. Call or text Sean at 206-419-5801 with any questions.
Auto Basket Lift
When a cook cycle ends, the auto lift system raises the baskets out of the oil automatically. That prevents overcooked or oil-soaked food when cooks are pulled away, keeps results consistent from shift to shift, and frees your crew to work other stations.
Split Vat for Separate Oil
The right-hand vat is divided into two 25 lb halves with independent 8.5 kW heating. Use them for smaller batches, specialty items, or products you want to keep out of your main fry oil, such as fish, gluten-free items, or allergen-sensitive menu items.

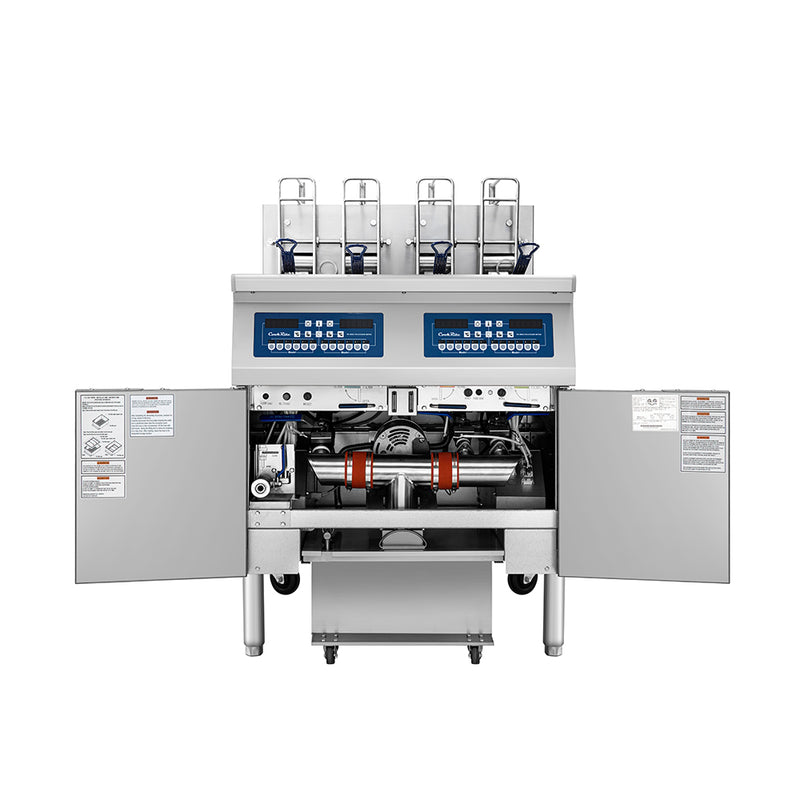

Built-In Filtration
The built-in filtration system with pump lets your crew filter oil right at the fryer. Oil drains into the filter pan underneath, passes through filter paper, and pumps back into the vat, with no buckets, no lifting hot oil, and no separate portable filter to store. Filtering regularly removes crumbs and carbon that break oil down, which helps oil last longer.
The AEFF-50-2TB uses Atosa FP-1728-5 filter paper (100 sheets per box).
Key Features
- 100 lb total oil capacity: one full 50 lb vat plus one vat split into two 25 lb halves
- 17 kW + (2) 8.5 kW electric heating, 34 kW total
- Automatic basket lift system
- Fully programmable electronic controls for consistent cook times
- Stainless steel tanks that are durable and easy to clean
- Two fryer baskets per tank
- Built-in filtration system with pump
- Two rear casters and two front legs so you can roll it out for cleaning
- Optional fryer mesh screens, vessel covers, and side splash available
Specifications
| Spec | Detail |
|---|---|
| Model | AEFF-50-2TB |
| Brand | Atosa CookRite |
| Type | Double vat electric fryer battery with auto lift and built-in filtration |
| Vat configuration | Left: full 50 lb vat; right: split vat (2 x 25 lb) |
| Oil capacity | 50 lb + 2 x 25 lb (100 lb total) |
| Baskets | 2 per tank |
| Power | 17 kW + (2) 8.5 kW (34 kW total) |
| Electrical | 208V, 60Hz, 3-phase |
| Amps per wire | 48 A |
| Minimum wire size | 6/4 AWG |
| Controls | Fully programmable electronic |
| Basket lift | Automatic |
| Tanks | Stainless steel |
| Filtration | Built-in with pump |
| Filter paper | Atosa FP-1728-5 (100 sheets/box) |
| Mobility | 2 rear casters, 2 front legs |
| Exterior dimensions | 31"W x 33-3/4"D x 48-1/2"H |
| Net weight | 419 lb |
| Shipping weight | 529 lb |
| Warranty | 1 year parts and labor |
| Certifications | ETL, cETLus |
Installation
The AEFF-50-2TB requires a 208V, 3-phase electrical connection rated for 48 amps per wire, with a minimum 6/4 AWG wire size. Have a licensed electrician confirm your service before delivery. Install under a commercial exhaust hood per local code. Plan for the full 48-1/2" height with the basket lift.
Other Models in This Line
Prefer manual baskets? See the AEFF-50-2T, which has this same vat layout without the auto lift. The double battery also comes with two full vats (AEFF-50-2) or two full vats with auto lift (AEFF-50-2B). Need more or less capacity? See the triple AEFF-50-3TB or single AEFF-50-1TB. Browse all commercial deep fryers, or spread the cost with restaurant equipment financing.
Frequently Asked Questions
How much oil does the AEFF-50-2TB hold?
100 lb total: one full 50 lb vat plus one vat split into two 25 lb halves.
What does the "TB" in the model number mean?
T means the right-hand vat is a split vat, and B means it has the automatic basket lift system.
What does the auto lift system do?
It raises the baskets out of the oil automatically when the programmed cook time ends, so food isn't overcooked if a cook gets pulled away.
What's the difference between the AEFF-50-2TB and AEFF-50-2T?
Both have the same vat layout. The AEFF-50-2TB adds the automatic basket lift system.
What electrical service does it need?
208V, 60Hz, 3-phase, rated for 48 amps per wire, with a minimum 6/4 AWG wire size.
How does the built-in filtration work?
Oil drains from the vat into a filter pan underneath, passes through filter paper, and a built-in pump returns it to the vat.
What filter paper does it use?
Atosa FP-1728-5 filter paper, 100 sheets per box.
What are the dimensions?
31" wide, 33-3/4" deep, and 48-1/2" high.
Can it be moved for cleaning?
Yes. It has two casters at the rear and two legs at the front.
What warranty comes with it?
1 year parts and labor.
Is it certified for commercial use?
Yes. It's ETL and cETLus listed.
How do I order?
Request a quote on this page or call or text Sean at 206-419-5801. We'll confirm delivery and electrical requirements.
