Atosa CookRite AEFF-50-3 Triple Vat 150 lb Electric Fryer with Built-In Filtration - (3) 17 kW, 208V 3-Phase
Atosa CookRite AEFF-50-3 Triple Vat Electric Fryer with Built-In Filtration
The Atosa CookRite AEFF-50-3 is a three-vat electric fryer battery with built-in oil filtration. It gives you three full 50 lb vats, 150 lb of total capacity, each heated by its own 17 kW system and run by fully programmable electronic controls. Three full-size vats side by side let you dedicate oil to fries, chicken, and seafood or other proteins, so flavors don't cross over and each station keeps up during the rush.
It's built for high-volume quick-service restaurants, chicken and seafood concepts, and busy full-service kitchens that need maximum full-vat frying capacity with filtration built in.
Request a Quote
Request a quote and we'll confirm delivery, lead time, and electrical requirements for your kitchen. Call or text Sean at 206-419-5801 with any questions.
Built-In Filtration

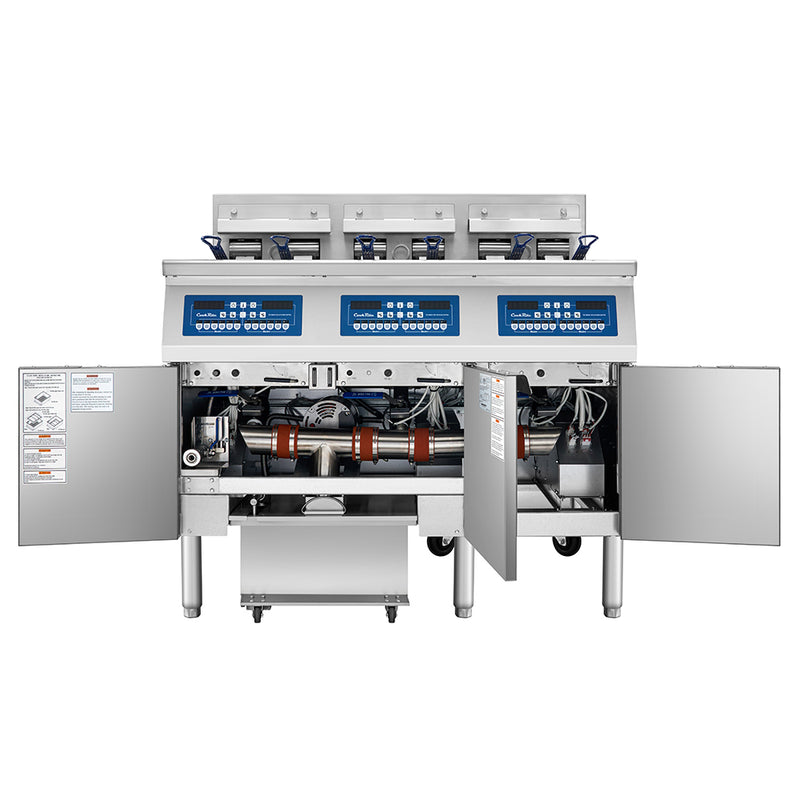

The built-in filtration system with pump lets your crew filter oil right at the fryer. Oil drains into the filter pan underneath, passes through filter paper, and pumps back into the vat, with no buckets, no lifting hot oil, and no separate portable filter to store. Filtering regularly removes crumbs and carbon that break oil down, which helps oil last longer and keeps food tasting consistent.
The AEFF-50-3 uses Atosa FP-1728-5 filter paper (100 sheets per box).
Key Features
- 150 lb total oil capacity across three full 50 lb vats
- (3) 17 kW electric heating, 51 kW total, for fast recovery between loads
- Fully programmable electronic controls for consistent cook times
- Stainless steel tanks that are durable and easy to clean
- Two fryer baskets per tank
- Built-in filtration system with pump
- Three rear casters and three front legs so you can roll it out for cleaning
- Optional fryer mesh screens, vessel covers, and side splash available
Specifications
| Spec | Detail |
|---|---|
| Model | AEFF-50-3 |
| Brand | Atosa CookRite |
| Type | Triple vat electric fryer battery with built-in filtration |
| Vat configuration | 3 full 50 lb vats |
| Oil capacity | 3 x 50 lb (150 lb total) |
| Baskets | 2 per tank |
| Power | (3) 17 kW (51 kW total) |
| Electrical | 208V, 60Hz, 3-phase |
| Amps per wire | 48 A |
| Minimum wire size | 6/4 AWG |
| Controls | Fully programmable electronic |
| Basket lift | Manual |
| Tanks | Stainless steel |
| Filtration | Built-in with pump |
| Filter paper | Atosa FP-1728-5 (100 sheets/box) |
| Mobility | 3 rear casters, 3 front legs |
| Exterior dimensions | 46-1/2"W x 31"D x 45-3/8"H |
| Net weight | 485 lb |
| Shipping weight | 605 lb |
| Warranty | 1 year parts and labor |
| Certifications | ETL, cETLus |
Installation
The AEFF-50-3 requires a 208V, 3-phase electrical connection rated for 48 amps per wire, with a minimum 6/4 AWG wire size. Have a licensed electrician confirm your service before delivery. Install under a commercial exhaust hood per local code.
Other Models in This Line
Want the baskets to lift automatically? See the AEFF-50-3B, which adds the auto lift system to three full vats. Need a split vat for smaller batches or allergen-sensitive items? See the AEFF-50-3T or the auto-lift AEFF-50-3TB. For a smaller footprint, the line also comes as a double (AEFF-50-2) or single (AEFF-50-1). Browse all commercial deep fryers, or spread the cost with restaurant equipment financing.
Frequently Asked Questions
How much oil does the AEFF-50-3 hold?
150 lb total across three full 50 lb vats.
What's the difference between the AEFF-50-3, -3T, -3B, and -3TB?
The AEFF-50-3 has three full vats with manual baskets. The -3T splits the right vat into two 25 lb halves. The -3B adds an automatic basket lift to three full vats, and the -3TB has both the split right vat and auto lift.
What electrical service does it need?
208V, 60Hz, 3-phase, rated for 48 amps per wire, with a minimum 6/4 AWG wire size.
How does the built-in filtration work?
Oil drains from the vat into a filter pan underneath, passes through filter paper, and a built-in pump returns it to the vat.
What filter paper does it use?
Atosa FP-1728-5 filter paper, 100 sheets per box.
Does it come with baskets?
Yes. Two fryer baskets per tank are included.
What are the dimensions?
46-1/2" wide, 31" deep, and 45-3/8" high.
Can it be moved for cleaning?
Yes. It has three casters at the rear and three legs at the front.
What warranty comes with it?
1 year parts and labor.
Is it certified for commercial use?
Yes. It's ETL and cETLus listed.
How do I order?
Request a quote on this page or call or text Sean at 206-419-5801. We'll confirm delivery and electrical requirements.
