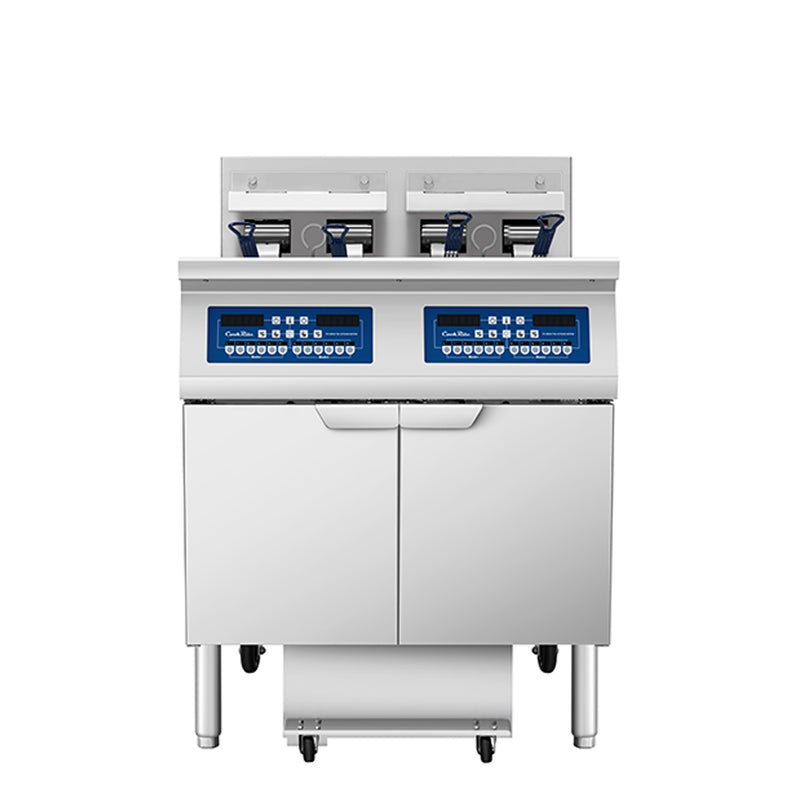

Atosa CookRite AEFF-50-2 31-Inch Double Vat 100 lb Electric Fryer with Built-In Filtration, 208V 3-Phase
Atosa CookRite AEFF-50-2 31-Inch Double Vat 100 lb Electric Fryer with Built-In Filtration, 208V 3-Phase
The Atosa CookRite AEFF-50-2 is a 31" wide electric fryer with two vats, holding 100 lb of oil in total. It has built-in filtration with a pump, and runs on 208V, 3-phase power.
At a Glance
- Size: 31" W x 31" D x 45-3/8" H
- Vats: two full 50 lb vats
- Heating: 2 x 17 kW
- Power: 208V, 3-phase
- Filtration: built-in filtration system with pump
- Controls: fully programmable electronic controls
- Certifications: cETLus, ETL-Sanitation
- Warranty: 1 year parts and labor
A Double Vat Fryer with Built-In Filtration
This double vat fryer has two 50 lb vats with 17 kW each, side by side in a 31" wide unit. Built-in filtration with a pump lets you filter oil right at the fryer.
Ships with free freight. Request a quote and we will confirm delivery and lead time. Call or text Sean at 206-419-5801 with any questions.
Is the AEFF-50-2 Right for Your Fry Station?
The AEFF-50-2 gives you 2 separate oil compartments: two full 50 lb vats. That is 100 lb of oil and 34 kW in total (2 x 17 kW), on 208V 3-phase power.
There is no auto lift, which keeps it at 31" deep and 45-3/8" tall. The AEFF-50-2B adds Atosa's auto lift system but needs 33-3/4" of depth and 48-1/2" of height and weighs 401 lb, 91 lb more than this model's 310 lb.
It is 31" wide and uses FP-1728-5 filter paper (17-1/2" x 28", 100 sheets per box) in its built-in filtration system. Want a split vat on the right? See the AEFF-50-2T. Need more capacity? The AEFF-50-3 adds another 50 lb vat at 46-1/2" wide. Short on space? The AEFF-50-1 is 15-1/2" wide with one fewer vat.
Good For
- Two menu items at once: fries in one vat, chicken or fish in another
- Busy restaurants and bars: filter oil without a separate cart
- Tight lines: 45-3/8" tall and 31" deep, the compact version without auto lift
- Quick service restaurants: 100 lb of oil in 31"
Built for Daily Commercial Use
- Fully programmable electronic controls
- Stainless steel tank
- Two (2) fryer baskets per tank

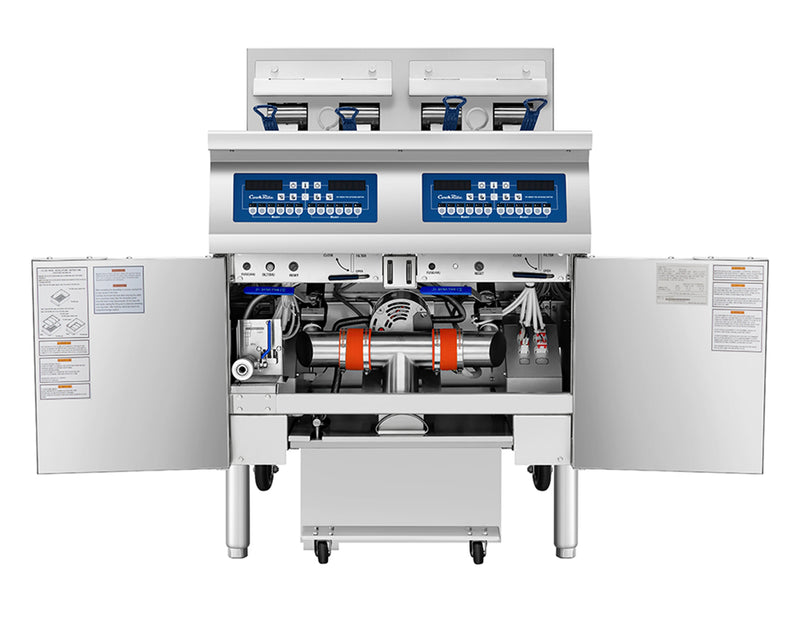

- Built-in filtration system with pump
- Two (2) casters at the rear and two (2) legs at the front
- Optional fryer mesh screen, vessel covers and side splash
Pick the Right Fryer
| Model | Width | Vats | Split vat | Auto lift |
|---|---|---|---|---|
| AEFF-50-1 | 15-1/2" | 1 | No | No |
| AEFF-50-2 (this model) | 31" | 2 | No | No |
| AEFF-50-3 | 46-1/2" | 3 | No | No |
| AEFF-50-1T | 15-1/2" | 1 | Yes | No |
| AEFF-50-2T | 31" | 2 | Yes | No |
| AEFF-50-3T | 46-1/2" | 3 | Yes | No |
| AEFF-50-1B | 15-1/2" | 1 | No | Yes |
| AEFF-50-2B | 31" | 2 | No | Yes |
| AEFF-50-3B | 46-1/2" | 3 | No | Yes |
| AEFF-50-1TB | 15-1/2" | 1 | Yes | Yes |
| AEFF-50-2TB | 31" | 2 | Yes | Yes |
| AEFF-50-3TB | 46-1/2" | 3 | Yes | Yes |
Want the auto lift? See the Atosa AEFF-50-2B. Need a split vat? See the Atosa AEFF-50-2T. For a separate filter cart, see the Atosa FPOF-50.
Shop all commercial deep fryers, including electric models.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Double battery electric fryer with built-in filtration |
| Vats | Two full 50 lb vats |
| Oil capacity | 2 x 50 lb |
| Power | 2 x 17 kW |
| Electrical | 208V, 3-phase |
| Amps per wire (Atosa spec) | 48 A |
| Minimum wire size (Atosa spec) | 6/4 AWG |
| Controls | Fully programmable electronic |
| Tank | Stainless steel |
| Baskets | 2 per tank |
| Auto lift | No |
| Filtration | Built-in, with pump |
| Filter paper | Atosa FP-1728-5 (100 sheets/box) |
| Mobility | Two casters at the rear and two legs at the front |
| Exterior dimensions | 31" W x 31" D x 45-3/8" H |
| Net weight | 310 lb |
| Shipping weight | 410 lb |
| Warranty | 1 year parts and labor |
| Certifications | cETLus, ETL-Sanitation |
Before You Order
- Electrical: 208V, 3-phase. Atosa lists 48 A per wire and a minimum 6/4 AWG wire size.
- Check your space: the AEFF-50-2 is 31" wide, 31" deep and 45-3/8" tall.
- Filter paper: Atosa FP-1728-5, 17-1/2" x 28", 100 sheets per box. It is sold separately.
- Mesh screens, vessel covers and side splash are optional.
- Delivery: ships with free freight. The AEFF-50-2 weighs 310 lb, so plan how it will get from the truck to your kitchen.
Atosa AEFF-50-2 FAQ
What size is the Atosa AEFF-50-2?
The AEFF-50-2 is 31" wide, 31" deep and 45-3/8" tall. It weighs 310 lb (410 lb shipping weight).
How much oil does the AEFF-50-2 hold?
2 x 50 lb.
What power does the AEFF-50-2 need?
208V, 3-phase. Atosa lists 2 x 17 kW, 48 A per wire and a minimum 6/4 AWG wire size.
Does the AEFF-50-2 have built-in filtration?
Yes. It has a built-in filtration system with a pump. It uses Atosa FP-1728-5 filter paper (100 sheets per box).
Does the AEFF-50-2 have auto lift?
No. For auto lift, choose the AEFF-50-2B. It is 2-3/4" deeper, 3-1/8" taller and 91 lb heavier than the AEFF-50-2.
How many baskets come with the AEFF-50-2?
Two per tank. The AEFF-50-2 has two full 50 lb vats.
Does the AEFF-50-2 have casters?
Two casters at the rear and two legs at the front, under a 310 lb fryer that is 31" wide.
What certifications does the AEFF-50-2 have?
cETLus and ETL-Sanitation, the same listings as the other AEFF-50 models.
What warranty comes with the AEFF-50-2?
1 year parts and labor. FP-1728-5 filter paper for the built-in filtration is sold separately.
Should I choose the AEFF-50-2 or the AEFF-50-2T?
Choose the AEFF-50-2 if every item can share full 50 lb vats. The AEFF-50-2T splits the right vat into two 25 lb sides for small batches or allergen items. Both are 31" wide on 208V 3-phase.
