Atosa CookRite AEFF-50-2B Double Vat 100 lb Electric Fryer with Auto Lift and Built-In Filtration - 208V 3-Phase

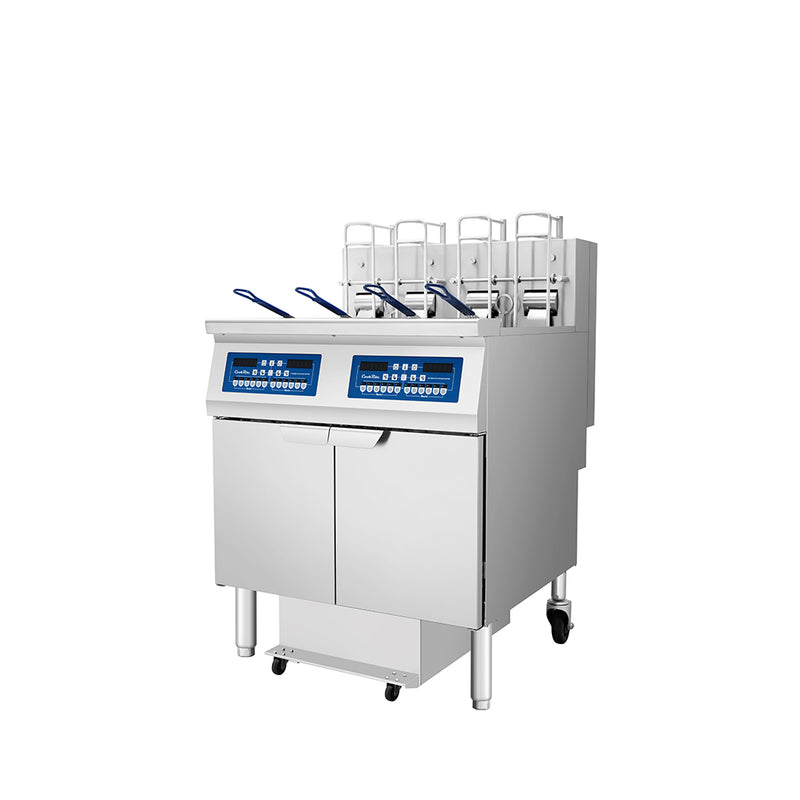

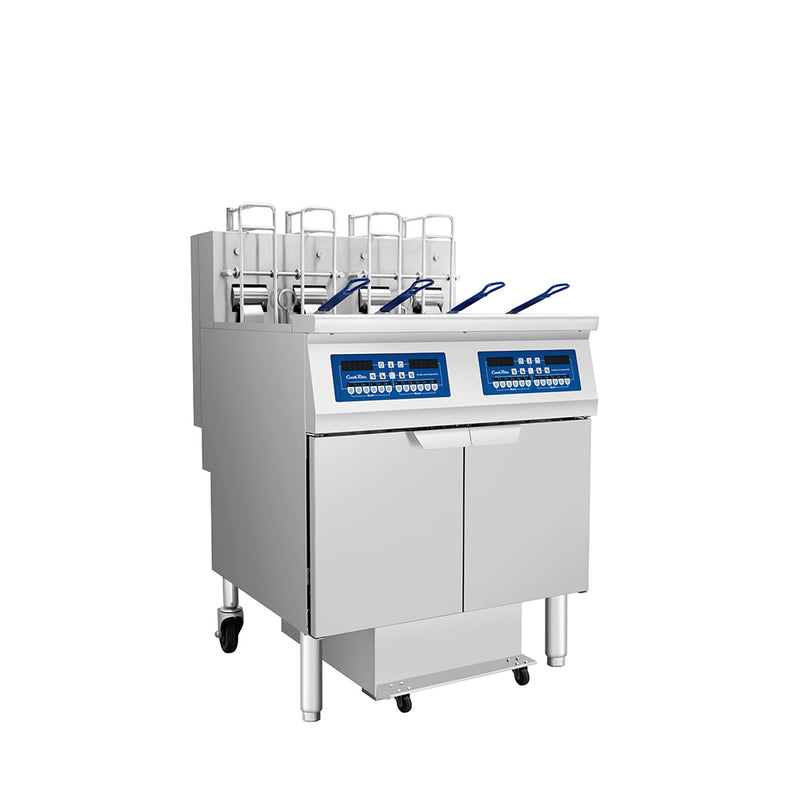

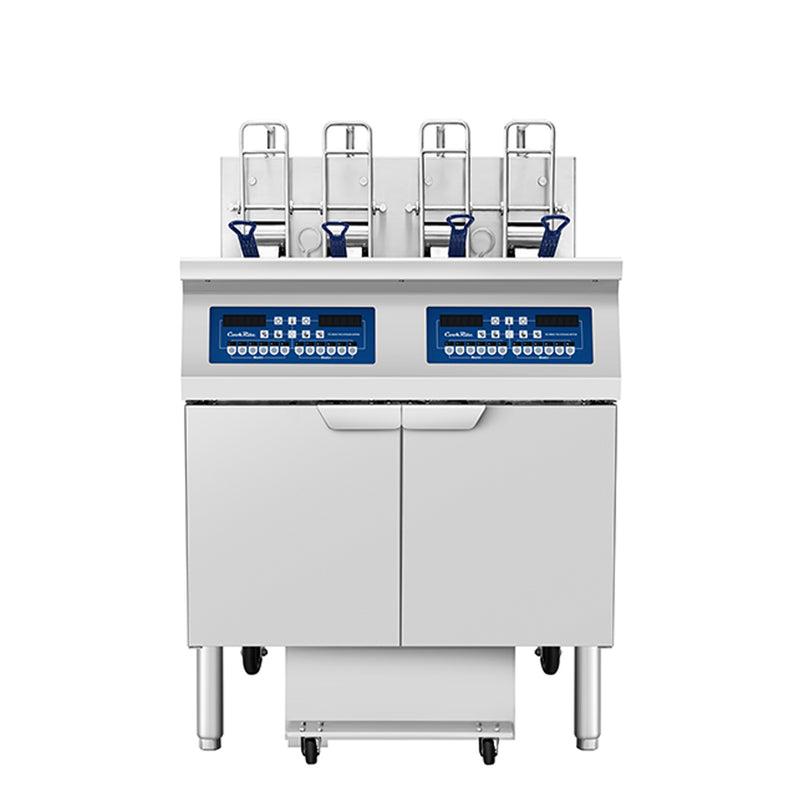

Atosa CookRite AEFF-50-2B Double Vat Electric Fryer with Auto Lift and Built-In Filtration
The Atosa CookRite AEFF-50-2B is a two-vat electric fryer battery with an automatic basket lift system and built-in oil filtration. It gives you two full 50 lb vats, 100 lb of total capacity, each heated by its own 17 kW system, in a 31" wide footprint. Fully programmable electronic controls raise the baskets automatically when the timer ends, so product comes out on time even when the line gets busy.
It's a strong fit for quick-service restaurants, bars, and full-service kitchens that need two full fry stations and want to take timing off their cooks' plates.
Request a Quote
Request a quote and we'll confirm delivery, lead time, and electrical requirements for your kitchen. Call or text Sean at 206-419-5801 with any questions.

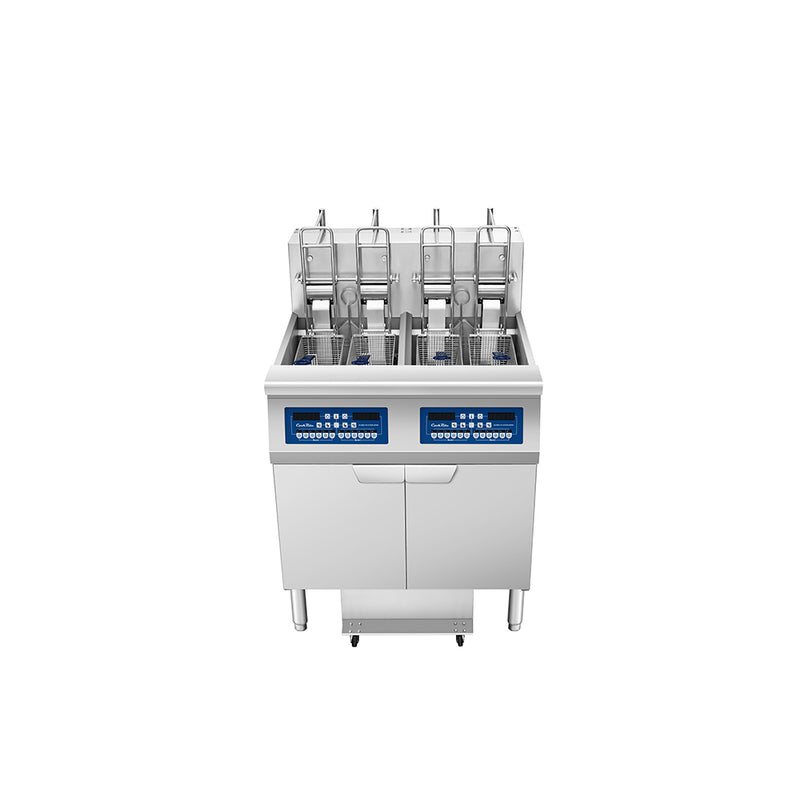

Auto Basket Lift
When a cook cycle ends, the auto lift system raises the baskets out of the oil automatically. That prevents overcooked or oil-soaked food when cooks are pulled away, keeps results consistent from shift to shift, and frees your crew to work other stations during the rush.

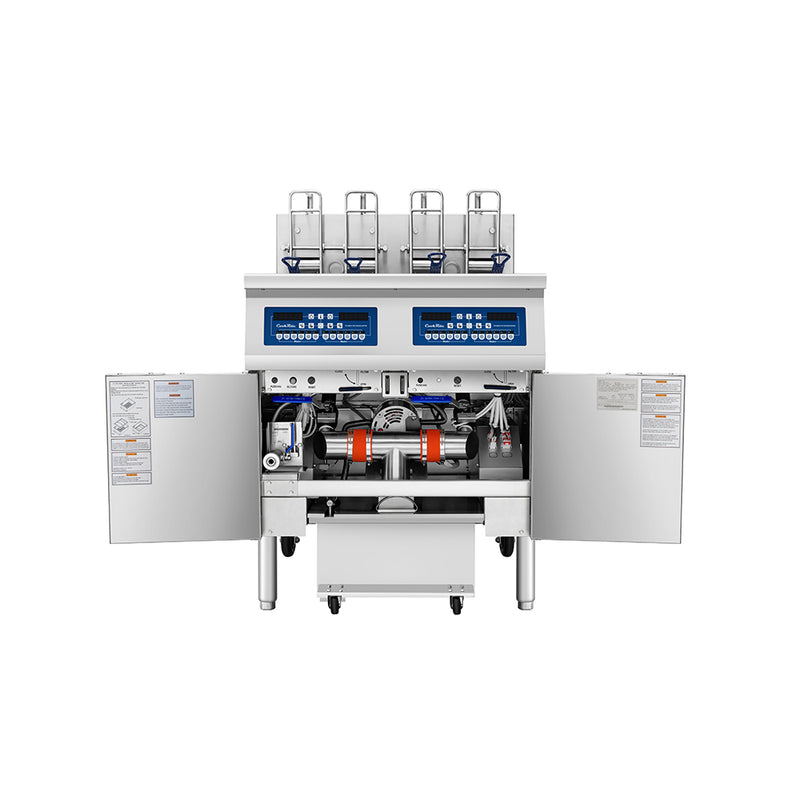

Built-In Filtration
The built-in filtration system with pump lets your crew filter oil right at the fryer. Oil drains into the filter pan underneath, passes through filter paper, and pumps back into the vat, with no buckets, no lifting hot oil, and no separate portable filter to store. Filtering regularly removes crumbs and carbon that break oil down, which helps oil last longer.
The AEFF-50-2B uses Atosa FP-1728-5 filter paper (100 sheets per box).
Key Features
- 100 lb total oil capacity across two full 50 lb vats
- (2) 17 kW electric heating, 34 kW total
- Automatic basket lift system
- Fully programmable electronic controls for consistent cook times
- Stainless steel tanks that are durable and easy to clean
- Two fryer baskets per tank
- Built-in filtration system with pump
- Two rear casters and two front legs so you can roll it out for cleaning
- Optional fryer mesh screens, vessel covers, and side splash available
Specifications
| Spec | Detail |
|---|---|
| Model | AEFF-50-2B |
| Brand | Atosa CookRite |
| Type | Double vat electric fryer battery with auto lift and built-in filtration |
| Vat configuration | 2 full 50 lb vats |
| Oil capacity | 2 x 50 lb (100 lb total) |
| Baskets | 2 per tank |
| Power | (2) 17 kW (34 kW total) |
| Electrical | 208V, 60Hz, 3-phase |
| Amps per wire | 48 A |
| Minimum wire size | 6/4 AWG |
| Controls | Fully programmable electronic |
| Basket lift | Automatic |
| Tanks | Stainless steel |
| Filtration | Built-in with pump |
| Filter paper | Atosa FP-1728-5 (100 sheets/box) |
| Mobility | 2 rear casters, 2 front legs |
| Exterior dimensions | 31"W x 33-3/4"D x 48-1/2"H |
| Net weight | 401 lb |
| Shipping weight | 551 lb |
| Warranty | 1 year parts and labor |
| Certifications | ETL, cETLus |
Installation
The AEFF-50-2B requires a 208V, 3-phase electrical connection rated for 48 amps per wire, with a minimum 6/4 AWG wire size. Have a licensed electrician confirm your service before delivery. Install under a commercial exhaust hood per local code. Plan for the full 48-1/2" height with the basket lift.
Other Models in This Line
Need a split vat for smaller batches or allergen-sensitive items? See the AEFF-50-2TB, which has the same auto lift with a split right vat. Prefer manual baskets? See the AEFF-50-2 or the split-vat AEFF-50-2T. Need more or less capacity? See the triple AEFF-50-3B or single AEFF-50-1B. Browse all commercial deep fryers, or spread the cost with restaurant equipment financing.
Frequently Asked Questions
How much oil does the AEFF-50-2B hold?
100 lb total across two full 50 lb vats.
What does the "B" in the model number mean?
B means the fryer has the automatic basket lift system.
What does the auto lift system do?
It raises the baskets out of the oil automatically when the programmed cook time ends, so food isn't overcooked if a cook gets pulled away.
What's the difference between the AEFF-50-2B and AEFF-50-2?
Both have two full 50 lb vats. The AEFF-50-2B adds the automatic basket lift system.
What electrical service does it need?
208V, 60Hz, 3-phase, rated for 48 amps per wire, with a minimum 6/4 AWG wire size.
How does the built-in filtration work?
Oil drains from the vat into a filter pan underneath, passes through filter paper, and a built-in pump returns it to the vat.
What filter paper does it use?
Atosa FP-1728-5 filter paper, 100 sheets per box.
What are the dimensions?
31" wide, 33-3/4" deep, and 48-1/2" high.
Can it be moved for cleaning?
Yes. It has two casters at the rear and two legs at the front.
What warranty comes with it?
1 year parts and labor.
Is it certified for commercial use?
Yes. It's ETL and cETLus listed.
How do I order?
Request a quote on this page or call or text Sean at 206-419-5801. We'll confirm delivery and electrical requirements.
