Atosa CookRite AEFF-50-1B 16-Inch Single Vat 50 lb Electric Fryer with Auto Lift and Built-In Filtration, 208V 3-Phase

by Atosa

Atosa CookRite AEFF-50-1B 16-Inch Single Vat 50 lb Electric Fryer with Auto Lift and Built-In Filtration, 208V 3-Phase

The Atosa CookRite AEFF-50-1B is a 15-1/2" wide electric fryer with one vat, holding 50 lb of oil in total. It has built-in filtration with a pump, an auto lift system, and runs on 208V, 3-phase power.

At a Glance

  • Size: 15-1/2" W x 33-3/4" D x 48-1/2" H
  • Vats: one full 50 lb vat
  • Heating: 17 kW
  • Power: 208V, 3-phase
  • Filtration: built-in filtration system with pump
  • Controls: fully programmable electronic controls
  • Baskets: auto lift system
  • Certifications: cETLus, ETL-Sanitation
  • Warranty: 1 year parts and labor

An Auto Lift Fryer with Built-In Filtration

This auto lift fryer holds 50 lb of oil in one vat and has Atosa's auto lift system for the baskets. It also has built-in filtration with a pump and runs on 208V, 3-phase power at 17 kW.

Ships with free freight. Request a quote and we will confirm delivery and lead time. Call or text Sean at 206-419-5801 with any questions.

Is the AEFF-50-1B Right for Your Fry Station?

The AEFF-50-1B has one full 50 lb vat: 50 lb of oil and 17 kW, on 208V 3-phase power.

Atosa's auto lift system handles the baskets. It makes this model 33-3/4" deep and 48-1/2" tall, versus 31" and 45-3/8" for the AEFF-50-1 without it, and adds 27 lb (235 lb vs. 208 lb).

It is 15-1/2" wide and uses FP-1324-5 filter paper (13-1/2" x 24", 100 sheets per box) in its built-in filtration system. Want the vat split into two 25 lb sides? See the AEFF-50-1TB. Need more capacity? The AEFF-50-2B adds another 50 lb vat at 31" wide.

Good For

  • A dedicated fry station: one fryer with its own built-in filtration
  • Restaurants adding filtration: filter oil without a separate cart
  • Busy crews: Atosa's auto lift system handles the baskets
  • Kitchens with a 16" opening: 15-1/2" wide

Built for Daily Commercial Use

  • Fully programmable electronic controls
  • Stainless steel tank
  • Two (2) fryer baskets per tank

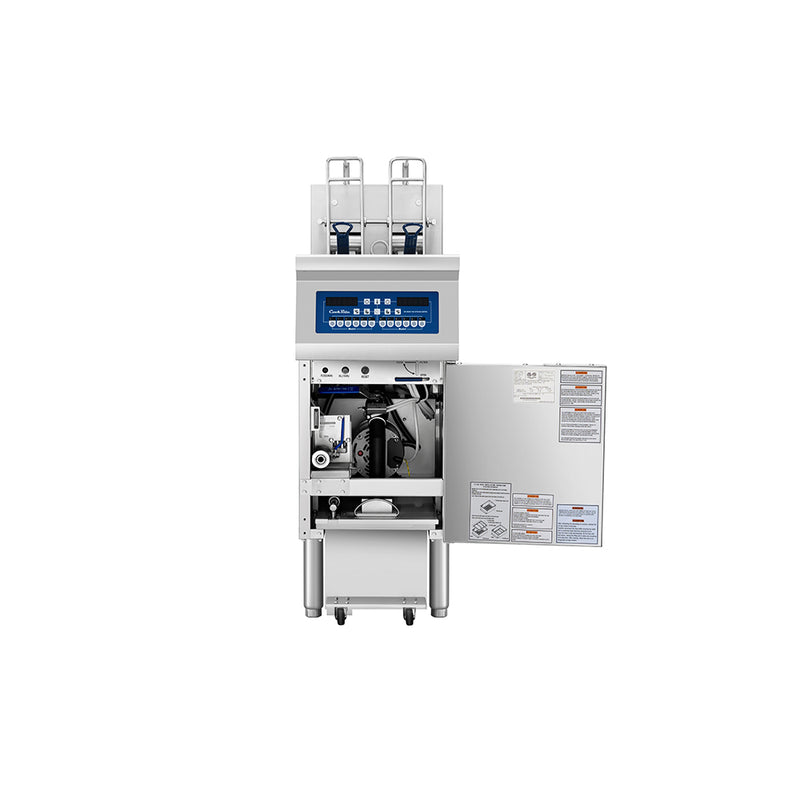

  • Built-in filtration system with pump

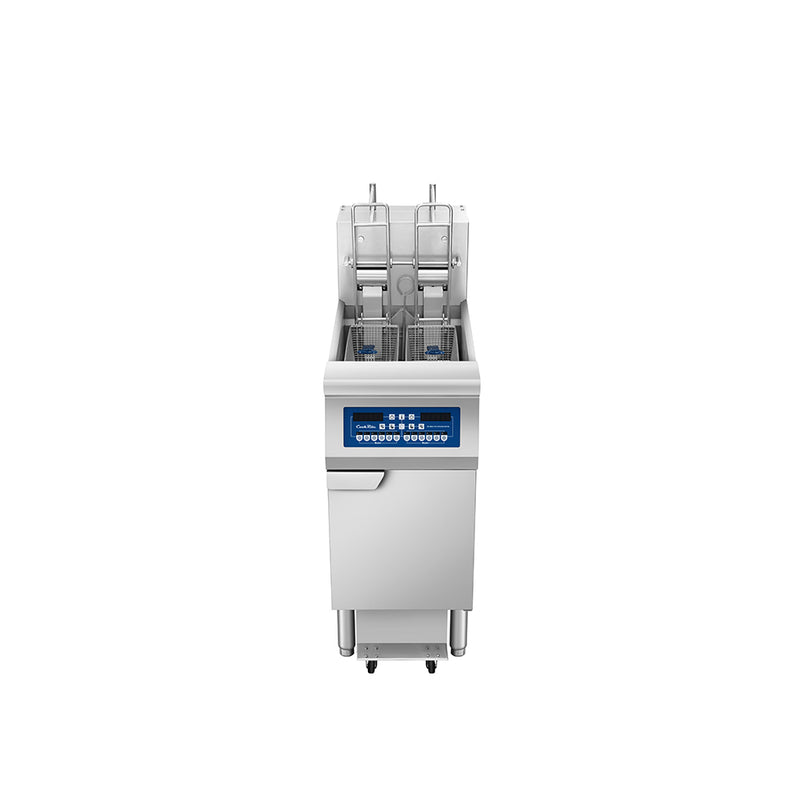

  • Auto lift system for the baskets
  • Two (2) casters at the rear and two (2) legs at the front
  • Optional fryer mesh screen, vessel covers and side splash

Pick the Right Fryer

Model Width Vats Split vat Auto lift
AEFF-50-1 15-1/2" 1 No No
AEFF-50-2 31" 2 No No
AEFF-50-3 46-1/2" 3 No No
AEFF-50-1T 15-1/2" 1 Yes No
AEFF-50-2T 31" 2 Yes No
AEFF-50-3T 46-1/2" 3 Yes No
AEFF-50-1B (this model) 15-1/2" 1 No Yes
AEFF-50-2B 31" 2 No Yes
AEFF-50-3B 46-1/2" 3 No Yes
AEFF-50-1TB 15-1/2" 1 Yes Yes
AEFF-50-2TB 31" 2 Yes Yes
AEFF-50-3TB 46-1/2" 3 Yes Yes

Do not need auto lift? See the Atosa AEFF-50-1. Need a split vat? See the Atosa AEFF-50-1TB. For a separate filter cart, see the Atosa FPOF-50.

Shop all commercial deep fryers, including electric models.

Specifications

Spec Detail
Configuration Single battery electric fryer with built-in filtration
Vats One full 50 lb vat
Oil capacity 50 lb
Power 17 kW
Electrical 208V, 3-phase
Amps per wire (Atosa spec) 48 A
Minimum wire size (Atosa spec) 6/4 AWG
Controls Fully programmable electronic
Tank Stainless steel
Baskets 2 per tank
Auto lift Yes
Filtration Built-in, with pump
Filter paper Atosa FP-1324-5 (100 sheets/box)
Mobility Two casters at the rear and two legs at the front
Exterior dimensions 15-1/2" W x 33-3/4" D x 48-1/2" H
Net weight 235 lb
Shipping weight 310 lb
Warranty 1 year parts and labor
Certifications cETLus, ETL-Sanitation

Before You Order

  • Electrical: 208V, 3-phase. Atosa lists 48 A per wire and a minimum 6/4 AWG wire size.
  • Check your space: the AEFF-50-1B is 15-1/2" wide, 33-3/4" deep and 48-1/2" tall. Auto lift models are taller and deeper than the standard models.
  • Filter paper: Atosa FP-1324-5, 13-1/2" x 24", 100 sheets per box. It is sold separately.
  • Mesh screens, vessel covers and side splash are optional.
  • Delivery: ships with free freight. The AEFF-50-1B weighs 235 lb, so plan how it will get from the truck to your kitchen.

Atosa AEFF-50-1B FAQ

What size is the Atosa AEFF-50-1B?

The AEFF-50-1B is 15-1/2" wide, 33-3/4" deep and 48-1/2" tall. It weighs 235 lb (310 lb shipping weight).

How much oil does the AEFF-50-1B hold?

50 lb.

What power does the AEFF-50-1B need?

208V, 3-phase. Atosa lists 17 kW, 48 A per wire and a minimum 6/4 AWG wire size.

Does the AEFF-50-1B have built-in filtration?

Yes. It has a built-in filtration system with a pump. It uses Atosa FP-1324-5 filter paper (100 sheets per box).

Does the AEFF-50-1B have auto lift?

Yes. It has Atosa's auto lift system for the baskets. Compared with the AEFF-50-1, it is 2-3/4" deeper, 3-1/8" taller and 27 lb heavier.

How many baskets come with the AEFF-50-1B?

Two per tank. The AEFF-50-1B has one full 50 lb vat.

Does the AEFF-50-1B have casters?

Two casters at the rear and two legs at the front, under a 235 lb fryer that is 15-1/2" wide.

What certifications does the AEFF-50-1B have?

cETLus and ETL-Sanitation, the same listings as the other AEFF-50 models.

What warranty comes with the AEFF-50-1B?

1 year parts and labor. FP-1324-5 filter paper for the built-in filtration is sold separately.

Should I choose the AEFF-50-1B or the AEFF-50-1TB?

Choose the AEFF-50-1B if every item can share full 50 lb vats. The AEFF-50-1TB splits the vat into two 25 lb sides for small batches or allergen items. Both are 15-1/2" wide on 208V 3-phase.

Spec Sheet

Download the Atosa AEFF-50-1B spec sheet (PDF, Rev. 08/26)
