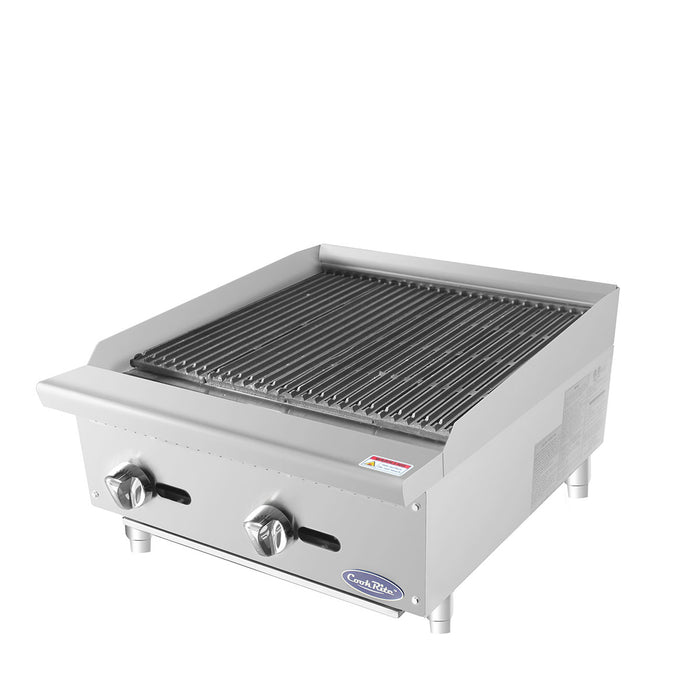

Atosa ATRC-24-NG 24-Inch Countertop Radiant Charbroiler, Natural Gas, 70,000 BTU
Atosa ATRC-24-NG 24-Inch Countertop Radiant Charbroiler, Natural Gas, 70,000 BTU
The Atosa ATRC-24-NG is a 24" wide countertop radiant charbroiler with 2 burners and 70,000 BTU on natural gas. It has reversible cast iron grates and a manual control every 12".
At a Glance
- Size: 24" W x 27-3/5" D x 15-1/5" H (from the Atosa drawing)
- Work area: 23-9/10" x 20-1/5"
- Gas: natural gas, 2 burners, 70,000 BTU total
- Grates: heavy-duty reversible cast iron, adjustable multi-level
- Controls: independent manual control every 12"
- Certifications: cETLus, ETL-Sanitation
- Warranty: 1 year parts and labor (US only)
Most units ship within one business day from our warehouse with free freight to the lower 48.
A 24 Inch Charbroiler with Radiants
This 24 inch charbroiler is a radiant broiler with two 35,000 BTU burners and 70,000 BTU in total. Heavy-duty cast iron grates are reversible and adjust to more than one level, and each 12" section has its own manual control. It runs on natural gas.
Is the ATRC-24-NG the Right Charbroiler for Your Line?
The ATRC-24-NG is 24" wide with two 12" zones, each on its own 35,000 BTU stainless steel burner and manual control, for 70,000 BTU on natural gas. Radiants sit over the burners and spread the heat under 23-9/10" x 20-1/5" of reversible cast iron grate, about 483 sq in. It weighs 116.8 lb, or 146.6 lb shipped.
Radiant or lava rock? The lava rock ATCB-24 has the same size, burners and BTU but cooks over a bed of lava briquettes, which some cooks prefer for flavor. It weighs 20.1 lb more, and the rock has to be spread and replaced over time. With radiants, there is no rock to manage.
Set up for natural gas with a 4" W.C. regulator. The ATRC-24-LP is the same charbroiler for propane. Need another zone? The ATRC-36-NG is 36" wide. Building a line? The ATTG-24-NG thermostatic and ATMG-24-NG manual griddles are the same 24" width and 15-1/5" height, 1" deeper at 28-3/5".
Good For
- Bars and cafés: grilled chicken and burgers in a 24" footprint
- Short lines: 116.8 lb, the lightest charbroiler in the Atosa line
- Sandwich shops: grill-marked chicken and vegetables
- Kitchens that want less upkeep: radiants, no lava rock to replace
Built for Daily Commercial Use
- Stainless steel exterior and interior
- 35,000 BTU stainless steel burners with standby pilots
- Independent manual controls every 12"
- Heavy-duty, reversible cast iron grates
- Top grates adjust to more than one level
- Adjustable stainless steel legs
- 3/4" NPT rear gas connection and regulator standard
Pick the Right Size
| Model | Gas | Width | Burners | Total BTU |
|---|---|---|---|---|
| ATRC-24-NG (this model) | Natural gas | 24" | 2 | 70,000 |
| ATRC-24-LP | Propane | 24" | 2 | 70,000 |
| ATRC-36-NG | Natural gas | 36" | 3 | 105,000 |
| ATRC-36-LP | Propane | 36" | 3 | 105,000 |
| ATRC-48-NG | Natural gas | 48" | 4 | 140,000 |
| ATRC-48-LP | Propane | 48" | 4 | 140,000 |
Need propane? See the Atosa ATRC-24-LP. Prefer lava rock? See the Atosa ATCB-24.
Shop all commercial charbroilers, including radiant and natural gas models.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Countertop radiant charbroiler |
| Gas type | Natural gas |
| Burners | 2, stainless steel, 35,000 BTU each, standby pilots |
| Total BTU | 70,000 |
| Controls | Independent manual, every 12" |
| Work area | 23-9/10" x 20-1/5" |
| Grates | Heavy-duty reversible cast iron, adjustable multi-level |
| Gas pressure (regulator) | 4" W.C. |
| Gas connection | 3/4" NPT, rear, with regulator |
| Legs | Adjustable stainless steel |
| Construction | Stainless steel exterior and interior |
| Exterior dimensions | 24" W x 27-3/5" D x 15-1/5" H (from the Atosa drawing) |
| Net weight | 116.8 lb |
| Shipping weight | 146.6 lb |
| Warranty | 1 year parts and labor (US only) |
| Certifications | cETLus, ETL-Sanitation; conforms to NSF/ANSI 4 and ANSI Z83.11b; certified to CSA 1.8b |
Before You Order
- This is the natural gas model. Order the ATRC-24-LP for propane.
- Gas: 3/4" NPT rear connection with a regulator. Atosa lists the regulator at 4" W.C. for natural gas.
- Check your counter: the ATRC-24-NG is 24" wide, 27-3/5" deep and 15-1/5" tall, per the Atosa drawing. It weighs 116.8 lb, so use a counter or stand rated for that weight.
Atosa ATRC-24-NG FAQ
What size is the Atosa ATRC-24-NG?
24" wide, 27-3/5" deep and 15-1/5" tall, per the Atosa drawing, with a 23-9/10" x 20-1/5" work area. It weighs 116.8 lb, 20.1 lb less than the lava rock ATCB-24.
How many BTU is the ATRC-24-NG?
70,000 BTU total from two 35,000 BTU burners on natural gas. The propane ATRC-24-LP has the same rating.
What kind of grates does the ATRC-24-NG have?
Heavy-duty reversible cast iron grates that adjust to more than one level, across a 23-9/10" x 20-1/5" cooking area.
How are the ATRC-24-NG burners controlled?
Each of the two 12" sections has its own manual control and standby pilot.
What gas connection does the ATRC-24-NG need?
A 3/4" NPT rear connection with a regulator set at 4" W.C. for natural gas. For propane, order the ATRC-24-LP.
What certifications does the ATRC-24-NG have?
cETLus, ETL-Sanitation; conforms to NSF/ANSI 4 and ANSI Z83.11b; certified to CSA 1.8b.
What warranty comes with the ATRC-24-NG?
1 year parts and labor (US only) on the ATRC-24-NG.
Does the ATRC-24-NG use lava rock?
No. The ATRC-24-NG uses radiants over the burners, so there is no lava rock to spread or replace. For lava rock at the same 24" width and 70,000 BTU, see the ATCB-24, which comes with lava briquettes and weighs 20.1 lb more.
Spec Sheet
Download the Atosa ATRC-24-NG spec sheet (PDF)
ATRC-24 Parts & Service
For OEM replacement parts for the ATRC-24, see the ATRC-24 parts list, with part numbers and quantities from Atosa's exploded-view diagram. Parts lists for every model are on the Atosa parts lists index.
