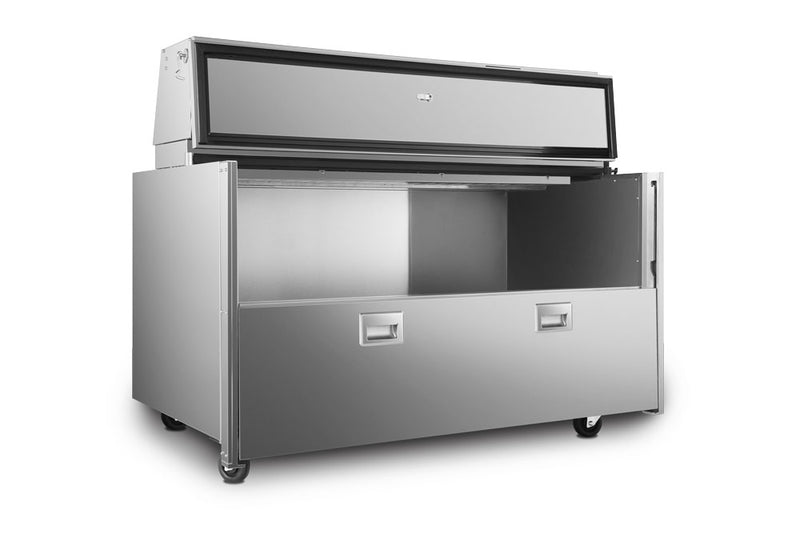

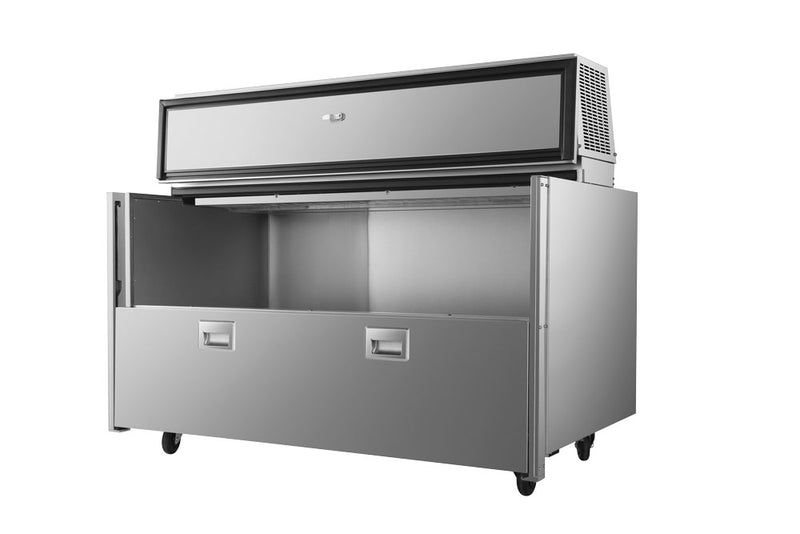

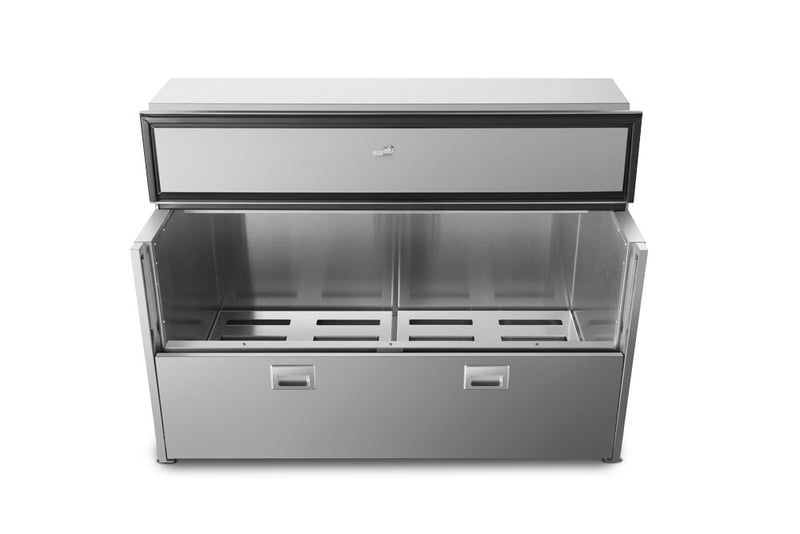

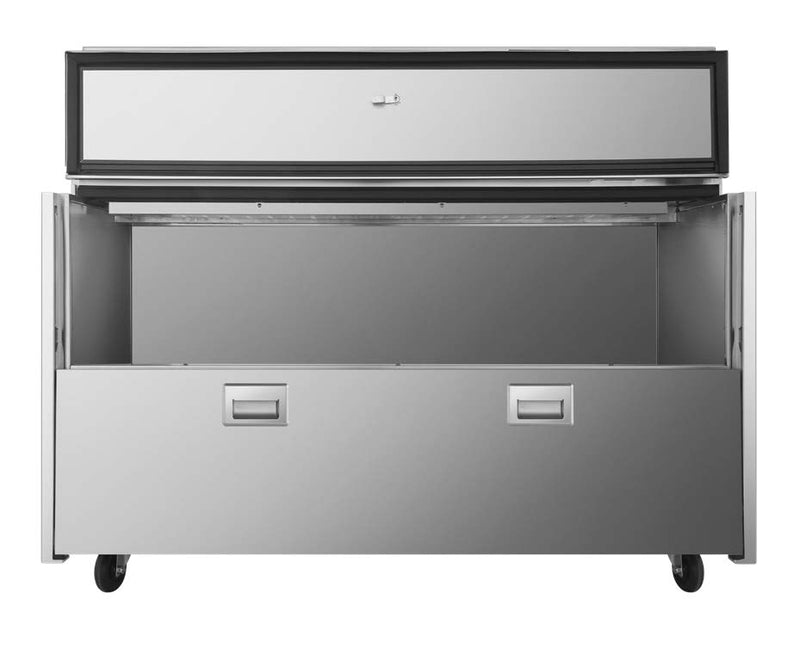

Atosa AMC-5801 58-Inch Milk Cooler, Single Access, 16 Crates, 20.09 cu. ft.
Atosa AMC-5801 58-Inch Milk Cooler, Single Access, 16 Crates, 20.09 cu. ft.
The Atosa AMC-5801 is a 58" wide forced air milk cooler with a sliding door on one side. It holds 16 milk crates (20.09 cu. ft.), and it plugs into a standard 115V outlet.
At a Glance
- Size: 58" W x 32-1/8" D x 47-1/8" H
- Holds: 16 milk crates (13" x 13")
- Storage: 20.09 cu. ft.
- Access: Sliding door on one side, door lock standard
- Cooling: Top mount forced air, digital controller; Atosa recommends 35°F to 38°F
- Power: 115V, 3.0 amps, standard plug (NEMA 5-15P)
- Warranty: 3 years parts and labor, 5 years compressor
Most units ship within one business day from our warehouse with free freight to the lower 48.
A 16 Crate Milk Cooler
This 16 crate milk cooler is the largest single access model. It holds 20.09 cu. ft. and opens from one side.
Is the 58" AMC-5801 Right for Your Cafeteria?
The AMC-5801 holds 16 standard 13" x 13" milk crates in 20.09 cu. ft., in a 58" wide by 32-1/8" deep cabinet. It suits large schools, back-to-back lunch periods and lines that need the most milk on hand.
The sliding door is on one side only, so staff load and serve from the same side. It fits best against a wall or at the end of a serving line, with the door side facing the students. Need access from both sides? The AMC-5802 is the same 16-crate size with sliding doors on both sides. Other single access sizes: AMC-3401 (8 crates) and AMC-4901 (12 crates).
Built for Daily Commercial Use
- Stainless steel inside and out
- Top mount forced air refrigeration
- Digital temperature controller
- R290 refrigerant
- Sliding door on one side
- Metal door handles
- Door lock standard
- Snap in door gaskets
- Heavy duty, reinforced floor
- Dunnage racks
- Floor drain with plug
- 4" casters
Pick the Right Size
| Model | Width | Access | Milk crates | Capacity |
|---|---|---|---|---|
| AMC-3401 | 34" | Single Access | 8 | 11.69 cu. ft. |
| AMC-3402 | 34" | Double Access | 8 | 11.69 cu. ft. |
| AMC-4901 | 49" | Single Access | 12 | 17.52 cu. ft. |
| AMC-4902 | 49" | Double Access | 12 | 17.52 cu. ft. |
| AMC-5801 (this model) | 58" | Single Access | 16 | 20.09 cu. ft. |
| AMC-5802 | 58" | Double Access | 16 | 20.09 cu. ft. |
Need to reach it from both sides? See the Atosa AMC-5802, the same size with sliding doors on both sides.
Shop all commercial milk coolers.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Forced air milk cooler, single access |
| Milk crate capacity | 16 crates (13" x 13") |
| Capacity | 20.09 cu. ft. |
| Doors | Sliding door on one side, metal handles, snap in gaskets, lock standard |
| Exterior dimensions | 58" W x 32-1/8" D x 47-1/8" H |
| Inside width | About 54" |
| Recommended setting | 35°F to 38°F |
| Temperature control | Digital |
| Refrigeration | Top mount, forced air |
| Compressor | 1/4 HP |
| Refrigerant | R290 |
| Construction | Stainless steel interior and exterior |
| Floor | Heavy duty, reinforced, with dunnage racks and floor drain with plug |
| Casters | 4" |
| Electrical | 115V / 60Hz / 1-phase, 3.0 amps |
| Plug | NEMA 5-15P |
| Net weight | 315 lb |
| Warranty | 3-year parts and labor, 5-year compressor; extended warranties up to 5 years available from Atosa |
| Certifications | cETLus, ETL-Sanitation |
Before You Order
- Plan for a standard 115V outlet with a NEMA 5-15 receptacle (3.0 amps).
- Check your space: the unit is 58" wide, 32-1/8" deep and 47-1/8" tall, with the door side facing the line.
- Count your crates: it holds 16 standard 13" x 13" milk crates. Size up if your busiest lunch period needs more.
- Plan the delivery: it weighs 315 lb and rolls into place on 4" casters.
- Leave the unit some room to breathe and clean the condenser often, as Atosa advises.
Atosa AMC-5801 FAQ
How many milk crates fit in the Atosa AMC-5801?
The AMC-5801 holds 16 standard 13" x 13" milk crates.
Is the AMC-5801 single or double access?
It is single access. It has a sliding door on one side. The AMC-5802 is the double access version.
What size is the AMC-5801?
It is 58" wide, 32-1/8" deep and 47-1/8" tall, and it weighs 315 lb.
What temperature should I set the AMC-5801 to?
Atosa recommends setting it between 35°F and 38°F. It has a digital temperature controller.
Does the AMC-5801 lock?
Yes. A door lock is standard on the AMC-5801, so the 16 crates can be locked up between meal periods.
Does the AMC-5801 have a drain?
Yes. The AMC-5801 has a floor drain with a plug, so you can wash out the 20.09 cu. ft. interior after spills.
What power does the AMC-5801 need?
The AMC-5801 runs on 115V and draws 3.0 amps. Its standard NEMA 5-15P plug goes into a regular 115V outlet near the serving line.
How often should I clean the AMC-5801 condenser?
Atosa says to clean the condenser frequently and to leave the unit some room to breathe. The 315 lb AMC-5801 rolls on 4" casters, so you can pull it out to reach the top-mount condenser area.
What warranty comes with the AMC-5801?
3 years parts and labor and 5 years on the compressor. Atosa also offers extended warranties up to 5 years.
Spec Sheet
Download the Atosa AMC-5801 spec sheet (PDF, Rev. 08/26)
OEM Parts We Stock for the AMC-5801
The Restaurant Warehouse stocks genuine Atosa replacement parts for the AMC-5801 refrigerator, including the W0301112 fan motor, the W0201042 compressor, the W0399177 power supply, the W0301061 fan blade, and the W0411216 drain pan for msf8302gr. Explore the full Atosa parts hub or view the operating instructions for service procedures.
AMC-5801 Parts & Service
For OEM replacement parts for the AMC-5801, see the AMC-5801 parts list, with part numbers and quantities from Atosa's exploded-view diagram. Parts lists for every model are on the Atosa parts lists index.
