Atosa AMC-3401 34-Inch Milk Cooler, Single Access, 8 Crates, 11.69 cu. ft.
Atosa AMC-3401 34-Inch Milk Cooler, Single Access, 8 Crates, 11.69 cu. ft.

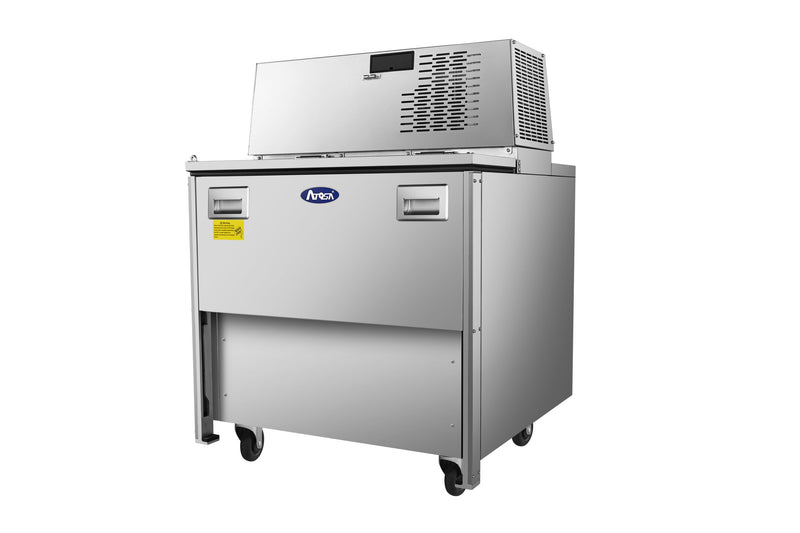

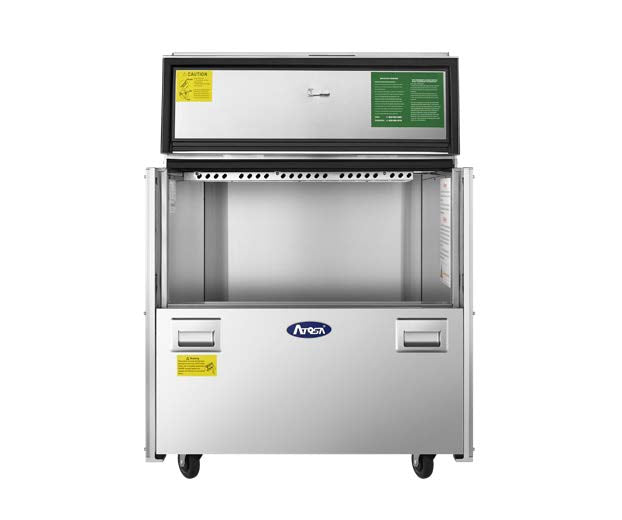

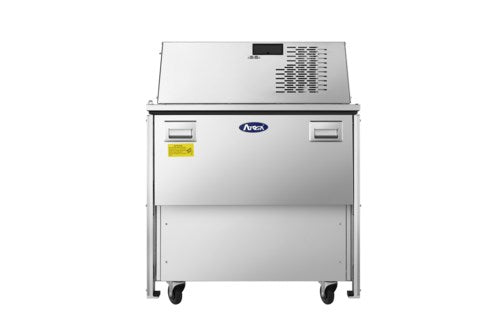

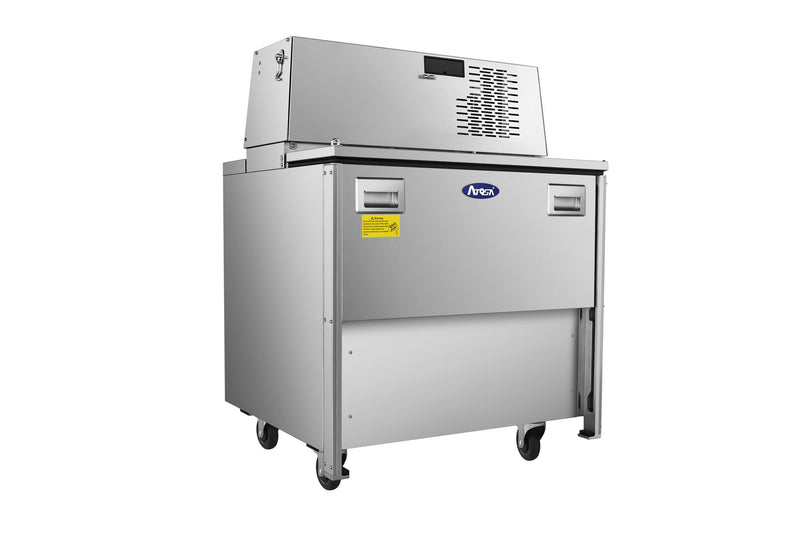

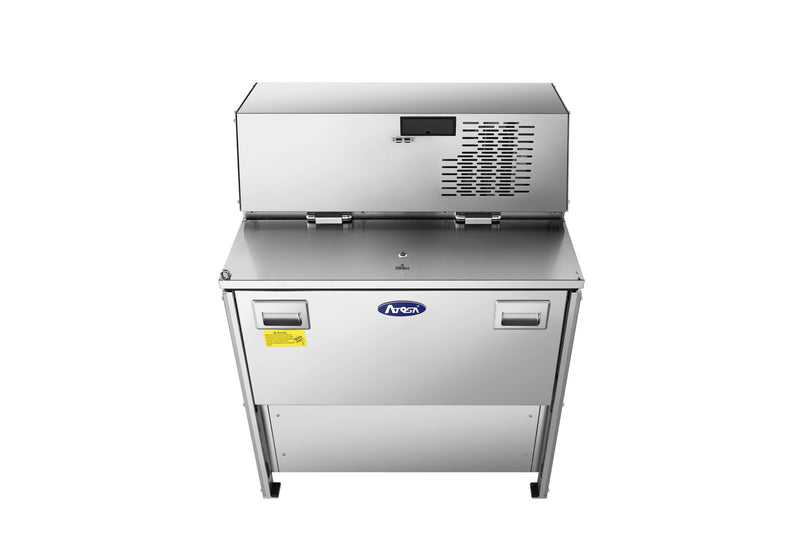

The Atosa AMC-3401 is a 34" wide forced air milk cooler with a sliding door on one side. It holds 8 milk crates (11.69 cu. ft.), and it plugs into a standard 115V outlet.
At a Glance
- Size: 34" W x 32-1/8" D x 47-1/8" H
- Holds: 8 milk crates (13" x 13")
- Storage: 11.69 cu. ft.
- Access: Sliding door on one side, door lock standard
- Cooling: Top mount forced air, digital controller; Atosa recommends 35°F to 38°F
- Power: 115V, 2.2 amps, standard plug (NEMA 5-15P)
- Warranty: 3 years parts and labor, 5 years compressor
Most units ship within one business day from our warehouse with free freight to the lower 48.
34-Inch Single-Access Milk Cooler for Compact Serving Lines
Designed for a single-sided serving line, this 34-inch milk cooler stores eight standard 13" x 13" milk crates in 11.69 cu. ft. of refrigerated space. Its one-sided sliding access is suited to locations where staff load and serve milk from the same side.
Is the 34" AMC-3401 Right for Your Cafeteria?
The AMC-3401 holds 8 standard 13" x 13" milk crates in 11.69 cu. ft., in a 34" wide by 32-1/8" deep cabinet. It suits smaller schools, childcare centers and short serving lines where space is tight.
The sliding door is on one side only, so staff load and serve from the same side. It fits best against a wall or at the end of a serving line, with the door side facing the students. Need access from both sides? The AMC-3402 is the same 8-crate size with sliding doors on both sides. Other single access sizes: AMC-4901 (12 crates) and AMC-5801 (16 crates).
Built for Daily Commercial Use
- Stainless steel inside and out
- Top mount forced air refrigeration
- Digital temperature controller
- R290 refrigerant
- Sliding door on one side
- Metal door handles
- Door lock standard
- Snap in door gaskets
- Heavy duty, reinforced floor
- Dunnage racks
- Floor drain with plug
- 4" casters
Pick the Right Size
| Model | Width | Access | Milk crates | Capacity |
|---|---|---|---|---|
| AMC-3401 (this model) | 34" | Single Access | 8 | 11.69 cu. ft. |
| AMC-3402 | 34" | Double Access | 8 | 11.69 cu. ft. |
| AMC-4901 | 49" | Single Access | 12 | 17.52 cu. ft. |
| AMC-4902 | 49" | Double Access | 12 | 17.52 cu. ft. |
| AMC-5801 | 58" | Single Access | 16 | 20.09 cu. ft. |
| AMC-5802 | 58" | Double Access | 16 | 20.09 cu. ft. |
Need to reach it from both sides? See the Atosa AMC-3402, the same size with sliding doors on both sides.
Shop all commercial milk coolers.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Forced air milk cooler, single access |
| Milk crate capacity | 8 crates (13" x 13") |
| Capacity | 11.69 cu. ft. |
| Doors | Sliding door on one side, metal handles, snap in gaskets, lock standard |
| Exterior dimensions | 34" W x 32-1/8" D x 47-1/8" H |
| Inside width | About 30-1/8" |
| Recommended setting | 35°F to 38°F |
| Temperature control | Digital |
| Refrigeration | Top mount, forced air |
| Compressor | 1/7 HP |
| Refrigerant | R290 |
| Construction | Stainless steel interior and exterior |
| Floor | Heavy duty, reinforced, with dunnage racks and floor drain with plug |
| Casters | 4" |
| Electrical | 115V / 60Hz / 1-phase, 2.2 amps |
| Plug | NEMA 5-15P |
| Net weight | 234 lb |
| Warranty | 3-year parts and labor, 5-year compressor; extended warranties up to 5 years available from Atosa |
| Certifications | cETLus, ETL-Sanitation |
Before You Order
- Plan for a standard 115V outlet with a NEMA 5-15 receptacle (2.2 amps).
- Check your space: the unit is 34" wide, 32-1/8" deep and 47-1/8" tall, with the door side facing the line.
- Count your crates: it holds 8 standard 13" x 13" milk crates. Size up if your busiest lunch period needs more.
- Plan the delivery: it weighs 234 lb and rolls into place on 4" casters.
- Leave the unit some room to breathe and clean the condenser often, as Atosa advises.
Atosa AMC-3401 FAQ
How many milk crates fit in the Atosa AMC-3401?
The AMC-3401 holds 8 standard 13" x 13" milk crates.
Is the AMC-3401 single or double access?
It is single access. It has a sliding door on one side. The AMC-3402 is the double access version.
What size is the AMC-3401?
It is 34" wide, 32-1/8" deep and 47-1/8" tall, and it weighs 234 lb.
What temperature should I set the AMC-3401 to?
Atosa recommends setting it between 35°F and 38°F. It has a digital temperature controller.
Does the AMC-3401 lock?
Yes. A door lock is standard on the AMC-3401, so the 8 crates can be locked up between meal periods.
Does the AMC-3401 have a drain?
Yes. The AMC-3401 has a floor drain with a plug, so you can wash out the 11.69 cu. ft. interior after spills.
What power does the AMC-3401 need?
The AMC-3401 runs on 115V and draws 2.2 amps. Its standard NEMA 5-15P plug goes into a regular 115V outlet near the serving line.
How often should I clean the AMC-3401 condenser?
Atosa says to clean the condenser frequently and to leave the unit some room to breathe. The 234 lb AMC-3401 rolls on 4" casters, so you can pull it out to reach the top-mount condenser area.
What warranty comes with the AMC-3401?
3 years parts and labor and 5 years on the compressor. Atosa also offers extended warranties up to 5 years.
Spec Sheet
Download the Atosa AMC-3401 spec sheet (PDF, Rev. 08/26)
Service Parts for the AMC-3401 Refrigerator
Extend the service life of your AMC-3401 with factory OEM replacement parts. In-stock service components include the W0301112 fan motor, the W0399177 power supply, the W0301061 fan blade, the W0201041 compressor, and the W0411216 drain pan for msf8302gr. Browse related Atosa replacement parts or reference the Atosa parts department guide for warranty and ordering information.
AMC-3401 Parts & Service
For OEM replacement parts for the AMC-3401, see the AMC-3401 parts list, with part numbers and quantities from Atosa's exploded-view diagram. Parts lists for every model are on the Atosa parts lists index.
