Atosa AMC-3402 34-Inch Milk Cooler, Double Access, 8 Crates, 11.69 cu. ft.
Atosa AMC-3402 34-Inch Milk Cooler, Double Access, 8 Crates, 11.69 cu. ft.

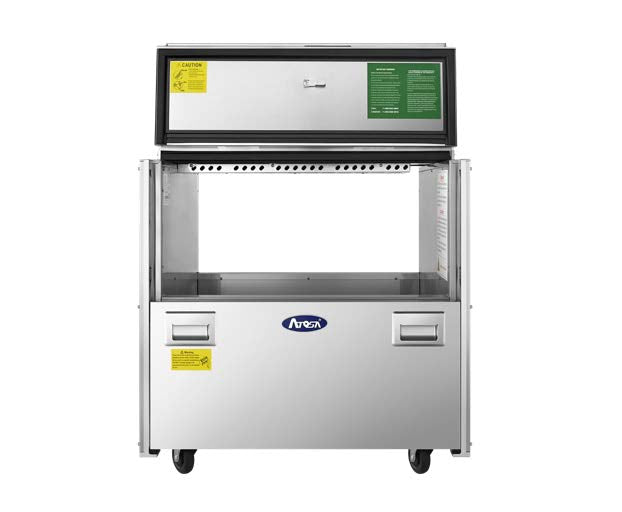

The Atosa AMC-3402 is a 34" wide forced air milk cooler with sliding doors on both sides. It holds 8 milk crates (11.69 cu. ft.), and it plugs into a standard 115V outlet.
At a Glance
- Size: 34" W x 34-1/4" D x 47-1/8" H
- Holds: 8 milk crates (13" x 13")
- Storage: 11.69 cu. ft.
- Access: Sliding doors on both sides, door lock standard
- Cooling: Top mount forced air, digital controller; Atosa recommends 35°F to 38°F
- Power: 115V, 2.2 amps, standard plug (NEMA 5-15P)
- Warranty: 3 years parts and labor, 5 years compressor
Most units ship within one business day from our warehouse with free freight to the lower 48.
34-Inch Double-Access Milk Cooler for Pass-Through Service
This 34-inch pass-through milk cooler stores eight standard 13" x 13" milk crates in 11.69 cu. ft. of refrigerated space. Sliding access on both sides lets staff restock from one side while students or customers take milk from the opposite side.
Is the 34" AMC-3402 Right for Your Cafeteria?
The AMC-3402 holds 8 standard 13" x 13" milk crates in 11.69 cu. ft., in a 34" wide by 34-1/4" deep cabinet. It suits smaller schools, childcare centers and short serving lines where space is tight.
Sliding doors on both sides let the kitchen load crates from the back while students take milk from the front, so it can sit between the kitchen and the line or in the middle of a serving line. Leave room for staff and students to reach both sides. Need one-sided access? The AMC-3401 is the same 8-crate size with a door on one side. Other double access sizes: AMC-4902 (12 crates) and AMC-5802 (16 crates).
Built for Daily Commercial Use
- Stainless steel inside and out
- Top mount forced air refrigeration
- Digital temperature controller
- R290 refrigerant
- Sliding doors on both sides
- Metal door handles
- Door lock standard
- Snap in door gaskets
- Heavy duty, reinforced floor
- Dunnage racks
- Floor drain with plug
- 4" casters
Pick the Right Size
| Model | Width | Access | Milk crates | Capacity |
|---|---|---|---|---|
| AMC-3401 | 34" | Single Access | 8 | 11.69 cu. ft. |
| AMC-3402 (this model) | 34" | Double Access | 8 | 11.69 cu. ft. |
| AMC-4901 | 49" | Single Access | 12 | 17.52 cu. ft. |
| AMC-4902 | 49" | Double Access | 12 | 17.52 cu. ft. |
| AMC-5801 | 58" | Single Access | 16 | 20.09 cu. ft. |
| AMC-5802 | 58" | Double Access | 16 | 20.09 cu. ft. |
Only need one side? See the Atosa AMC-3401, the same size with a sliding door on one side.
Shop all commercial milk coolers.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Forced air milk cooler, double access |
| Milk crate capacity | 8 crates (13" x 13") |
| Capacity | 11.69 cu. ft. |
| Doors | Sliding doors on both sides, metal handles, snap in gaskets, lock standard |
| Exterior dimensions | 34" W x 34-1/4" D x 47-1/8" H |
| Inside width | About 30-1/8" |
| Recommended setting | 35°F to 38°F |
| Temperature control | Digital |
| Refrigeration | Top mount, forced air |
| Compressor | 1/7 HP |
| Refrigerant | R290 |
| Construction | Stainless steel interior and exterior |
| Floor | Heavy duty, reinforced, with dunnage racks and floor drain with plug |
| Casters | 4" |
| Electrical | 115V / 60Hz / 1-phase, 2.2 amps |
| Plug | NEMA 5-15P |
| Net weight | 240 lb |
| Warranty | 3-year parts and labor, 5-year compressor; extended warranties up to 5 years available from Atosa |
| Certifications | cETLus, ETL-Sanitation |
Before You Order
- Plan for a standard 115V outlet with a NEMA 5-15 receptacle (2.2 amps).
- Check your space: the unit is 34" wide, 34-1/4" deep and 47-1/8" tall, plus room to reach both sliding doors.
- Count your crates: it holds 8 standard 13" x 13" milk crates. Size up if your busiest lunch period needs more.
- Plan the delivery: it weighs 240 lb and rolls into place on 4" casters.
- Leave the unit some room to breathe and clean the condenser often, as Atosa advises.
Atosa AMC-3402 FAQ
How many milk crates fit in the Atosa AMC-3402?
The AMC-3402 holds 8 standard 13" x 13" milk crates.
Is the AMC-3402 single or double access?
It is double access. It has sliding doors on both sides. The AMC-3401 is the single access version.
What size is the AMC-3402?
It is 34" wide, 34-1/4" deep and 47-1/8" tall, and it weighs 240 lb.
What temperature should I set the AMC-3402 to?
Atosa recommends setting it between 35°F and 38°F. It has a digital temperature controller.
Does the AMC-3402 lock?
Yes. A door lock is standard on the AMC-3402, so the 8 crates can be locked up between meal periods.
Does the AMC-3402 have a drain?
Yes. The AMC-3402 has a floor drain with a plug, so you can wash out the 11.69 cu. ft. interior after spills.
What power does the AMC-3402 need?
The AMC-3402 runs on 115V and draws 2.2 amps. Its standard NEMA 5-15P plug goes into a regular 115V outlet at the pass-through spot.
How often should I clean the AMC-3402 condenser?
Atosa says to clean the condenser frequently and to leave the unit some room to breathe. The 240 lb AMC-3402 rolls on 4" casters, so you can pull it out to reach the top-mount condenser area.
What warranty comes with the AMC-3402?
3 years parts and labor and 5 years on the compressor. Atosa also offers extended warranties up to 5 years.
Spec Sheet
Download the Atosa AMC-3402 spec sheet (PDF, Rev. 08/26)
OEM Parts We Stock for the AMC-3402
The Restaurant Warehouse stocks genuine Atosa replacement parts for the AMC-3402 refrigerator, including the W0301112 fan motor, the W0399177 power supply, the W0301061 fan blade, the W0201041 compressor, and the W0411216 drain pan for msf8302gr. Explore the full Atosa parts hub or view the operating instructions for service procedures.
AMC-3402 Parts & Service
For OEM replacement parts for the AMC-3402, see the AMC-3402 parts list, with part numbers and quantities from Atosa's exploded-view diagram. Parts lists for every model are on the Atosa parts lists index.
