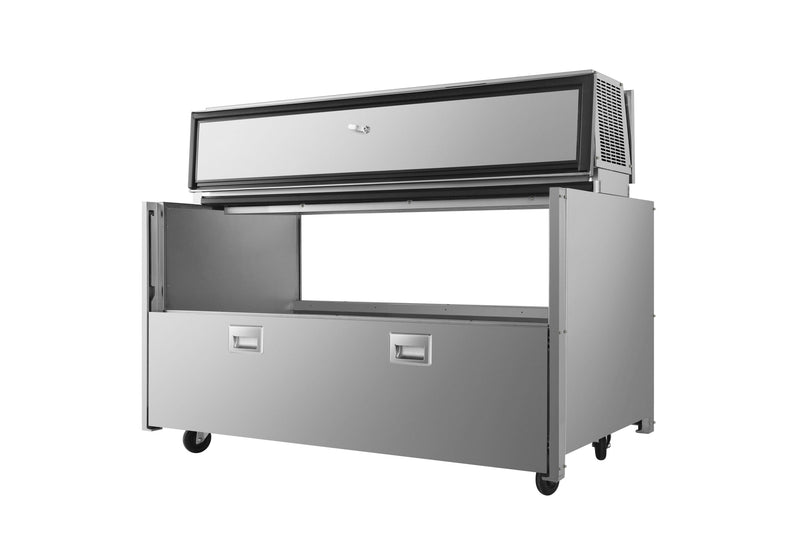

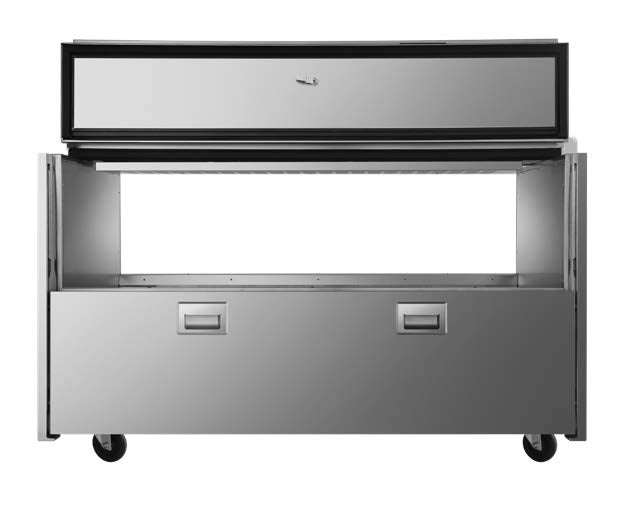

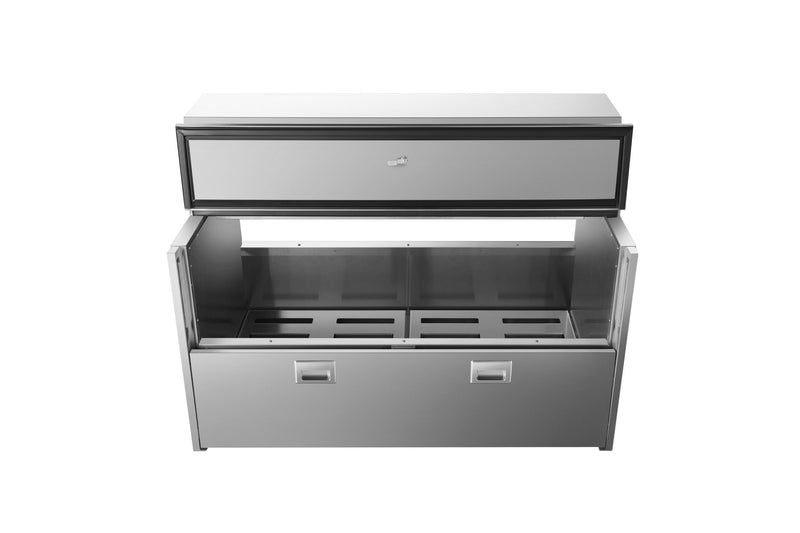

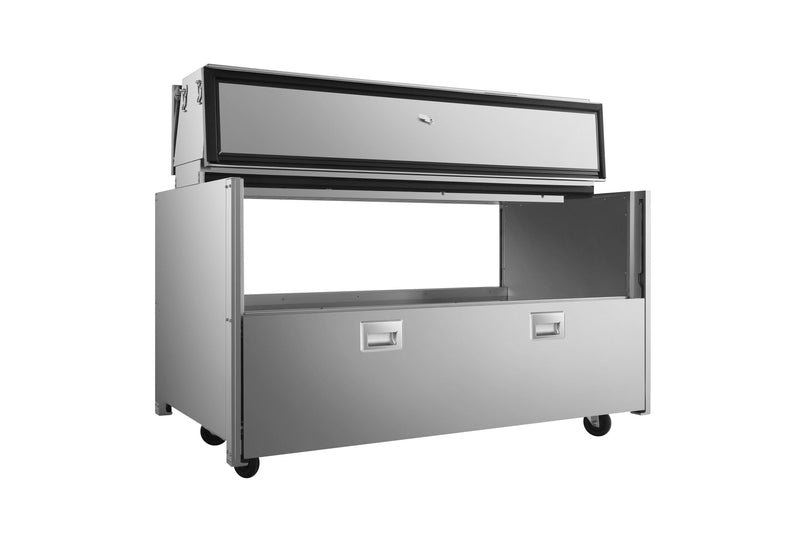

Atosa AMC-5802 58-Inch Milk Cooler, Double Access, 16 Crates, 20.09 cu. ft.
Atosa AMC-5802 58-Inch Milk Cooler, Double Access, 16 Crates, 20.09 cu. ft.
The Atosa AMC-5802 is a 58" wide forced air milk cooler with sliding doors on both sides. It holds 16 milk crates (20.09 cu. ft.), and it plugs into a standard 115V outlet.
At a Glance
- Size: 58" W x 34-1/4" D x 47-1/8" H
- Holds: 16 milk crates (13" x 13")
- Storage: 20.09 cu. ft.
- Access: Sliding doors on both sides, door lock standard
- Cooling: Top mount forced air, digital controller; Atosa recommends 35°F to 38°F
- Power: 115V, 3.0 amps, standard plug (NEMA 5-15P)
- Warranty: 3 years parts and labor, 5 years compressor
Most units ship within one business day from our warehouse with free freight to the lower 48.
A Double Sided Milk Cooler
This double sided milk cooler is the largest double access model. It holds 16 milk crates and opens from both sides, so loading and serving can happen at the same time.
Is the 58" AMC-5802 Right for Your Cafeteria?
The AMC-5802 holds 16 standard 13" x 13" milk crates in 20.09 cu. ft., in a 58" wide by 34-1/4" deep cabinet. It suits large schools, back-to-back lunch periods and lines that need the most milk on hand.
Sliding doors on both sides let the kitchen load crates from the back while students take milk from the front, so it can sit between the kitchen and the line or in the middle of a serving line. Leave room for staff and students to reach both sides. Need one-sided access? The AMC-5801 is the same 16-crate size with a door on one side. Other double access sizes: AMC-3402 (8 crates) and AMC-4902 (12 crates).
Built for Daily Commercial Use
- Stainless steel inside and out
- Top mount forced air refrigeration
- Digital temperature controller
- R290 refrigerant
- Sliding doors on both sides
- Metal door handles
- Door lock standard
- Snap in door gaskets
- Heavy duty, reinforced floor
- Dunnage racks
- Floor drain with plug
- 4" casters
Pick the Right Size
| Model | Width | Access | Milk crates | Capacity |
|---|---|---|---|---|
| AMC-3401 | 34" | Single Access | 8 | 11.69 cu. ft. |
| AMC-3402 | 34" | Double Access | 8 | 11.69 cu. ft. |
| AMC-4901 | 49" | Single Access | 12 | 17.52 cu. ft. |
| AMC-4902 | 49" | Double Access | 12 | 17.52 cu. ft. |
| AMC-5801 | 58" | Single Access | 16 | 20.09 cu. ft. |
| AMC-5802 (this model) | 58" | Double Access | 16 | 20.09 cu. ft. |
Only need one side? See the Atosa AMC-5801, the same size with a sliding door on one side.
Shop all commercial milk coolers.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Forced air milk cooler, double access |
| Milk crate capacity | 16 crates (13" x 13") |
| Capacity | 20.09 cu. ft. |
| Doors | Sliding doors on both sides, metal handles, snap in gaskets, lock standard |
| Exterior dimensions | 58" W x 34-1/4" D x 47-1/8" H |
| Inside width | About 54" |
| Recommended setting | 35°F to 38°F |
| Temperature control | Digital |
| Refrigeration | Top mount, forced air |
| Compressor | 1/4 HP |
| Refrigerant | R290 |
| Construction | Stainless steel interior and exterior |
| Floor | Heavy duty, reinforced, with dunnage racks and floor drain with plug |
| Casters | 4" |
| Electrical | 115V / 60Hz / 1-phase, 3.0 amps |
| Plug | NEMA 5-15P |
| Net weight | 330 lb |
| Warranty | 3-year parts and labor, 5-year compressor; extended warranties up to 5 years available from Atosa |
| Certifications | cETLus, ETL-Sanitation |
Before You Order
- Plan for a standard 115V outlet with a NEMA 5-15 receptacle (3.0 amps).
- Check your space: the unit is 58" wide, 34-1/4" deep and 47-1/8" tall, plus room to reach both sliding doors.
- Count your crates: it holds 16 standard 13" x 13" milk crates. Size up if your busiest lunch period needs more.
- Plan the delivery: it weighs 330 lb and rolls into place on 4" casters.
- Leave the unit some room to breathe and clean the condenser often, as Atosa advises.
Atosa AMC-5802 FAQ
How many milk crates fit in the Atosa AMC-5802?
The AMC-5802 holds 16 standard 13" x 13" milk crates.
Is the AMC-5802 single or double access?
It is double access. It has sliding doors on both sides. The AMC-5801 is the single access version.
What size is the AMC-5802?
It is 58" wide, 34-1/4" deep and 47-1/8" tall, and it weighs 330 lb.
What temperature should I set the AMC-5802 to?
Atosa recommends setting it between 35°F and 38°F. It has a digital temperature controller.
Does the AMC-5802 lock?
Yes. A door lock is standard on the AMC-5802, so the 16 crates can be locked up between meal periods.
Does the AMC-5802 have a drain?
Yes. The AMC-5802 has a floor drain with a plug, so you can wash out the 20.09 cu. ft. interior after spills.
What power does the AMC-5802 need?
The AMC-5802 runs on 115V and draws 3.0 amps. Its standard NEMA 5-15P plug goes into a regular 115V outlet at the pass-through spot.
How often should I clean the AMC-5802 condenser?
Atosa says to clean the condenser frequently and to leave the unit some room to breathe. The 330 lb AMC-5802 rolls on 4" casters, so you can pull it out to reach the top-mount condenser area.
What warranty comes with the AMC-5802?
3 years parts and labor and 5 years on the compressor. Atosa also offers extended warranties up to 5 years.
Spec Sheet
Download the Atosa AMC-5802 spec sheet (PDF, Rev. 08/26)
Genuine Replacement Parts for the AMC-5802
Keep your AMC-5802 refrigerator running like new with genuine OEM Atosa service parts. Common wear components we stock include the W0301112 fan motor, the W0201042 compressor, the W0399177 power supply, the W0301061 fan blade, and the W0411216 drain pan for msf8302gr. Browse the complete Atosa parts catalog or reference the Atosa parts manuals for compatibility.
AMC-5802 Parts & Service
For OEM replacement parts for the AMC-5802, see the AMC-5802 parts list, with part numbers and quantities from Atosa's exploded-view diagram. Parts lists for every model are on the Atosa parts lists index.
