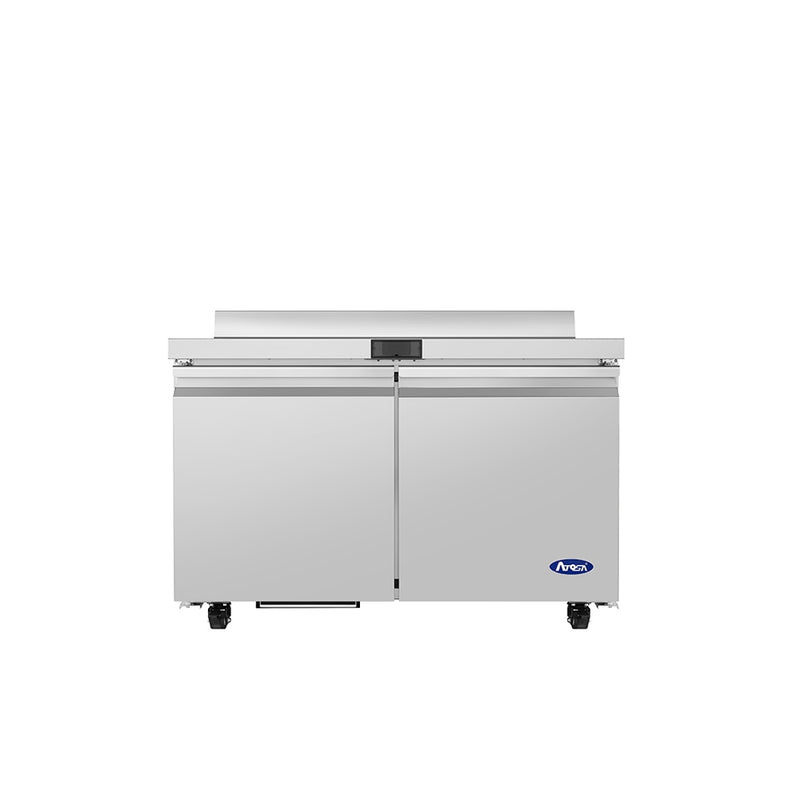

The Atosa AWF48SD is a 48 inch commercial worktop freezer: a freezer underneath and a reinforced stainless steel work surface on top, with a backsplash at the back. It holds 12.22 cu. ft. at -8°F to 0°F. It replaces the older Atosa MGF8413GR worktop freezer.
Two doors give you two sections, with one shelf in each, under a 48-1/4" worktop. A good size for pizza, sandwich and fry stations. It is 48-1/4" wide, 30" deep and 38-7/8" tall to the top of the backsplash on its 5" casters.
See all commercial worktop freezers, or browse undercounter freezers if you only need the freezer without the worktop.
Most units ship within one business day from our warehouse with free freight to the lower 48.
Why a Worktop Freezer
A worktop freezer gives you two things in one footprint: frozen storage and a place to prep. It works like a freezer prep table at counter height, so cooks can portion and assemble right on top and grab frozen product from below without walking to the walk-in. It is a smart pick for any commercial kitchen where floor space is tight.
- Sandwich and wrap stations: frozen proteins and bread below, assembly on top
- Pizza lines: dough balls and toppings at the make table
- Fry stations: fries, wings and breaded items next to the fryer
- Food trucks and kiosks: one unit does the job of a freezer and a counter
- Butcher and meat prep: cut on top, store portions underneath
Cooling and Controls
A 1/4+ HP compressor runs on R290, a natural refrigerant. The electronic temperature controller holds -8°F to 0°F. It is a self-contained, plug-in unit, so there is nothing to plumb.
Built for a Commercial Kitchen
The inside and outside are stainless steel. The top is reinforced, and the backsplash is foamed in place. Each door closes on its own and stays open when you swing it all the way. Magnetic gaskets seal tight, and the doors are field-reversible. It comes with 2 epoxy-coated shelves, one per section.
The Atosa Worktop Freezer Line
Every Atosa worktop freezer has a reinforced stainless top, a backsplash and R290 refrigeration. Pick doors for bulk storage or drawers for pans:
| Model | Doors / drawers | Width | Capacity |
|---|---|---|---|
| AWF27SD | 1 door | 27-1/2" | 6.53 cu. ft. |
| AWF36SD | 2 doors | 36-3/8" | 8.97 cu. ft. |
| AWF48SD (this model) | 2 doors | 48-1/4" | 12.22 cu. ft. |
| AWF60SD | 2 doors | 60-1/4" | 15.5 cu. ft. |
| AWF27D2 | 2 drawers | 27-1/2" | 6.53 cu. ft. |
| AWF36D2 | 2 drawers | 36-3/8" | 8.97 cu. ft. |
| AWF48D4 | 4 drawers | 48-1/4" | 12.22 cu. ft. |
| AWF60D4 | 4 drawers | 60-1/4" | 15.5 cu. ft. |
Specifications
| Spec | Detail |
|---|---|
| Configuration | Worktop freezer with backsplash, 2-section |
| Doors | (2) self-closing solid doors with stay-open feature, field-reversible |
| Capacity | 12.22 cu. ft. |
| Shelves | (2) epoxy-coated shelves, one per section |
| Top | Reinforced stainless steel, foamed-in-place backsplash |
| Exterior dimensions | 48-1/4" W x 30" D x 38-7/8" H (on 5" casters) |
| Casters | 5", pre-installed |
| Refrigerant | R290 hydrocarbon |
| Compressor | 1/4+ HP |
| Temperature range | -8°F to 0°F |
| Temperature control | Electronic |
| Construction | Stainless steel interior and exterior |
| Door gasket | Magnetic |
| Electrical | 115V / 60Hz / 1-phase, 4.8 amps |
| Plug | NEMA 5-15P |
| Net weight | 201 lb |
| Shipping weight | 278 lb |
| Warranty | 3-year parts and labor, 5-year compressor (extended warranty up to 5 years available) |
| Certifications | cETLus, ETL-Sanitation |
Installation and Care
Set the unit on a level floor and plug it into a standard 115V outlet with a NEMA 5-15 receptacle. Leave it some room to breathe so the compressor gets fresh air, and clean the condenser often.
Atosa AWF48SD FAQ
What size is the Atosa AWF48SD?
The AWF48SD is 48-1/4" wide, 30" deep and 38-7/8" tall to the top of the backsplash on its standard 5" casters. It weighs 201 lb (278 lb shipping weight).
How much does the AWF48SD hold?
It holds 12.22 cu. ft. and comes with 2 pre-installed shelves, one per section.
What temperature does the AWF48SD hold?
It holds -8°F to 0°F with an electronic temperature controller.
Can I prep on top of the AWF48SD?
Yes. It is a worktop freezer: the reinforced stainless steel top is a work surface, and the foamed-in-place backsplash keeps spills off the wall.
What casters come with the AWF48SD?
It ships on pre-installed 5" casters, with an overall height of 38-7/8" to the top of the backsplash.
Can I reverse the doors on the AWF48SD?
Yes. The doors are field-reversible, so you can switch the hinge side at install.
What power does the AWF48SD need?
It runs on 115V / 60Hz / 1-phase and draws 4.8 amps. It has a NEMA 5-15P plug, so it plugs into a standard 115V outlet.
How often should I clean the AWF48SD condenser?
Atosa says to clean the condenser frequently. Pull the unit out on its casters, vacuum the condenser coil, and brush off any flour, dust or grease. A clean condenser helps the freezer hold temperature.
What warranty comes with the AWF48SD?
3 years parts and labor and 5 years on the compressor. Extended coverage up to 5 years is available.
