Atosa AWF27D2 27" Two Drawer Worktop Freezer with Backsplash, 6.53 cu. ft.
Atosa AWF27D2 27" Two Drawer Worktop Freezer with Backsplash, 6.53 cu. ft.

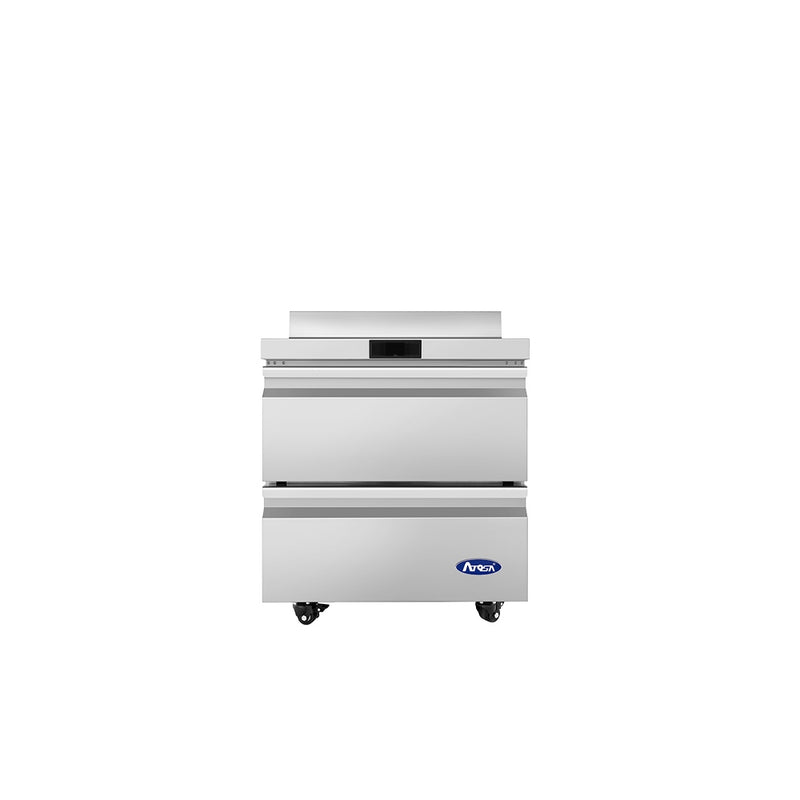

The Atosa AWF27D2 is a 27 inch worktop freezer with two drawers: frozen pan storage underneath and a reinforced stainless steel work surface on top, with a backsplash at the back. It holds 6.53 cu. ft. at -8°F to 1°F. It replaces the older Atosa MGF8428GR worktop freezer.
It is 27-1/2" wide, 30" deep and 38-7/8" tall to the top of the backsplash on its 5" casters. See all commercial worktop freezers.
Most units ship within one business day from our warehouse with free freight to the lower 48.
Pan Layouts
The drawers are sized for standard hotel pans. In Atosa's standard layout, the top drawer holds nine 1/6-size pans and the bottom drawer holds six 1/6-size pans. You can also set the drawers up with bigger pans:
- Option 1: one full-size pan plus three 1/6-size pans in the top drawer, one full-size pan in the bottom drawer
- Option 2: three 1/3-size pans plus three 1/6-size pans in the top drawer, three 1/3-size pans in the bottom drawer
Mix pan sizes to keep proteins, breaded items, toppings and allergen-free product apart.
Why a Worktop Freezer with Drawers
A worktop freezer with drawers works like a freezer prep table: cooks prep on top and pull frozen pans from the drawers below, all at counter height. Drawers keep every pan in view, and each one opens on its own. It is a strong fit for sandwich, pizza and fry stations, food trucks and any kitchen where floor space is tight.
Cooling and Controls
A 1/5 HP compressor runs on R290, a natural refrigerant. The electronic temperature controller holds -8°F to 1°F, and Atosa recommends setting it between -8°F and 0°F. It is a self-contained, plug-in unit, so there is nothing to plumb.
Built for a Commercial Kitchen
The inside and outside are stainless steel, and the top is reinforced stainless steel, with a backsplash at the back. It has recessed handles and magnetic drawer gaskets.
Casters and Height
It ships on 5" casters, which put the overall height at 38-7/8". Atosa offers these caster options:
| Caster | Part # (with brake) | Part # (no brake) | Overall height |
|---|---|---|---|
| 1.2" low-profile swivel plate | R06001000228 | R06001000229 | 34-3/4" |
| 1.5" low-profile swivel plate | R06001000063 | N/A | 35-3/8" |
| 2" swivel plate | B0604434 | B0604433 | 36" |
| 4" swivel stem | B0604421 | B0604413 | 37-7/8" |
| 5" swivel stem (standard) | B0604007 | B0604006 | 38-7/8" |
The Atosa Worktop Freezer Line
| Model | Doors / drawers | Width | Capacity |
|---|---|---|---|
| AWF27SD | 1 door | 27-1/2" | 6.53 cu. ft. |
| AWF36SD | 2 doors | 36-3/8" | 8.97 cu. ft. |
| AWF48SD | 2 doors | 48-1/4" | 12.22 cu. ft. |
| AWF60SD | 2 doors | 60-1/4" | 15.5 cu. ft. |
| AWF27D2 (this model) | 2 drawers | 27-1/2" | 6.53 cu. ft. |
| AWF36D2 | 2 drawers | 36-3/8" | 8.97 cu. ft. |
| AWF48D4 | 4 drawers | 48-1/4" | 12.22 cu. ft. |
| AWF60D4 | 4 drawers | 60-1/4" | 15.5 cu. ft. |
Specifications
| Spec | Detail |
|---|---|
| Configuration | Worktop Freezer with Backsplash, 2 drawers |
| Drawers | (2) drawers, recessed handles, magnetic gaskets |
| Capacity | 6.53 cu. ft. |
| Standard pan layout | Top drawer: nine 1/6-size pans. Bottom drawer: six 1/6-size pans |
| Top | Reinforced stainless steel, backsplash |
| Exterior dimensions | 27-1/2" W x 30" D x 38-7/8" H (on 5" casters) |
| Casters | 5" caster, pre-installed |
| Refrigerant | R290 hydrocarbon |
| Compressor | 1/5 HP |
| Temperature range | -8°F to 1°F (Atosa recommends -8°F to 0°F) |
| Temperature control | Electronic |
| Construction | Stainless steel interior and exterior |
| Electrical | 115V / 60Hz / 1-phase, 3.9 amps |
| Plug | NEMA 5-15P |
| Warranty | 3-year parts and labor, 5-year compressor (extended warranty up to 5 years available) |
| Certifications | cETLus, ETL-Sanitation |
Installation and Care
Set the unit on a level floor and plug it into a standard 115V outlet with a NEMA 5-15 receptacle. Leave it some room to breathe so the compressor gets fresh air, and clean the condenser often.
Atosa AWF27D2 FAQ
What size is the Atosa AWF27D2?
The AWF27D2 is 27-1/2" wide, 30" deep and 38-7/8" tall to the top of the backsplash on its standard 5" casters.
What pans fit in the AWF27D2 drawers?
In Atosa's standard layout, the top drawer holds nine 1/6-size pans and the bottom drawer holds six 1/6-size pans. You can also set the drawers up with full-size, 1/3 and 1/6-size pans.
What temperature does the AWF27D2 hold?
It holds -8°F to 1°F with an electronic temperature controller. Atosa recommends setting it between -8°F and 0°F for the best food quality.
Why choose drawers instead of doors?
With drawers, cooks see every pan from above and grab what they need without bending and digging. Each drawer opens on its own.
Can I prep on top of the AWF27D2?
Yes. It is a worktop freezer: the reinforced stainless steel top is a work surface, and the backsplash keeps spills off the wall.
What casters come with the AWF27D2?
It ships on 5" casters, part B0604007 with brake and B0604006 without. Other caster heights are available.
What power does the AWF27D2 need?
It runs on 115V / 60Hz / 1-phase and draws 3.9 amps. It has a NEMA 5-15P plug, so it plugs into a standard 115V outlet.
How often should I clean the AWF27D2 condenser?
Atosa says to clean the condenser frequently. Pull the unit out on its casters, vacuum the condenser coil, and brush off any flour, dust or grease. A clean condenser helps the freezer hold temperature.
What warranty comes with the AWF27D2?
3 years parts and labor and 5 years on the compressor. Extended coverage up to 5 years is available.
