Atosa AUF48D4 48" Four Drawer Undercounter Freezer, 12.2 cu. ft.

Atosa AUF48D4 48" Four Drawer Undercounter Freezer, 12.2 cu. ft.

The Atosa AUF48D4 is a 48 inch commercial drawer freezer that fits under the counter. It holds 12.2 cu. ft. at -8°F to 1°F in four pull-out drawers.

It is 48-1/4" wide, 30" deep and 32-3/8" tall on its 2" casters, so it slides under a standard 36" high prep counter. The top is reinforced stainless steel. See all undercounter freezers or the full Atosa undercounter freezer line.

Most units ship within one business day from our warehouse with free freight to the lower 48.

Pan Layouts

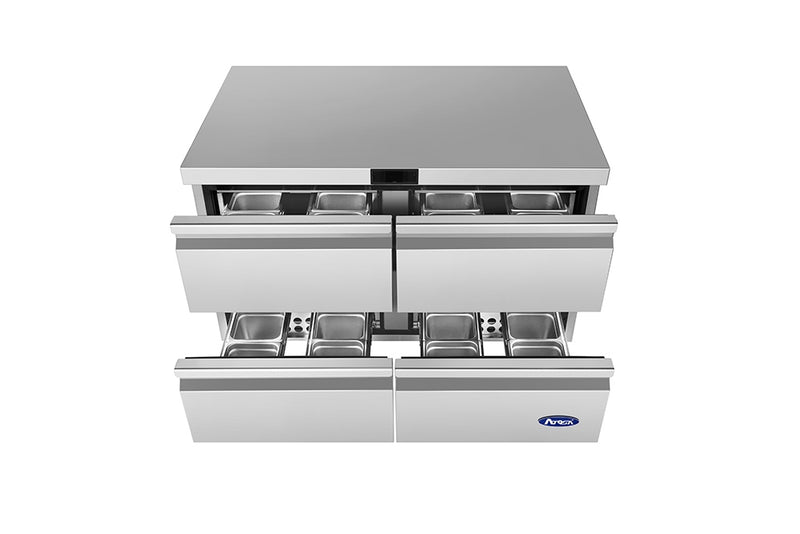

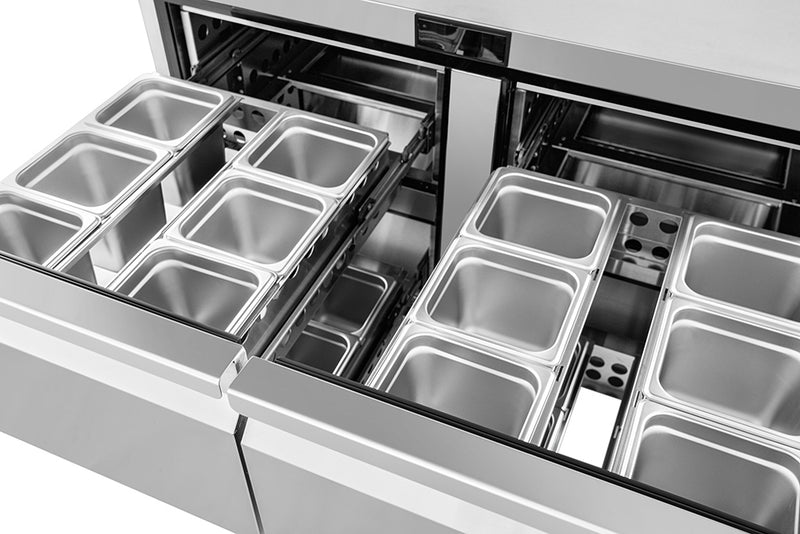

The drawers are sized for standard hotel pans. In Atosa's standard layout, each top drawer holds six 1/6-size pans and each bottom drawer holds four 1/6-size pans. You can also set the drawers up with bigger pans:

• Option 1: one 1/3, one 1/2, one 1/6 and one 1/4-size pan in each top drawer, one 1/3-size pan and one 1/2-size pan in each bottom drawer
• Option 2: three 1/6-size pans plus three 1/4-size pans in each top drawer, two 1/6-size pans plus two 1/4-size pans in each bottom drawer

Mix pan sizes to keep proteins, breaded items, toppings and allergen-free product apart.

Why Under Counter Freezer Drawers

Under counter freezer drawers put every pan in view from above. Cooks pull a drawer, grab what they need and close it, without kneeling down and digging through shelves. Each drawer opens on its own. Need a worktop with a backsplash instead? See the AWF48D4.

Cooling and Controls

A 1/3 HP compressor runs on R290, a natural refrigerant. The electronic temperature controller holds -8°F to 1°F, and Atosa recommends setting it between -8°F and 0°F. It is a self-contained, plug-in unit, so there is nothing to plumb.

Built for a Commercial Kitchen

The inside and outside are stainless steel, and the top is reinforced stainless steel. It has recessed handles and magnetic drawer gaskets.

Casters and Height

It ships on 2" casters, which put the overall height at 32-3/8". Atosa offers these caster options:

Pick the Right Size

Specifications

Installation and Care

Set the unit on a level floor and plug it into a standard 115V outlet with a NEMA 5-15 receptacle. Leave it some room to breathe so the compressor gets fresh air, and clean the condenser often.

Atosa AUF48D4 FAQ

What size is the Atosa AUF48D4?

The AUF48D4 is 48-1/4" wide, 30" deep and 32-3/8" tall on its standard 2" casters. It weighs 271 lb (348 lb shipping weight).

What pans fit in the AUF48D4 drawers?

In Atosa's standard layout, each top drawer holds six 1/6-size pans and each bottom drawer holds four 1/6-size pans. You can also set the drawers up with 1/3, 1/2, 1/6 and 1/4-size pans.

What temperature does the AUF48D4 hold?

It holds -8°F to 1°F with an electronic temperature controller. Atosa recommends setting it between -8°F and 0°F for the best food quality.

Why choose drawers instead of doors?

With drawers, cooks see every pan from above and grab what they need without bending and digging. Each drawer opens on its own.

What casters come with the AUF48D4?

It ships on 2" casters, part B0604434 with brake and B0604433 without. Other caster heights are available.

What power does the AUF48D4 need?

It runs on 115V / 60Hz / 1-phase and draws 4.8 amps. It has a NEMA 5-15P plug, so it plugs into a standard 115V outlet.

How often should I clean the AUF48D4 condenser?

Atosa says to clean the condenser frequently. Pull the unit out on its casters, vacuum the condenser coil, and brush off any flour, dust or grease. A clean condenser helps the freezer hold temperature.

What warranty comes with the AUF48D4?

3 years parts and labor and 5 years on the compressor. Extended coverage up to 5 years is available.

Spec Sheet

Download the Atosa AUF48D4 spec sheet (PDF, Rev. 08/26)
