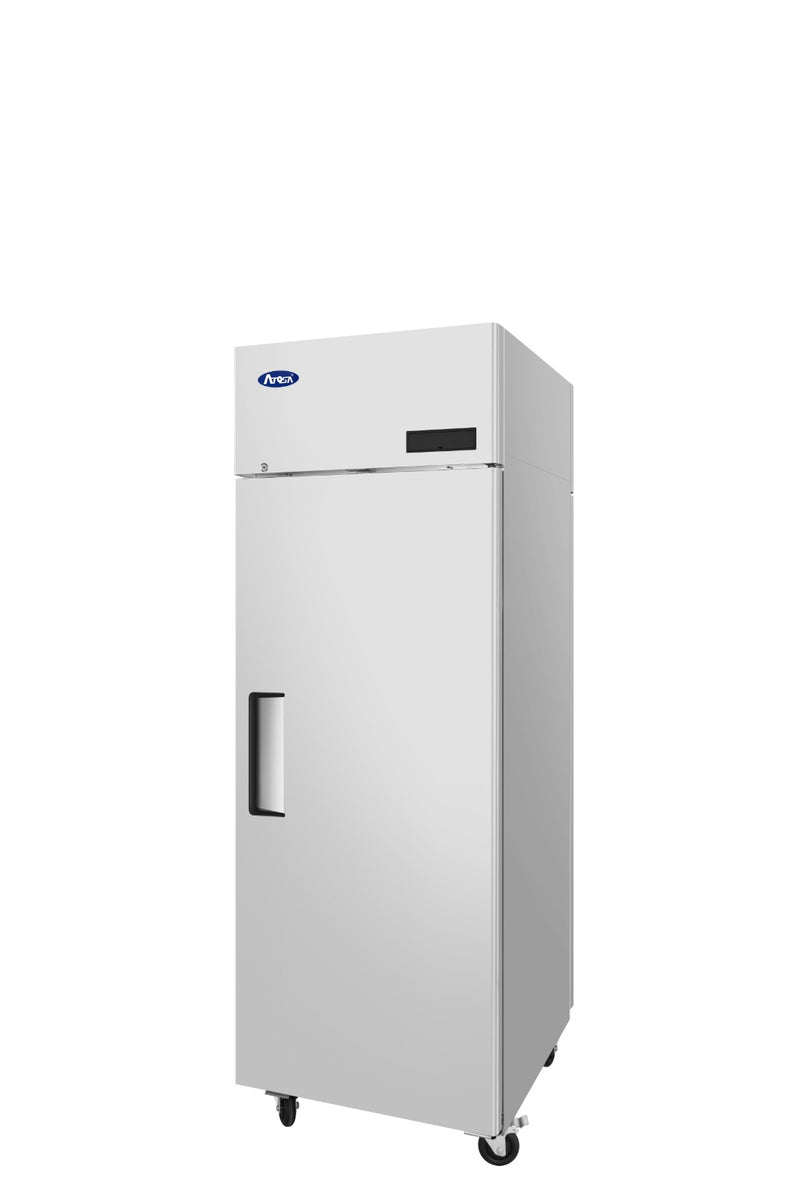

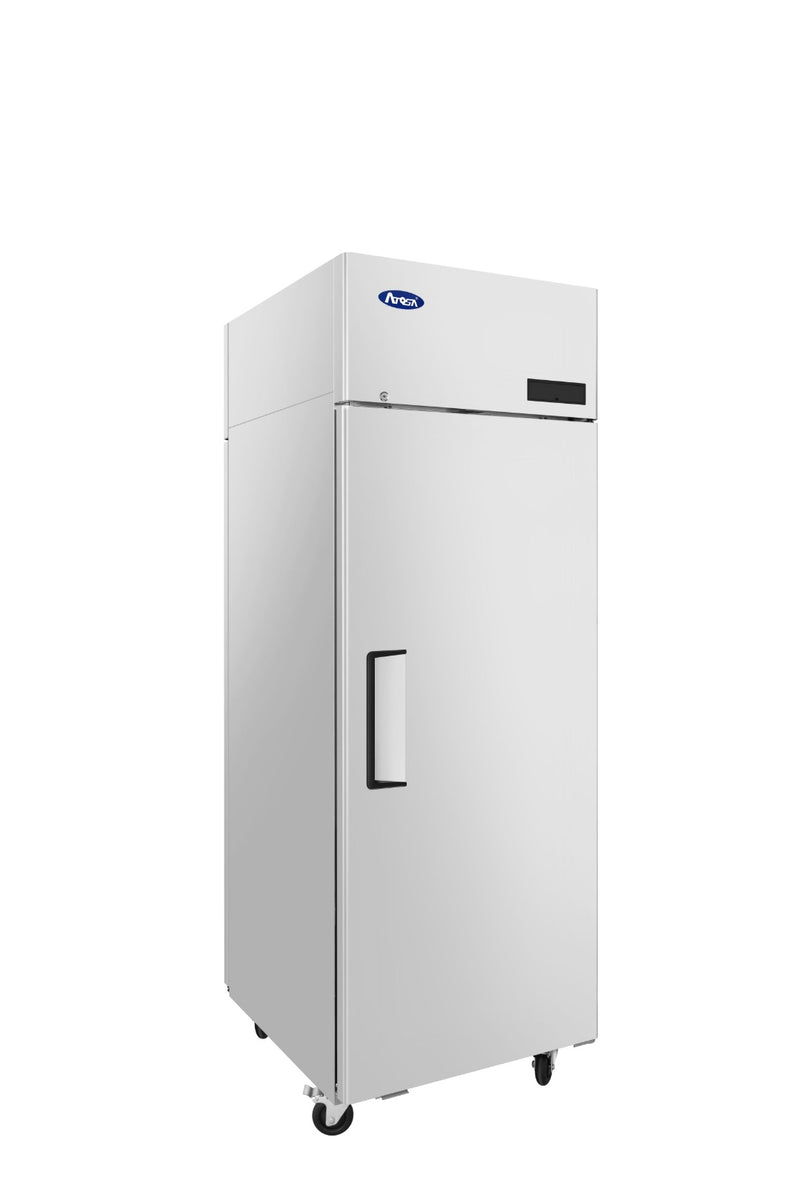

Atosa PLUS-R1-SD-R-PT 29" 1-Section Solid Door Pass-Thru Refrigerator

The Atosa PLUS-R1-SD-R-PT is a 1-section solid door pass-thru refrigerator built for high-volume kitchens where product needs to be loaded from one side and pulled from the other. Front and rear doors give servers and cooks independent access without crossing paths.

Key Features

• 2 Solid Doors (1 Front + 1 Rear) — self-closing with automatic stay-open feature

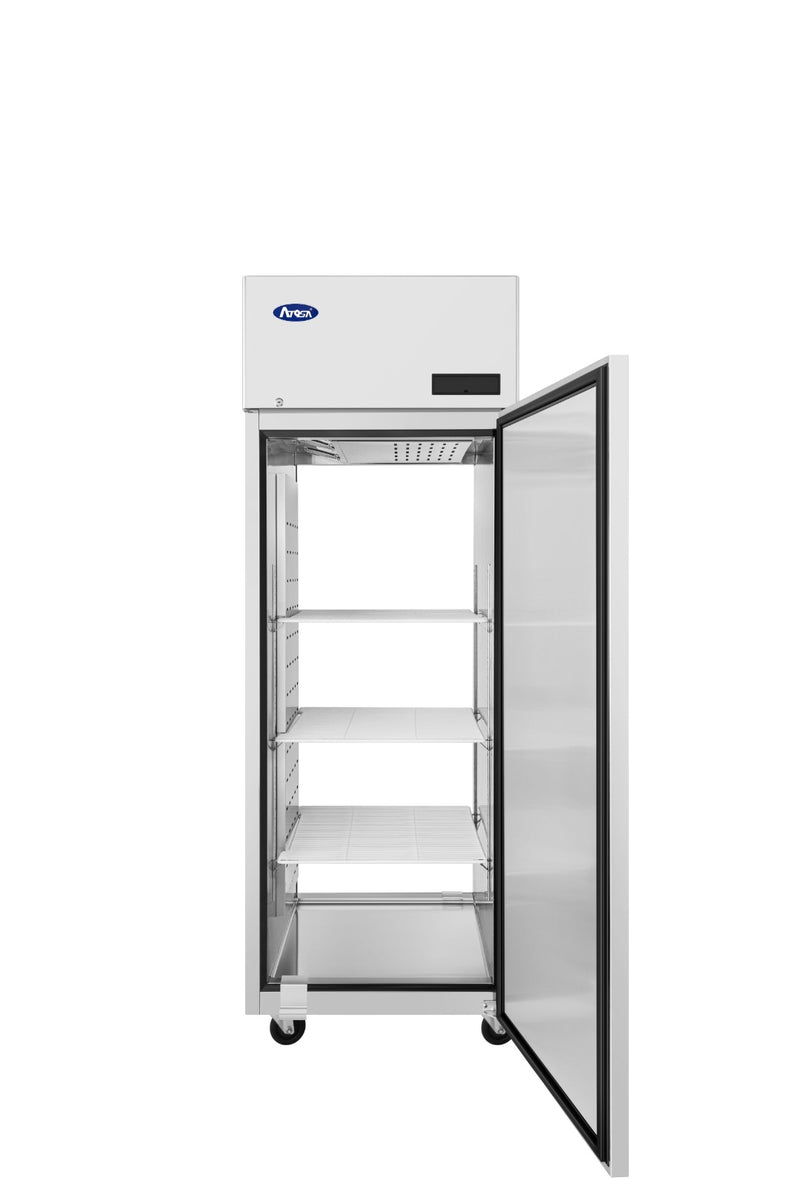

• 23.7 cu ft capacity with 3 adjustable shelves and pre-installed shelf clips
• Cubigel compressor with environmentally friendly R290 hydrocarbon refrigerant
• Full electronic controller maintains 35°F to 38°F operating range
• LED interior lighting for clear product visibility

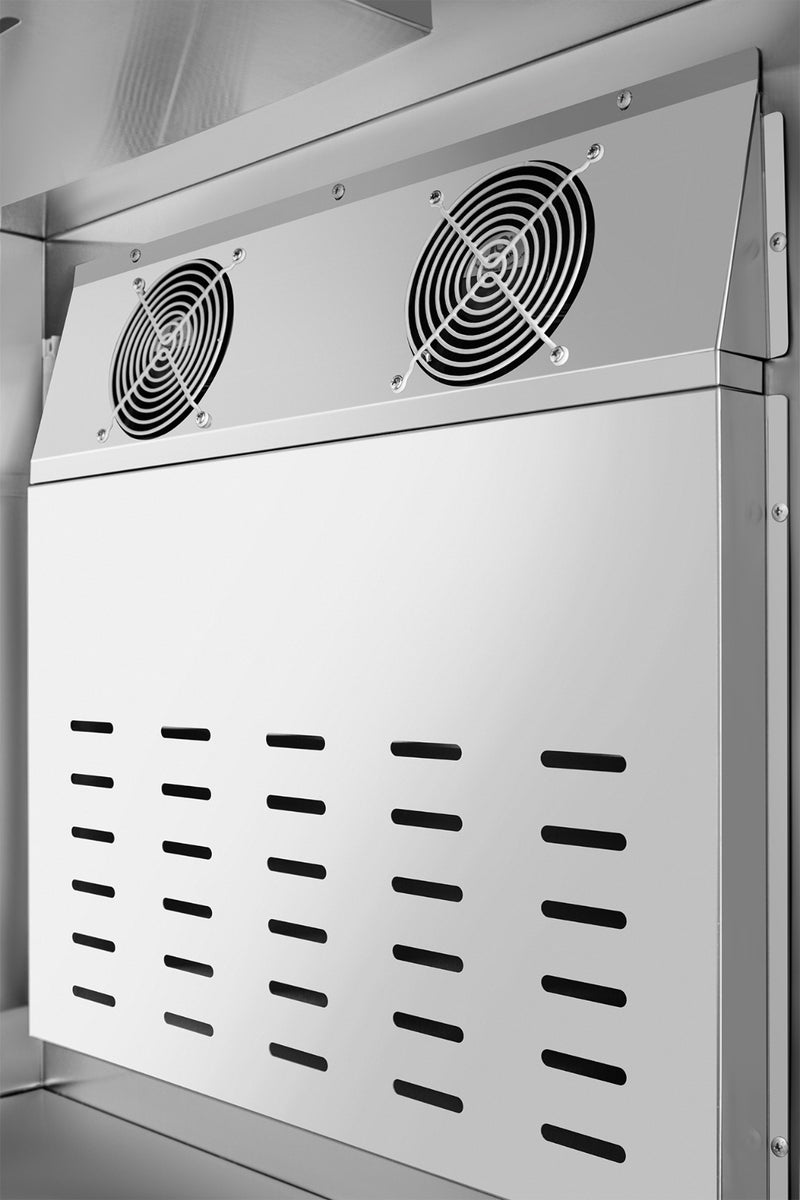

• Down-duct airflow system for balanced temperature distribution
• Stainless steel exterior and interior with magnetic door gaskets
• Door locks standard on all doors, front and rear
• 4" heavy-duty casters pre-installed (2 with brakes)

Specifications

• Model: PLUS-R1-SD-R-PT
• Configuration: 1-Section pass-thru, 2 Solid Doors (1 Front + 1 Rear)
• Capacity: 23.7 cu ft
• Shelves: 3 included
• Exterior Dimensions: 28-3/4" W x 33-7/8" D x 82-7/8" H
• Electrical: 115V / 60Hz / 1-phase / 3.7 amps, NEMA 5-15P plug
• Compressor: 1/3 HP
• Refrigerant: R290
• Temperature Range: 35°F to 38°F
• Net Weight: 287 lb / Gross Weight: 331 lb

Warranty

3-year parts and labor warranty on entire unit, plus 5-year warranty on the compressor.

Downloads

Download the Atosa Reach-In Pass-Thru Solid Door Refrigerator spec sheet (PDF)
