Atosa PLUS-F1-SD-R-PT 29-Inch Pass-Thru Freezer, One Section, Front and Rear Solid Doors, 23.7 cu. ft.

Atosa PLUS-F1-SD-R-PT 29-Inch Pass-Thru Freezer, One Section, Front and Rear Solid Doors, 23.7 cu. ft.

The Atosa PLUS-F1-SD-R-PT is a 29" pass-thru freezer with a solid door on the front and another on the back. Your prep side loads it, and your service side unloads it, without anyone walking around.

It holds 23.7 cu. ft. at -4°F to 1°F, comes with 3 shelves, and plugs into a standard 115V outlet.

At a Glance

• Size: 28-3/4" W x 33-7/8" D x 82-7/8" H
• Storage: 23.7 cu. ft., 3 shelves
• Doors: 1 front and 1 rear solid door, both lock
• Temperature: -4°F to 1°F
• Power: 115V, 5.3 amps, standard plug (NEMA 5-15P)
• Warranty: 3 years parts and labor, 5 years compressor

Most units ship within one business day from our warehouse with free freight to the lower 48.

What Is a Pass-Through Freezer?

A pass-through freezer (also written pass-thru freezer) has doors on both sides. It sits in a wall opening or between two work areas. Cooks load frozen product from the back, and the line or service staff take it out the front. It cuts down on foot traffic and keeps the two sides moving.

Good For

• Hospitals and schools: kitchen side loads, serving side unloads
• Commissaries and caterers: prep room on one side, packing on the other
• Busy restaurants: back of house restocks without stepping onto the line
• Hotels and banquet kitchens: frozen stock between prep and plating

Built for Daily Commercial Use

• Front and rear solid doors, self-closing with a stay-open feature
• Door locks standard, magnetic door gaskets
• Heavy duty GMCC compressor with R290, a natural refrigerant
• Full electronic controller

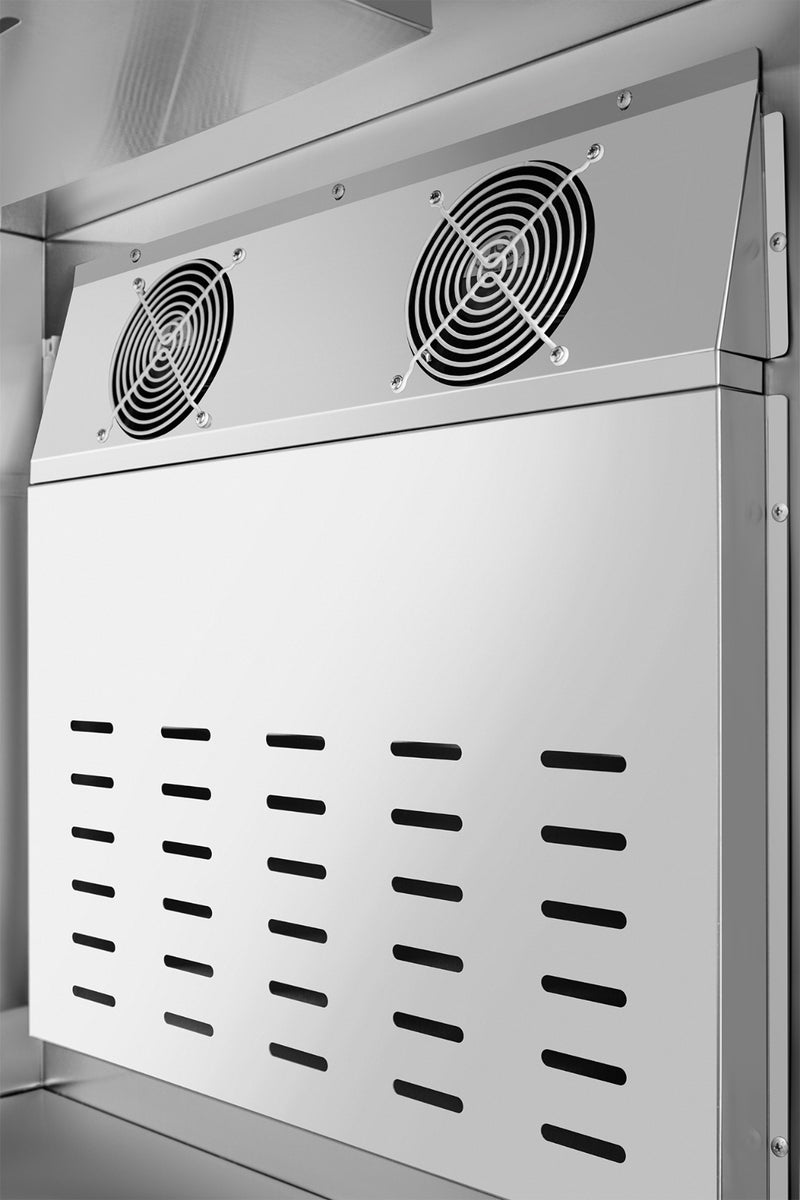

• Down duct airflow spreads cold air evenly
• Stainless steel inside and out
• LED interior lights
• Pre-installed shelf clips and 4" casters

Need a Pass-Through Refrigerator?

For refrigerated food in the same 29" pass-thru cabinet, see the Atosa PLUS-R1-SD-R-PT pass through refrigerator with solid doors, or the PLUS-R1-GS-R-PT with a glass front door. Or shop all commercial freezers.

Specifications

Before You Order

• Measure the opening: the unit is 28-3/4" wide, 33-7/8" deep and 82-7/8" tall.
• Make sure both sides have room for the doors to swing open.
• Plan for a standard 115V outlet with a NEMA 5-15 receptacle.
• Leave the unit some room to breathe and clean the condenser often, as Atosa advises.

Atosa PLUS-F1-SD-R-PT FAQ

What size is the Atosa PLUS-F1-SD-R-PT?

It is 28-3/4" wide, 33-7/8" deep and 82-7/8" tall. It weighs 302 lb (346 lb shipping weight).

How much does the PLUS-F1-SD-R-PT hold?

It holds 23.7 cu. ft. and comes with 3 shelves.

What temperature does the PLUS-F1-SD-R-PT hold?

It holds -4°F to 1°F with a full electronic controller.

What is a pass-thru freezer?

It is a freezer with doors on the front and the back, so food can be loaded on one side and taken out on the other.

What power does the PLUS-F1-SD-R-PT need?

It runs on 115V and draws 5.3 amps. It has a standard NEMA 5-15P plug, so it plugs into a regular 115V outlet.

How often should I clean the PLUS-F1-SD-R-PT condenser?

Atosa says to clean the condenser frequently. Pull the unit out, vacuum the condenser coil, and brush off any flour, dust or grease. A clean condenser helps the unit hold temperature.

What warranty comes with the PLUS-F1-SD-R-PT?

3 years parts and labor and 5 years on the compressor.

Spec Sheet

Download the Atosa PLUS-F1-SD-R-PT spec sheet (PDF, Rev. 07/26)
