Atosa MSF8308GR 72-Inch Three Door Mega Top Sandwich Prep Table, 30 Pans, 21.1 cu. ft.
Atosa MSF8308GR 72-Inch Three Door Mega Top Sandwich Prep Table, 30 Pans, 21.1 cu. ft.

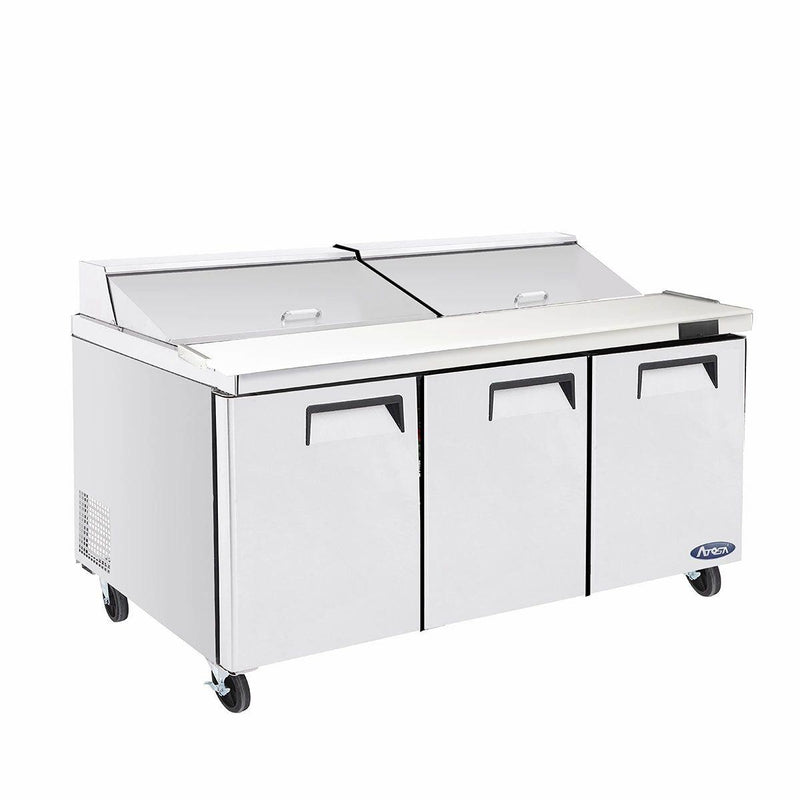

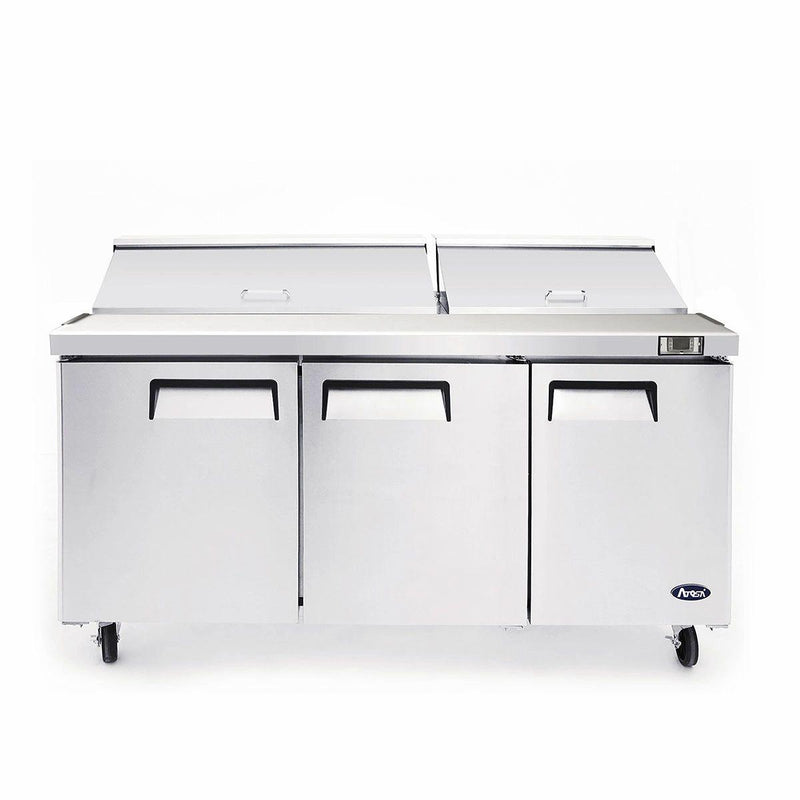

The Atosa MSF8308GR is a 72-inch three-door mega-top refrigerated sandwich prep table with 30 included 1/6-size ingredient pans and 21.1 cu. ft. of refrigerated storage below. Its three-row mega-top rail provides more topping choices for customized sandwiches, wraps, and salads, while the 9-1/4-inch-deep cutting board provides a convenient prep surface. The refrigerator maintains 35°F to 38°F and operates on 115V power.
At a Glance

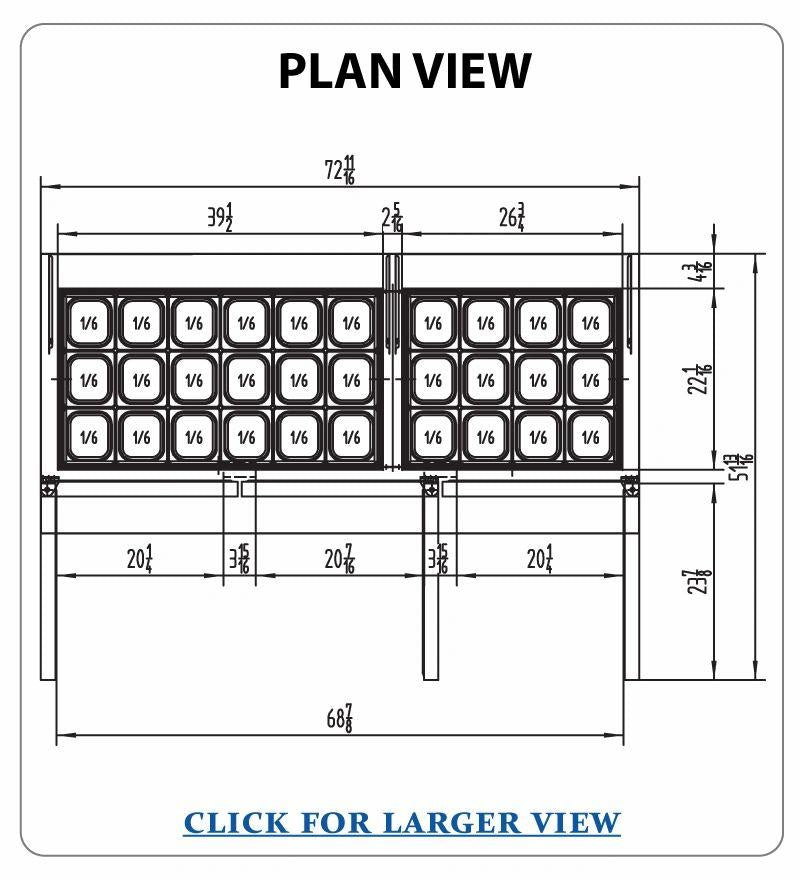

- Size: 72-7/10" W x 36-3/4" D x 46-5/8" H

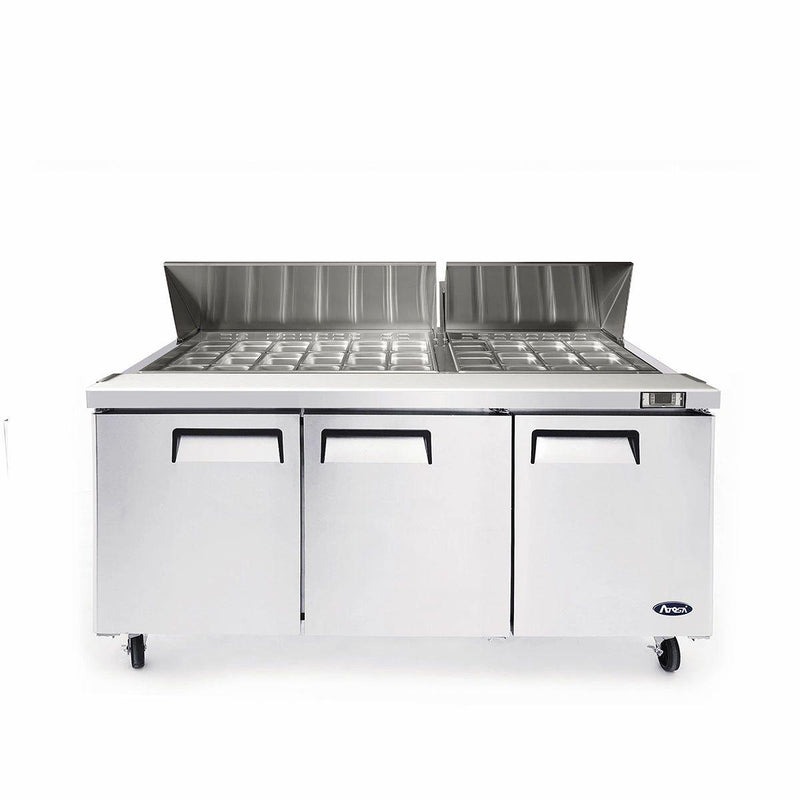

- Pans: (30) 1/6 size poly pans, 6" deep, in three rows
- Cutting board: 9-1/4" deep
- Storage below: 21.1 cu. ft., (3) shelves, one per section, three doors
- Temperature: 35°F to 38°F
- Power: 115V, 2.8 amps, standard plug (NEMA 5-15P)
- Warranty: 3 years parts and labor, 5 years compressor
Most units ship within one business day from our warehouse with free freight to the lower 48.
A 72 Inch Mega Top Sandwich Prep Table
The MSF8308GR provides 12 more topping-pan positions than the same-width MSF8304GR standard-top model, without increasing refrigerated base capacity. Its 36-3/4-inch overall depth is greater than the standard model's 30-inch depth, so check aisle clearance before choosing the extra ingredient space. This configuration suits operations offering many customizable toppings.
72-Inch Mega Top for Maximum Topping Variety
Thirty top pans and a 21.1 cu. ft. three-door base suit high-volume custom sandwich and salad counters with extensive ingredient selections.
Choosing Between Models
Choose the shallower eighteen-pan MSF8304GR standard top if a broad work surface matters more than maximum topping capacity. The MSF8308GR adds twelve pan positions.

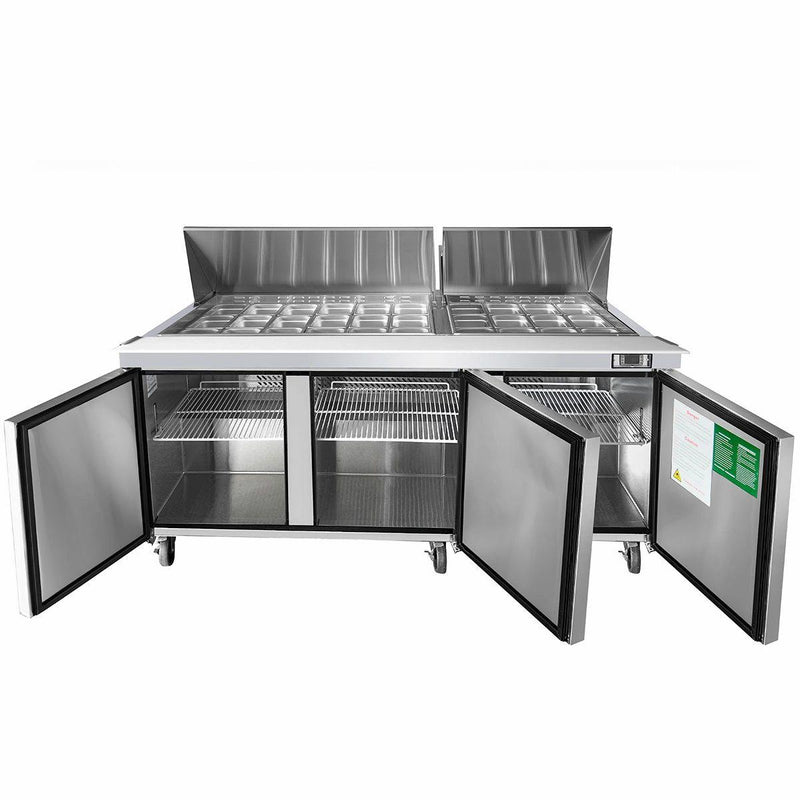

Built for Daily Commercial Use
- Stainless steel inside and out
- Rear mount compressor with R290, a natural refrigerant
- Air flows evenly around the pans, so the top stays cold

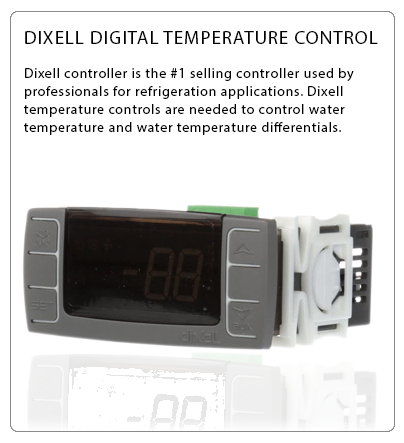

- Electronic temperature controller
- Removable stainless steel pan liner
- Locking divider bars

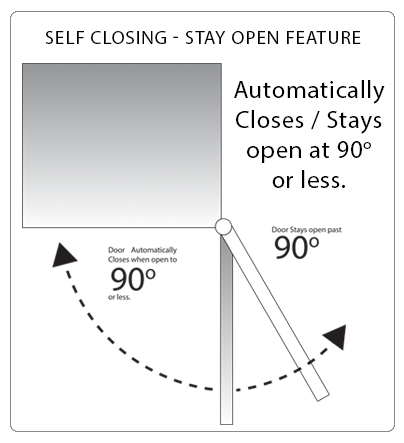

- Self-closing doors with a stay-open feature

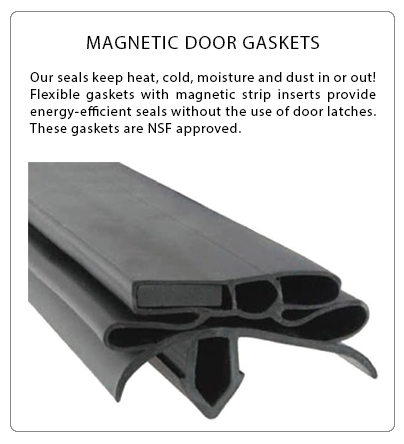

- Recessed door handles and magnetic door gaskets

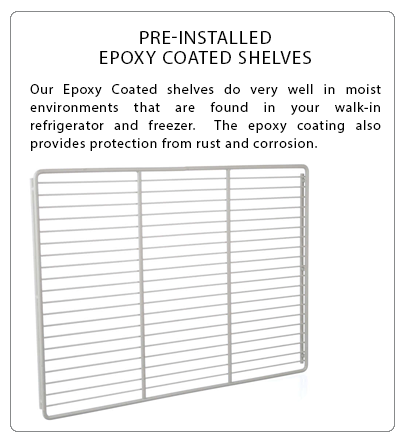

- One pre-installed shelf per section
- Pre-installed 2" casters
Add-Ons
- Double overshelf: MROS-6RE mounts above the pans for extra storage
- Drawer kits: MSF8310227A20 (left or right door) and MSF8310227A21 (middle door) swap a door for two drawers, installed in the field
- 12" cross bar: 82021902
Pick the Right Size
| Width | Doors | Standard top | Mega top | Capacity |
|---|---|---|---|---|
| 27-1/2" | 1 | MSF8301GR, (8) pans | MSF8305GR, (12) pans | 7.2 cu. ft. |
| 36-5/16" | 2 | MSF3610GR, (10) pans | MSF3615GR, (15) pans | 8.7 cu. ft. |
| 48-1/5" | 2 | MSF8302GR, (12) pans | MSF8306GR, (18) pans | 13.4 cu. ft. |
| 60-1/5" | 2 | MSF8303GR, (16) pans | MSF8307GR, (24) pans | 17.2 cu. ft. |
| 72-7/10" | 3 | MSF8304GR, (18) pans | MSF8308GR (this model), (30) pans | 21.1 cu. ft. |
Need a different size? Shop all sandwich prep tables or see the pizza prep tables.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Mega Top Sandwich Prep Table, three doors |
| Pans | (30) 1/6 size poly pans, 6" deep, in three rows |
| Cutting board | 9-1/4" deep |
| Capacity | 21.1 cu. ft. |
| Shelves | (3) shelves, one per section |
| Exterior dimensions | 72-7/10" W x 36-3/4" D x 46-5/8" H |
| Temperature range | 35°F to 38°F |
| Temperature control | Electronic |

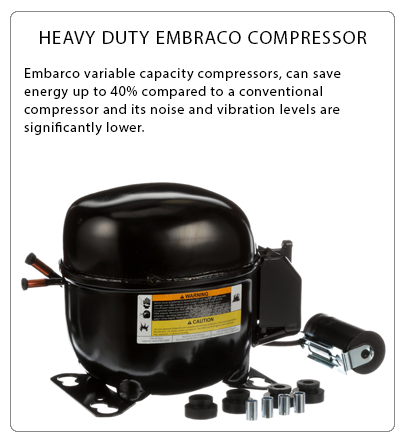

| Compressor | 1/5 HP, rear mount |
| Refrigerant | R290 |
| Construction | Stainless steel interior and exterior |
| Casters | 2", pre-installed |
| Electrical | 115V / 60Hz / 1-phase, 2.8 amps |
| Plug | NEMA 5-15P |
| Net weight | 331 lb |
| Shipping weight | 401 lb |
| Warranty | 3-year parts and labor, 5-year compressor |
| Certifications | cETLus, ETL-Sanitation |
Before You Order
- Plan for a standard 115V outlet with a NEMA 5-15 receptacle.
- Check your space: the unit is 72-7/10" wide, 36-3/4" deep and 46-5/8" tall.
- The mega top is 36-3/4" deep, 6-3/4" deeper than the standard top. Measure your line before you order.
- Leave the unit some room to breathe and clean the condenser often, as Atosa advises.
Atosa MSF8308GR FAQ
Who needs a 72-inch 30-pan mega top?
Operators offering extensive chilled topping combinations benefit from thirty top-pan positions rather than eighteen on the MSF8304GR.
How does MSF8308GR compare with MSF8304GR?
The MSF8308GR mega top holds thirty pans, while the standard-top MSF8304GR holds eighteen. Both are 72-inch three-door units with 21.1 cu. ft.
What size is the Atosa MSF8308GR?
The MSF8308GR is 72-7/10" wide, 36-3/4" deep and 46-5/8" tall. It weighs 331 lb (401 lb shipping weight).
How many pans does the MSF8308GR hold?
It comes with (30) 1/6 size poly pans, 6" deep, in three rows.
What temperature does the MSF8308GR hold?
It holds 35°F to 38°F with an electronic temperature controller.
How much storage is under the MSF8308GR?
It has 21.1 cu. ft. behind three doors, with (3) shelves, one per section.
What is the difference between a standard top and a mega top?
A mega top has a third row of pans, so it holds more toppings in the same width. It is 36-3/4" deep, and the standard top is 30" deep.
Can I add drawers to the MSF8308GR?
Yes. Atosa makes a drawer kit that fits this model. It replaces a door with two drawers, and it installs in the field.
What power does the MSF8308GR need?
It runs on 115V and draws 2.8 amps. It has a standard NEMA 5-15P plug, so it plugs into a regular 115V outlet.
How often should I clean the MSF8308GR condenser?
Atosa says to clean the condenser frequently. Pull the unit out on its casters, vacuum the condenser coil, and brush off any dust or grease. A clean condenser helps the prep table hold temperature.
What warranty comes with the MSF8308GR?
3 years parts and labor and 5 years on the compressor.
Spec Sheet
Download the Atosa MSF8308GR spec sheet (PDF, Rev. 07/26)
Genuine Replacement Parts for the MSF8308GR
Keep your MSF8308GR prep table running like new with genuine OEM Atosa service parts. Common wear components we stock include the W0302316 probe, the W0301112 fan motor, the W0302024 digital display controller, the W0409843 sleeve, and the W0302017-1 refrigerator control module. Browse the complete Atosa parts catalog or reference the Atosa parts manuals for compatibility.
MSF8308GR Parts & Service
For OEM replacement parts for the MSF8308GR, see the MSF8308GR parts list, with part numbers and quantities from Atosa's exploded-view diagram. Parts lists for every model are on the Atosa parts lists index.
