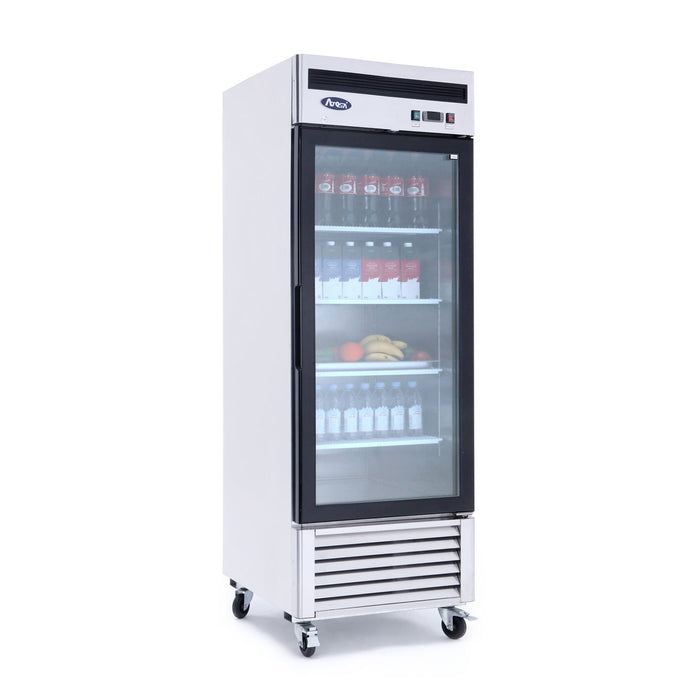

Atosa MCF8705GR 27-Inch Glass Door Merchandiser Refrigerator, 19.1 cu. ft.
Atosa MCF8705GR 27-Inch Glass Door Merchandiser Refrigerator, 19.1 cu. ft.
The Atosa MCF8705GR is a glass door merchandiser refrigerator with a bottom mount compressor. It holds 19.1 cu. ft. at 35°F to 38°F and plugs into a standard 115V outlet.
A double pane glass door and LED lights put drinks and grab-and-go food on display. Need the door to swing the other way? See the MCF8705GRL.
At a Glance
- Size: 27" W x 31.7" D x 83.1" H
- Storage: 19.1 cu. ft., 4 shelves
- Door: locking double pane glass door (right-hinged), self-closing with stay-open feature
- Temperature: 35°F to 38°F
- Power: 115V, 2.1 amps, standard plug (NEMA 5-15P)
- ENERGY STAR® certified
- Warranty: 3 years parts and labor, 5 years compressor
Most units ship within one business day from our warehouse with free freight to the lower 48.
A Single Glass Door Merchandiser
This glass door merchandiser refrigerator puts drinks and grab-and-go food on display behind one double pane glass door. It is a single glass door refrigerator, 27" wide, sized for a café, deli or the end of a store aisle. As a commercial display fridge, it lets customers see what you sell before they open the door.
Good For
- Convenience stores and markets: drinks and packaged food
- Cafés and delis: grab-and-go salads, sandwiches and drinks
- Schools and cafeterias: milk, juice and snacks on display
- Bars and restaurants: beer, soda and bottled water
Built for Daily Commercial Use
- Stainless steel inside and out
- Heavy duty Embraco compressor with R290, a natural refrigerant
- Electronic temperature controller
- Self-closing door with a stay-open feature
- Double pane glass door
- Door lock standard, recessed handle, magnetic gasket
- LED interior lights
- Pre-installed 4" casters
Pick the Right Model
| Model | Doors | Width | Capacity | Shelves |
|---|---|---|---|---|
| MCF8705GR (this model) | 1 glass (right hinge) | 27" | 19.1 cu. ft. | 4 |
| MCF8705GRL | 1 glass (left hinge) | 27" | 19.1 cu. ft. | 4 |
| MCF8707GR | 2 glass, swing | 54.4" | 44.8 cu. ft. | 8 |
| MCF8709GR | 2 glass, sliding | 54.4" | 44.9 cu. ft. | 8 |
Want solid doors? See the Atosa MBF8505GR. Need the same cabinet for frozen food? See the matching Atosa MCF8701GR glass door freezer.
Need a different size? Shop all glass door merchandiser refrigerators or compare commercial refrigerators.
Specifications
| Spec | Detail |
|---|---|
| Configuration | Glass door merchandiser refrigerator, one-section, bottom mount |
| Door | (1) locking double pane glass door (right-hinged), self-closing with stay-open feature |
| Capacity | 19.1 cu. ft. |
| Shelves | (4) epoxy coated shelves |
| Exterior dimensions | 27" W x 31.7" D x 83.1" H |
| Temperature range | 35°F to 38°F |
| Temperature control | Electronic |
| Compressor | 1/7 HP, bottom mount, Embraco |
| Refrigerant | R290 |
| Lighting | LED interior |
| Construction | Stainless steel interior and exterior |
| Casters | 4", pre-installed |
| Electrical | 115V / 60Hz / 1-phase, 2.1 amps |
| Plug | NEMA 5-15P |
| Net weight | 293 lb |
| Shipping weight | 326 lb |
| Extra shelf | W0402394 (each includes 4 shelf clips) |
| Warranty | 3-year parts and labor, 5-year compressor |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR® |
Before You Order
- Plan for a standard 115V outlet with a NEMA 5-15 receptacle.
- Check your doorways: the unit is 31.7" deep and 83.1" tall.
- Pick your hinge: the MCF8705GR door is hinged on the right.
- Leave the unit some room to breathe and clean the condenser often, as Atosa advises.
- Extra shelves are Atosa part W0402394, and each comes with 4 shelf clips.
Atosa MCF8705GR FAQ
What size is the Atosa MCF8705GR?
The MCF8705GR is 27" wide, 31.7" deep and 83.1" tall. It weighs 293 lb (326 lb shipping weight).
How much does the MCF8705GR hold?
It holds 19.1 cu. ft. and comes with 4 shelves.
What temperature does the MCF8705GR hold?
It holds 35°F to 38°F with an electronic temperature controller.
Does the MCF8705GR have a lock?
Yes. The glass door locks, and the door closes on its own.
Is the MCF8705GR ENERGY STAR® certified?
Yes. It is ENERGY STAR® certified.
What power does the MCF8705GR need?
It runs on 115V and draws 2.1 amps. It has a standard NEMA 5-15P plug, so it plugs into a regular 115V outlet.
Can I add more shelves to the MCF8705GR?
Yes. Order Atosa shelf W0402394. Each extra shelf comes with 4 shelf clips.
How often should I clean the MCF8705GR condenser?
Atosa says to clean the condenser frequently. Pull the unit out on its casters, vacuum the condenser coil, and brush off any flour, dust or grease. A clean condenser helps the refrigerator hold temperature.
What warranty comes with the MCF8705GR?
3 years parts and labor and 5 years on the compressor.
Spec Sheet
Download the Atosa MCF8705GR spec sheet (PDF, Rev. 07/26)
Service Parts for the MCF8705GR Refrigerator
Extend the service life of your MCF8705GR with factory OEM replacement parts. In-stock service components include the W0604022 door hinge, the W0604024 door hinge, the W0203072 condenser coil, the W0302186 digital controller, and the W0201163 compressor. Browse related Atosa replacement parts or reference the Atosa parts department guide for warranty and ordering information.
MCF8705GR Parts & Service
For OEM replacement parts compatible with the MCF8705GR, see the MCF8705GR parts page. The full Atosa parts catalog is also available, and the operating instructions cover routine service.
