Atosa AWF1010TF-EL/ER 10' x 10' Walk-In Freezer with Floor, Exterior Ramp, 3 HP Top-Mount Refrigeration
Atosa AWF1010TF-EL/ER 10' x 10' Walk-In Freezer with Floor, Exterior Ramp, 3 HP Top-Mount Refrigeration

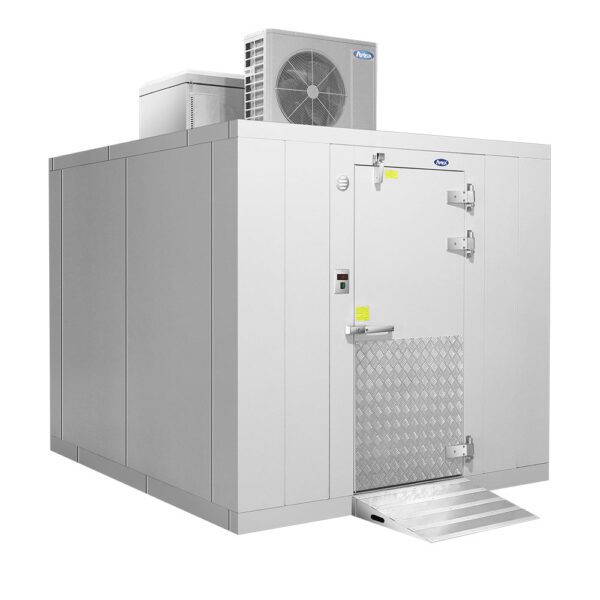

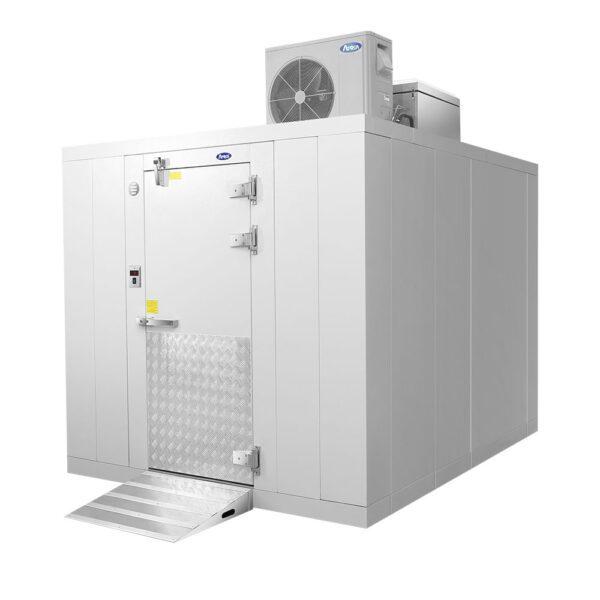

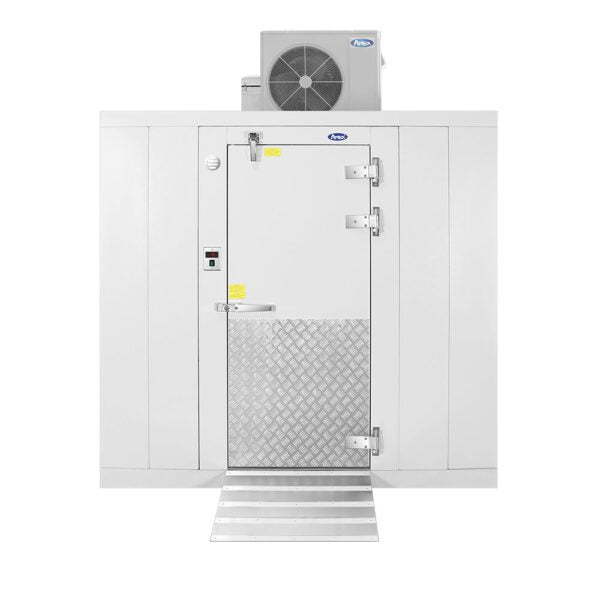

The Atosa AWF1010TF-EL/ER is a 10' x 10' indoor walk-in freezer with a floor and an exterior ramp. It holds -8°F to 0°F and comes as a full package: 4" insulated panels, a reinforced floor, a 36" door and a 3 HP top-mount refrigeration system.
At 10' x 10', it gives you room for multiple shelving runs and large deliveries, sized for high-volume and multi-concept kitchens.
10 x 10 Walk-In Freezer with Exterior Ramp
The Atosa AWF1010TF-EL/ER is a 10 x 10 commercial walk in freezer with an insulated floor and exterior ramp. Its 3 HP top-mount refrigeration system supports frozen storage in a larger square-footprint restaurant walk in freezer suited to bulk inventory.
At a Glance
- Size: 10' x 10' nominal, 120" x 120" outside, about 112" x 112" inside
- Height: 7'7" box, 117" overall with the condenser on top. Atosa recommends an 11' ceiling
- Temperature: -8°F to 0°F
- Refrigeration: 3 HP top-mount drop-in system, condensing unit and evaporator included
- Floor: reinforced floor, standard
- Ramp: exterior ramp, 34-1/2" x 27-1/2", standard
- Electrical: 208-240V, 1-phase, 30 amps rated, 30 amp breaker (Atosa spec)
- Warranty: 10-year panel, 5-year refrigeration, 1-year hardware (continental USA only)
Request a Quote
The AWF1010TF-EL/ER is available with a left-hinged (EL) or right-hinged (ER) door. Request a quote and we'll confirm the hinge side, delivery, and any options your space needs. Call or text Sean at 206-419-5801 for help planning your walk-in.
Is the 10' x 10' the Right Size?
With about 87 square feet of inside floor (112" x 112"), the AWF1010TF-EL/ER gives you room for multiple shelving runs and pallet-size deliveries. This version has an exterior ramp outside the door, so leave clear floor in front of the box for it. Need more room? Step up to the 10' x 12' AWF1012TF-EL/ER. Tight on space? See the 8' x 10' AWF0810TF-EL/ER.
Who the 10' x 10' Is For
- High-volume and multi-concept restaurants: frozen stock for more than one menu
- Commissary kitchens: frozen storage for prep that goes out to other locations
- Grocery and convenience stores: ice, ice cream and frozen food backstock
- Institutional kitchens: schools, camps and care facilities
Door and Hardware

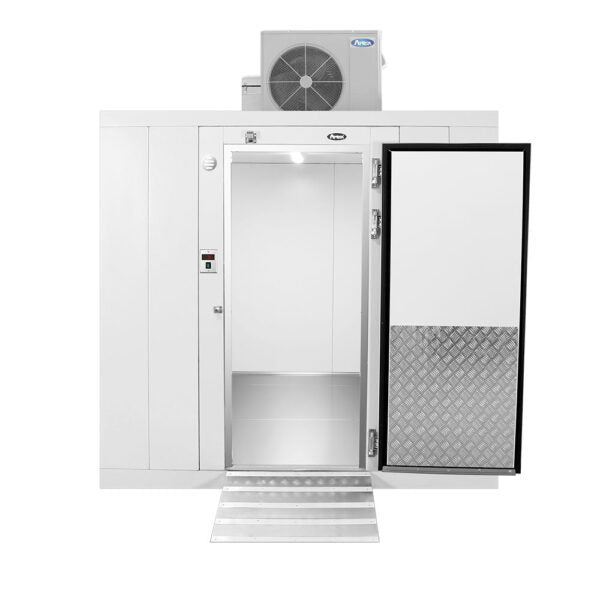

- 36" door with heated frames and diamond tread kick plates
- 3 spring loaded heavy duty Kason hinges
- Heavy duty Kason door closer
- Heavy duty Kason handle with lock and inside safety release

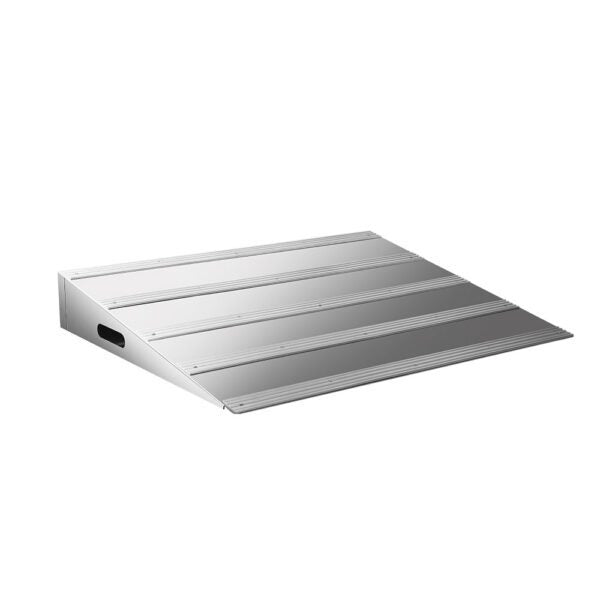

- Exterior ramp, 34-1/2" x 27-1/2"
Built for Daily Commercial Use
- 4" foamed-in-place panels with cam locks
- White interior and exterior
- Reinforced floor, standard
- Top-mount drop-in refrigeration with low noise and R404A refrigerant
- 48" ceiling mount LED light
- Indoor installation only
Pick the Right Size
Every model is 7'7" high with a floor, a 36" door and top-mount refrigeration. Pick the footprint and ramp that fit your space.
| Model | Size | Ramp | Refrigeration | Outside (W x L) |
|---|---|---|---|---|
| AWF0606TF-EL/ER | 6' x 6' | Exterior | 1.5 HP | 72" x 72" |
| AWF0608TF-EL/ER | 6' x 8' | Exterior | 1.5 HP | 72" x 96" |
| AWF0608TF-IL/IR | 6' x 8' | Interior | 1.5 HP | 72" x 96" |
| AWF0808TF-EL/ER | 8' x 8' | Exterior | 3 HP | 96" x 96" |
| AWF0808TF-IL/IR | 8' x 8' | Interior | 3 HP | 96" x 96" |
| AWF0810TF-EL/ER | 8' x 10' | Exterior | 3 HP | 96" x 120" |
| AWF0810TF-IL/IR | 8' x 10' | Interior | 3 HP | 96" x 120" |
| AWF1010TF-EL/ER (this model) | 10' x 10' | Exterior | 3 HP | 120" x 120" |
| AWF1012TF-EL/ER | 10' x 12' | Exterior | 3 HP | 120" x 144" |
Need a cooler instead? See the matching Atosa AWC1010TF-EL/ER 10' x 10' walk-in cooler, or shop all walk-in coolers and freezers.
Specifications
| Spec | Detail |
|---|---|
| Type | Indoor walk-in freezer with floor |
| Nominal size | 10' x 10' |
| Exterior dimensions | 120" W x 120" L x 117" H (with condenser) |
| Inside floor space | About 112" x 112" (from the Atosa shelving layout) |
| Box height | 7'7" |
| Recommended ceiling height | 11' |
| Temperature range | -8°F to 0°F |
| Panels | 4" foamed-in-place with cam locks |
| Finish | White interior and exterior |
| Floor | Reinforced, standard |
| Door | 36" with heated frames and diamond tread kick plates |
| Door hinge | (EL) left or (ER) right, confirmed on quote |
| Hardware | 3 Kason spring loaded hinges, Kason closer, Kason locking handle with inside safety release |
| Ramp | Exterior, 34-1/2" x 27-1/2" |
| Lighting | 48" ceiling mount LED |

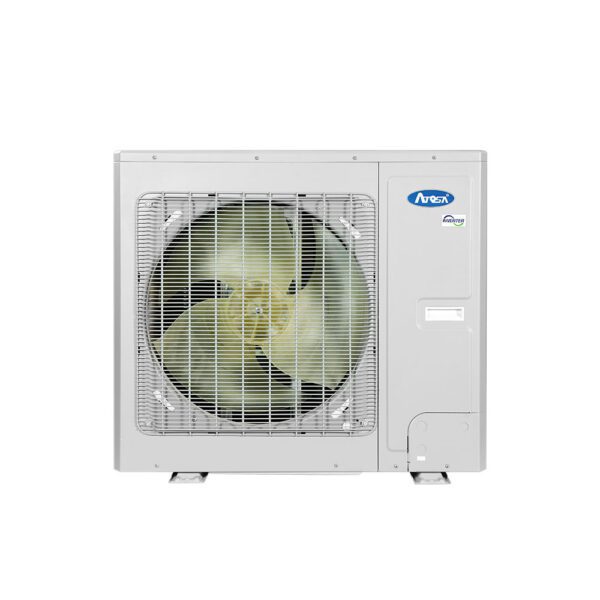

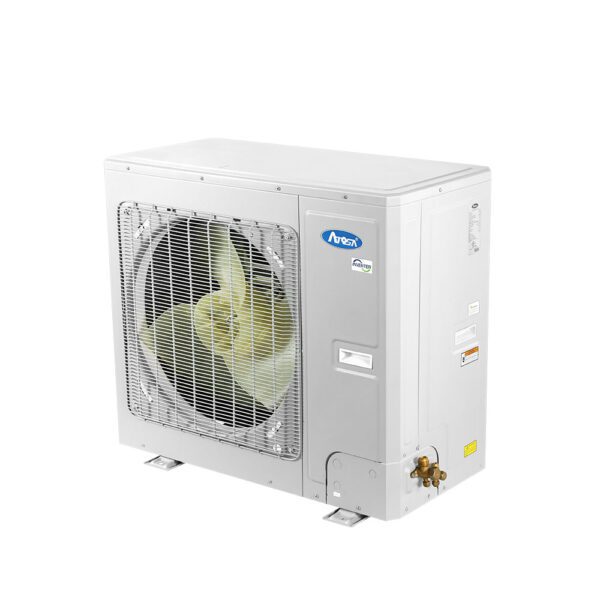

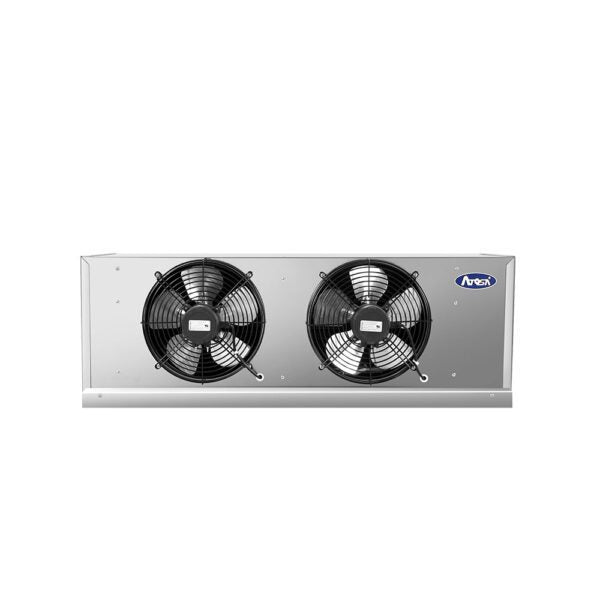

| Refrigeration | Top-mount drop-in, 3 HP, condensing unit and evaporator included |
| Refrigerant | R404A |
| Electrical | 208-240V / 60Hz / 1-phase |
| Rated current | 30 amps |
| Breaker | 30 amps (Atosa spec) |
| Condensing unit weight | 243 lb |
| Evaporator weight | 218 lb |
| Panel weight | 1,743 lb |
| Warranty | 10-year panel, 5-year refrigeration, 1-year hardware (continental USA only) |
| Certifications | cETLus, ETL-Sanitation |
Before You Order
- Measure your space: the box is 120" x 120" outside.
- Check your ceiling: overall height is 117" with the condenser installed, and Atosa recommends an 11' ceiling.
- It is for indoor installation only.
- Electrical per Atosa: 208-240V, 1-phase, 30 amps rated, 30 amp breaker.
- Leave the unit some room to breathe and clean the condenser often, as Atosa advises.
- Shelving layouts and Atosa shelf part numbers for this size are on page 3 of the spec sheet.
Atosa AWF1010TF-EL/ER FAQ
What size is the Atosa AWF1010TF-EL/ER?
It is 10' x 10' nominal: 120" x 120" outside and about 112" x 112" inside. The box is 7'7" high, and it is 117" tall with the condenser installed.
What ceiling height does the AWF1010TF-EL/ER need?
Atosa recommends an 11' ceiling, so the condenser on top has room to breathe.
What temperature does the AWF1010TF-EL/ER hold?
It holds -8°F to 0°F.
Does the AWF1010TF-EL/ER come with refrigeration?
Yes. It has a 3 HP top-mount drop-in refrigeration system with the condensing unit and evaporator included. It runs on R404A refrigerant.
Does the AWF1010TF-EL/ER have a floor?
Yes. A reinforced floor is standard.
What kind of ramp does the AWF1010TF-EL/ER have?
It has an exterior ramp, 34-1/2" x 27-1/2", standard.
What power does the AWF1010TF-EL/ER need?
Per Atosa, it runs on 208-240V, 60Hz, 1-phase, with a rated current of 30 amps and a 30 amp breaker.
Can the AWF1010TF-EL/ER go outdoors?
No. It is for indoor installation only.
How do I get a walk in freezer price and delivery date for the AWF1010TF-EL/ER?
Request a quote on this page, or call or text Sean at 206-419-5801. We will confirm the hinge side, delivery and any options your space needs.
What warranty comes with the AWF1010TF-EL/ER?
10 years on the panels, 5 years on the refrigeration and 1 year on hardware, in the continental USA.
Is the 10' x 10' AWF1010TF-EL/ER big enough for my kitchen?
It has about 87 square feet of inside floor (112" x 112"), which suits high-volume and multi-concept kitchens, commissaries and grocery backstock. If you need more space, look at the 10' x 12' AWF1012TF-EL/ER.
Where does the ramp go on the AWF1010TF-EL/ER?
The exterior ramp sits outside the door, so plan clear floor space in front of the box for it.
Spec Sheet
Download the Atosa walk-in freezer spec sheet (PDF, Rev. 07/25)
