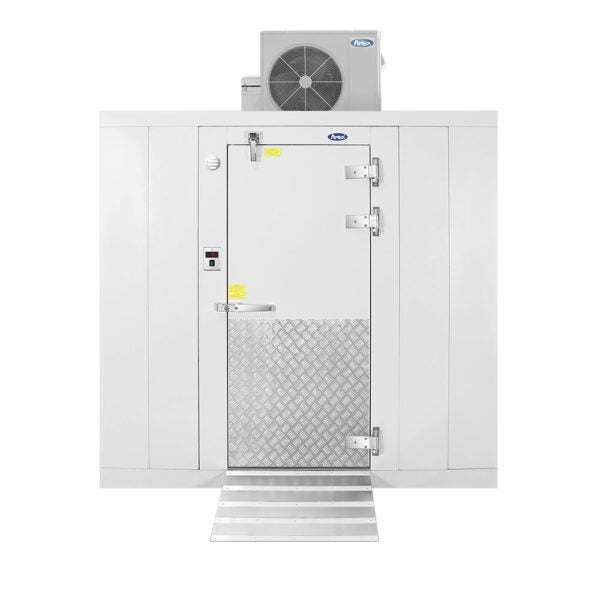

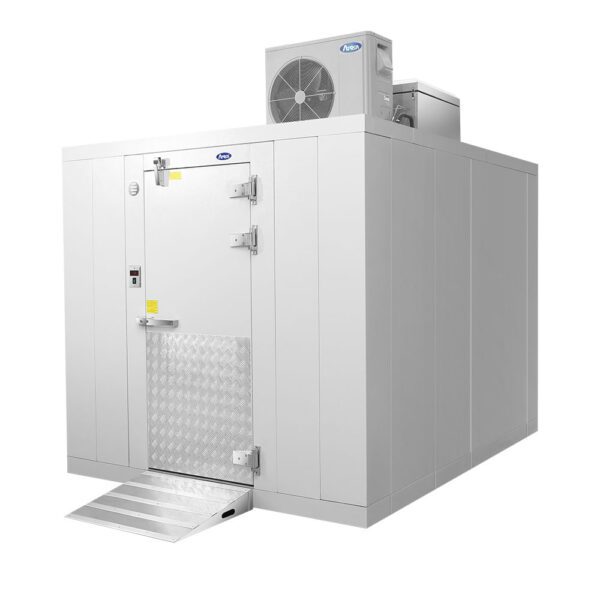

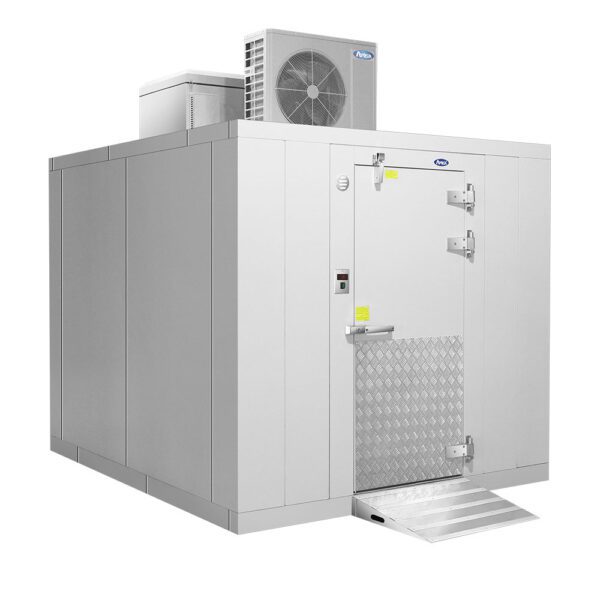

Atosa AWF0810TF-EL/ER 8' x 10' Walk-In Freezer with Exterior Ramp - 3 HP Top-Mount Refrigeration
Atosa AWF0810TF-EL/ER 8' x 10' Walk-In Freezer with Exterior Ramp — 3 HP Top-Mount Refrigeration
The Atosa AWF0810TF-EL/ER is an 8' x 10' indoor walk-in freezer built for high-volume restaurants, bakeries, grocery stores, institutional kitchens, and commissaries that need serious frozen storage. It holds -8°F to 0°F and arrives as a complete package: 4" foamed-in-place panels, a reinforced floor, a 36" door with heated frames and diamond tread kick plates, an exterior ramp, and a top-mount drop-in refrigeration system with a 3 HP condensing unit and evaporator included.
Cam-lock panels make installation straightforward, and the drop-in refrigeration system sits on top of the box, so there's no separate condensing unit to mount or line set to run.
Request a Quote
The AWF0810TF-EL/ER is available with a left-hinged (EL) or right-hinged (ER) door. Request a quote and we'll confirm the hinge side, delivery, and any options your space needs. Call or text Sean at 206-419-5801 for help planning your walk-in.
Built for High-Volume Frozen Storage
- Full-service and multi-unit restaurants — bulk proteins, seafood, fries, and frozen prep in one organized space
- Bakeries — frozen dough, pastries, and finished goods by the rack
- Grocery and convenience stores — backstock for ice, frozen foods, and ice cream
- Schools, hospitals, and institutions — large-volume frozen inventory
- Commissary and catering kitchens — shared frozen storage for multiple operations
Construction
The box uses 4" thick foamed-in-place panels with cam locks for a tight, insulated seal. The interior and exterior are white, and the reinforced floor is standard. The box stands 7'7" high, and the overall height with the condenser installed is 117" (9'9"). Atosa recommends an 11' ceiling for airflow around the condenser.

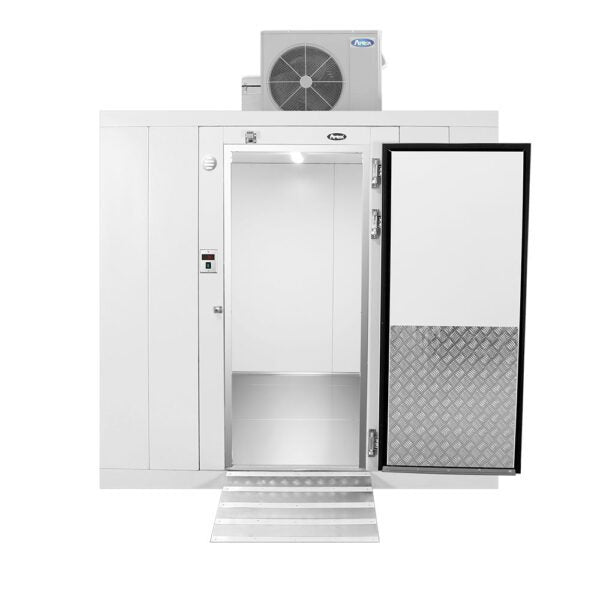

Door and Hardware
- 36" door with heated frames to prevent frost and ice buildup
- Diamond tread kick plates to protect the door from carts and boots
- 3 spring-loaded heavy-duty Kason hinges
- Heavy-duty Kason door closer so the door closes on its own
- Heavy-duty Kason handle with lock and an inside safety release

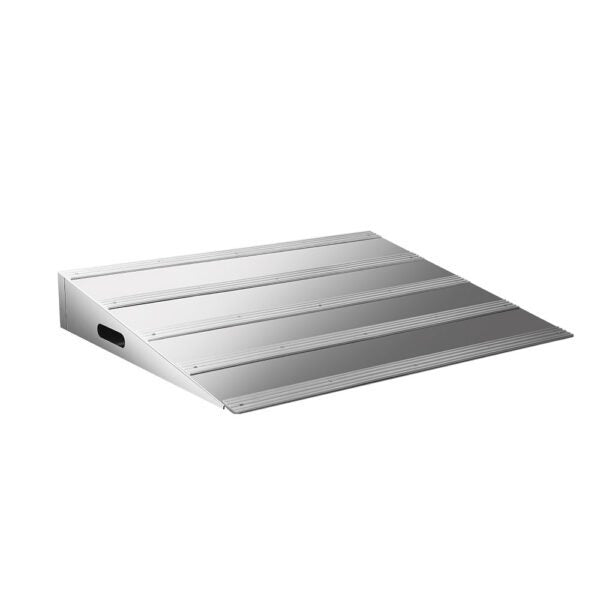

- Exterior ramp (34-1/2" x 27-1/2") for carts and hand trucks
Refrigeration

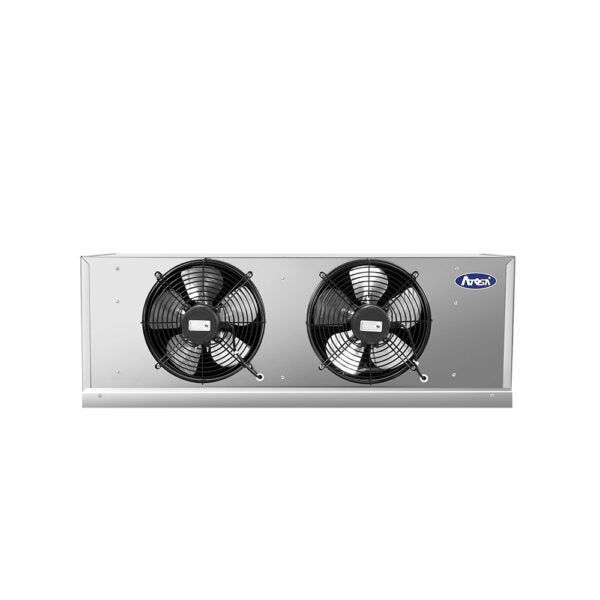

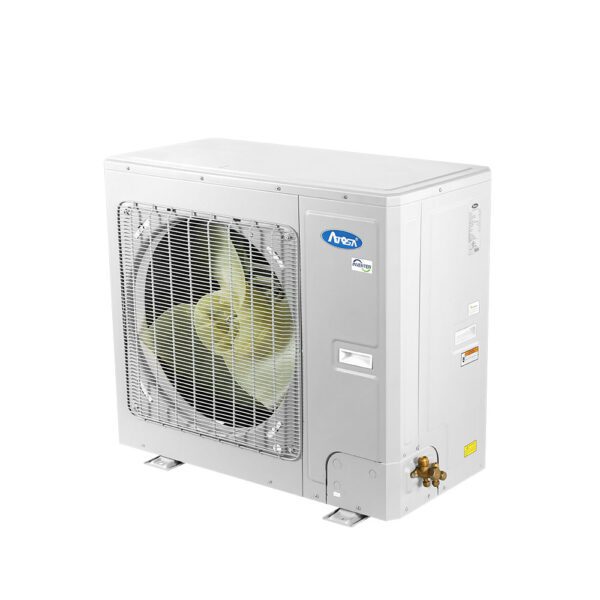

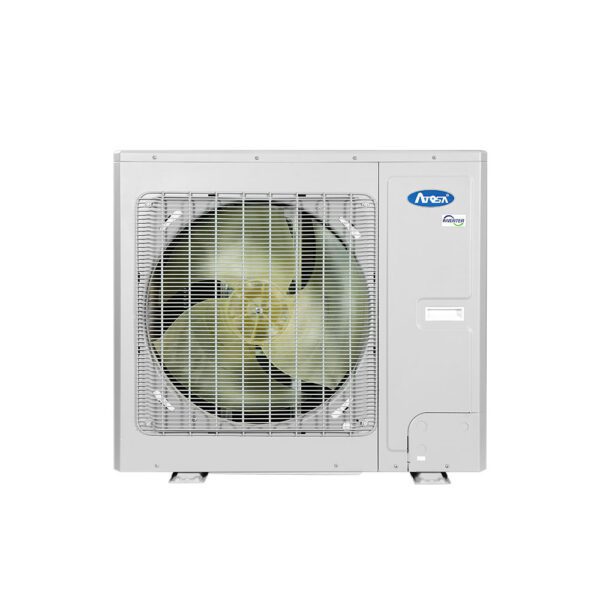

The top-mount drop-in refrigeration system includes a 3 HP condensing unit and evaporator, runs on R404A refrigerant, and is designed for low noise. It holds -8°F to 0°F, the range Atosa recommends for frozen food preservation. A digital LED display shows the box temperature at a glance, and a 48" ceiling-mount LED light lights the interior.
Shelving
Atosa's plan for this size lines the walls with a 24" x 36" unit (MWSSE243674), two 24" x 60" units (MWSSE246074), and two 24" x 48" units (MWSSE244874), leaving a clear aisle from the 36" door.
Specifications
| Spec | Detail |
|---|---|
| Model | AWF0810TF-EL/ER |
| Type | Indoor walk-in freezer with floor |
| Nominal size | 8' x 10' |
| Exterior dimensions | 96"W x 120"L x 117"H (with condenser) |
| Interior dimensions | 88" x 112" |
| Box height | 7'7" |
| Recommended ceiling height | 11' |
| Temperature range | -8°F to 0°F |
| Panels | 4" foamed-in-place with cam locks |
| Finish | White interior and exterior |
| Floor | Reinforced floor, standard |
| Door | 36" with heated frames and diamond tread kick plates |
| Door hinge | Left (EL) or right (ER), confirmed on quote |
| Hardware | 3 Kason spring-loaded hinges, Kason closer, Kason locking handle with inside safety release |
| Ramp | Exterior, 34-1/2" x 27-1/2" |
| Lighting | 48" ceiling-mount LED |
| Display | Digital LED |
| Refrigeration | Top-mount drop-in, condensing unit and evaporator included |
| Compressor | 3 HP |
| Refrigerant | R404A |
| Electrical | 208–240V, 60Hz, 1-phase |
| Rated current | 30 amps |
| Condensing unit weight | 243 lb |
| Evaporator weight | 218 lb |
| Panel weight | 1,517 lb |
| Warranty | 10-year panel, 5-year refrigeration, 1-year hardware |
| Certifications | cETLus, ETL Sanitation |
Installation
The AWF0810TF-EL/ER is for indoor installation only. Plan for a dedicated 208–240V single-phase circuit sized by your electrician for the 30 amp rated load, an overall height of 117" with the condenser installed, and an 11' ceiling so the condenser has room to breathe. Keep the condenser clean for the best efficiency. Installation should be handled by a qualified refrigeration and electrical contractor.
Other Sizes and Options
Need the ramp inside the box instead? See the AWF0810TF-IL/IR with an interior ramp. The Atosa exterior-ramp walk-in freezer line also comes in 6' x 6', 6' x 8', 8' x 8', 10' x 10', and 10' x 12' sizes. Browse all walk-in coolers and freezers, or spread the cost with restaurant equipment financing.
Frequently Asked Questions
What temperature does the AWF0810TF-EL/ER hold?
It maintains -8°F to 0°F, the range Atosa recommends for frozen food preservation.
What is the difference between the EL and ER?
EL has a left-hinged door and ER has a right-hinged door. Everything else is the same. We confirm the hinge side when you request a quote.
What is the difference between the AWF0810TF-EL/ER and the AWF0810TF-IL/IR?
Both are 8' x 10' walk-in freezers. The EL/ER has an exterior ramp outside the door, and the IL/IR has an interior ramp inside the box.
Is the refrigeration system included?
Yes. A top-mount drop-in system with a 3 HP condensing unit and evaporator is included.
What electrical service does it need?
208–240V, 60Hz, single phase, with a 30 amp rated current. Have your electrician size the circuit.
How much ceiling height do I need?
The overall height with the condenser installed is 117". Atosa recommends an 11' ceiling for airflow around the condenser.
Does it come with a floor?
Yes. A reinforced floor is standard.
Can it be installed outdoors?
No. The AWF0810TF-EL/ER is an indoor model.
What are the interior dimensions?
The interior measures 88" x 112", with a 96" x 120" exterior footprint.
What warranty comes with it?
10 years on panels, 5 years on refrigeration, and 1 year on hardware.
Is it certified for commercial use?
Yes. It's cETLus and ETL Sanitation listed.
How do I order?
Request a quote on this page or call or text Sean at 206-419-5801. We'll confirm the hinge side, delivery, and installation needs.
