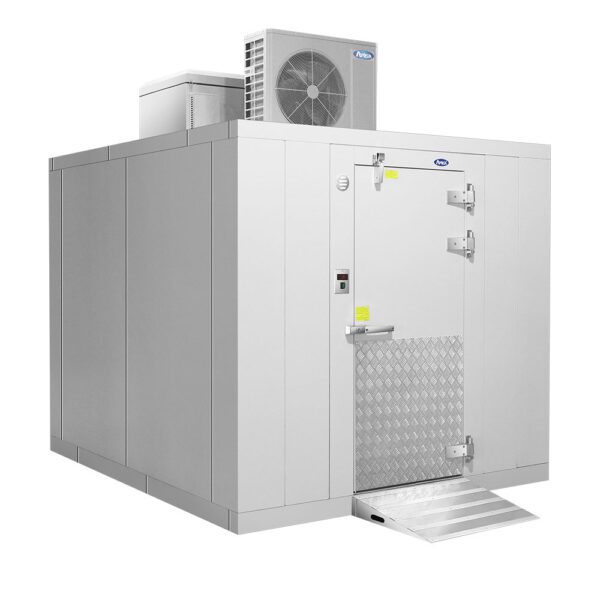

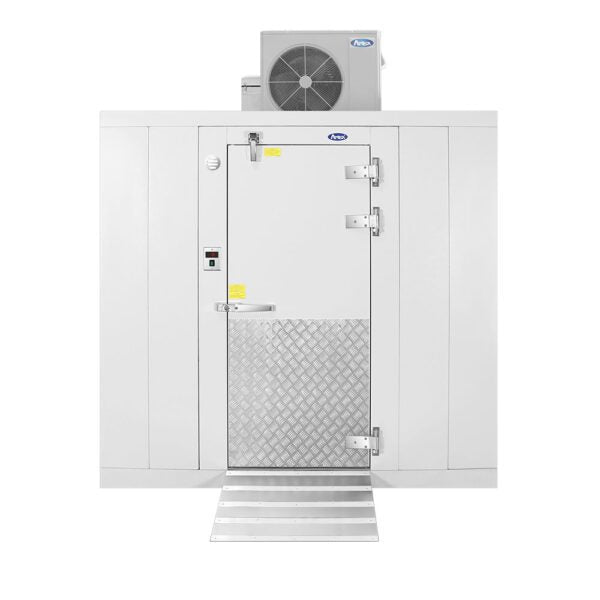

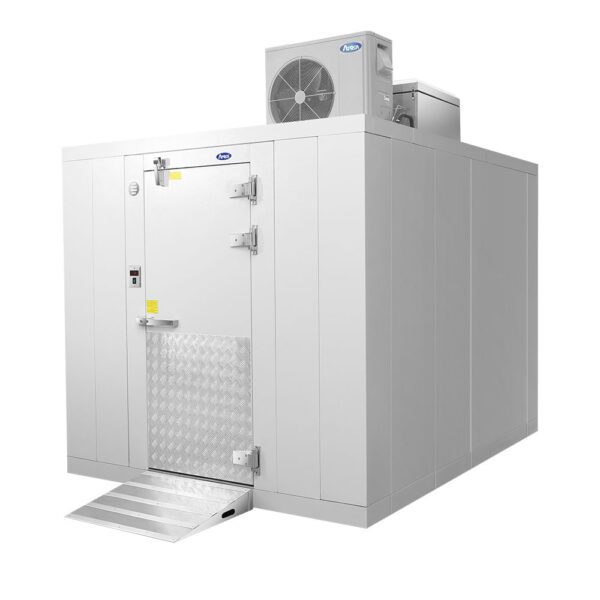

Atosa AWF0608TF-IL/IR 6' x 8' Walk-In Freezer with Interior Ramp - 1.5 HP Top-Mount Refrigeration
Atosa AWF0608TF-IL/IR 6' x 8' Walk-In Freezer with Interior Ramp — 1.5 HP Top-Mount Refrigeration
The Atosa AWF0608TF-IL/IR is a 6' x 8' indoor walk-in freezer with an interior ramp, built for restaurants, bakeries, pizzerias, convenience stores, and commissary kitchens where there's no room for a ramp outside the door. It holds -8°F to 0°F and arrives as a complete package: 4" foamed-in-place panels, a reinforced floor, a 36" door with heated frames and diamond tread kick plates, and a top-mount drop-in refrigeration system with a 1.5 HP condensing unit and evaporator included.
Because the ramp sits inside the box, nothing projects into your aisle or hallway, which makes this model a good fit for tight back-of-house corridors. Cam-lock panels make installation straightforward, and the drop-in refrigeration sits on top of the box, so there's no separate condensing unit to mount or line set to run.
Request a Quote
The AWF0608TF-IL/IR is available with a left-hinged (IL) or right-hinged (IR) door. Request a quote and we'll confirm the hinge side, delivery, and any options your space needs. Call or text Sean at 206-419-5801 for help planning your walk-in.
Built for Bulk Frozen Storage in Tight Spaces
- Restaurants with narrow corridors — no exterior ramp blocking the walkway
- Bakeries — frozen dough, pastries, and finished goods
- Pizzerias and quick-service — case-quantity buying without overloading reach-ins
- Convenience stores — backstock for ice, frozen foods, and novelties
- Commissary kitchens — shared frozen storage for food trucks and caterers
Construction
The box uses 4" thick foamed-in-place panels with cam locks for a tight, insulated seal. The interior and exterior are white, and the reinforced floor is standard. The overall height with the condenser installed is 117" (9'9"), and Atosa recommends an 11' ceiling for airflow around the condenser.

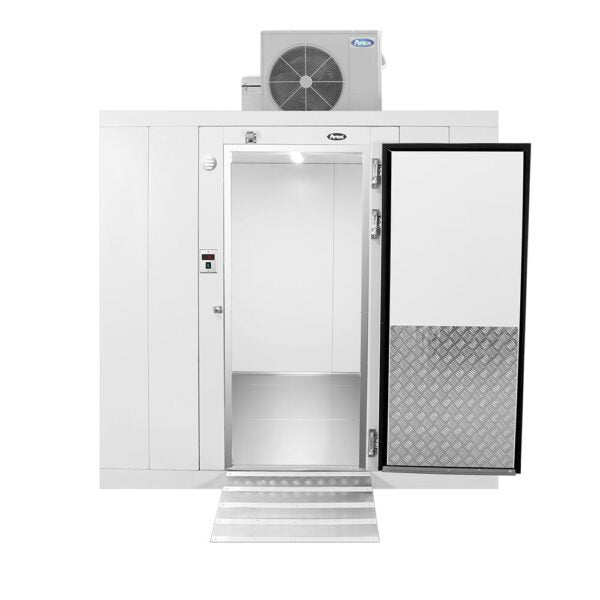

Door and Hardware
- 36" door with heated frames to prevent frost and ice buildup
- Diamond tread kick plates to protect the door from carts and boots
- 3 spring-loaded heavy-duty Kason hinges
- Heavy-duty Kason door closer so the door closes on its own
- Heavy-duty Kason handle with lock and an inside safety release

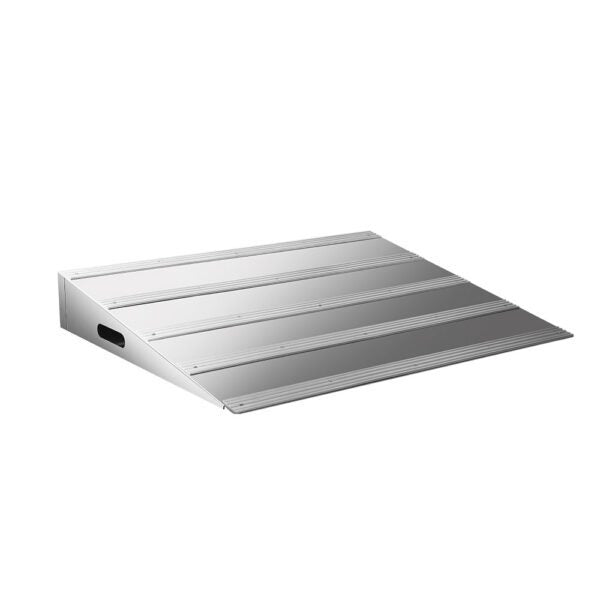

- Interior ramp for carts and hand trucks, without taking up floor space outside the box
Refrigeration

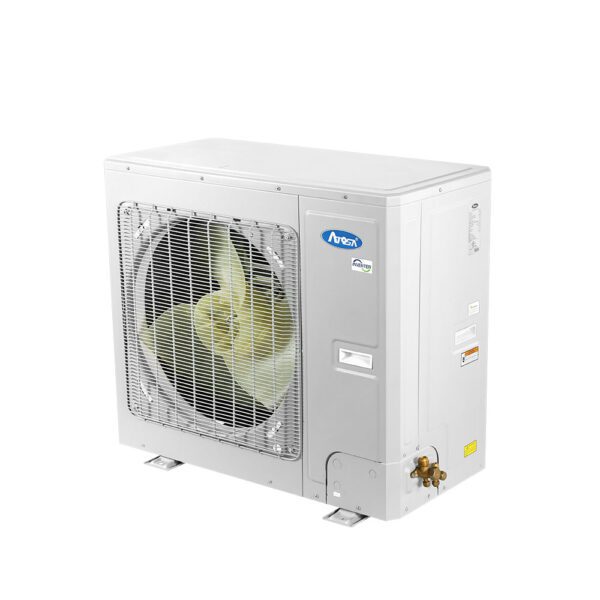

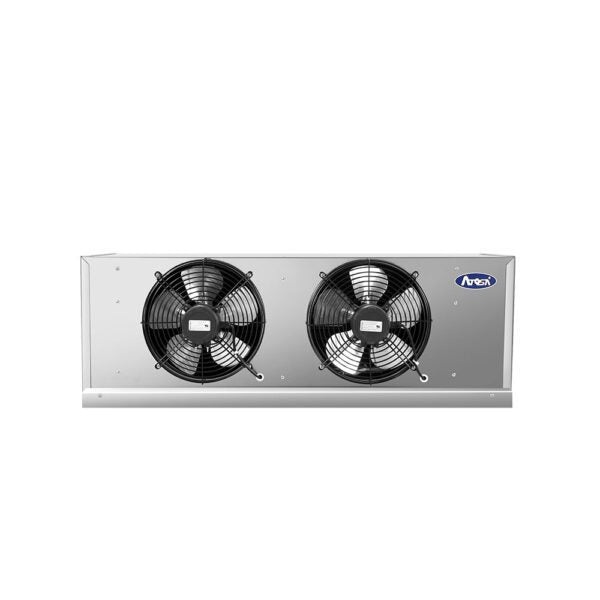

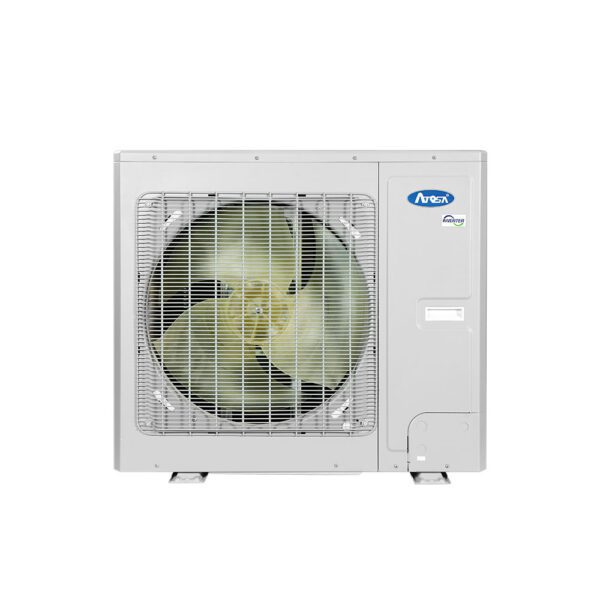

The top-mount drop-in refrigeration system includes a 1.5 HP condensing unit and evaporator, runs on R404A refrigerant, and is designed for low noise. It holds -8°F to 0°F, the range Atosa recommends for frozen food preservation. A digital LED display shows the box temperature at a glance, and a 48" ceiling-mount LED light lights the interior.
Specifications
| Spec | Detail |
|---|---|
| Model | AWF0608TF-IL/IR |
| Type | Indoor walk-in freezer with floor |
| Nominal size | 6' x 8' |
| Exterior dimensions | 72"W x 96"L x 117"H (with condenser) |
| Recommended ceiling height | 11' |
| Temperature range | -8°F to 0°F |
| Panels | 4" foamed-in-place with cam locks |
| Finish | White interior and exterior |
| Floor | Reinforced floor, standard |
| Door | 36" with heated frames and diamond tread kick plates |
| Door hinge | Left (IL) or right (IR), confirmed on quote |
| Hardware | 3 Kason spring-loaded hinges, Kason closer, Kason locking handle with inside safety release |
| Ramp | Interior |
| Lighting | 48" ceiling-mount LED |
| Display | Digital LED |
| Refrigeration | Top-mount drop-in, condensing unit and evaporator included |
| Compressor | 1.5 HP |
| Refrigerant | R404A |
| Electrical | 208–240V, 60Hz, 1-phase |
| Rated current | 12 amps |
| Warranty | 10-year panel, 5-year refrigeration, 1-year hardware |
| Certifications | cETLus, ETL Sanitation |
Installation
The AWF0608TF-IL/IR is for indoor installation only. Plan for a dedicated 208–240V single-phase circuit, an overall height of 117" with the condenser installed, and an 11' ceiling so the condenser has room to breathe. Keep the condenser clean for the best efficiency. Installation should be handled by a qualified refrigeration and electrical contractor.
Other Sizes and Options
Have room for a ramp outside the door? See the AWF0608TF-EL/ER with an exterior ramp. The Atosa interior-ramp walk-in freezer line also comes in 8' x 8' and 8' x 10' sizes. Browse all walk-in coolers and freezers, or spread the cost with restaurant equipment financing.
Frequently Asked Questions
What temperature does the AWF0608TF-IL/IR hold?
It maintains -8°F to 0°F, the range Atosa recommends for frozen food preservation.
What is the difference between the IL and IR?
IL has a left-hinged door and IR has a right-hinged door. Everything else is the same. We confirm the hinge side when you request a quote.
What is the difference between the AWF0608TF-IL/IR and the AWF0608TF-EL/ER?
Both are 6' x 8' walk-in freezers with the same box and refrigeration. The IL/IR has an interior ramp inside the box, so nothing projects outside the door. The EL/ER has an exterior ramp outside the door.
Is the refrigeration system included?
Yes. A top-mount drop-in system with a 1.5 HP condensing unit and evaporator is included.
What electrical service does it need?
208–240V, 60Hz, single phase, with a 12 amp rated current.
How much ceiling height do I need?
The overall height with the condenser installed is 117". Atosa recommends an 11' ceiling for airflow around the condenser.
Does it come with a floor?
Yes. A reinforced floor is standard.
Can it be installed outdoors?
No. The AWF0608TF-IL/IR is an indoor model.
What warranty comes with it?
10 years on panels, 5 years on refrigeration, and 1 year on hardware.
Is it certified for commercial use?
Yes. It's cETLus and ETL Sanitation listed.
How do I order?
Request a quote on this page or call or text Sean at 206-419-5801. We'll confirm the hinge side, delivery, and installation needs.
