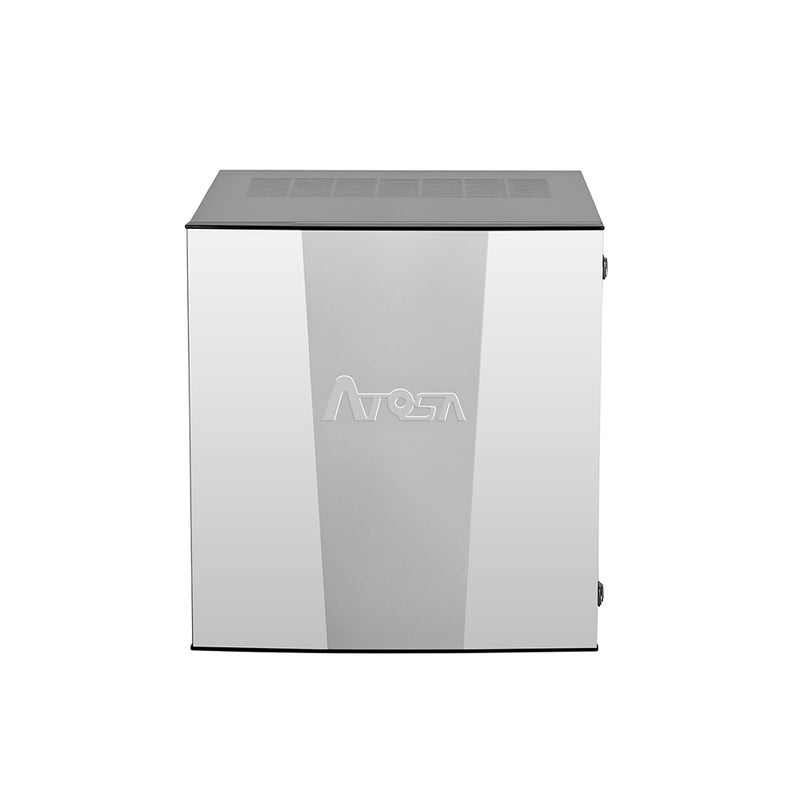

Atosa YRS0450A-161 23-Inch Modular Ice Machine, 450 lb/24 hr, Half-Dice, 115V
Atosa YRS0450A-161 23-Inch Modular Ice Machine, 450 lb/24 hr, Half-Dice, 115V
The Atosa YRS0450A-161 makes up to 450 lb of ice a day. It is a 23" machine that sits on a separate bin and runs on 115V.
At a Glance
- Size: 22-3/4" W x 24-1/4" D x 25-3/4" H
- Ice: up to 450 lb per 24 hours, half-dice cubes
- Bin: sold separately, 23" Atosa BYR0300 (300 lb)
- Power: 115V, 11.9 amps, 1,150 watts, NEMA 5-15P plug
- Water: 3M water filter system included; needs a drain
- Refrigerant: R290, air-cooled condenser
- Certifications: cETLus, ETL-Sanitation, NSF, ENERGY STAR
- Warranty: 2-year parts and labor, 5-year compressor and evaporator
Most units ship within one business day from our warehouse with free freight to the lower 48.
A Restaurant Ice Machine on 115V
This restaurant ice machine makes up to 450 lb of half-dice ice a day. That is the most of any 23" Atosa YRS model that runs on 115V. It sits on an ice bin, sold separately, and has a NEMA 5-15P plug.
Is the YRS0450A-161 the Right Size?
In a 70°F room with 50°F water, the YRS0450A-161 makes up to 450 lb of half-dice ice a day. Atosa lists 338 lb with a 90°F room and 70°F water, and 270 lb at 100°F and 90°F, so size for 338 lb if your ice area runs warm.
At 22-3/4" wide it sits on the 23" BYR0300, which holds 300 lb, about 16 hours of this machine's full output. It can also go on the 31" BYR0400 (400 lb) with the BYR0400235001 adaptor. On a 41-1/2" BYR bin the stack is about 67-1/4" tall. It runs on 115V, 11.9 amps, with a NEMA 5-15P plug.
Same 450 lb as the YRM0450A-161, on the same 115V power. The YRS0450A-161 is 22-3/4" wide and 25-3/4" tall (106 lb); the YRM0450A-161 is 30-3/4" wide and 22" tall (146 lb). Choose the YRS0450A-161 for a narrow spot; choose the YRM0450A-161 if you have 31" of width and want a 63-1/2" stack on the 400 lb bin.
Good For
- Restaurants that outgrew a 350: 100 lb more a day on the same 115V plug
- Bars: cocktail and well ice from a 22-3/4" wide head
- Narrow ice stations: 450 lb without needing 31" of width
- Catering kitchens: ice for events, 338 lb on a hot day
Built for Daily Commercial Use
- Durable stainless steel exterior
- Air-cooled condenser with a removable air filter
- Includes a 3M water filter system and cartridge
- Digital control
- Screwless front panel
- Self-contained
- Environmentally friendly R290 refrigerant
How Much Ice It Makes
Ice output drops when the room and the water are warmer. Here is what Atosa lists for the YRS0450A-161:
| Room temperature | Water temperature | Ice per 24 hours |
|---|---|---|
| 70°F | 50°F | 450 lb |
| 90°F | 70°F | 338 lb |
| 100°F | 90°F | 270 lb |
Pick the Right Model
| Model | Width | Height | Ice per 24 hr | Power |
|---|---|---|---|---|
| YRS0350A-161 | 22-3/4" | 22" | 350 lb | 115V, NEMA 5-15P |
| YRS0450A-161 (this model) | 22-3/4" | 25-3/4" | 450 lb | 115V, NEMA 5-15P |
| YRS0600A-261 | 22-3/4" | 31-3/4" | 600 lb | 208-230V, NEMA 6-20P |
| YRM0450A-161 | 30-3/4" | 22" | 450 lb | 115V, NEMA 5-15P |
| YRM0600A-261 | 30-3/4" | 25-3/4" | 600 lb | 208-230V, NEMA 6-20P |
| YRM0800A-261 | 30-3/4" | 31-3/4" | 800 lb | 208-230V, NEMA 6-20P |
Add the bin: the Atosa BYR0300 holds 300 lb and is 22-1/2" wide. A 23" machine can also go on the 31" Atosa BYR0400 with the Atosa BYR0400235001 bin adaptor (optional, sold separately).
Shop all commercial ice machines or our ice bins.
Specifications
| Spec | Detail |
|---|---|
| Configuration | 23" modular ice machine (bin sold separately) |
| Ice production | Up to 450 lb per 24 hours |
| Ice type | Half-dice, 3/8" x 7/8" x 7/8" |
| Exterior dimensions | 22-3/4" W x 24-1/4" D x 25-3/4" H |
| Condenser | Air-cooled |
| Refrigerant | R290 |
| Electrical | 115V / 60Hz / 1-phase, 11.9 amps, 1,150 watts |
| Plug | NEMA 5-15P |
| Fuse/breaker (Atosa spec) | 16 A |
| Water inlet | 3/8" slip style connector, accepts 3/8" OD tubing |
| Water outlet (drain) | 3/4" hose barb, accepts 3/4" rubber hose (hose clamp needed) |
| Water filter | 3M water filter system included |
| Operating room temperature | 41°F to 110°F |
| Water temperature | 37°F to 90°F |
| Water pressure | 30 to 70 psi |
| Net weight | 106 lb |
| Warranty | 2-year parts and labor, 5-year compressor and evaporator |
| Certifications | cETLus, ETL-Sanitation, NSF, ENERGY STAR |
Before You Order
- Power: NEMA 5-15P plug. Atosa lists 115V and 11.9 amps, with a 16 A fuse/breaker.
- This machine has no bin. Order a bin with it: the BYR0300 for a 23" setup, or the BYR0400 with the BYR0400235001 bin adaptor (optional, sold separately). Atosa also offers an optional bin thermostat kit (BYR0400217031) that stops ice making when the bin is full.
- Plan for a water line and a drain. Atosa says the water must meet drinking water standards and the machine needs a drain.
- Atosa lists water pressure of 30 to 70 psi and water temperature of 37°F to 90°F.
- Keep the room between 41°F and 110°F. Atosa lists 270 lb a day for the YRS0450A-161 with a 100°F room and 90°F water, versus 450 lb at 70°F and 50°F.
- Leave at least 2" on the left and right and 1" on top for airflow and service: about 26-3/4" of width and 68-1/4" of height for the stack.
- Check your space: the YRS0450A-161 is 22-3/4" wide, 24-1/4" deep and 25-3/4" tall.
- Add the bin height to the machine height. On a 41-1/2" tall BYR bin, the stack is about 67-1/4" tall.
- Atosa says to keep the bin drain and the machine drain separate.
- Routine cleaning and maintenance are not covered by the warranty.
Keeping It Clean
- Clean and sanitize every 3 months. Atosa recommends the Atosa ATIMD01 powder descaler and Atosa ATIMR02 powder rinse.
- The YRS0450A-161 uses 2 packs of each per cycle, with 2 qt of warm water.
- Throw out the first batch of ice made after cleaning.
- Wash the condenser air filter once a month.
- Replace the 3M water filter cartridge about every 6 months (may vary with water quality).
Atosa YRS0450A-161 FAQ
What size is the Atosa YRS0450A-161?
The YRS0450A-161 is 22-3/4" wide, 24-1/4" deep and 25-3/4" tall. It weighs 106 lb.
How much ice does the YRS0450A-161 make?
Up to 450 lb in 24 hours. Atosa lists 338 lb with a 90°F room and 70°F water, and 270 lb with a 100°F room and 90°F water.
What kind of ice does the YRS0450A-161 make?
Half-dice cubes, 3/8" x 7/8" x 7/8".
Does the YRS0450A-161 come with a bin?
No. The bin is sold separately. Use the 23" Atosa BYR0300, or the 31" BYR0400 with the BYR0400235001 bin adaptor (optional, sold separately).
What power does the YRS0450A-161 need?
It runs on 115V and draws 11.9 amps (1,150 watts). It has a NEMA 5-15P plug. Atosa lists a 16 A fuse/breaker.
Does the YRS0450A-161 need a drain?
Yes. Atosa says the YRS0450A-161 needs a water line and a drain: a 3/8" slip style connector in and a 3/4" hose barb out. Plan the drain under the 22-3/4" wide BYR0300 stack, and keep the bin drain separate from the machine drain.
Does the YRS0450A-161 come with a water filter?
Yes. The YRS0450A-161 includes a 3M water filter system. Atosa recommends a new cartridge about every 6 months, depending on water quality. On a machine making up to 450 lb a day, check the filter at each 3-month cleaning.
How often should I clean the YRS0450A-161?
Clean and sanitize at least every 3 months. The YRS0450A-161 uses 2 packs each of the ATIMD01 descaler and ATIMR02 rinse per cycle, with 2 qt of warm water. Throw out the first batch of ice, and wash the air filter monthly.
How much space does the YRS0450A-161 need around it?
Atosa says to leave at least 2" on the left and right and 1" on top. For the 22-3/4" wide YRS0450A-161, plan about 26-3/4" of width and 68-1/4" of height on a 41-1/2" BYR bin.
What certifications does the YRS0450A-161 have?
cETLus, ETL-Sanitation, NSF and ENERGY STAR. The YRS0450A-161 draws 1,150 watts on 115V.
What warranty comes with the YRS0450A-161?
The YRS0450A-161 has 2 years parts and labor and 5 years on the compressor and evaporator. Routine cleaning and maintenance, like the 2-pack cleaning cycle, are not covered.
Should I choose the YRS0450A-161 or the YRM0450A-161?
Both make up to 450 lb a day on 115V. The YRS0450A-161 is 22-3/4" wide and 25-3/4" tall; the YRM0450A-161 is 30-3/4" wide and 22" tall. Pick the YRS0450A-161 when width is tight. Pick the YRM0450A-161 when you have 31" of space and want a lower stack and the 400 lb bin.
Spec Sheet and Manual
Download the Atosa YRS0450A-161 spec sheet (PDF, Rev. 08/26)
