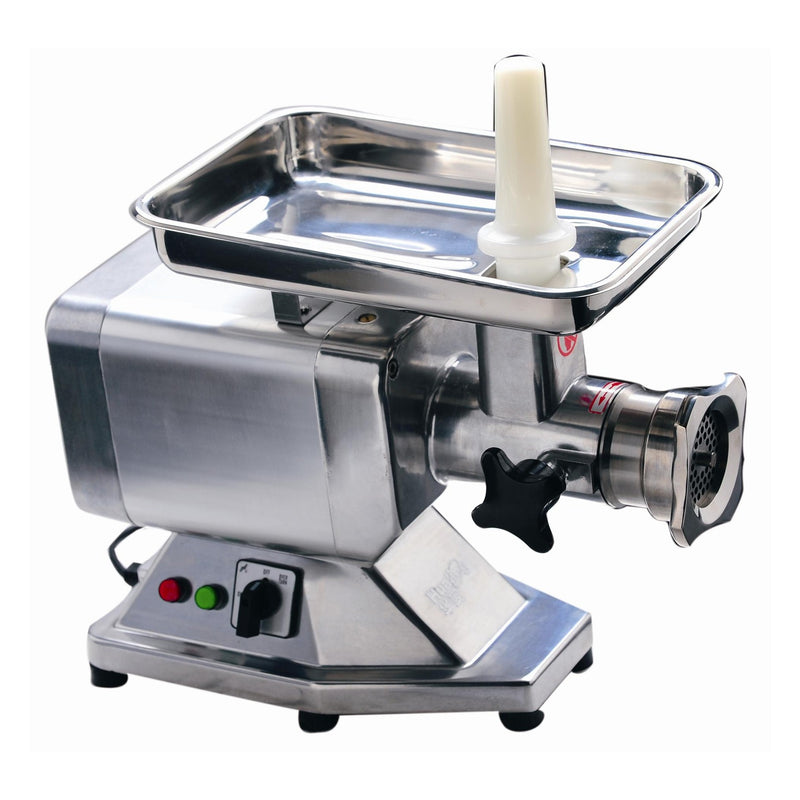

Eurodib HM22A #22 Electric Meat Grinder, 1.5 HP, 660 lb/hr, 110V
Eurodib HM22A #22 Electric Meat Grinder, 1.5 HP, 660 lb/hr, 110V
The Eurodib HM22A is a gear driven #22 electric meat grinder made for high volume commercial use. It grinds up to 660 lb of meat per hour on a 1.5 HP motor and plugs into a standard 110V outlet.
At a Glance
- Hub size: #22
- Output: up to 660 lb per hour (299 kg per hour)
- Drive: gear
- Power: 110V, 60 Hz, 1 phase, 1.5 HP (1.1 kW), 10 amps, NEMA 5-15P plug
- Plates: 4.5 mm, 8 mm and 10 mm, plus a star knife
- Safety: waterproof emergency stop switch
- Body: anodized aluminum alloy and stainless steel (from our listing)
- Size: 10" L x 24" W x 18" H
- Weight: 58.75 lb (from our price list)
- Origin: China
- Listings: cETLus, cUL
- Warranty: 1 year, parts and labor
A #22 Meat Grinder for High Volume Kitchens
This #22 meat grinder is built for high volume commercial use. It grinds up to 660 lb an hour on a 1.5 HP motor, more than twice the 264 lb of the #12 HM12N, and it still plugs into a standard 110V outlet.
Features
- HM22A gear driven motor for steady grinding power
- #22 hub
- Up to 660 lb per hour
- Grinder plates: 4.5 mm, 8 mm and 10 mm
- Star knife included
- (2) blades (from our listing)
- Waterproof emergency stop switch
- HM22A body: anodized aluminum alloy and stainless steel that resists acid, salt and rust (from our listing)
- 10 amp draw on a standard 110V outlet (NEMA 5-15P)
- cETLus and cUL listed HM22A
- 1 year parts and labor warranty
Compare Eurodib Meat Grinders
| Model | Hub | Motor | Output per hour |
|---|---|---|---|
| HM12N | #12 | 1.1 HP | 264 lb |
| HM22A (this model) | #22 | 1.5 HP | 660 lb |
How Much the HM22A Grinds in a Shift
At its rated 660 lb per hour, the HM22A works through about 165 lb in 15 minutes and 330 lb in 30 minutes. Eurodib rates it for high volume commercial use. Real output depends on the meat, how cold it is and how small you cut it, so plan batches with some margin.
HM22A vs HM12N
The Eurodib HM12N is the smaller grinder we carry: a #12 hub, a 1.1 HP motor and up to 264 lb an hour, against #22, 1.5 HP and 660 lb an hour for the HM22A. Both take the same 10" L x 24" W x 18" H of counter, so the HM22A adds output without adding footprint. The trade off is power draw: 10 amps for the HM22A against 6 amps for the HM12N.
Shop all commercial meat grinders.
Specifications
| Spec | Detail |
|---|---|
| Model | HM22A |
| Hub size | #22 |
| Production rate | 660 lb per hour (299 kg per hour) |
| Motor | 1.5 HP (1.1 kW) |
| Drive | Gear |
| Voltage | 110V, 60 Hz, 1 phase |
| Amps | 10 |
| Plug | NEMA 5-15P |
| Grinder plates | 4.5 mm, 8 mm and 10 mm |
| Accessories | Star knife |
| Blades (from our listing) | 2 |
| Safety | Waterproof emergency stop switch |
| Material (from our listing) | Anodized aluminum alloy and stainless steel |
| Dimensions | 10" L x 24" W x 18" H |
| Weight (from our price list) | 58.75 lb |
| Origin | China |
| Listings | cETLus, cUL |
| Warranty | 1 year, parts and labor |
Before You Order
- The HM22A draws 10 amps from a standard 110V outlet (NEMA 5-15P).
- Counter space for the HM22A: 10" L x 24" W x 18" H.
- Pick the hub size for your volume: #22 grinds up to 660 lb an hour.
Eurodib HM22A FAQ
What hub size is the Eurodib HM22A?
#22.
How much meat can the HM22A grind per hour?
Up to 660 lb (299 kg) per hour.
What power does the HM22A need?
A standard 110V outlet. It is 110V, 60 Hz, 1 phase, with a NEMA 5-15P plug, and draws 10 amps.
How strong is the HM22A motor?
1.5 HP (1.1 kW), gear driven.
What plates come with the HM22A?
4.5 mm, 8 mm and 10 mm plates, plus a star knife.
What safety features does the HM22A have?
The HM22A has a waterproof emergency stop switch and carries cETLus and cUL listings.
How big is the HM22A?
10" L x 24" W x 18" H, and it weighs 58.75 lb.
What is the HM22A made of?
Our listing shows the HM22A in anodized aluminum alloy and stainless steel, which resists acid, salt and rust.
What is the warranty on the HM22A?
1 year, parts and labor.
Can the HM22A share a circuit with other equipment?
It draws 10 amps. Check the total load on the circuit before adding the HM22A, and follow the instructions that come with it.
How long does the HM22A take to grind 50 lb of meat?
At its rated 660 lb per hour, about 5 minutes of grinding, not counting prep and loading.
