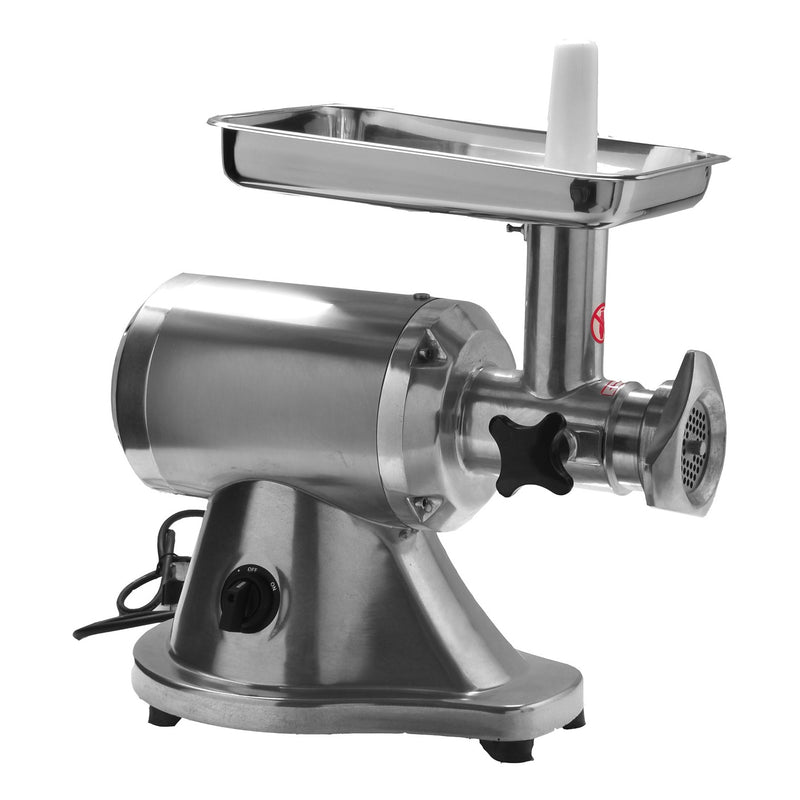

Eurodib HM12N #12 Electric Meat Grinder, 1.1 HP, 264 lb/hr, 110V
Eurodib HM12N #12 Electric Meat Grinder, 1.1 HP, 264 lb/hr, 110V
The Eurodib HM12N is a gear driven #12 electric meat grinder made for light to medium duty commercial use. It grinds up to 264 lb of meat per hour on a 1.1 HP motor and plugs into a standard 110V outlet.
At a Glance
- Hub size: #12
- Output: up to 264 lb per hour (119 kg per hour)
- Drive: gear
- Power: 110V, 60 Hz, 1 phase, 1.1 HP (750 watts), 6 amps, NEMA 5-15P plug
- Plates: 4.5 mm and 8 mm
- Safety: waterproof emergency stop switch
- Body: anodized aluminum alloy and stainless steel (from our listing)
- Size: 10" L x 24" W x 18" H
- Weight: 48.5 lb
- Listings: cETLus, cUL
- Warranty: 1 year, parts and labor
A #12 Meat Grinder for Light to Medium Duty
This compact #12 meat grinder is built for light to medium duty commercial use. It grinds up to 264 lb an hour on a 1.1 HP, 750 watt motor and plugs into a standard 110V outlet.
Features
- HM12N gear driven motor for steady grinding power
- #12 hub
- Up to 264 lb per hour
- Grinder plates: 4.5 mm and 8 mm
- (2) blades (from our listing)
- Waterproof emergency stop switch
- HM12N body: anodized aluminum alloy and stainless steel that resists acid, salt and rust (from our listing)
- 6 amp draw on a standard 110V outlet (NEMA 5-15P)
- cETLus and cUL listed HM12N
- 1 year parts and labor warranty
Compare Eurodib Meat Grinders
| Model | Hub | Motor | Output per hour |
|---|---|---|---|
| HM12N (this model) | #12 | 1.1 HP | 264 lb |
| HM22A | #22 | 1.5 HP | 660 lb |
How Much the HM12N Grinds in a Shift
At its rated 264 lb per hour, the HM12N works through about 66 lb in 15 minutes and 132 lb in 30 minutes. Eurodib rates it for light to medium duty commercial use. Real output depends on the meat, how cold it is and how small you cut it, so plan batches with some margin.
HM12N vs HM22A
The Eurodib HM22A is the larger grinder we carry: a #22 hub, a 1.5 HP motor and up to 660 lb an hour, against #12, 1.1 HP and 264 lb an hour for the HM12N. Both take the same 10" L x 24" W x 18" H of counter. The HM12N draws 6 amps against 10 amps for the HM22A, which leaves more room on a shared 110V circuit.
Shop all commercial meat grinders.
Specifications
| Spec | Detail |
|---|---|
| Model | HM12N |
| Hub size | #12 |
| Production rate | 264 lb per hour (119 kg per hour) |
| Motor | 1.1 HP (750 watts) |
| Drive | Gear |
| Voltage | 110V, 60 Hz, 1 phase |
| Amps | 6 |
| Plug | NEMA 5-15P |
| Grinder plates | 4.5 mm and 8 mm |
| Blades (from our listing) | 2 |
| Safety | Waterproof emergency stop switch |
| Material (from our listing) | Anodized aluminum alloy and stainless steel |
| Dimensions | 10" L x 24" W x 18" H |
| Weight | 48.5 lb |
| Listings | cETLus, cUL |
| Warranty | 1 year, parts and labor |
Use and Care
From the Eurodib HM-12N manual:
- Set it on a flat, stable surface.
- Remove skin and bones, and cut meat into small pieces before you feed it in.
- Push food in with the pusher that comes with it. Do not use anything else.
- Unplug it before you clean it.
- Wash the parts in clean water each day, and wipe the body with a cloth. Do not use chemicals, abrasives or brushes.
- Do not run the machine under water. Dry all parts, then put them back and tighten the lock nut.
- Oil the gear and shaft about twice a year.
- If the grind looks off, tighten the lock nut, clear food from the plate, or sharpen or replace the blade.
Before You Order
- The HM12N draws 6 amps from a standard 110V outlet (NEMA 5-15P).
- Counter space for the HM12N: 10" L x 24" W x 18" H.
- Pick the hub size for your volume: #12 grinds up to 264 lb an hour.
Eurodib HM12N FAQ
What hub size is the Eurodib HM12N?
#12.
How much meat can the HM12N grind per hour?
Up to 264 lb (119 kg) per hour.
What power does the HM12N need?
A standard 110V outlet. It is 110V, 60 Hz, 1 phase, with a NEMA 5-15P plug, and draws 6 amps.
How strong is the HM12N motor?
1.1 HP (750 watts), gear driven.
What plates come with the HM12N?
4.5 mm and 8 mm plates.
What safety features does the HM12N have?
The HM12N has a waterproof emergency stop switch and carries cETLus and cUL listings.
How big is the HM12N?
10" L x 24" W x 18" H, and it weighs 48.5 lb.
What is the HM12N made of?
Our listing shows the HM12N in anodized aluminum alloy and stainless steel, which resists acid, salt and rust.
What is the warranty on the HM12N?
1 year, parts and labor. Eurodib says the unit must be brought to a certified service center for repairs.
How do I clean the HM12N?
Unplug it, take the parts off, and wash them in clean water each day. Wipe the body with a cloth. Do not use chemicals, abrasives or brushes, and do not run it under water.
Can the HM12N share a circuit with other equipment?
It draws 6 amps. Check the total load on the circuit before adding the HM12N, and follow the instructions that come with it.
How long does the HM12N take to grind 50 lb of meat?
At its rated 264 lb per hour, about 11 minutes of grinding, not counting prep and loading.
