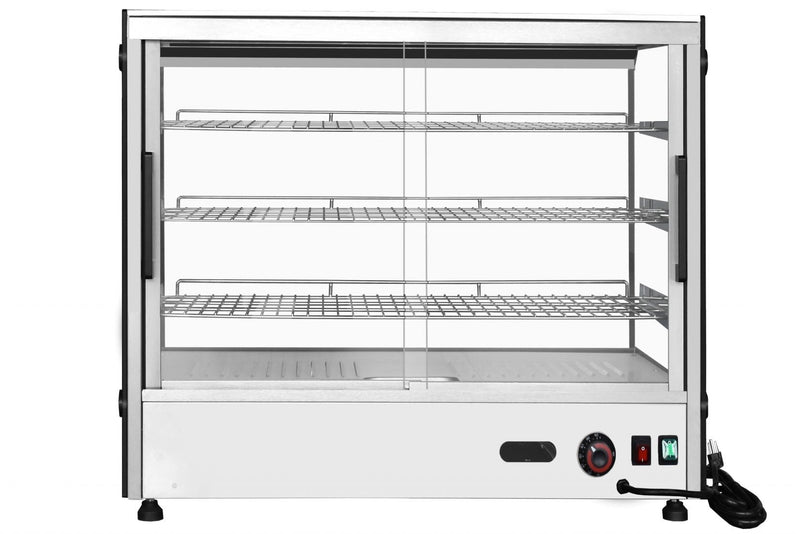

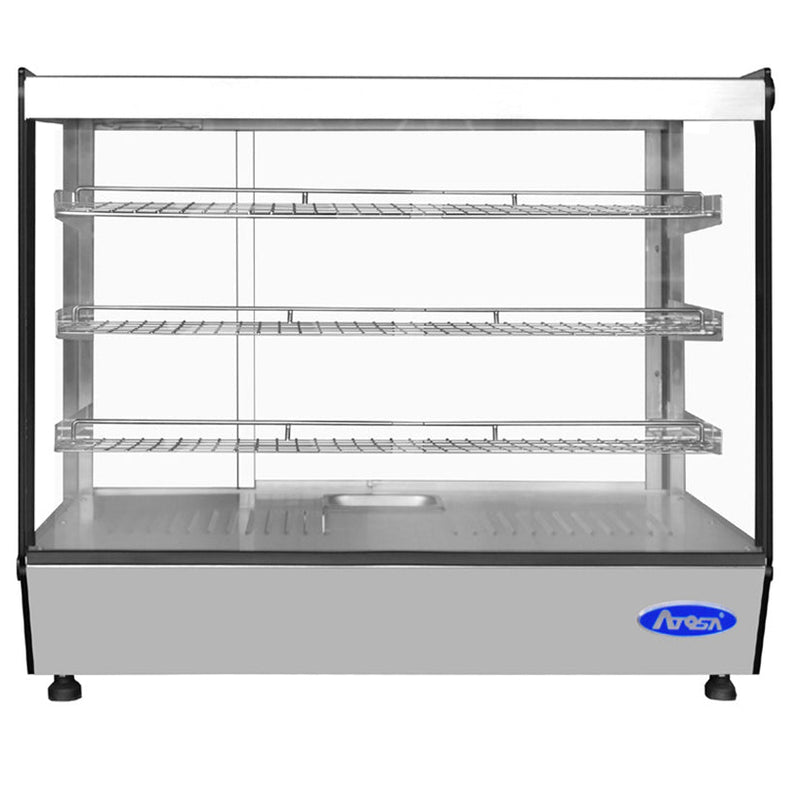

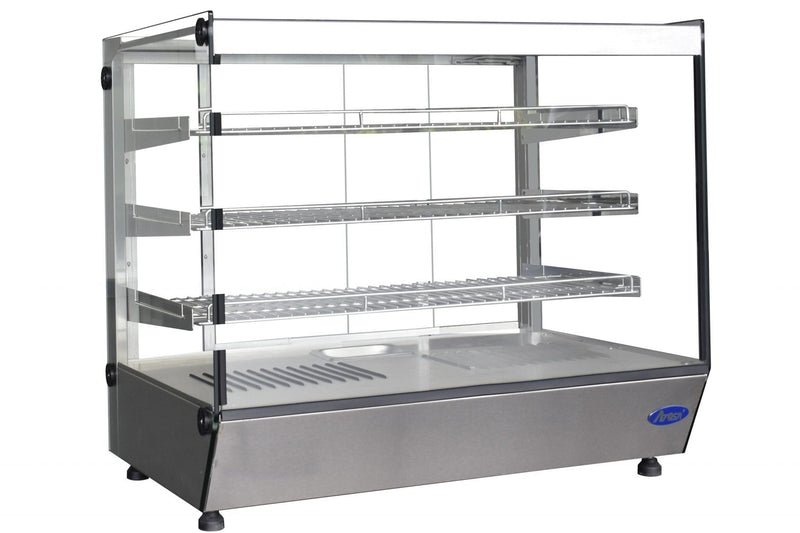

Atosa CookRite CHDS-71 Food Warmer Display Case, Square, 7.1 cu. ft.
Atosa CookRite CHDS-71 Food Warmer Display Case, Square, 7.1 cu. ft.
The Atosa CHDS-71 is a CookRite countertop heated display with a square front and 7.1 cu. ft. on 3 shelves. It holds 86°F to 194°F, and a water pan adds humidity.
At a Glance
- Capacity: 7.1 cu. ft., 3 stainless steel shelves
- Style: square front
- Size: 35-7/8" W x 22-1/2" D x 26-1/2" H
- Temperature: 86°F to 194°F, electronic digital controller
- Doors: 2 rear sliding glass doors
- Electrical (as Atosa lists): 115V, 60 Hz, 1 phase, 13.7 A, 1,650 W, NEMA 5-20P plug
- Certifications: cETLus, ETL-Sanitation
- Warranty: 1 year parts and labor (US only)
Most units ship within one business day from our warehouse with free freight to the lower 48.
The 7.1 cu. ft. Food Warmer Display Case
This food warmer display case is 35-7/8" wide with a square front. At 7.1 cu. ft., it is the largest in the line.
The CHDS-71 is the largest case in the line: 35-7/8" wide with a square front and 7.1 cu. ft. on 3 shelves. That is 1.4 cu. ft. more than the curved CHDC-56 at the same width.
Like the CHDC-56, it needs a 20 A receptacle. Atosa lists 115V, 13.7 A and 1,650 W with a NEMA 5-20P plug (NEMA 5-20R outlet). It weighs 121 lb.
For a curved front, the CHDC-56 is 35-7/8" wide with 5.7 cu. ft. On a 15 A outlet, the 28" CHDS-53 holds 5.3 cu. ft.
Good For
- High volume convenience stores: the most hot case space in the line
- Pizza shops: slices, calzones and garlic knots on 3 shelves
- Delis and markets: a full hot grab-and-go case
- Stadium and event concessions: more food between restocks
Standard Features
- Stainless steel outside and inside
- Removable water pan to add humidity
- Electronic digital controller
- Three (3) stainless steel shelves
- Holds 86°F to 194°F
- Magnetic door gaskets for a tight door seal
- Two (2) rear sliding glass doors
- LED interior lighting
- Leveling legs
Pick the Right Size
| Model | Front | Capacity | Width | Watts | Plug |
|---|---|---|---|---|---|
| CHDC-44 | Curved | 4.4 cu. ft. | 28" | 1,250 | NEMA 5-15P |
| CHDC-56 | Curved | 5.7 cu. ft. | 35-7/8" | 1,650 | NEMA 5-20P |
| CHDS-53 | Square | 5.3 cu. ft. | 28" | 1,250 | NEMA 5-15P |
| CHDS-71 (this model) | Square | 7.1 cu. ft. | 35-7/8" | 1,650 | NEMA 5-20P |
Shop all food holding equipment and commercial food warmers.
Specifications
| Spec | Detail |
|---|---|
| Type | Countertop heated display, square front |
| Capacity | 7.1 cu. ft. |
| Shelves | 3, stainless steel |
| Doors | 2 rear sliding glass doors |
| Temperature range | 86°F to 194°F |
| Controller | Electronic digital |
| Humidity | Removable water pan |
| Lighting | LED interior |
| Voltage (as Atosa lists) | 115V / 60 Hz / 1 phase |
| Rated current (as Atosa lists) | 13.7 A |
| Rated power (W) | 1,650 |
| Plug (as Atosa lists) | NEMA 5-20P |
| Leveling legs | 1.5" |
| Construction | Stainless steel exterior and interior |
| Exterior dimensions | 35-7/8" W x 22-1/2" D x 26-1/2" H |
| Net weight | 121 lb |
| Gross weight | 168 lb |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1 year parts and labor (US only) |
Before You Order
- Electrical: Atosa lists 115V, 60 Hz, 1 phase, 13.7 A, 1,650 W, NEMA 5-20P plug.
- Check your space: the CHDS-71 is 35-7/8" wide, 22-1/2" deep and 26-1/2" tall. It weighs 121 lb.
- Doors: the 2 sliding glass doors are on the back.
Atosa CHDS-71 FAQ
What size is the Atosa CHDS-71?
35-7/8" W x 22-1/2" D x 26-1/2" H. At 121 lb (168 lb shipped), it is the heaviest of the four.
How much does the CHDS-71 hold?
7.1 cu. ft., the largest capacity of the four, on 3 stainless steel shelves.
What temperature range does the CHDS-71 have?
It holds 86°F to 194°F, set on an electronic digital controller.
What power does the CHDS-71 need?
115V, 60 Hz, 1 phase, 13.7 A and 1,650 W with a NEMA 5-20P plug, per Atosa. Plan for a 20 A receptacle.
Does the CHDS-71 add humidity?
Yes. The water pan is removable and adds humidity to the case.
Where are the doors on the CHDS-71?
At the back: 2 sliding glass doors with magnetic gaskets for a tight seal.
Is the CHDS-71 curved or square?
Square front. The curved version at this width is the CHDC-56, with 5.7 cu. ft.
Does the CHDS-71 have lights?
Yes. The CHDS-71 has LED interior lights.
What certifications does the CHDS-71 have?
Atosa lists cETLus and ETL-Sanitation.
What warranty comes with the CHDS-71?
Atosa gives the CHDS-71 a 1 year parts and labor warranty in the US.
Which CHDC or CHDS case is the biggest?
The CHDS-71, at 7.1 cu. ft. and 35-7/8" wide. It is the largest of the four CHDC and CHDS models.
Spec Sheet
Download the Atosa CHDS-71 spec sheet (PDF, Rev. 02/25)
CHDS-71 Parts & Service
For OEM replacement parts for the CHDS-71, see the CHDS-71 parts list, with part numbers and quantities from Atosa's exploded-view diagram. Parts lists for every model are on the Atosa parts lists index.
