Atosa CookRite CHDS-53 Hot Food Display Case, Square, 5.3 cu. ft.
Atosa CookRite CHDS-53 Hot Food Display Case, Square, 5.3 cu. ft.

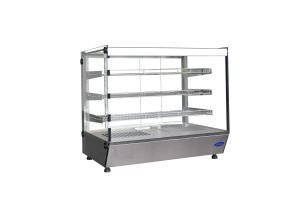

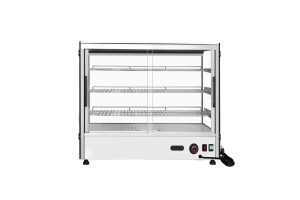

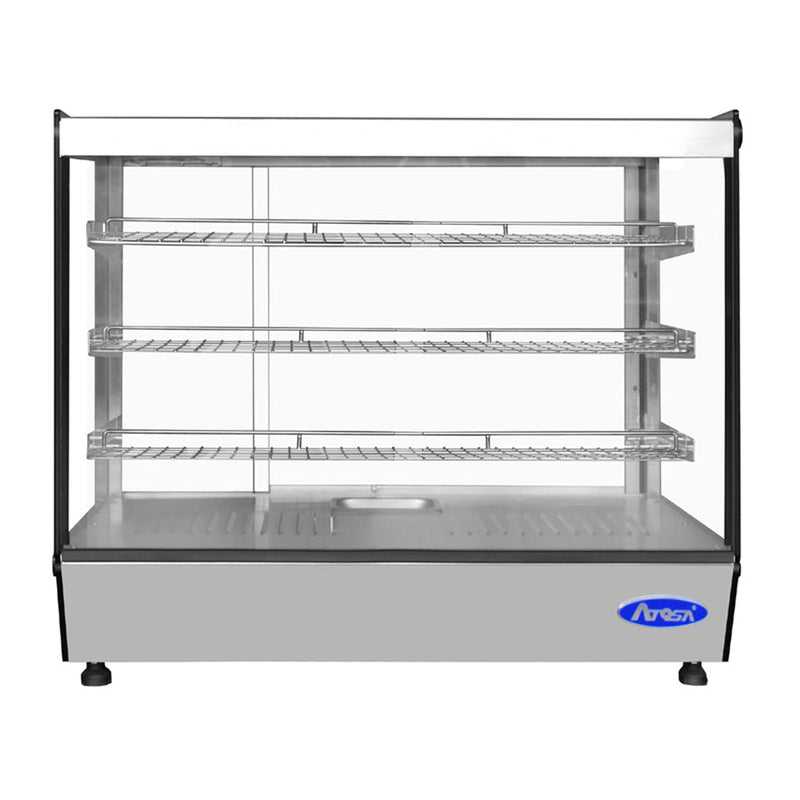

The Atosa CHDS-53 is a CookRite countertop heated display with a square front and 5.3 cu. ft. on 3 shelves. It holds 86°F to 194°F, and a water pan adds humidity.
At a Glance
- Capacity: 5.3 cu. ft., 3 stainless steel shelves
- Style: square front
- Size: 28" W x 22-1/2" D x 26-1/2" H
- Temperature: 86°F to 194°F, electronic digital controller
- Doors: 2 rear sliding glass doors
- Electrical (as Atosa lists): 115V, 60 Hz, 1 phase, 10.5 A, 1,250 W, NEMA 5-15P plug
- Certifications: cETLus, ETL-Sanitation
- Warranty: 1 year parts and labor (US only)
Most units ship within one business day from our warehouse with free freight to the lower 48.
A 5.3 cu. ft. Hot Food Display Case, Square Front
This hot food display case is 28" wide with a square front and 3 shelves. It holds 86°F to 194°F with an electronic digital controller.
The CHDS-53 is the 28" square front case. The square front gives it 5.3 cu. ft., 0.9 cu. ft. more than the curved CHDC-44 in the same width.
It is 22-1/2" deep, 1/4" less than the curved model, and weighs 101 lb. Atosa lists 115V, 10.5 A and 1,250 W on a standard NEMA 5-15P plug.

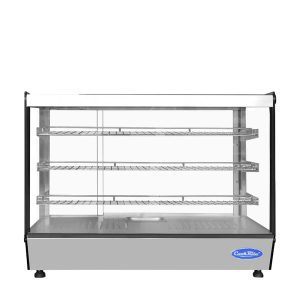

Prefer a curved front? The CHDC-44 is the same 28" width. For 7.1 cu. ft., the CHDS-71 is 35-7/8" wide.
Good For
- Convenience stores: more hot food space in 28" of counter
- Pizza and sandwich shops: slices, calzones and hot subs
- Delis and markets: hot sides and boxed items on square shelves
- Concessions: a standard outlet case with more room inside
Standard Features
- Stainless steel outside and inside
- Removable water pan to add humidity
- Electronic digital controller
- Three (3) stainless steel shelves
- Holds 86°F to 194°F
- Magnetic door gaskets for a tight door seal
- Two (2) rear sliding glass doors
- LED interior lighting
- Leveling legs
Pick the Right Size
| Model | Front | Capacity | Width | Watts | Plug |
|---|---|---|---|---|---|
| CHDC-44 | Curved | 4.4 cu. ft. | 28" | 1,250 | NEMA 5-15P |
| CHDC-56 | Curved | 5.7 cu. ft. | 35-7/8" | 1,650 | NEMA 5-20P |
| CHDS-53 (this model) | Square | 5.3 cu. ft. | 28" | 1,250 | NEMA 5-15P |
| CHDS-71 | Square | 7.1 cu. ft. | 35-7/8" | 1,650 | NEMA 5-20P |
Shop all food holding equipment and commercial food warmers.
Specifications
| Spec | Detail |
|---|---|
| Type | Countertop heated display, square front |
| Capacity | 5.3 cu. ft. |
| Shelves | 3, stainless steel |
| Doors | 2 rear sliding glass doors |
| Temperature range | 86°F to 194°F |
| Controller | Electronic digital |
| Humidity | Removable water pan |
| Lighting | LED interior |
| Voltage (as Atosa lists) | 115V / 60 Hz / 1 phase |
| Rated current (as Atosa lists) | 10.5 A |
| Rated power (W) | 1,250 |
| Plug (as Atosa lists) | NEMA 5-15P |
| Leveling legs | 1.5" |
| Construction | Stainless steel exterior and interior |
| Exterior dimensions | 28" W x 22-1/2" D x 26-1/2" H |
| Net weight | 101 lb |
| Gross weight | 135 lb |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1 year parts and labor (US only) |
Before You Order
- Electrical: Atosa lists 115V, 60 Hz, 1 phase, 10.5 A, 1,250 W, NEMA 5-15P plug.
- Check your space: the CHDS-53 is 28" wide, 22-1/2" deep and 26-1/2" tall. It weighs 101 lb.
- Doors: the 2 sliding glass doors are on the back.
Atosa CHDS-53 FAQ
What size is the Atosa CHDS-53?
28" wide, 22-1/2" deep and 26-1/2" tall. It weighs 101 lb, or 135 lb shipped.
How much does the CHDS-53 hold?
5.3 cu. ft. on 3 stainless steel shelves, the most of the two 28" models.
What temperature range does the CHDS-53 have?
86°F to 194°F with an electronic digital controller.
What power does the CHDS-53 need?
Atosa lists 115V, 60 Hz, 1 phase, 10.5 A and 1,250 W. The NEMA 5-15P plug fits a standard 15 A outlet.
Does the CHDS-53 add humidity?
Yes. A removable water pan adds humidity.
Where are the doors on the CHDS-53?
There are 2 rear sliding glass doors with magnetic gaskets.
Is the CHDS-53 curved or square?
Square. That front gives it 0.9 cu. ft. more than the curved CHDC-44.
Does the CHDS-53 have lights?
It has LED interior lighting.
What certifications does the CHDS-53 have?
The CHDS-53 is cETLus and ETL-Sanitation listed.
What warranty comes with the CHDS-53?
1 year parts and labor from Atosa (US only).
Why does the CHDS-53 hold more than the CHDC-44?
The square front. Both are 28" wide and 26-1/2" tall, but Atosa lists 5.3 cu. ft. for the square CHDS-53 and 4.4 cu. ft. for the curved CHDC-44.
Spec Sheet
Download the Atosa CHDS-53 spec sheet (PDF, Rev. 02/25)
CHDS-53 Parts & Service
For OEM replacement parts for the CHDS-53, see the CHDS-53 parts list, with part numbers and quantities from Atosa's exploded-view diagram. Parts lists for every model are on the Atosa parts lists index.
